Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
Compatibility
Security Hardware
TPM 2.0
Expansion Slots
Internal M.2
1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)
Thermal & Environmental
Operating Temperature
-30℃ to +70℃
Storage Temperature
-40℃ to +80℃
Cooling Solution
Passive – Fanless
Humidity Range
10% – 90% Non-condensing
Storage Humidity
10% – 93% Non-condensing
Enclosure
Color
Black
Led Indicator Light
Power
Control Buttons
Power Switch
Peripherals & Wireless Connectivity
WiFi
Wi-Fi 6 optional
Bluetooth
Optional Bluetooth 5.1
Weight / Dimensions
Weight
1.38 kg

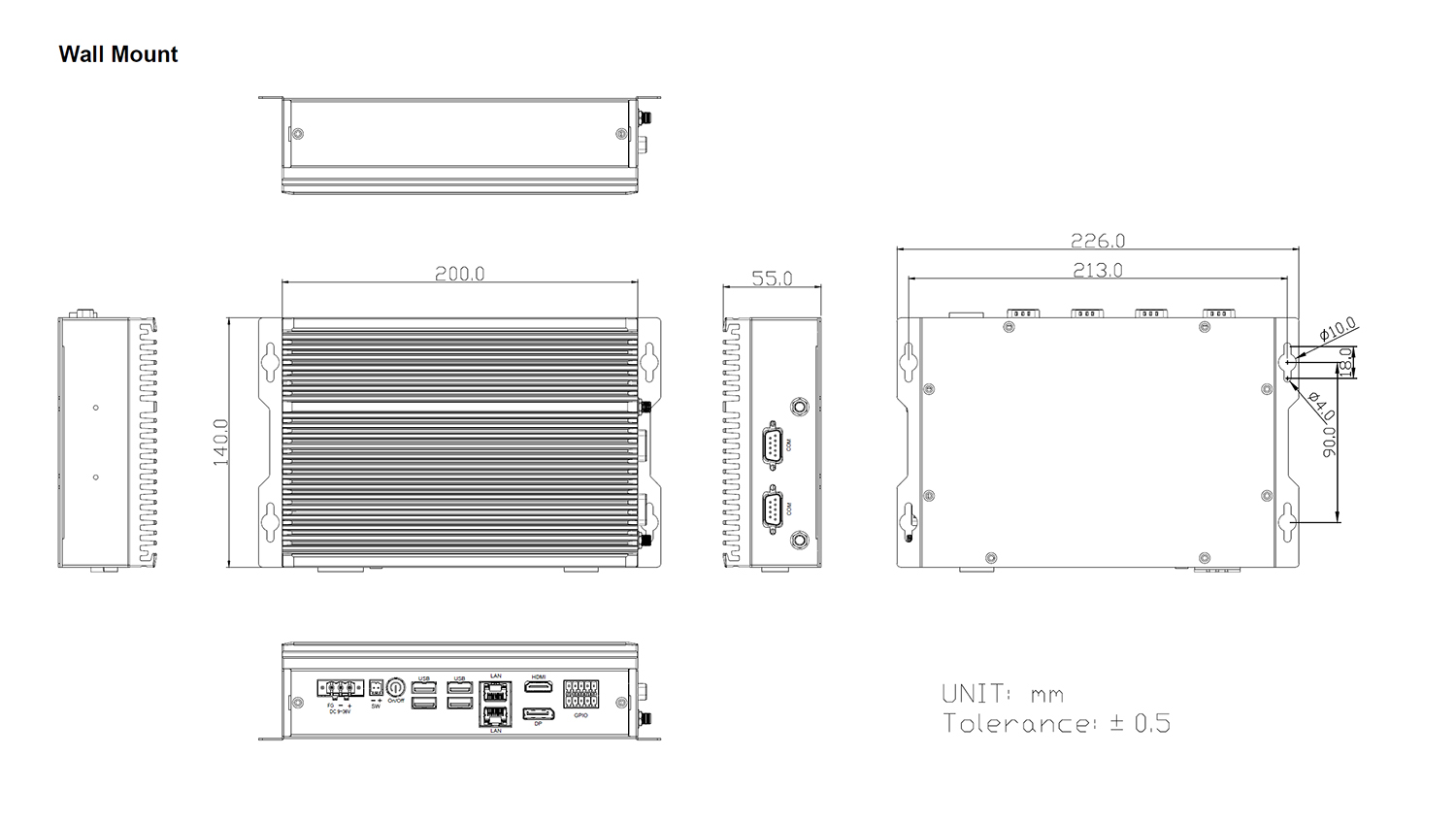

Dimensions
200 x 55 x 150 mm
Certification
Certifications
CE, FCC, CCC, RoHS, LVD
The 760H2 Industrial Edge Computer, independently developed by Vincanwo Group, is a compact, fanless, high-reliability edge computing terminal tailored for Industrial Internet of Things (IIoT), on-site data processing and intelligent industrial automation scenarios. Different from traditional general-purpose industrial box PCs, it focuses on local edge computing, real-time data analysis and field device linkage, solving the pain points of high latency, network dependence and data security risks in cloud-only industrial solutions. It has become a core hardware terminal for smart factories, industrial digitization and distributed industrial control systems.
Core Technical Highlights
1. High-Efficiency Edge Computing Performance
Powered by 11th Gen Intel Core i5 industrial-grade processors, the 760H2 delivers powerful and stable local computing capabilities to support real-time data collection, filtering, analysis and preprocessing at the industrial edge. It undertakes massive on-site data computing tasks that originally rely on remote cloud servers, effectively reducing cloud transmission pressure, lowering network latency, and ensuring millisecond-level response for on-site industrial control commands. The multi-core parallel processing capability supports simultaneous operation of edge AI recognition, data logging, equipment monitoring and protocol conversion without stuttering or downtime.
Adopting full-metal seamless heat dissipation and passive fanless structure, the 760H2 features zero mechanical wear, dustproof, waterproof, shockproof and anti-vibration performance, fully adapting to harsh industrial environments such as factory workshops, outdoor industrial sites and automated production lines. Its ultra-compact body design saves installation space significantly, enabling flexible embedded deployment in industrial cabinets, production equipment, AGVs and edge gateway cabinets. It supports 24/7 long-term continuous operation, meeting the high-reliability operation requirements of industrial mission-critical scenarios.

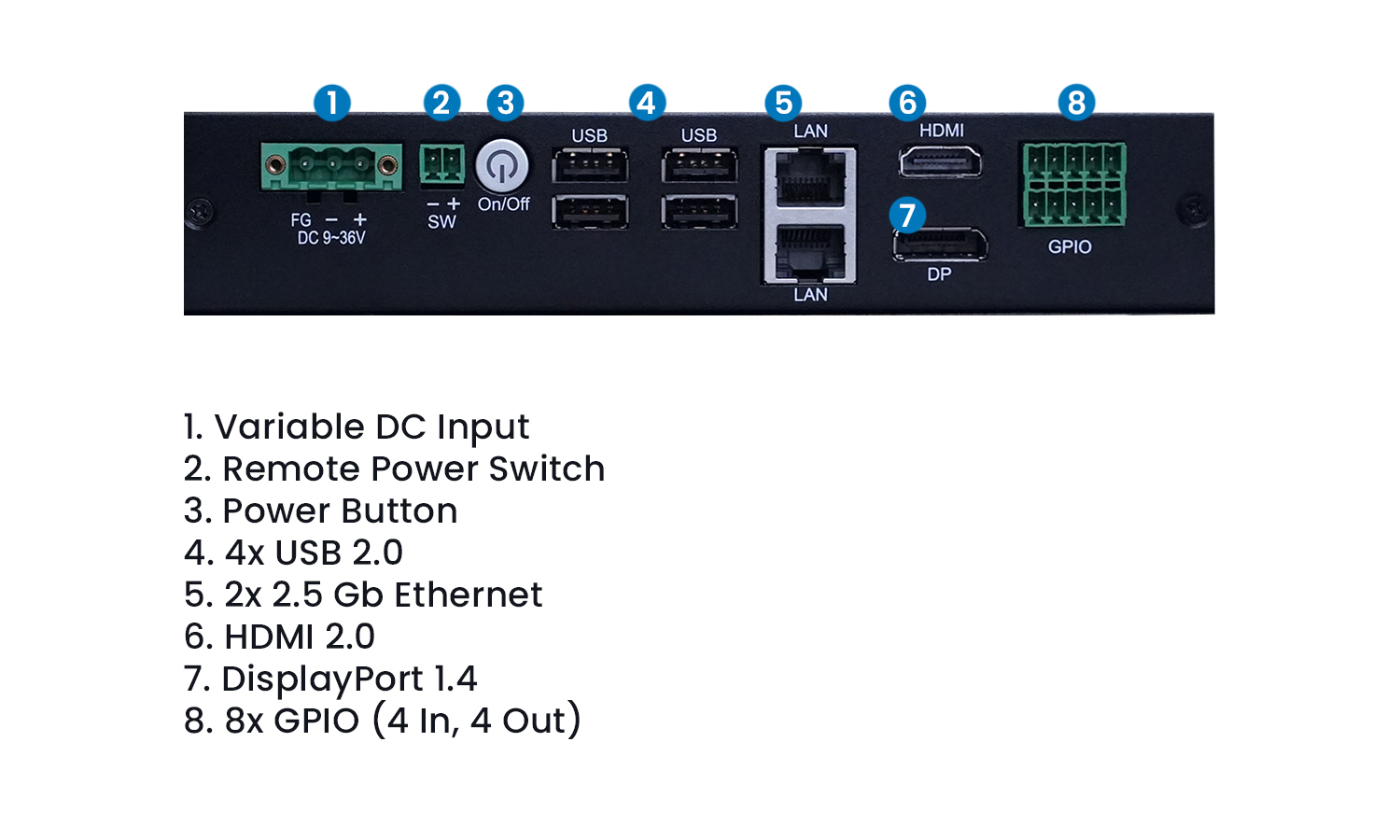

Equipped with complete industrial dedicated interfaces, including Gigabit Ethernet, high-speed USB ports, RS232/RS485 serial ports and customizable industrial bus interfaces, the 760H2 supports seamless connection with PLCs, sensors, industrial robots, vision inspection equipment and various industrial automation terminals. It is compatible with mainstream industrial communication protocols such as Modbus, TCP/IP and OPC UA, realizing efficient access, protocol conversion and data interconnection of heterogeneous industrial devices, and building a stable data link for edge industrial interconnection.
4. Low Latency & Secure Local Data Processing
As an edge computing terminal, it realizes local data storage and real-time analysis, avoiding massive raw data transmission to the cloud. It effectively reduces network bandwidth consumption, eliminates network delay interference, and improves the real-time and stability of industrial control. Meanwhile, local data processing avoids core industrial data leakage risks caused by cloud transmission, greatly improving the overall data security of industrial production and meeting the strict data compliance requirements of intelligent manufacturing enterprises.
The 760H2 supports mainstream industrial operating systems including Windows 10 IoT, Windows 11 and Linux, adapting to diverse edge software development, secondary development and industrial system docking needs. It provides flexible customized options for storage capacity, interface configuration and wide-temperature working conditions, which can meet the personalized edge computing deployment requirements of different industrial scenarios and enterprise production standards.
Main Industrial Edge Application Scenarios
1. Smart Factory & Production Line Edge Monitoring
Deployed on automated production lines, the 760H2 serves as an edge computing node to collect real-time operating data of production equipment, monitor production status, analyze production efficiency, and realize automatic early warning of equipment faults. It supports on-site visual monitoring and data statistics, assists enterprises in realizing unmanned monitoring of production lines, optimizing production processes, and improving production efficiency and yield.
2. Industrial IoT Gateway & Data Interconnection
It acts as a core edge gateway for industrial Internet platforms, realizing unified access, protocol conversion and data aggregation of scattered on-site industrial equipment. It uploads standardized industrial data to the enterprise cloud platform while retaining key data for local real-time control, solving the problems of isolated data islands and difficult device interconnection in traditional industrial production.
3. Industrial Machine Vision & Edge AI Inspection
With powerful local computing performance, the device supports edge AI algorithm operation and machine vision image analysis. It is widely used in industrial precision defect detection, product appearance inspection, size screening and other scenarios, realizing real-time on-site identification and judgment without relying on cloud computing resources, greatly improving the speed and accuracy of industrial quality inspection.
4. Intelligent Logistics & Automated Equipment Control
Applied to industrial AGVs, handling robots and intelligent logistics sorting equipment, the 760H2 provides stable edge computing support for equipment navigation, path planning and real-time scheduling. It ensures efficient and stable operation of automated logistics equipment, realizes intelligent scheduling and unmanned operation of factory logistics, and improves the automation level of industrial logistics systems.
5. Energy & Environmental Industrial Monitoring
Suitable for edge data collection and intelligent monitoring in energy, chemical, environmental protection and other industrial fields. It realizes real-time monitoring of equipment operating status, environmental data and energy consumption data, supports abnormal data early warning and statistical analysis, helping enterprises achieve energy-saving emission reduction, safe production and refined energy management.
Product Edge Value
The Vincanwo 760H2 Industrial Edge Computer breaks the limitations of traditional cloud-centric industrial solutions. With rugged industrial adaptability, low-latency local computing, multi-device interconnection capability and high data security, it provides lightweight, efficient and reliable edge computing hardware solutions for industrial digitization and intelligent upgrading. It empowers various industries to realize on-site intelligent perception, real-time control and efficient data management, and accelerates the comprehensive transformation of traditional industries to intelligent and digital IIoT systems.
