ANBOX
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| Model | ANBOX | ||||||||
| Primary Components | Processor Family | Rockchip's ARM Cortex processors | |||||||
| Processor | RK3566: Quad-core ARM Cortex-A55 (up to 1.8GHz) RK3568: Quad-Core ARM Cortex-A55 (up to 2.0GHz) RK3288: Quad-core ARM Cortex-A17 (up to 1.8GHz) RK3399: Hexa-core (6-core) with big (A72) & little (A53) architecture RK3588: Octa-core (4x Cortex-A76 + 4x Cortex-A55) | ||||||||
| Memory | RK3566: LPDDR4 default 2G, optional 4G, 8G RK3568: LPDDR4 default 2G, optional 4G, 8G RK3288: DDR3 default 2G, optional 4G RK3588: LPDDR4, 4G, 8G, 16G RK3588S: LPDDR4, 4G, 8G, 16G | ||||||||
| Storage | 32GB, 64GB, 128GB, 256GB | ||||||||
| Operating Systems | Android | Android 11,12,13,14/GMS | |||||||
| Linux | Linux 4.1.15, Debian 10, 11, buildroot | ||||||||
| Peripherals & Wireless Connectivity | WiFi | Optional WiFi/Built-in PCI | |||||||
| Bluetooth | Bluetooth 4.0 | ||||||||
| External I/O Ports | USB | 6x USB | |||||||
| Serial/COM | 2x RS232+1x RS485 | ||||||||
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN | ||||||||
| Video Outputs | 1x HDMI | ||||||||
| Other Ports | 1x LINE OUT | ||||||||
| Power Input Port | DC-in Jack (Phoenix Type) | ||||||||
| Expansion Slots | Others | 4G module | |||||||
| Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W | |||||||
| Input Voltage Range | / | ||||||||
| Weight / Dimensions | Weight | 0.90 kg | |||||||

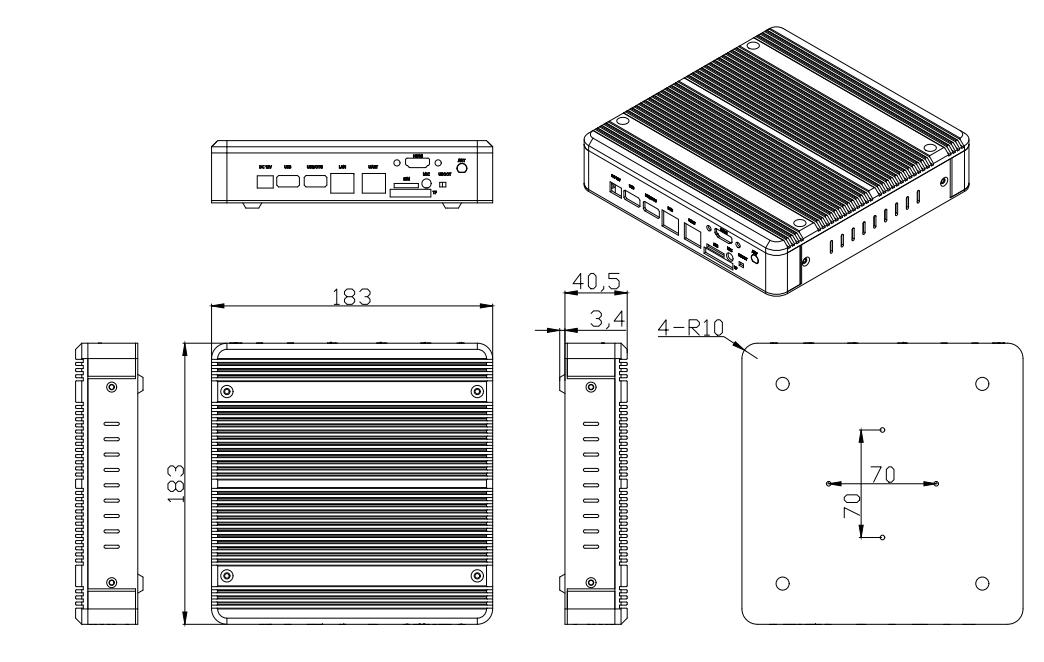

| Dimensions | 183x183x45 mm | ||||||||
| Thermal & Environmental | Operating Temperature | -30°C ~ 70°C | |||||||
| Storage Temperature | -40°C ~ 80°C | ||||||||
| Cooling Solution | Passive – Fanless | ||||||||
| Humidity Range | 10% – 95% Non-condensing | ||||||||
| Enclosure | Material | Aluminum | |||||||
| Color | Silver | ||||||||
| Led Indicator Light | HDD Access, Power | ||||||||
| Mounting Options | DIN Rail Mount, Desktop, Wall Mount | ||||||||
Product Overview
ANBOX is a series of industrial‑grade, fanless Mini PCs powered by the Android operating system, designed and manufactured by Vincanwo Group. Built for continuous 24/7 operation, ANBOX features a rugged, passive‑cooling design that ensures stability, low maintenance, and long‑term reliability in harsh industrial environments.
Key Features
• Fanless design for silent, vibration‑free operation • Android OS for seamless compatibility with industrial applications • Compact and space‑saving form factor • Wide operating temperature range (varies by model) • Robust aluminum alloy housing for efficient heat dissipation • Rich I/O connectivity, including USB, Ethernet, serial ports, and more • Support for multiple displays and various industrial protocols • High reliability with extended product lifecycleApplications
• Industrial automation and control systems • HMI (Human‑Machine Interface) terminals • Digital signage and smart displays • Kiosks, POS terminals, and information kiosks • Smart factory and IoT edge computing • Logistics, warehousing, and transportation systems • Healthcare and retail automation solutionsWhy Choose ANBOX by Vincanwo Group?
• Industrial‑grade reliability for mission‑critical applications • Low power consumption and reduced maintenance costs • Easy integration with Android‑based software ecosystems • Customization options available to meet specific project requirements • Backed by Vincanwo Group’s expertise in industrial computing solutionsFor more information about specifications, models, or customization options, please contact Vincanwo Group’s sales team.
