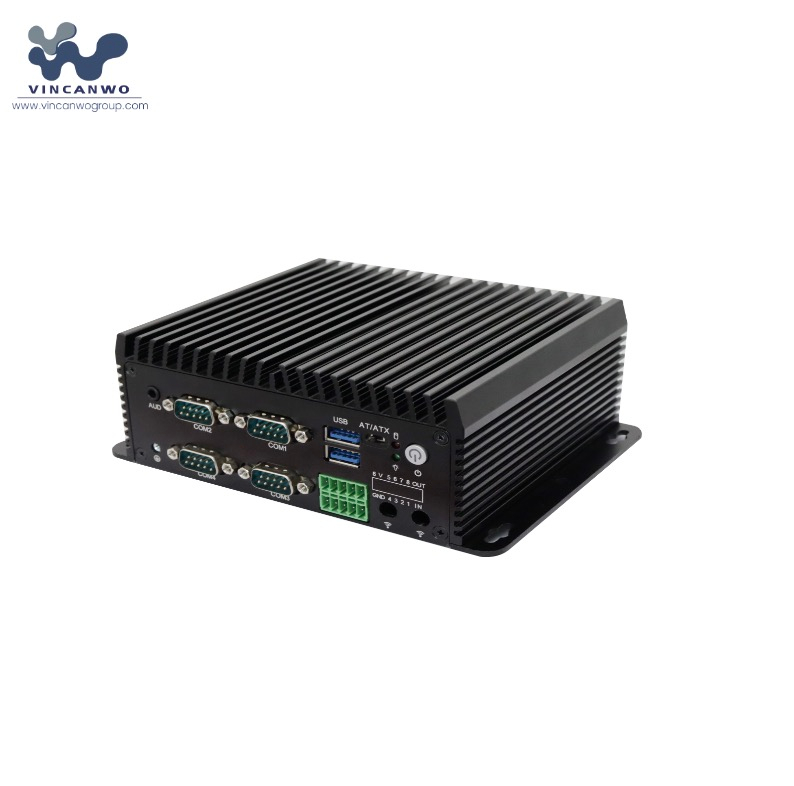

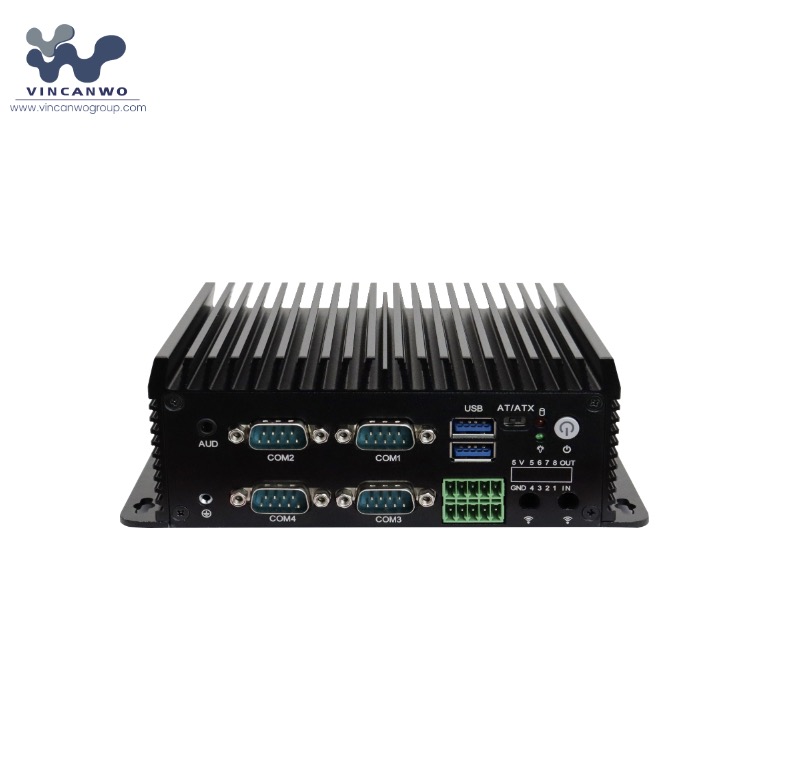

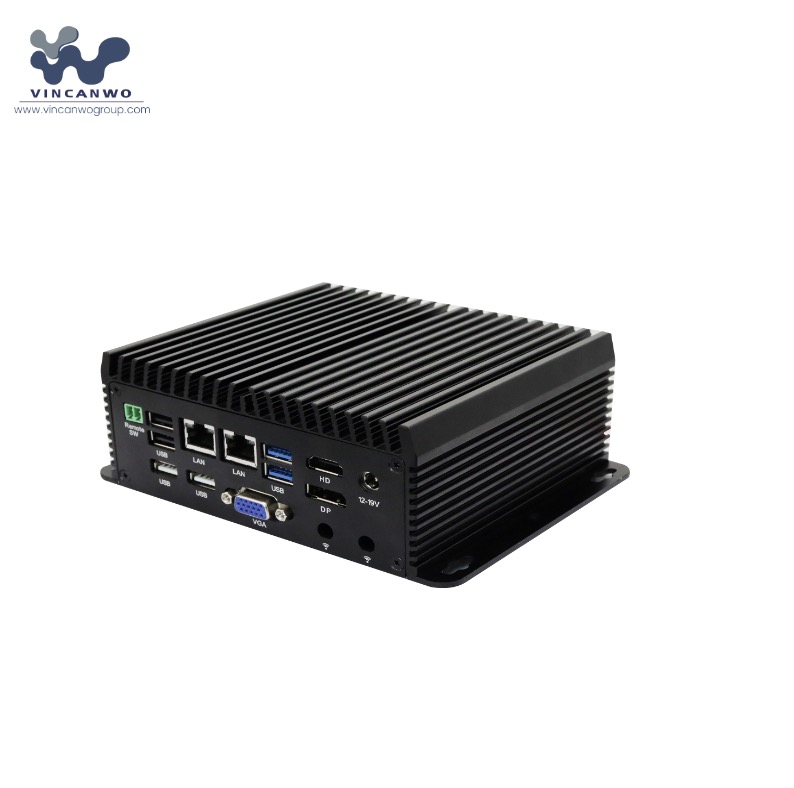

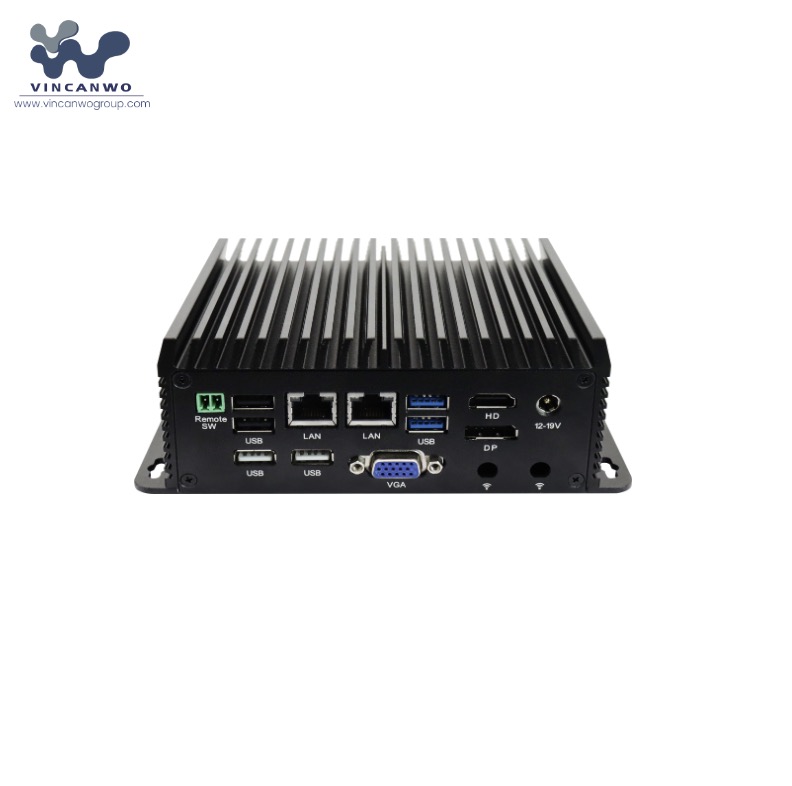

Industrial Edge Computer | Model UNO
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | UNO | |
Processor | Intel®N100 Processor | Intel®N95 Processor |
Memory Type | 1x DDR4 4G/8G/16G | |
Storage Type | 1x M.2 2280 | |
Ethernet / LAN | 2x RTL8111 | |
COM | 4x RS232 (COM1 or 2 optional RS485) | |
USB | 4x USB3.0 and 4x USB2.0 | |
Video Outputs | 1x HDMI, 1x DP | |
Other Interfaces | 1x VGA, 1x GPIO | |
Expansion Slot | 1x M.2(KEYEWifi&BT2230) 1x M.2(KEYB4G/5GLTE3052) | |
Operating System | Windows10, 11 / Linux | |
Power Input | DC 12V ~ 19V | |
Dimension | 141.40x125x59 mm | |
Gross Weight | 1.00kg | |
Mounting Options | DIN-rail, Wall Mount, Desktop Stand | |
Operating Temperature | -30℃ ~ +70℃ | |
Storage Temperature | -40℃ ~ +80℃ | |
Humidity Rage Non-condensing | 5% - 95% | |
>Advantages:
The Industrial Edge Computer | Model UNO offers the most advantages for industrial edge computing applications:
1. Rugged and Reliable: The Model UNO is built to withstand harsh industrial environments, with a rugged construction that can handle extreme temperatures, vibrations, and dust. This ensures reliable operation in challenging conditions.
2. Fanless Design: The fanless design of the Model UNO eliminates the risk of fan failure and reduces maintenance requirements. It also ensures silent operation, making it suitable for noise-sensitive environments.
3. High Performance: Powered by Intel processors and configurable with up to 32GB of RAM, the Model UNO offers high performance for demanding industrial applications. It can handle complex computing tasks with ease.
4. Versatile Mounting Options: The Model UNO offers versatile mounting options, allowing it to be easily integrated into different industrial settings. It can be mounted on walls, DIN rails, or in control cabinets for flexible deployment.
5. Expandability: The Model UNO supports multiple storage options, expansion slots, and connectivity ports, providing flexibility for future upgrades and expansion as industrial computing needs evolve.
Overall, the Industrial Edge Computer Model UNO is a reliable, high-performance computing solution that is well-suited for industrial edge computing applications where ruggedness, reliability, and performance are key requirements.
>Applications:
The Industrial Edge Computer | Model UNO is versatile and well-suited for a wide range of industrial edge computing applications. The most common applications include:
1. Industrial Automation: The Model UNO can be used for controlling and monitoring automated industrial processes, such as manufacturing lines, assembly robots, and conveyor systems.
2. Machine Vision: The high-performance computing capabilities of the Model UNO make it ideal for machine vision applications, such as quality control, inspection, and measurement in manufacturing environments.
3. Data Acquisition and Analysis: The Model UNO can be used for collecting, processing, and analyzing data from sensors, PLCs, and other industrial devices to optimize production processes and improve efficiency.
4. Edge Analytics: The Model UNO can perform real-time data analysis at the edge of the network, enabling faster decision-making and reducing the need to transfer large amounts of data to the cloud.
5. Remote Monitoring and Control: The Model UNO can be used for remote monitoring and control of industrial equipment and processes, allowing operators to access and manage systems from anywhere.
6. IoT Gateway: The Model UNO can serve as an IoT gateway, connecting industrial devices and sensors to the cloud and enabling seamless communication and data exchange in IoT-enabled industrial environments.
Overall, the Industrial Edge Computer Model UNO is a versatile computing solution that can be applied to a wide range of industrial edge computing applications, providing reliable performance and flexibility in demanding industrial environments.
