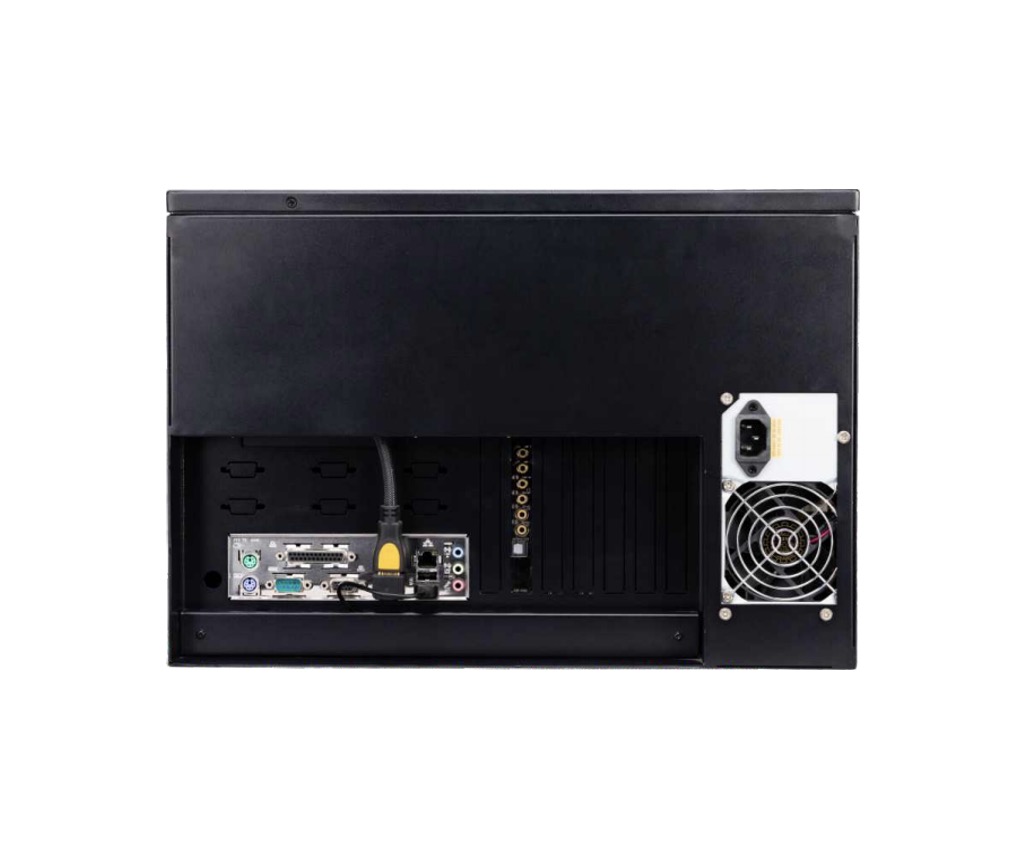

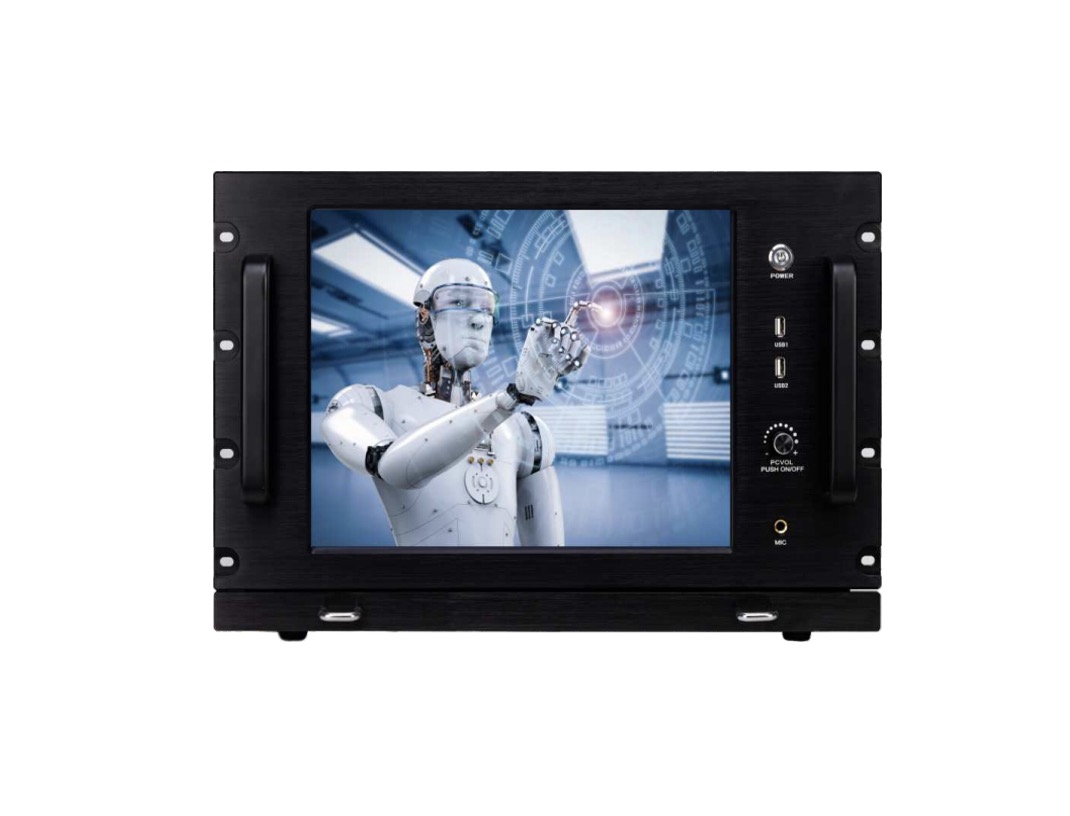

IP Network Broadcast System Server | GPS-150, GPS-173
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | IP Network Broadcast System Server | GPS-150, GPS-173 | |||||
Chassis material | Aluminum panel+galvanized steel plate black/(silver requires customization) | |||||
Front button/ interface | Power switch, volume knob adjustment (optional one key alarm button), microphone interface, 2 * USB | |||||
Power supply | 300-350W Industrial Switching Power Supply with PFC Function | |||||
Key mouse | Pull out keyboard and mouse | |||||
Size | 15” | 17 .3” | ||||
Resolution | 1024*768 | 1920*1080 | ||||
Proportion | 4:3 | 16 :9 | ||||
Brightness | 450cd/㎡ | 250cd/㎡ | ||||
Touch type | Resistance | |||||
Durability | ≥ 100000 times | |||||
Motherboard | industrial motherboard | Compatible with Micro ATX motherboards and standard ATX motherboards | ||||
Processor | Celeron J1800/J1900/N2840 | LGA1155 3th Intel Core i3/i5/i7/ Celeron/ Pentium | LGA1150 4th Intel core i3/i5/i7/ Celeron/ Pentium | LGA1151 6/7/8/9th Intel core i3/i5/i7/ Celeron/ Pentium | LGA1700 12/ 13/14th Intel core i3/i5/i7/ Celeron/ Pentium | |
Memory | 4G/8G/ 16G/32G (depending on CPU model) | |||||
Storage | 1*SATA2 .0 | 4*SATA2 .0 | ||||
Network | 2 * LAN Gigabit | 1* LAN Gigabit / 2* LAN Gigabit | ||||
COM | 6*COM | 2*COM | ||||
USB | 4* USB | 2* USB2 .0 2* USB3.0 | ||||
Video Output | 1* HDMI 1*VGA | HDMI+VGA/ DVI+VGA | ||||
Expansion Slots | / | 2* PCl( PCIe to PCI) | ||||
LPT parallel port | / | Optional | ||||
Audio | 1* MIC-in , 1* Line-out | 1* MIC-in , 1* Line-out , 1* Line-in | ||||
Operating System | Windows | |||||
Dimension | 484*324 .7*344 .8 mm | 484*326*344 .9 mm | ||||
Gross weight | updating | |||||
Installation method | Shelf style/desktop style | |||||
Operation temperature | -30℃ ~ 70℃ | |||||
Storage temperature | -40℃ ~ 80℃ | |||||
Relative humidity | 5% - 95% |
>Advantages:
1. Scalability: The GPS-150 and GPS-173 servers are highly scalable, allowing for easy expansion to accommodate growing broadcasting needs. Additional servers can be added to the network to increase capacity and reach a larger audience.
2. Flexibility: These servers support a wide range of broadcasting protocols, formats, and codecs, giving users the flexibility to broadcast content in various ways. They can handle both audio and video content, making them versatile for different types of broadcasting applications.
3. Reliability: The GPS-150 and GPS-173 servers are built with high-quality components and redundant systems to ensure reliable operation. They are designed to deliver uninterrupted broadcasting even in high-demand situations, minimizing downtime and ensuring a seamless viewing experience for audiences.
4. Remote Management: These servers can be easily managed and monitored remotely, allowing for convenient control and troubleshooting from anywhere with an internet connection. This feature is especially useful for broadcasters with multiple locations or remote teams.
5. Security: The GPS-150 and GPS-173 servers offer advanced security features to protect content and prevent unauthorized access. They support encryption protocols and secure connections to ensure that sensitive information remains safe during transmission.
6. Cost-Effective: These servers provide a cost-effective solution for broadcasting content over IP networks, eliminating the need for expensive hardware and infrastructure. They offer a streamlined and efficient broadcasting process, reducing operational costs and maximizing ROI.
Overall, the IP Network Broadcast System Server GPS-150 and GPS-173 offer a range of advantages for broadcasters looking to deliver high-quality content over IP networks. Their scalability, flexibility, reliability, remote management capabilities, security features, and cost-effectiveness make them a valuable asset for any broadcasting operation.
>Applications:
The IP Network Broadcast System Server GPS-150 and GPS-173 have a wide range of applications in the broadcasting industry. The most key applications include:
1. Radio Broadcasting: These servers can be used for streaming live radio broadcasts over IP networks, allowing radio stations to reach a global audience and expand their listener base.
2. Television Broadcasting: The GPS-150 and GPS-173 servers are ideal for streaming live TV channels, on-demand content, and video feeds over IP networks. They can be used by TV stations, cable operators, and content providers to deliver high-quality video content to viewers.
3. Live Event Streaming: These servers are commonly used for streaming live events such as sports games, concerts, conferences, and other special events over the internet. They provide a reliable platform for broadcasting real-time content to a large audience.
4. Video Conferencing: The GPS-150 and GPS-173 servers can be used for video conferencing applications, allowing users to conduct virtual meetings, webinars, and online training sessions over IP networks.
5. Digital Signage: These servers can be used for delivering digital signage content to displays located in public spaces, retail stores, corporate offices, and other venues. They enable dynamic and interactive content delivery for advertising, information sharing, and branding purposes.
6. Education and Training: The GPS-150 and GPS-173 servers can be used in educational institutions and corporate training environments for streaming lectures, tutorials, and training sessions over IP networks. They provide a convenient platform for distance learning and remote training programs.
Overall, the IP Network Broadcast System Server GPS-150 and GPS-173 have a wide range of applications in the broadcasting industry, offering a versatile and efficient solution for delivering audio and video content over IP networks.
