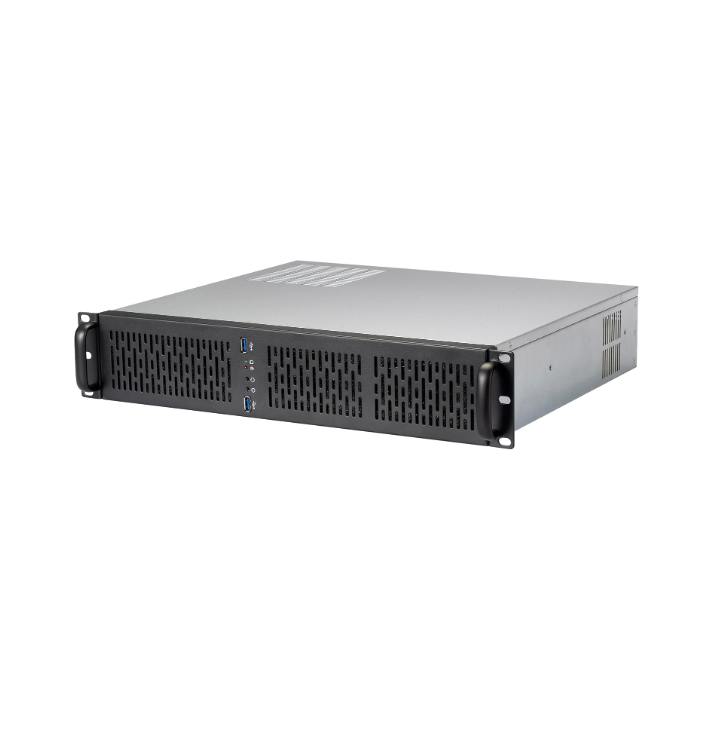

2U Server Chassis Rackmount Case | 4 x 3.5 HDD Bays | Micro-ATX Compatible | IPC-2U

Key Highlights:
• 400 mm short depth 2U rackmount chassis
• Supports ATX and mATX form factor motherboard
• Dual front USB 2.0 / 8x rear USB3.20
• Expansion slot 2x PCI-E X16 / 3x PCI-E X4
• Support for various wallmount and rackmount system

Model:
IPC-2U
Brand:
VINCANWO GROUP
CPU:
High Performance (Core i/ultra）
MemoryType:
1x DDR3L SO-DIMM, 1x DDR4 SO-DIMM, 2x DDR4 SO-DIMM, Onboard DDR4

Availability:

Quantity:



Inquire Add to Basket

About this item

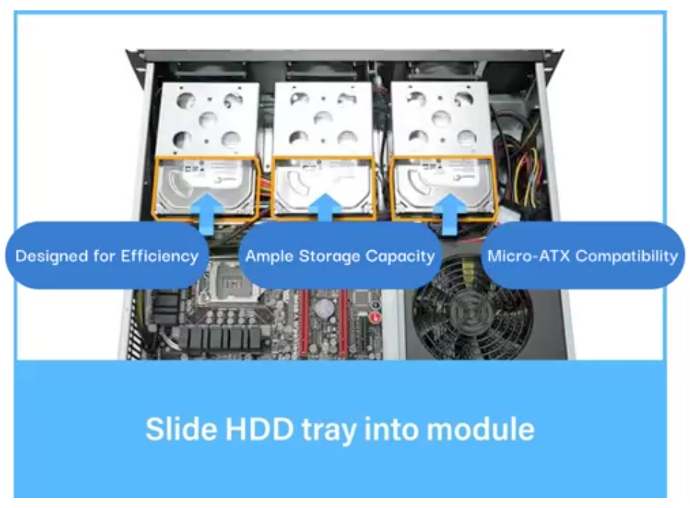

Roomy Chassis: 2U server case with 4 internal 3.5" HDD bays and 1 extra 5.25" device slot
Expandable Design: 4 PCI slots and Micro-ATX compatibility for flexible expansion options.

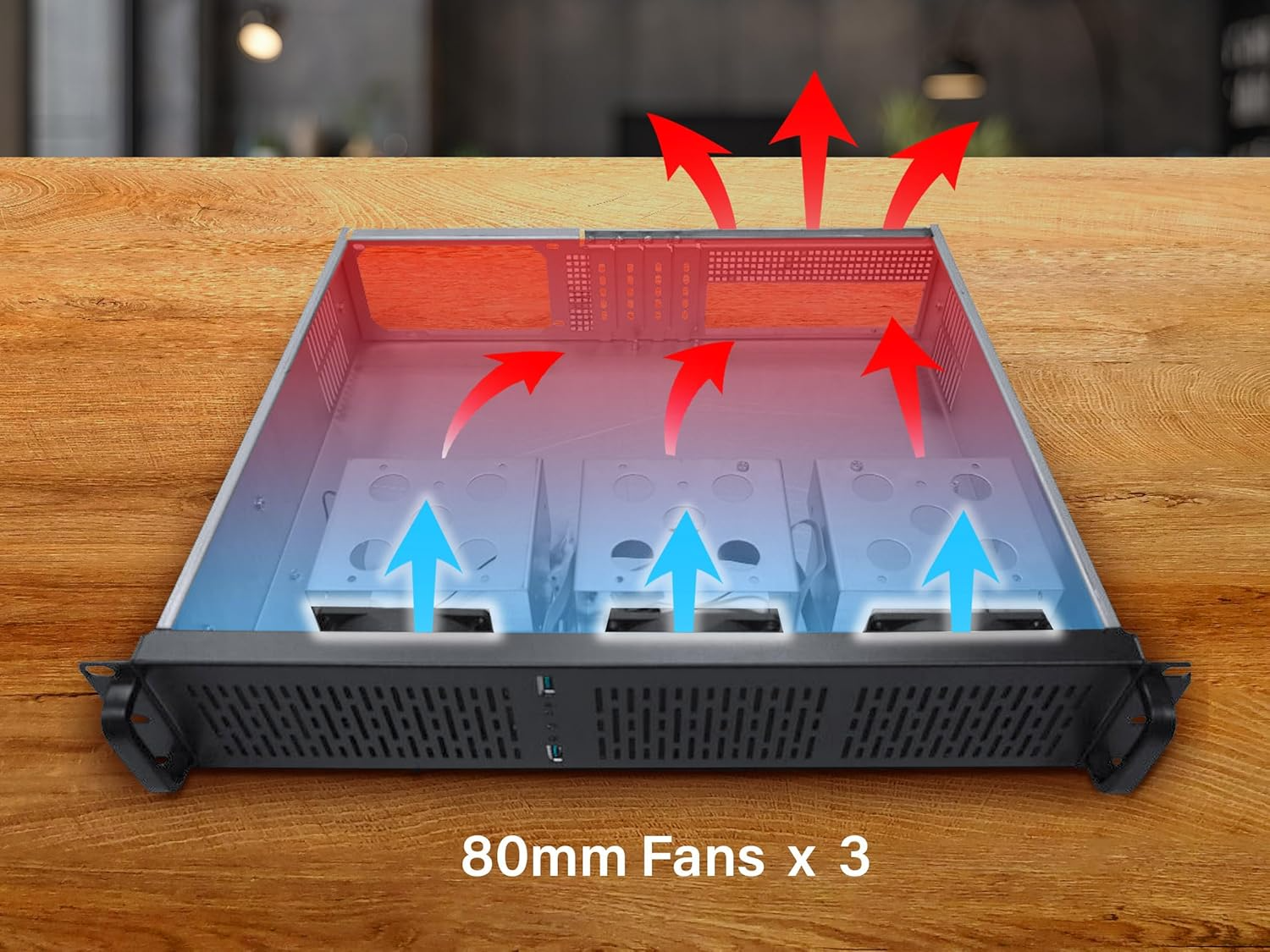

Quiet Cooling: 3 pre-installed 80mm PWM rear cooling fans provide excellent airflow and heat protection at reduced noise.

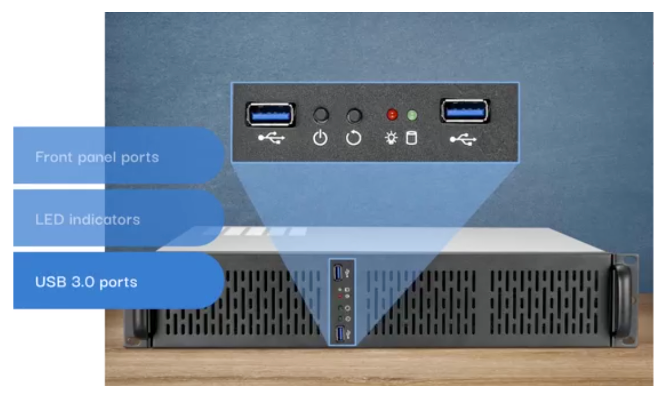

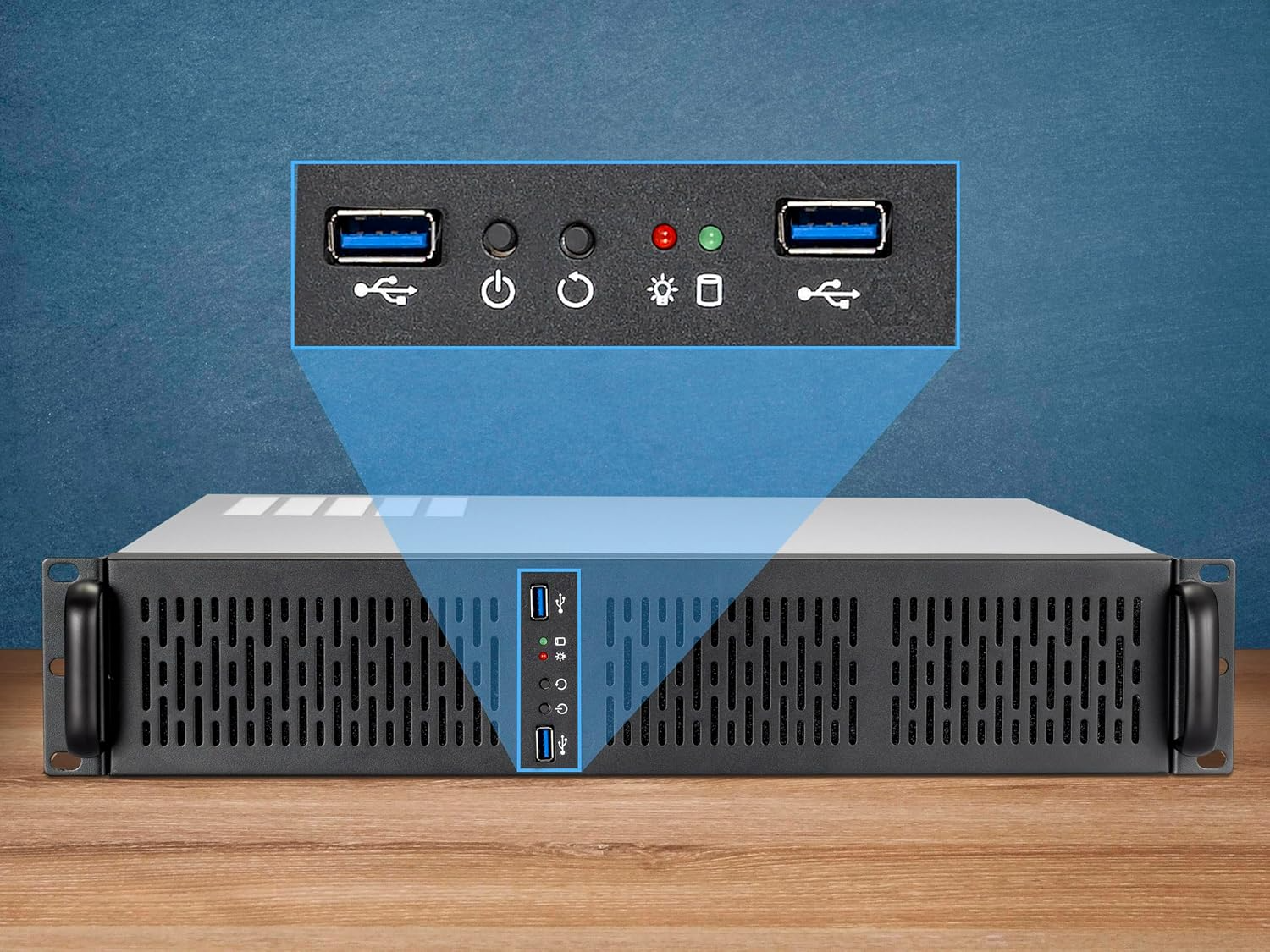

Front Panel Features: LED indicators for power, HDD, and LAN status monitoring allow quick, easy visual assessment with 2 USB 3.0 ports and built-in front panel lock for extra security

Front panel ports,LED indicators, USB 3.0 ports.png

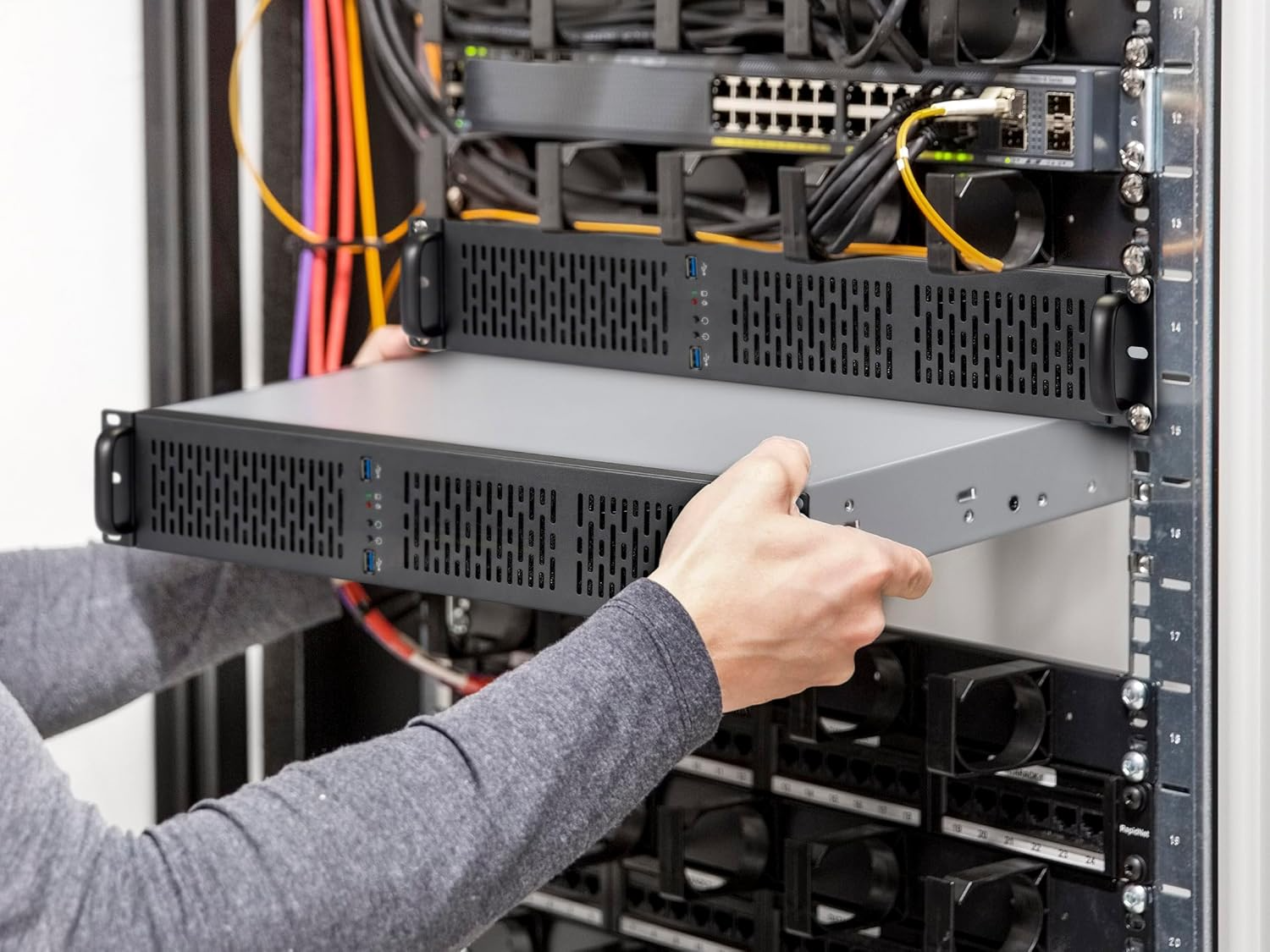

Rackmount Ready: Standard 2U rackmount design fits seamlessly into server racks with included mounting hardware for professional installations.

2U Server Chassis Rackmount Case | 4 x 3.5 HDD Bays | Micro-ATX Compatible | IPC-2U 16.43.09.png

Model		IPC-2U
Primary Components	Motherboard	B75/3rd gen/275W(2D3/5SA/1M2/PCIE X161/X11/PCI2) B85/4th gen/275W(4D3/5SA/1M2/PCIE X161/X42/PCI4) H310/6th ~ 9th gen/275W(2D4/3SA/1M2/PCIE X161/X41/PCI2) H610/12th ~ 14th gen/500W (2D4/3SA/1M2/PCIE X162/X4*3)
	Chipset	H310 H670
	Processor Model	12th/11th/10th/9th/8th/7th/6th/5th/4th \| i3/i5/i7 Phytium D2000 dual-network, D2000 quad-network, FT2000 dual-network Zhaoxin U6580 single-network, U6780A single-network, 6640MA dual-network Hygon C86-4G 3490 Dual-SIM
	Memory Type	DDR3, DDR4
	Memory Support	4GB, 8GB, 16GB, 32GB, PC-DDR4 supports 64GB
	Storage Type	1x MSATA \| 1x M.2 SATA \| 1x M.2 NVME protocol, 4x SATA 3.0
	Storage Support	MS:128GB~512GB \| M.2: 128GB~1TB
Operating Systems	Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
	Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)
Peripherals & Wireless Connectivity	WiFi	Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
	Bluetooth	Optional Bluetooth 5.3
External I/O Ports	USB	2x front USB 2.0 8x rear USB 3.2
	Serial/COM	2x rear RS232, expandable to 4x RS232 COM3/4 supports RS422/485
	Ethernet / LAN	1x Gigabit I219V, 1x 2.5 Gigabit I226 1x RLT8111 Gigabit Ethernet adapter, supports Wake-on-LAN and PXE functionality
	Video Outputs	1x VGA, 1x DVI-I, 1x HDMI
	Audio Ports	1 x LINE_IN, 1 x LINE_OUT 1 x MIC_IN Integrated Realtek ALC4080 HD digital audio decoder
	PS interface	1x PS2
Expansion Slots	Others	2x PCI-E X16 2x PCI-E X4 2x PCI 1x PCI-E x16_1 interface, for connecting a discrete graphics card (PCI-E x8 signal) 1x PCI-E x16_2 interface, for connecting a discrete graphics card (PCI-E x4 signal) 1x PCI-E x8 interface 1x PCI-E x1 interface
	LPT parallel port	Expandable to LPT
Power	Power Supply	ATX power supply Recommended to use a power supply of 200W or above
Weight / Dimensions	Weight	13.60 kg

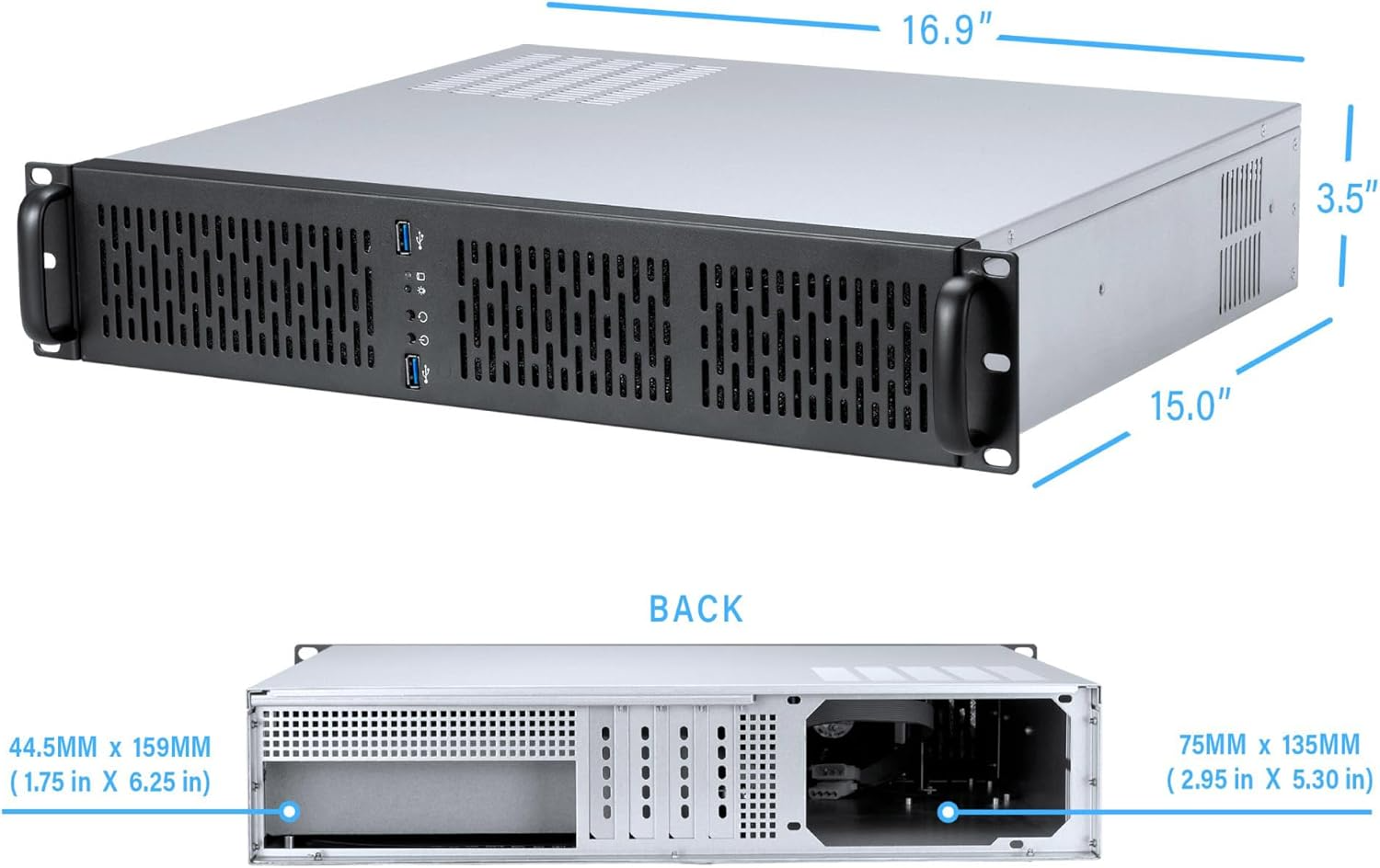

	Dimensions	482x400x88.5 mm
Thermal & Environmental	Operating Temperature	-20°C ~ 60°C
	Storage Temperature	-30°C ~ 70°C
	Cooling Solution	high-RPM fan
	Humidity Range	10% – 95% Non-condensing
Enclosure	Material	Aluminum
	Color	Black
	Led Indicator Light	HDD Access, Power
	Mounting Options	Rack-mount, Desktop
