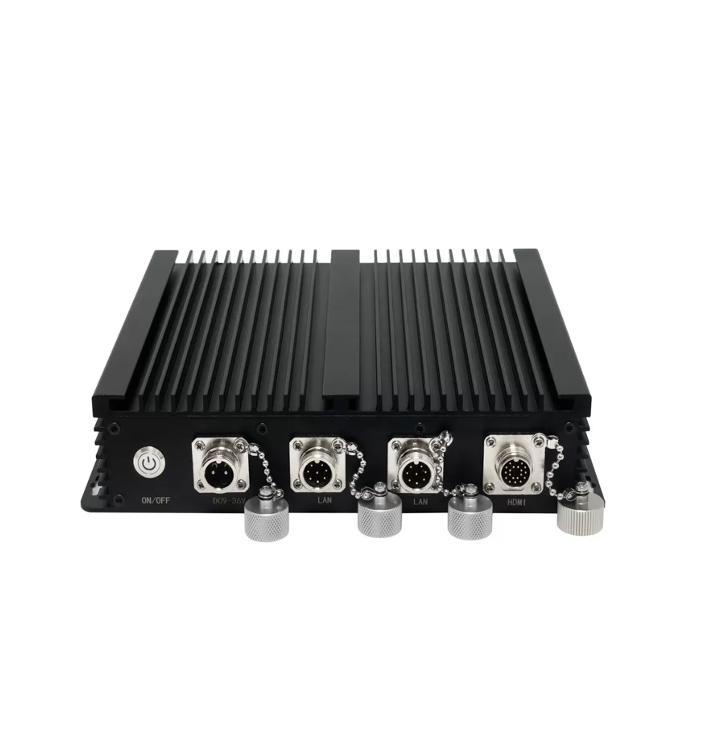

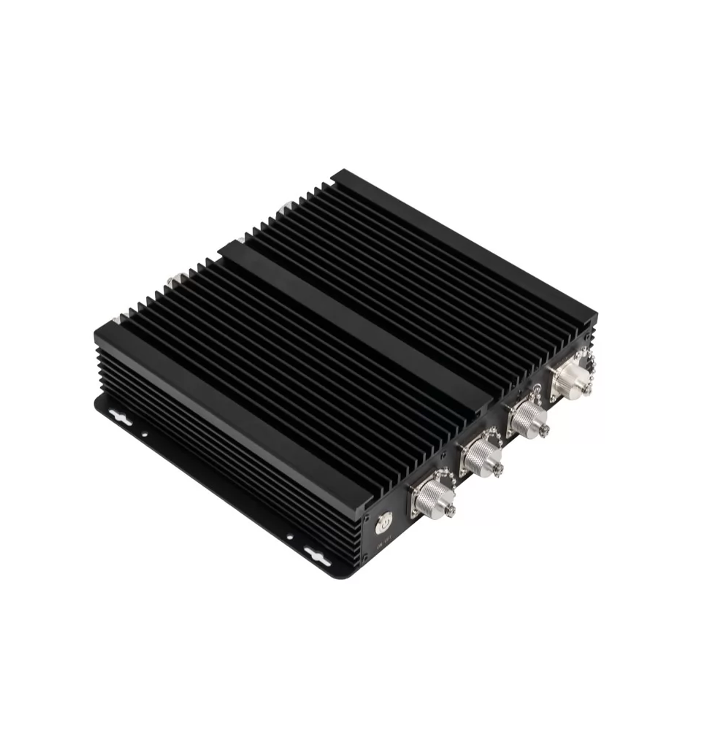

Product Name | Full IP67 Industrial Mini PC with 4 POE ports | VWB-6751 |
CPU | Intel® Core i5-1135G7, quad-core, 8 threads, 2.4GHz, Max Turbo 4.2GHz, fanless |
Memory | 8G DDR4 (Max 32GB) |
Hard Drive Capacity | 64G SSD (128GB, 256GB, 512GB SSD optional) |
Graphics | Intel® Iris® Xe Graphics |
Network | 5× Intel I211AT, LAN1~4 support POE, IEEE 802.3af standard |
Wireless Network | WIFI+Bluetooth 4.0 |
Front I/O Ports | 1*HDMI, 1*USB3.0, 1*RJ45, 1*AC in, 1*Power Button |
Rear I/O Ports | 4*POE |
Resolution support | Min. 800*600, Max. 4096x2304 |
Operation System | Support Windows 10, Unix/Linux, Ubuntu, Debian etc. |
Power Supply | Power input AC 220V |
Power consumption ≤70W | |
Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 85°C |
Storage Humidity | 10%~95%, non-condensing |
Material | Aluminum |
Color | Black |
Accessories | IP67 AC power cord, 5xLAN waterproof cable,1xHDMI/USB waterproof cable, |
Mounting Options | wall/desking mounting brackets (optional) |
Weight | 2.50 kg |
Dimensions | 193.9 x 127 x 57.2 mm |
Certifications | CE, FCC |
VWB-6751 a waterproof industrial Mini PC with an IP67 rating is fully sealed against dust and can withstand immersion in up to 1 meter of water for 30 minutes. Unlike standard IP65 devices, IP67 solutions provide exceptional resilience for extremely wet or harsh environments, making them ideal for:
Outdoor & Edge Computing: withstand rain, wash-down procedures, high humidity, and dust.
Marine and Port Operations: resist salt spray and vibration in maritime environments.
Food & Beverage Processing: compatible with stringent hygiene and washdown protocols.
Full IP67 waterproof and dustproof grade, stable in harsh environments
Built-in 4 POE ports, supplies power and data transmission simultaneously
Shock and vibration resistant, reliable for long-time continuous operation
Compact rugged body, easy installation and space saving
Strong anti-interference performance for industrial field use
Simplified wiring, lower maintenance cost
Outdoor video surveillance and intelligent monitoring
Industrial machine vision inspection systems
Road traffic and roadside intelligent facilities
Warehouse logistics and automated handling equipment
Outdoor environmental and meteorological monitoring
Vehicle-mounted industrial control terminals
Mining, port and outdoor field industrial control
POE camera access and edge data collection
