| Quantity: | |
|---|---|
Primary Components | Processor Family | Intel Core Ultra |
Processor Model | U5 125U /U7 155U | |
Memory Type | 1x DDR5 SODIMM | |
Memory Support | Max 32GB | |
Storage Type | M.2 KEY-M，NVME 2280+1x 7Pin SATA | |
Operating Systems | Windows | Windows 10/11 |
Linux | Linux | |
Peripherals & Wireless Connectivity | WiFi | Yes (M.2 KEY-E ) |
Bluetooth | Yes | |
Sim Card | Yes | |
External I/O Ports | USB | 4 x USB 2.0, 2 x USB 3.0 |

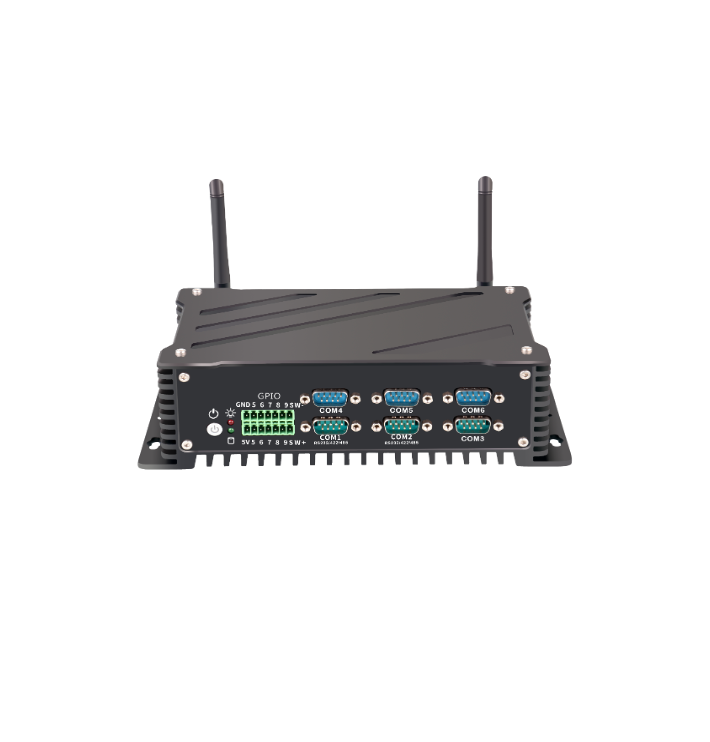

Serial / Com | 6 x DB-9 | |
Serial Protocol Detail | 2x COM support RS-232/422/485, 4xCOM support RS-232 | |
Ethernet / LAN | 2x Intel i226V 2.5G | |
Other Ports | 1 x HDMI, 1 x VGA, 10 x GPIO | |
Audio Ports | Line-out, Mic-in | |
Power Input Port | DC Jack | |
Power | Input Voltage Range | 12V-19V DC |
Standard Power Adapter | 19V-4.74A | |
Expansion Slots | Internal M.2 | M.2 KEY-B，4G |
Expansion Module support | M.2 KEY-B，4G | |
Thermal & Environmental | Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -45℃ to +80℃ | |
Cooling Solution | Passive - Fanless | |
Storage Humidity | 10%~95%, non-condensing | |
Enclosure | Material | Aluminum |
Color | Black | |
Led Indicator Light | YES | |
Control Buttons | Power | |
Mounting Options | Wall / DIN Rail Mount (Optional) | |
Weight / Dimensions | Weight | 1KG |
Dimensions | 180 x 120 x 54 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS |

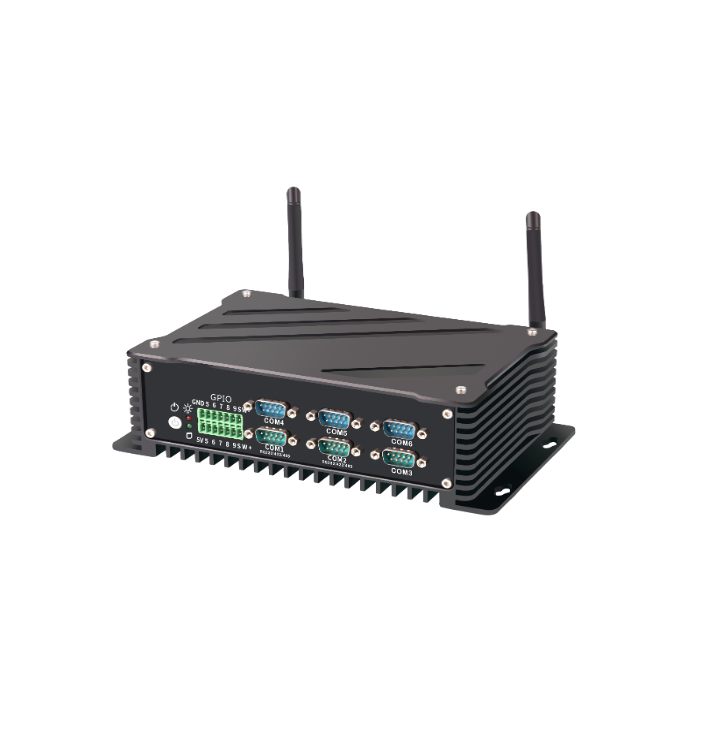

VBU‑6531 is a compact, fanless industrial PC powered by Intel Core Ultra 5 125U or Core Ultra 7 155U (12 cores, 14 threads, 15W PBP), featuring integrated GPIO for industrial I/O control and Intel Arc graphics + NPU AI Boost for edge AI workloads.
Processor Options
U5 125U: 1.3 GHz base, up to 4.3 GHz turbo, 1850 MHz Arc iGPU
U7 155U: 1.7 GHz base, up to 4.8 GHz turbo, 1950 MHz Arc iGPU
Memory: 2× SO‑DIMM DDR5 5600 MHz, up to 96 GB
Storage: 1× M.2 2280 NVMe (PCIe 4.0 x4), 1× M.2 2230 E‑Key (Wi‑Fi/BT)
I/O & Connectivity
GPIO: 8‑channel (4 DI + 4 DO) for sensor/actuator control
2× 2.5GbE LAN (Intel I226), 4× USB 3.2, 2× USB 2.0, 2× HDMI 2.0
1× RS‑232/422/485 COM, audio in/out
Cooling & Environment
Fanless passive cooling, sealed enclosure (dust/vibration resistant)
Operating temp: 0°C ~ 50°C (extended: ‑20°C ~ 60°C)
DC 12–24V wide‑range power input
Mounting: Compact chassis (170×140×58 mm), DIN‑rail/wall mountable
Industrial Automation: PLC replacement, production line control, HMI, machine vision
Edge AI & IIoT: NPU‑accelerated defect inspection, data acquisition, AI gateways
Smart Logistics: AGV/AMR control, barcode scanning, warehouse monitoring
Digital Signage: 4K video playback, AI‑driven content analytics
Smart Retail: Kiosks, self‑service terminals, customer behavior analysis
Fanless Reliability: No moving parts, ideal for harsh industrial environments
Core Ultra Performance: Powerful CPU/GPU/NPU for multi‑tasking and AI
Native GPIO: Simplifies integration with industrial sensors and actuators
Compact & Versatile: Small footprint, flexible mounting, wide‑range power
