Primary Components | Processor Family | Intel Core Ultra |
Processor Model | U5 125U /U7 155U | |
Memory Type | 1x DDR5 SODIMM | |
Memory Support | Max 32GB | |
Storage Type | M.2 KEY-M，NVME 2280+1x 7Pin SATA | |
Operating Systems | Windows | Windows 10/11 |
Linux | Linux | |
Peripherals & Wireless Connectivity | WiFi | Yes (M.2 KEY-E ) |
Bluetooth | Yes | |
Sim Card | Yes | |

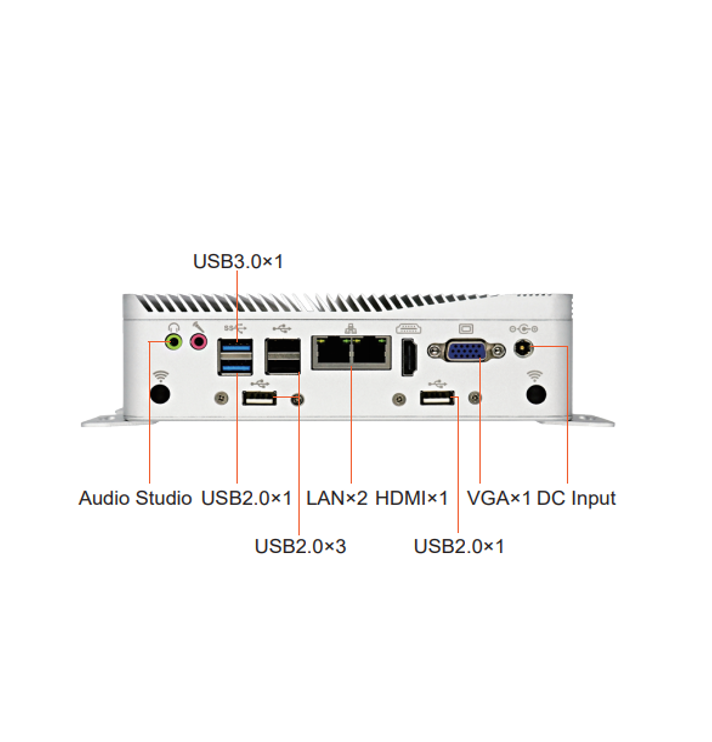

External I/O Ports | USB | 4 x USB 2.0, 2 x USB 3.0 |

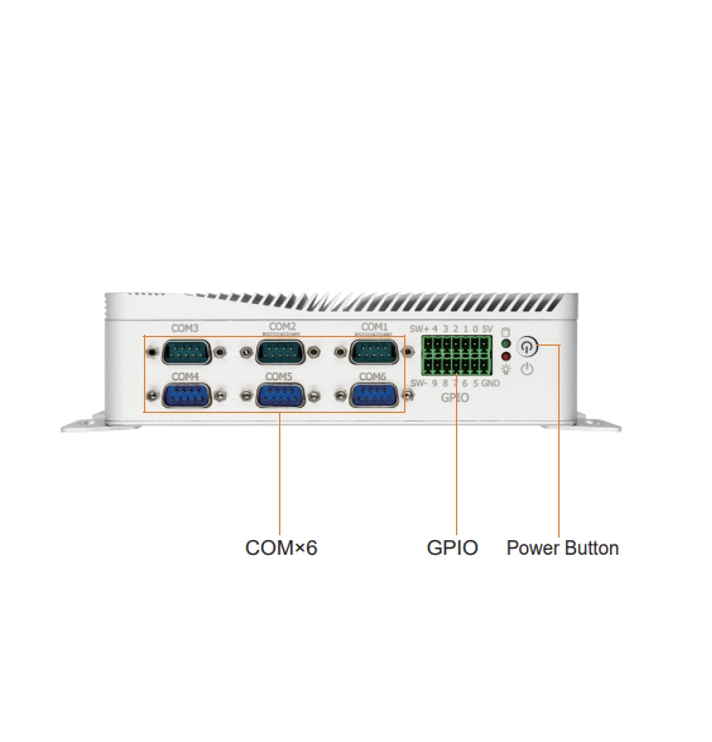

Serial / Com | 6 x DB-9 | |
Serial Protocol Detail | 2x COM support RS-232/422/485, 4xCOM support RS-232 | |
Ethernet / LAN | 2x Intel i226V 2.5G | |
Other Ports | 1 x HDMI, 1 x VGA, 10 x GPIO | |
Audio Ports | Line-out, Mic-in | |
Power Input Port | DC Jack | |
Power | Input Voltage Range | 12V-19V DC |
Standard Power Adapter | 19V-4.74A | |
Expansion Slots | Internal M.2 | M.2 KEY-B，4G |
Expansion Module support | M.2 KEY-B，4G | |
Thermal & Environmental | Operating Temperature | -40℃ to +70℃ |
Storage Temperature | -45℃ to +80℃ | |

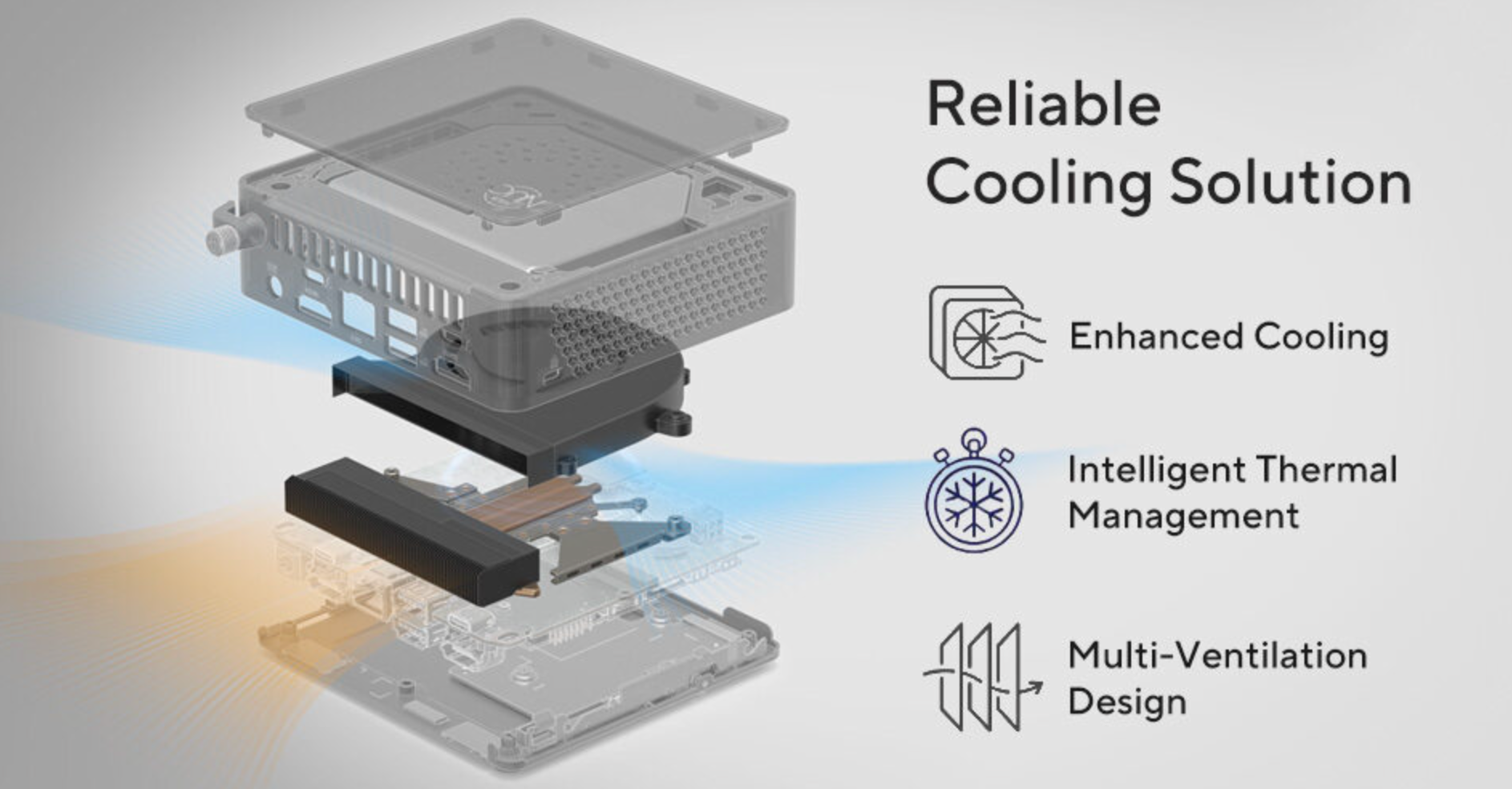

Cooling Solution | Passive - Fanless | |
Storage Humidity | 10%~95%, non-condensing | |
Enclosure | Material | Aluminum |
Color | Black | |
Led Indicator Light | YES | |
Control Buttons | Power | |
Mounting Options | Wall / DIN Rail Mount (Optional) | |
Weight / Dimensions | Weight | 1KG |
Dimensions | 180 x 120 x 54 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS |
Delivers up to 99 TOPS of Al performance, supports Agentic Al (such as OpenClaw*), and provides 24/7 reliability for continuous opera-tion-enabling advanced Al task automation across everyday workflows.

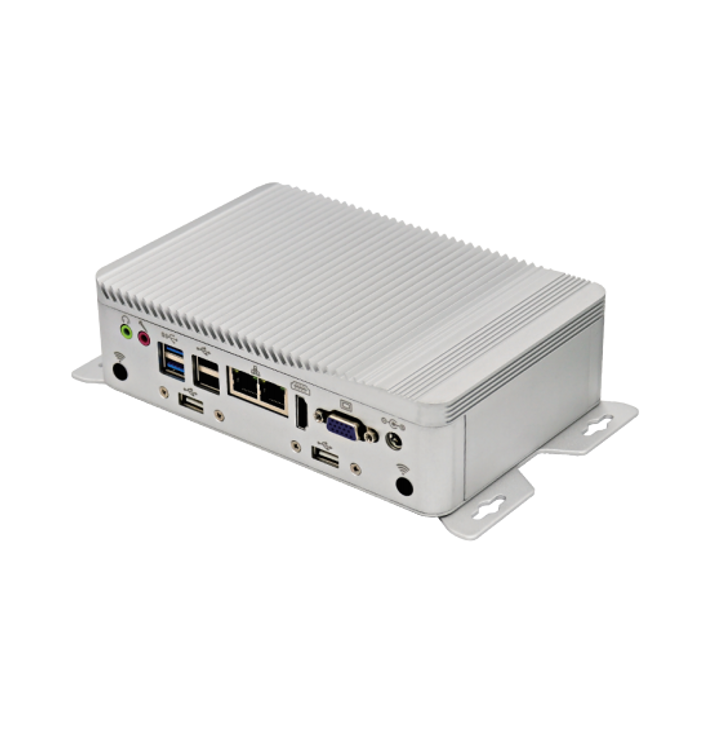

The VBU-575U is a compact, fanless industrial PC powered by Intel Core Ultra processors with integrated NPU AI Boost (up to 13 TOPS), designed for edge AI, industrial automation, and smart embedded deployments.
Machine Vision & Quality Inspection: NPU accelerates real‑time defect detection, OCR, and visual sorting (e.g., PCB inspection, assembly line QC).
Production Line Control: Fanless, rugged design for HMI, PLC integration, and process monitoring on factory floorsIntel.
Predictive Maintenance: AI‑driven vibration/thermal analysis for motors, pumps, and robotics, reducing unplanned downtimeIntel.
Edge Inference: Local AI model deployment (LLMs, computer vision) without cloud dependency; NPU offloads CPU/GPU for efficiency.
Data Acquisition & Gateway: Connects sensors, cameras, and legacy devices; preprocesses data locally before cloud transmissionIntel.
Smart Logistics: Warehouse automation, AGV/AMR control, and package tracking with AI‑powered barcode/QR scanningIntel.
AI‑Powered Kiosks: Self‑service terminals (ticketing, check‑in, ordering) with facial recognition, voice assistants, and personalized recommendations.
Digital Signage: Dynamic, AI‑optimized content for ads, wayfinding, and customer engagement.
Point‑of‑Care Devices: Compact, low‑noise design for diagnostic terminals, patient monitoring, and medical data analysis.
Medical Vision: AI‑assisted imaging (X‑ray, ultrasound) for real‑time anomaly detection at the edge.
In‑Vehicle Computing: Telematics, ADAS edge processing, and infotainment systems for commercial vehicles.
Traffic Monitoring: AI‑based license plate recognition, traffic flow analysis, and accident detection at intersections.
AI Desktop Workstations: Document summarization, real‑time translation, and video conferencing enhancement via NPU.
Lightweight Creative Work: 4K video editing, 3D modeling, and AI‑generated content (AIGC) for small teams.
Compact & Fanless: Fits in tight spaces; reliable in dusty/vibrant industrial environments.
NPU AI Boost: Dedicated AI hardware for fast, efficient local inference.
Rugged I/O: Rich connectivity (COM, LAN, USB) for industrial sensors and peripherals.
