VB-5714
VINCANWO GROUP
High Performance (Core i/ultra）
1x DDR4 SO-DIMM, 2x DDR4 SO-DIMM
| Availability: | |
|---|---|
| Quantity: | |

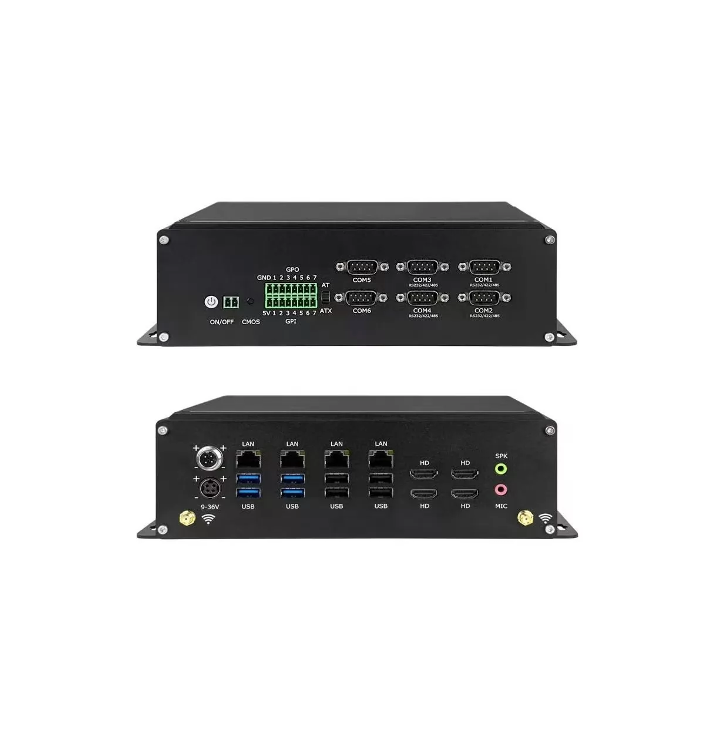

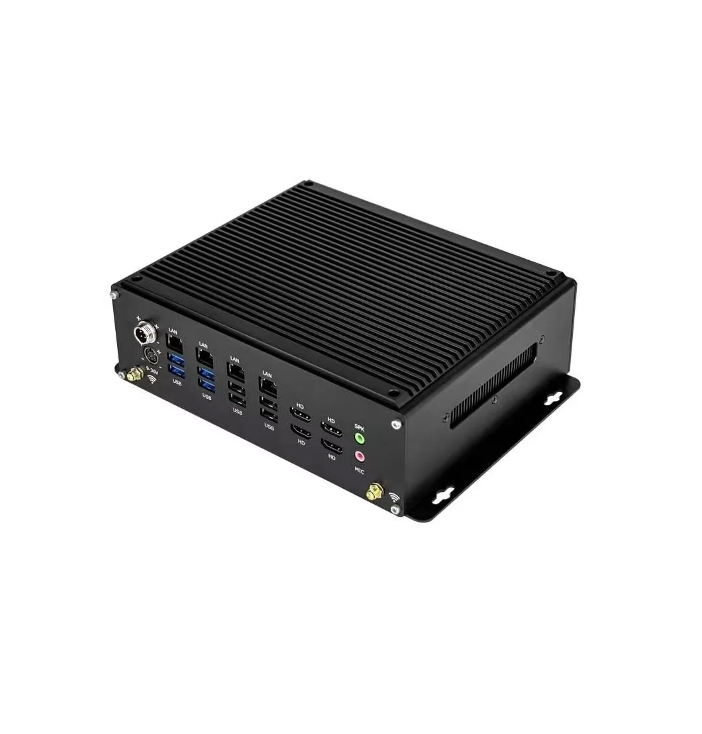

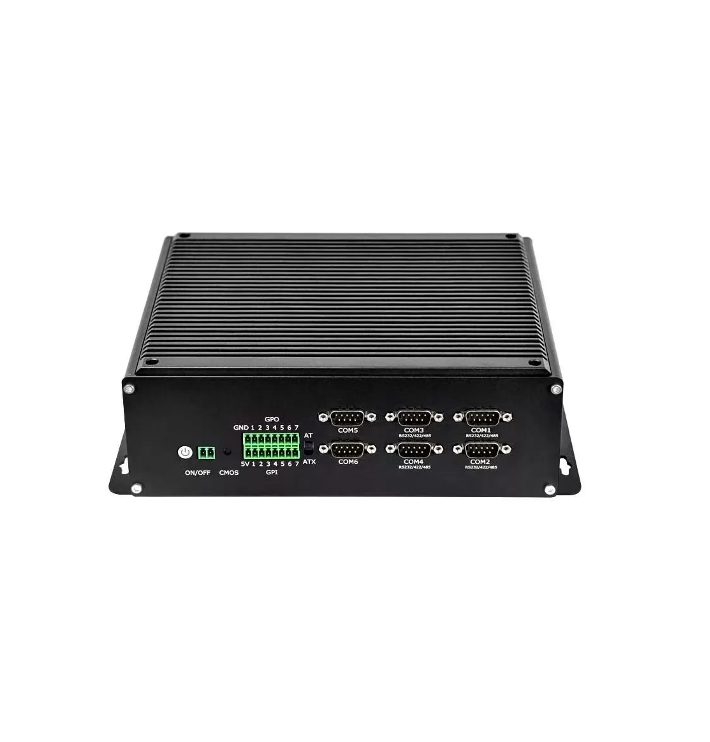

Product Name | Intel 14th Core i5-14450HX Box PCs AMD Vega GPU 4GB ｜ VB-5714 |
CPU Optional #1 | Intel® Core i5-8305G, 4 Cores, 8 Threads, Turbo 3.8GHz, Fan |
CPU Optional #2 | Intel® Core i7-8705G, 4 Cores, 8 Threads, Turbo 4.1GHz, Fan |
CPU Optional #3 | Intel® Core i7-12650HX/12800HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 4.7GHz, Fan |
CPU Optional #4 | Intel® Core i7-13650HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 4.9GHz, Fan |
CPU Optional #5 | Intel® Core i5-14450HX, 14 Cores(6 Performance-core, 8 Efficient-core), 20 Threads, Turbo 3.8GHz, Fan |
Memory | 2x DDR4 SODIMM, up to 32GB memory |
Storage | 2 x M.2 NVME 2280 (one of which supports SATA protocol) |
Display | 4 x HDMI 2.0(4K@60Hz) |
Network | 2 x RJ45 Intel i226V (4 x RJ45 Intel i226V Optional) |
I/O | 4 x USB3.0, 4 x USB2.0, 6 x DB9 COM (4 of which support RS485/RS422), 4 x HDMI 2.0 (4K@60Hz), 14 x GPIO (7 inputs, 7 outputs), 1 x Power Button, 1 x Power On/Off Extension Cable, 1 x Clear CMOS Button, Dual power interface, 4Pin round pin or 4Pin aviation plug, support 9-36V power input, 1 x headphone interface, 1 x microphone, 1 x ATX/AT |
Expansion Slot | 1 x M.2 2232 WIFI |
BIOS | AMI EFI BIOS |
Others | Support hardware reset (256 level, 0-255 sec), PXE boot |
Operation System | Windows® 10/11, WES 10, LINUX |
Power Supply | External Power Supply AC 100 - 240V |
Working voltage DC 9-36V | |
Power consumption ≤60W | |
Operating Temperature | -30°C - 70°C |
Storage Temperature | -40°C - 85°C |
Cooling Solution | Passive - Fanless |
Storage Humidity | 10%~95%, non-condensing |
Material | Aluminum |
Color | Black |
Accessories | Power adapter, Driver CD, 2.5-inch hard drive bracket, Screws |
Mounting Options | Wall Mount, Desktop stand, Embedded mount |
Weight | 3.1 kg |
Dimensions | 252 x 180 x 76 mm |
Certifications | CE, FCC |
Powerful 14th Gen Intel i5-14450HX delivers strong computing performance
4GB AMD Vega dedicated GPU ensures smooth graphics processing
Rich multi-port design meets diverse industrial connection demands
Dual 2.5G high-speed Ethernet enables stable fast network transmission
4K@60Hz high-definition display brings clear visual output
Watchdog and PXE boot enhance industrial operation reliability
Simple structure, convenient disassembly and daily maintenance
The VB-5714 industrial box PC is tailored for industrial, commercial, and edge computing scenarios requiring strong performance, rich I/O, 4K display, and long-term stability.
Production line control: PLC replacement, robot arm control, automated assembly, welding/spraying control.
Machine vision: 4GB AMD Vega GPU supports 2D/3D inspection, barcode/QR scanning, defect detection, multi-camera synchronization.
Industrial monitoring: Real-time data acquisition, process monitoring, and edge computing for factory equipment.
4K video walls: 4×HDMI 2.0 (4K@60Hz) drive multi-screen advertising, smart retail, and exhibition displays.
Smart kiosks: Self-service terminals in malls, banks, hospitals, and transportation hubs.
Command centers: Multi-video surveillance and data visualization for traffic, energy, and public safety.
Traffic management: Road signal control, ETC systems, and intelligent traffic monitoring.
Smart warehouses: AGV control, inventory management, and automated sorting systems.
Vehicle-mounted terminals: In-vehicle control, data logging, and infotainment for commercial fleets.
Power grid monitoring: Data acquisition and monitoring for power plants, substations, and renewable energy sites.
Oil & gas: Pipeline monitoring, wellsite automation, and safety alarm systems.
Solar/wind farms: Inverter control, energy storage monitoring, and performance analysis.
Medical devices: Control and data processing for CT, MRI, ultrasound, and laboratory analyzers.
Hospital automation: Ward monitoring, medical record management, and operating room equipment control.
High-performance office: Multitasking, large spreadsheet processing, and light content creation.
Software development: Virtual machines, containerized workflows, and local development servers.
Network security: Firewall, VPN, and PXE boot for enterprise network management.
Industrial IoT (IIoT): Edge gateway for sensor data collection, protocol conversion, and cloud connectivity.
Outdoor monitoring: Weather stations, environmental monitoring, and remote surveillance systems.
Marine/shipboard: Navigation, communication, and monitoring systems for vessels.

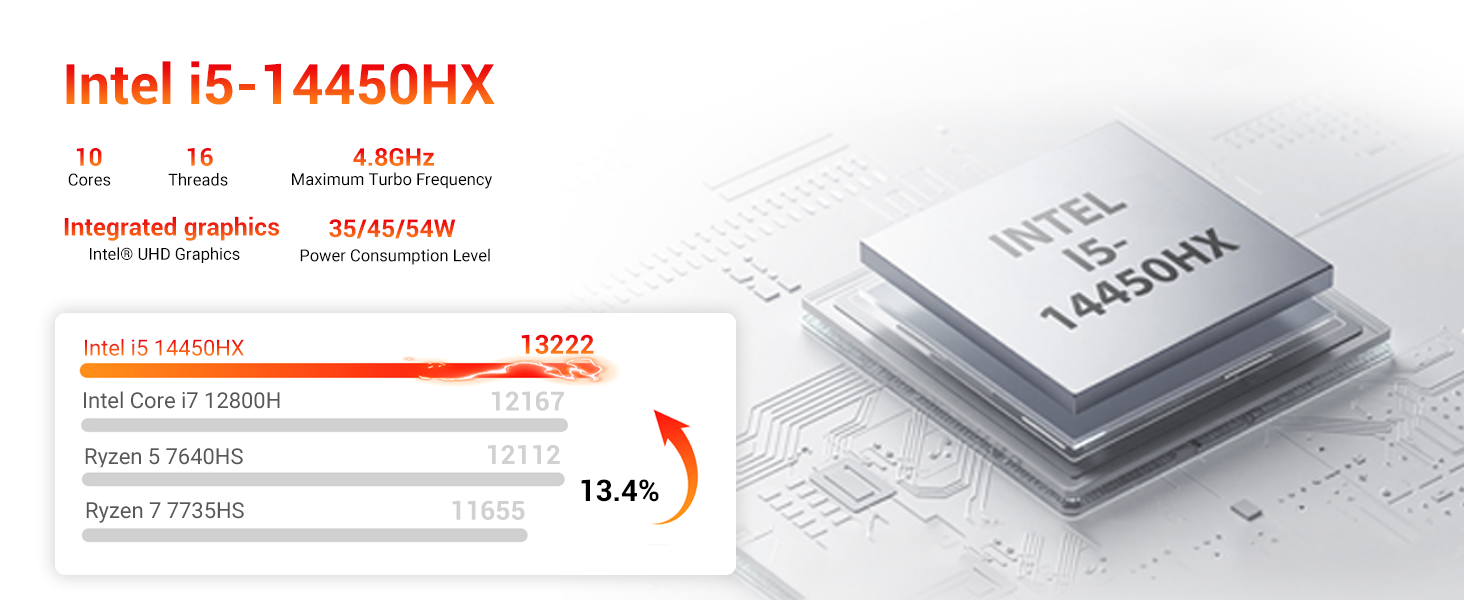

Performance: 14th Gen i5-14450HX (10 cores/16 threads, up to 4.8GHz) + AMD Vega 4GB GPU handles complex tasksIntel.
Connectivity: 6×COM (RS-232/485/422), 2×2.5G Ethernet, 4×HDMI 2.0 for diverse I/O needs.
Reliability: Watchdog timer, PXE boot, and easy maintenance ensure 24/7 operation.
Display: 4K@60Hz output for high-resolution visualization and digital signage.
