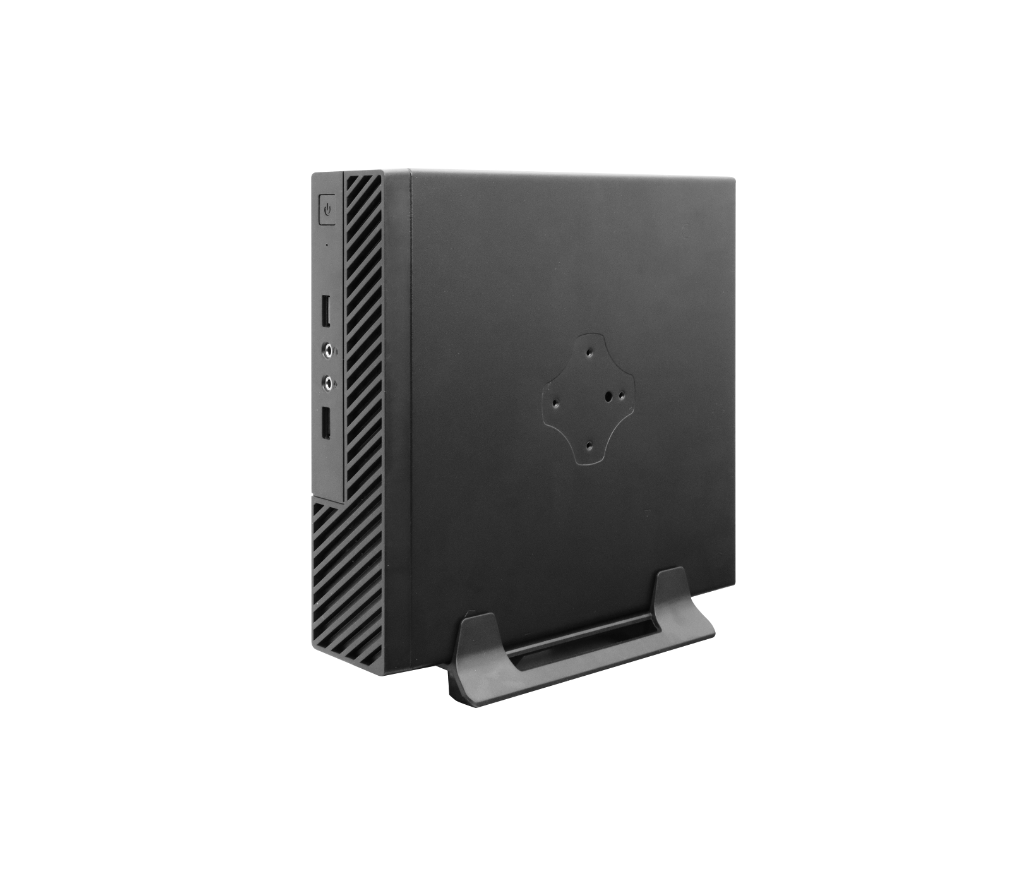

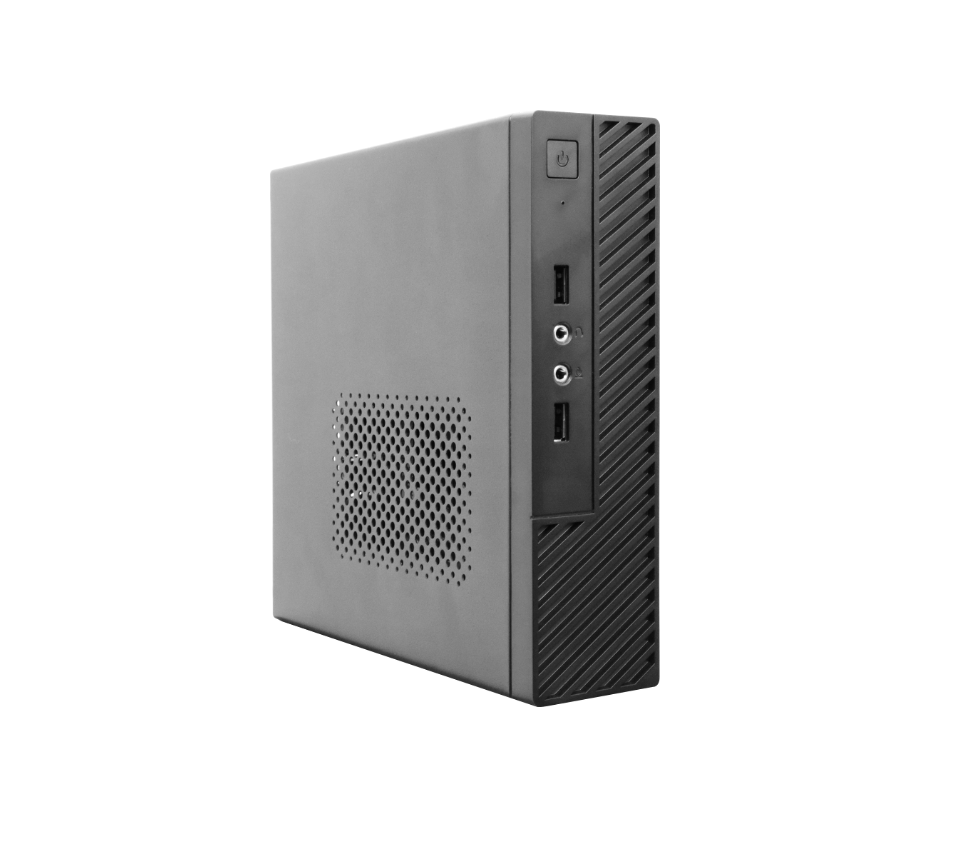

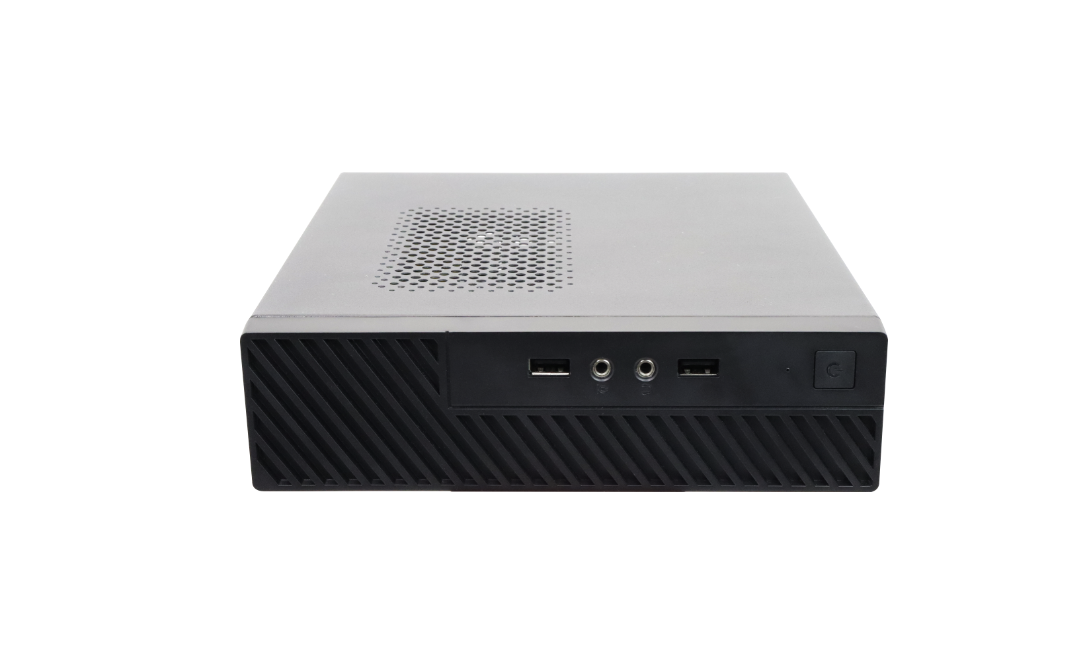

BPC-103 Pro
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
| Model | BPC-103 Pro | ||||||||
| Primary Components | Processor Family | Intel, Phytium, Zhaoxin Processors | |||||||
| Processor Model | Phytium D2000,FT2000 Zhaoxin 6640MA,U6580,U6780A 13th/12th/10th/8th/7th/6th/5th|i3/i5/i7 J1800,J1900,J6412 N5095,N100 | ||||||||
| Memory Type | 2x DDR4 MAX32GB, 2x DDR4 MAX64GB, 1x DDR4 MAX 32GB | ||||||||
| Memory Support | 4GB,8GB,16GB | ||||||||
| Storage Type | 1x MSATA/1x SATA, 1x M.2 NVME/1x SATA, 1x M.2 NVME/1x SATA | ||||||||
| Storage Support | MS:128GB~512GB | M.2: 128GB~1TB | ||||||||
| Operating Systems | Windows | Windows 7/10 | |||||||
| Kylin, UOS | Kylin,UOS | ||||||||
| Peripherals & Wireless Connectivity | WiFi | Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6 | |||||||
| Bluetooth | Optional Bluetooth 5.3 | ||||||||
| External I/O Ports | USB | 2x USB | |||||||
| Serial/COM | 1x RS232, RS485 option | ||||||||
| Ethernet / LAN | 2x RJ45 2.5 GbE LAN | ||||||||
| Video Outputs | 1x HDMI, 1x VGA | ||||||||
| Other Ports | 1x LINE OUT, 1x MIC | ||||||||
| Power Input Port | DC-in Jack (Phoenix Type) | ||||||||
| Expansion Slots | Others | 1x MPCIe (WiFi/3G/4G), 1x M.2 (WiFi), 1x M.2 WiFi/1x M.2 4G/5G | |||||||
| Power | Standard Power Adapter | 12V DC Adapter and power cable, 5A, 60W | |||||||
| Input Voltage Range | 9~36V DC Wide-range Voltage Power Input | ||||||||
| Weight / Dimensions | Weight | 2.50 kg | |||||||
| Dimensions | 55x200x212 mm | ||||||||
| Thermal & Environmental | Operating Temperature | -30°C ~ 70°C | |||||||
| Storage Temperature | -40°C ~ 80°C | ||||||||
| Cooling Solution | Passive – Fanless, Fan | ||||||||
| Humidity Range | 10% – 95% Non-condensing | ||||||||
| Enclosure | Material | Aluminum | |||||||
| Color | Black | ||||||||
| Led Indicator Light | HDD Access, Power | ||||||||
| Mounting Options | Wall Mount, Desktop | ||||||||
| Item | Specification |
|---|---|
| Model | BPC-103 Pro (Compact Tower IPC) |
| Form Factor | Mini Tower (compact vertical/horizontal placement) |
| Target Use | Industrial automation, edge IIoT, HMI, data acquisition, small-footprint control stations |
| Key Differentiator | LGA socket CPU upgradeability + industrial ruggedness + compact size |
Support for 12th/13th Gen Intel® Core™ i9/i7/i5/i3 / Pentium® / Celeron® (LGA 1700 socket)
Chipset: Intel® H610E (industrial-grade, long-life cycle)
TDP: Up to 65W (standard); configurable for low-power options
RAM: 2x DDR4 DIMM slots (max 64GB, dual-channel)
Storage:
1x 3.5" HDD / 2x 2.5" SSD (9.6mm)
1x M.2 2280 (M-key, PCIe x4 NVMe) + 1x mSATA (internal)
3x SATA III ports (6Gbps)
Expansion: 2x low-profile slots (1x PCIe x16, 1x PCIe x4) – for GPU, motion control, DAQ cards
Front I/O: 2x USB 3.2 Gen1, 2x USB 2.0, Power button, Reset, Audio jack
Rear I/O: 2x USB 3.2 Gen1, 2x USB 2.0, 2x GbE LAN (Intel® i225/i211), HDMI + DP (dual independent display), RS232/485 (optional), Audio
Wireless: Optional 4G/5G, Wi-Fi 6/6E, Bluetooth (M.2 E-key)
PSU: 250W industrial-grade (80+ Bronze, wide voltage input optional)
Dimensions (W×H×D): ~95 × 270 × 300 mm (3.74 × 10.63 × 11.81 in)
Weight: ~3.3 kg (7.29 lb)
Mounting: Desktop / VESA (optional) / Rack-mount kit (optional)
Operating Temp: 0~50°C (standard); -20~60°C (extended temp option)
Humidity: 5~95% RH (non-condensing)
EMC: Class B compliance, industrial vibration/shock resistance
OS Support: Windows 10/11 IoT Enterprise, Linux (Ubuntu/CentOS), Debian
Security: TPM 2.0 (optional), Intel® AMT (vPro models), secure boot
Industrial Protocols: EtherCAT, PROFINET, Modbus RTU/TCP (software/driver support)
Compact yet Expandable: Mini-tower design fits tight control cabinets/desks while retaining PCIe expansion for industrial cards.
Upgradeable Performance: LGA 1700 socket supports 12th/13th Gen Intel CPUs for future performance scaling.
Industrial Reliability: Rugged chassis, wide-temp, vibration/shock resistance, long-life components for 24/7 operation.
Rich Connectivity: Dual GbE, multi-USB, dual display, optional 4G/5G/Wi-Fi for IIoT edge and remote monitoring.
Flexible Storage: Mix of SATA, M.2 NVMe, mSATA for OS, data, and industrial database needs.
Customization: Optional extended temp, wide-range DC input, PoE, serial ports, and OS preload for vertical markets.
Factory HMI & operator stations
IIoT edge gateway & data acquisition
Industrial automation & motion control
Small-footprint industrial workstations
Retail/kiosk & intelligent logistics control
Vehicle-mounted/on-board computing (optional shock mounting)
Extended temperature (-20~60°C)
Wide-range DC input (19~48V)
4G/5G cellular module + antenna
Wi-Fi 6/6E + Bluetooth
TPM 2.0 & Intel vPro (AMT)
PoE ports (for IP camera/device power)
Custom I/O (RS422/485, CAN bus, GPIO)
Rack-mount / VESA mounting kit
OS preload & driver customization
BPC-103 Pro Compact Tower IPC Power meets space efficiency for industrial edge computing. Built with 12th/13th Gen Intel® Core™ LGA 1700 upgradability, industrial-grade ruggedness, and rich expansion, the BPC-103 Pro delivers reliable 24/7 performance in a mini-tower footprint. Ideal for HMI, IIoT gateway, automation control, and small workstation applications—where space is limited but performance and expandability are non-negotiable.
