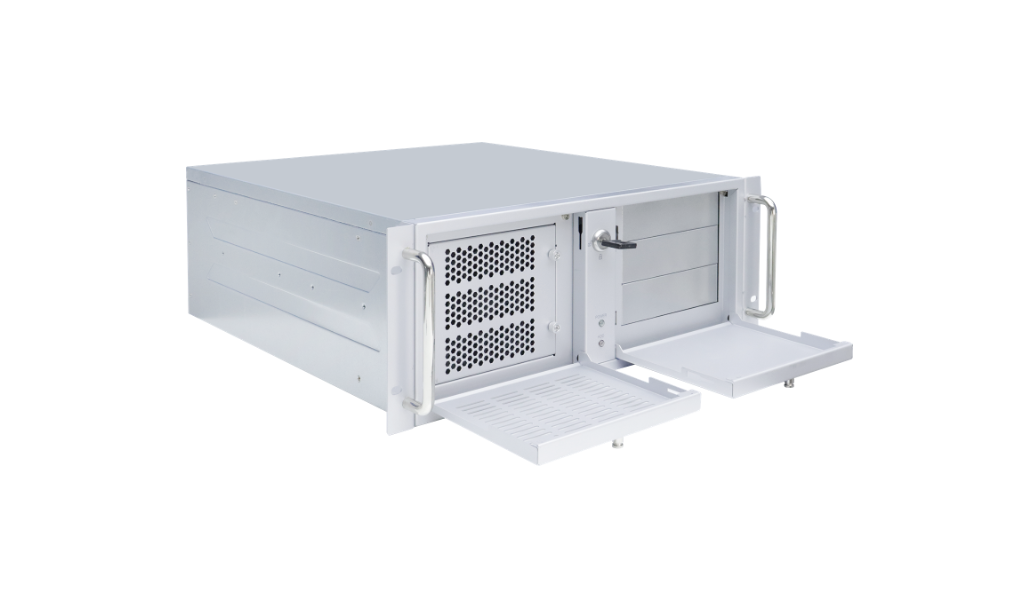

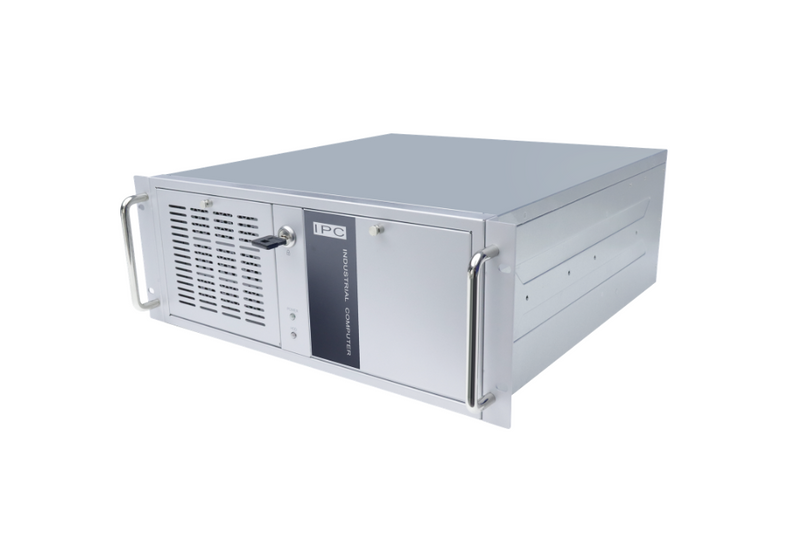

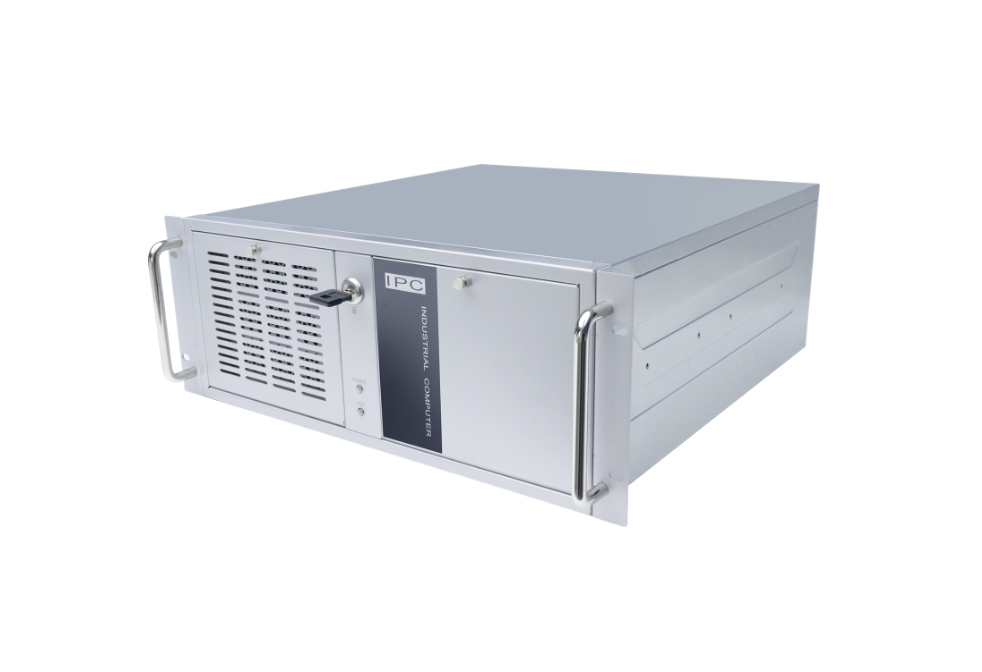

4U Rackmount Chassis | IPC-4U

Name: 4U Rackmount Chassis | IPC-4U
Brand: VINCANWO GROUP
Rating: 5.0 (95 reviews)

Key Highlights:
• 4U rackmount chassis supports up to 15 add-on cards
• With 850W or 1200W ATX 3.1 power supply
• Dual front-access cooling fans provide optimized and streamlined airflow
• Supports ATX/Micro ATX MB with CPU TDP up to 120W
• Low noise system fans with fan speed control

Model:
IPC-4U
Brand:
VINCANWO GROUP

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model		IPC-4U
Primary Components	Motherboard	B75/3rd gen/275W(2D3/5SA/1M2/PCIE X161/X11/PCI2) B85/4th gen/275W(4D3/5SA/1M2/PCIE X161/X42/PCI4) H310/6th – 9th gen/275W(2D4/3SA/1M2/PCIE X161/X41/PCI2) H610/12th – 14th /500W(2D4/3SA/1M2/PCIE X162/X4*3)
	Chipset	H310 H670
	Processor Model	12th/11th/10th/9th/8th/7th/6th/5th/4th \| i3/i5/i7 Phytium D2000 dual-network, D2000 quad-network, FT2000 dual-network Zhaoxin U6580 single-network, U6780A single-network, 6640MA dual-network Hygon C86-4G 3490 Dual-SIM
	Memory Type	DDR3, DDR4
	Memory Support	4GB, 8GB, 16GB, 32GB, PC-DDR4 supports 64GB
	Storage Type	1x MSATA \| 1x M.2 SATA \| 1x M.2 NVME protocol, 4x SATA 3.0
	Storage Support	MS:128GB~512GB \| M.2: 128GB~1TB
Operating Systems	Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
	Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)
Peripherals & Wireless Connectivity	WiFi	Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
	Bluetooth	Optional Bluetooth 5.3
External I/O Ports	USB	2x front USB 2.0 8x rear USB 3.2
	Serial/COM	2x rear RS232, expandable to 4x RS232 COM3/4 supports RS422/485
	Ethernet / LAN	1x Gigabit I219V, 1x 2.5 Gigabit I226 1x RLT8111 Gigabit Ethernet adapter, supports Wake-on-LAN and PXE functionality
	Video Outputs	1x VGA, 1x DVI-I, 1x HDMI
	Audio Ports	1 x LINE_IN, 1 x LINE_OUT 1 x MIC_IN Integrated Realtek ALC4080 HD digital audio decoder
	PS interface	1x PS2
Expansion Slots	Others	2x PCI-E X16 2x PCI-E X4 2x PCI 1x PCI-E x16_1 interface, for connecting a discrete graphics card (PCI-E x8 signal) 1x PCI-E x16_2 interface, for connecting a discrete graphics card (PCI-E x4 signal) 1x PCI-E x8 interface 1x PCI-E x1 interface
	LPT parallel port	Expandable to LPT
Power	Power Supply	ATX power supply Recommended to use a power supply of 200W or above
Weight / Dimensions	Weight	16.90 kg
	Dimensions	482x400x88.5 mm
Thermal & Environmental	Operating Temperature	-20°C ~ 60°C
	Storage Temperature	-30°C ~ 70°C
	Cooling Solution	high-RPM fan
	Humidity Range	10% – 95% Non-condensing
Enclosure	Material	Aluminum
	Color	Black
	Led Indicator Light	HDD Access, Power
	Mounting Options	Rack-mount, Desktop

4U Rackmount Chassis | IPC‑4U – Vincanwo Group

Vincanwo Group’s IPC‑4U is a robust 4U rackmount chassis engineered for industrial computing, automation, and server‑grade applications. Built with heavy‑duty steel construction and optimized airflow, the IPC‑4U delivers reliable performance in demanding environments, making it ideal for factory automation, data acquisition, network security, and embedded control systems.

Key Features:

19‑inch standard 4U rackmount design
Rugged steel enclosure for enhanced durability and EMI protection
Support for ATX/mATX/mini‑ITX motherboards (depending on model)
Multiple 3.5” and 2.5” drive bays for flexible storage expansion
Front‑panel USB ports, power/reset buttons, and status LEDs for easy access
High‑efficiency cooling system with front‑to‑rear airflow and optional fan upgrades
Support for standard ATX or redundant power supplies
Cable management features for improved system maintenance
Optional front‑panel LCD for real‑time system monitoring
