SKU | TPRO-SE101 ARM |
Screen Size | 10.1” |
Resolution | 1280 x 800 |
Viewing Angle | 85/85/85/85 |
Brightness | 400 cd/㎡ |
Contrast Ratio | 800:1 |
Touchscreen | Capacitive |
Controller | USB interface |
Durability | ≥ 5M times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 3588: 64G, 128G, 256G |
Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini PCIE |
Operating Systems | Android, Linux |

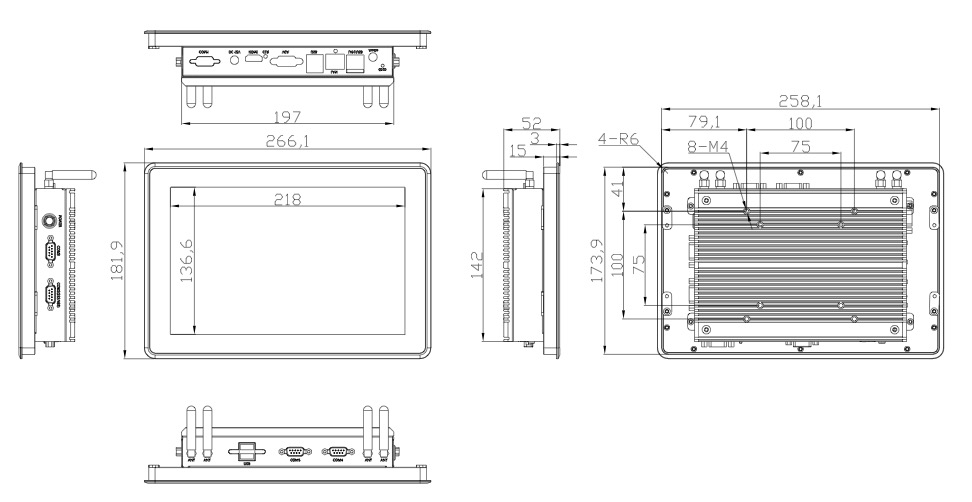

Dimension | 266.1x181.9x52mm |
Mounting Hole Size | 260x176mm |
Gross Weight | 3.00kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantage:
Larger screen size: The 10.1" screen size of a Fanless Android Panel PC provides a larger display area compared to smaller devices, making it easier to view and interact with content.
Enhanced visibility: The larger screen size of a 10.1" Fanless Android Panel PC allows for better visibility of text, images, and videos, making it ideal for applications that require detailed viewing.
Improved user experience: The larger screen size of a 10.1" Fanless Android Panel PC provides a more immersive and engaging user experience, making it easier to navigate through applications and content.
Enhanced performance: The larger screen size of a 10.1" Fanless Android Panel PC allows for more powerful hardware components, resulting in improved performance and faster processing speeds.
Fanless design: The fanless design of a 10.1" Fanless Android Panel PC helps prevent dust and debris from entering the device, ensuring reliable operation in harsh environments and reducing maintenance requirements.
Versatile applications: The larger screen size and fanless design of a 10.1" Fanless Android Panel PC make it suitable for a wide range of applications, including industrial automation, digital signage, retail kiosks, transportation, healthcare, and hospitality.
Connectivity options: The larger screen size of a 10.1" Fanless Android Panel PC provides more space for connectivity options, such as USB ports, HDMI ports, and Ethernet ports, making it easier to connect to other devices and peripherals.
Overall, the advantages of a 10.1" Fanless Android Panel PC include improved visibility, enhanced user experience, better performance, reliable operation, and versatile applications, making it a versatile and powerful solution for various industries and use cases.
>Product Applications:
Industrial automation: 10.1" Fanless Android Panel PCs are commonly used in industrial automation applications for monitoring and controlling machinery and equipment in harsh environments. The fanless design helps prevent dust and debris from entering the device, ensuring reliable operation.
Digital signage: 10.1" Fanless Android Panel PCs are ideal for digital signage applications in retail stores, restaurants, airports, and other public spaces. The fanless design ensures quiet operation, while the larger screen size allows for more engaging and impactful content display.
Retail kiosks: 10.1" Fanless Android Panel PCs can be used in retail kiosks for self-service checkout, product information displays, and interactive customer engagement. The fanless design helps reduce maintenance requirements and ensures reliable operation in high-traffic environments.
Transportation: 10.1" Fanless Android Panel PCs are suitable for transportation applications, such as in-vehicle infotainment systems, ticketing machines, and GPS navigation systems. The fanless design helps prevent overheating and ensures reliable operation in rugged conditions.
Healthcare: 10.1" Fanless Android Panel PCs can be used in healthcare settings for patient monitoring, electronic medical records management, and telemedicine applications. The fanless design helps maintain a clean and quiet environment, while the larger screen size allows for better visualization of medical data and images.
Hospitality: 10.1" Fanless Android Panel PCs are commonly used in hospitality settings for guest room control systems, digital concierge services, and interactive information displays. The fanless design ensures quiet operation, while the larger screen size provides a more immersive experience for guests.
Overall, the applications of 10.1" Fanless Android Panel PCs are diverse and versatile, making them suitable for a wide range of industries and use cases where reliable performance, durability, and user-friendly interfaces are essential.
