| Product Name and Model | ARM-based Edge AI Computing PC | VG-EIC-2000 | |

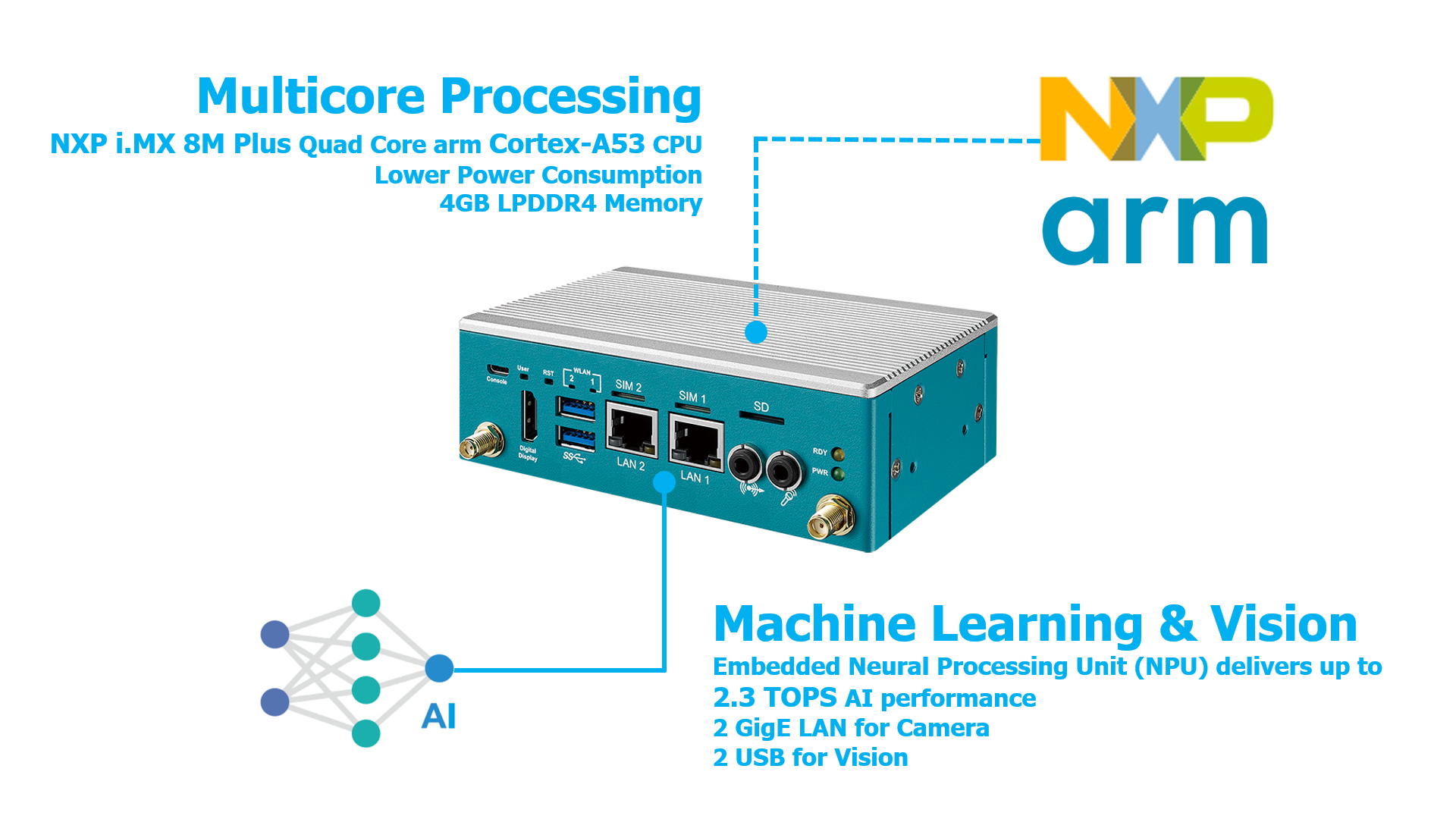

| System | Processor | NXP i.MX 8M Plus Quad Core Arm Cortex-A53 processor |
| Memory | 1 LPDDR4 SDRAM, 4GB | |
| OS | Ubuntu 20.04 LTS | |

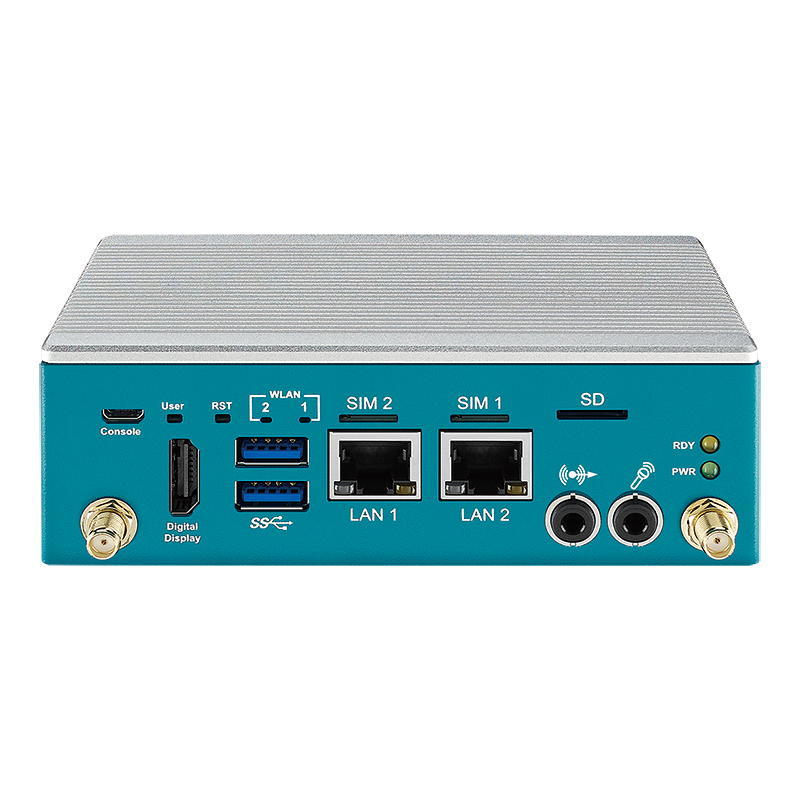

| I/O Interface | USB | 2 USB 3.0 Type A |
| Serial | 2 COM RS-232/422/485 | |
| GPIO | 6-bit GPIO (Optional) | |
| CAN Bus | 2 CAN Bus support CAN FD (Optional) | |
| Micro USB | 1 Micro USB console debug port | |
| Button | - 1 User-define Button - 1 Reset Button | |
| LED | Power, Ready, 2 WLAN | |
| SIM | 2 Nano SIM Card Socket | |

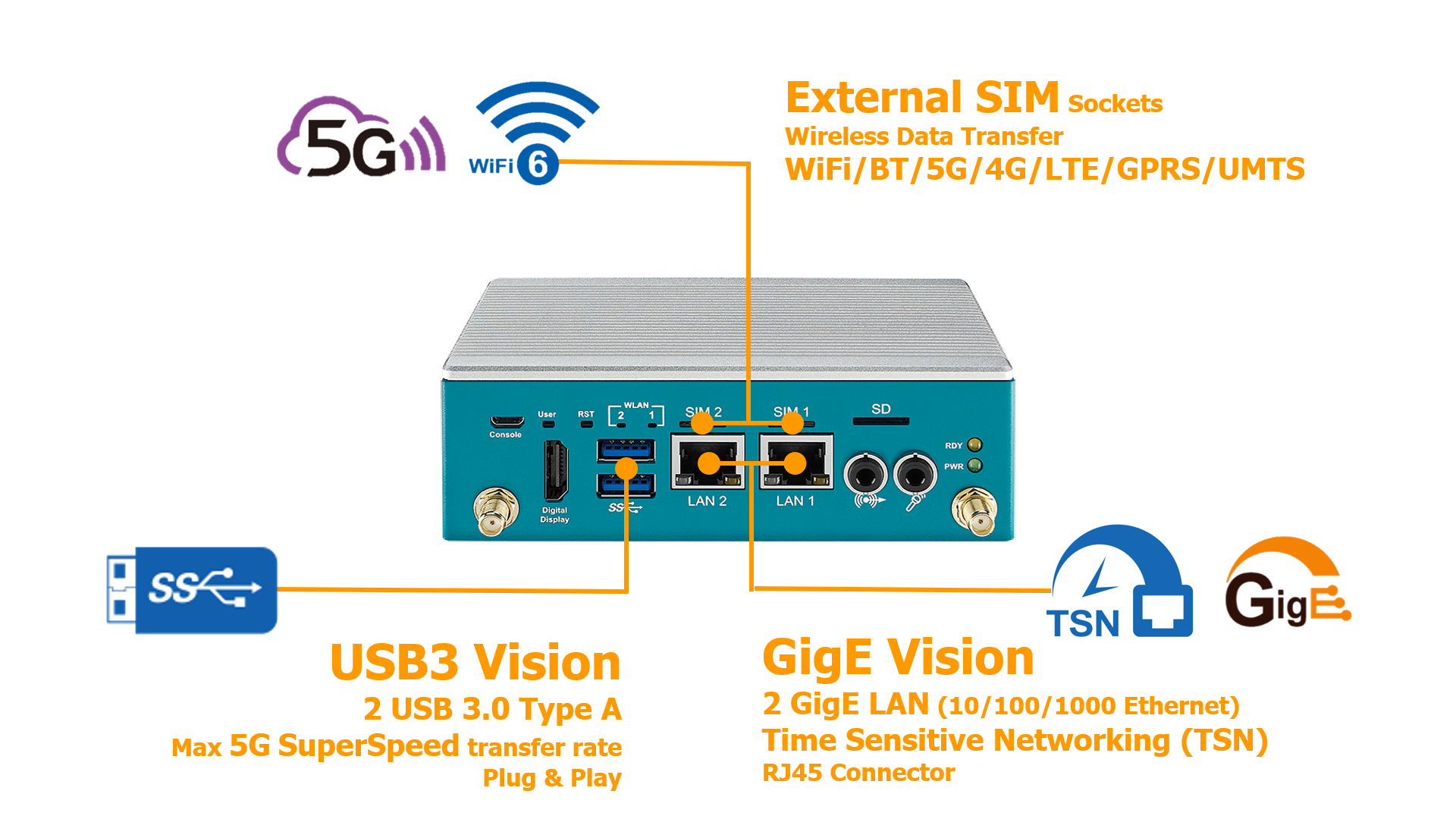

| Antenna | 6 Antenna for WiFi/BT/5G/4G/LTE/GPRS/UMTS | |
| Ethernet / LAN | 1x 10/100/1000 Base-T Ethernet GigE LAN supports TSN, RJ45 Connector, 1x 10/100/1000 Base-T Ethernet GigE LAN, RJ45 Connector | |
| Expansion | M.2 | 1 M.2 Key B Socket (3042/3052, PCIe/USB 3, Default) |
| Mini PCIe | 1 Full-size Mini PCIe Socket | |
| Graphics | Interface | 1 Digital Display, up to 3840 x 2160 @30Hz |
| Video Encode | - HEVC : Up to 1080p @60 - H.264 : Up to 1080p @60 | |
| Video Decode | - HEVC : Up to 1080p @60 - H.264 : Up to 1080p @60 | |
| Storage | eMMC | 1 eMMC, 32GB |
| SD | 1 Micro SD, supports SDHC (External) | |

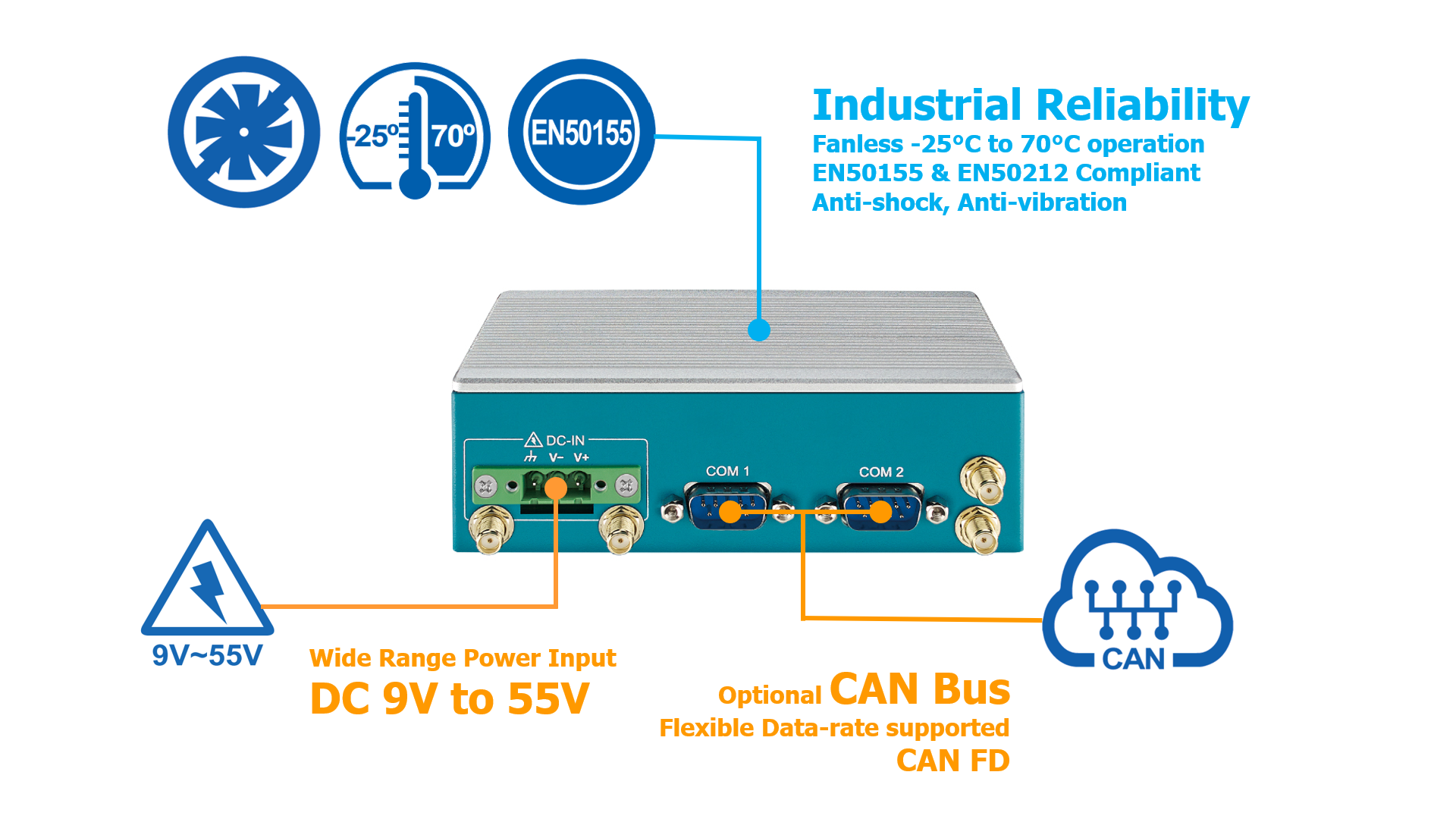

| Power | Power Input | DC 9V to 55V |

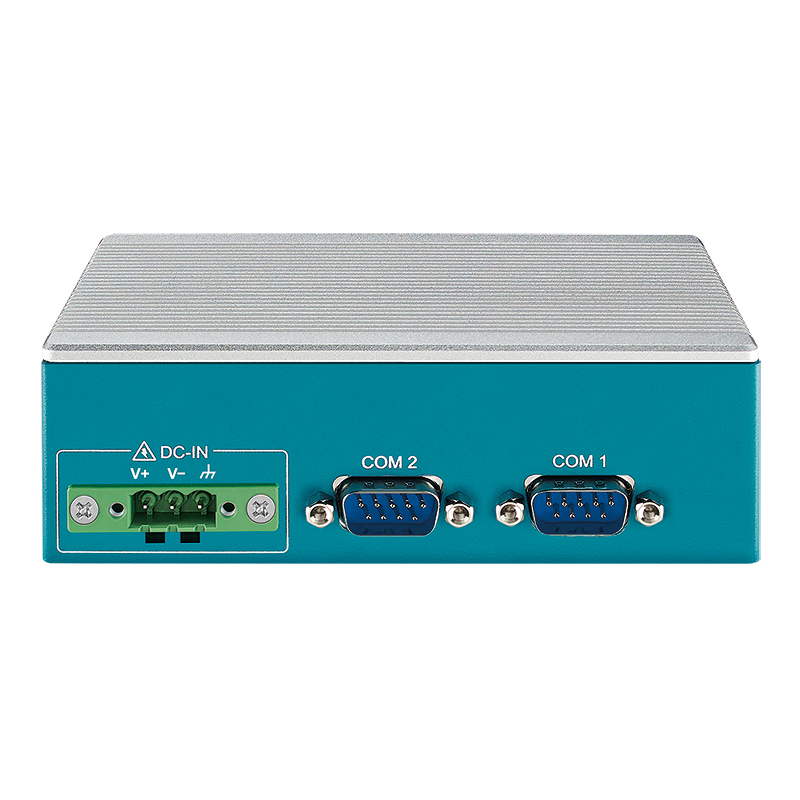

| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground | |
| Mechanical | Dimensions | 130mm x 78.5mm x 42mm |
| Weight | 0.5 kg | |
| Mounting | - Wallmount by mounting bracket - DIN Rail Mount (Optional) | |
| Environment | Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C | |
| Humidity | 5% to 95% Humidity, non-condensing | |
| Relative Humidity | 95% @70°C | |
