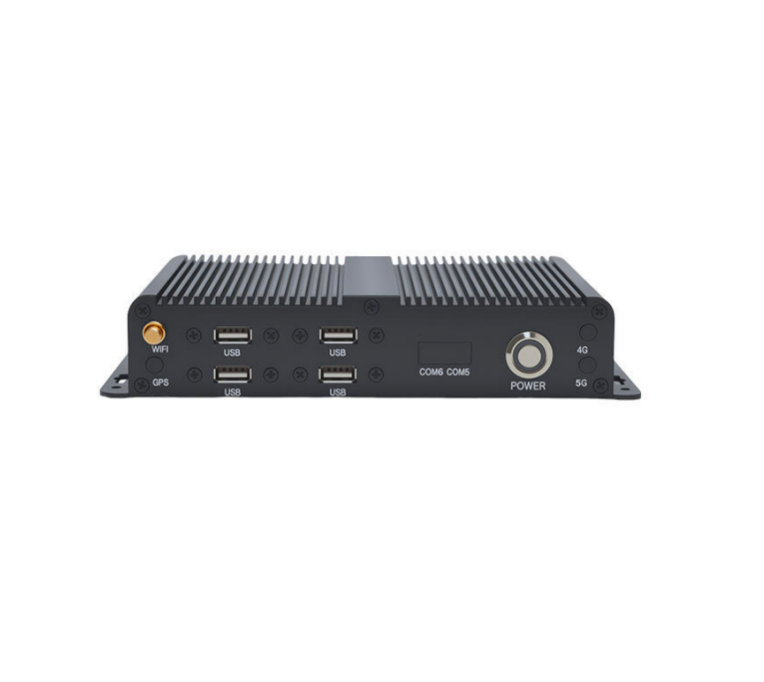

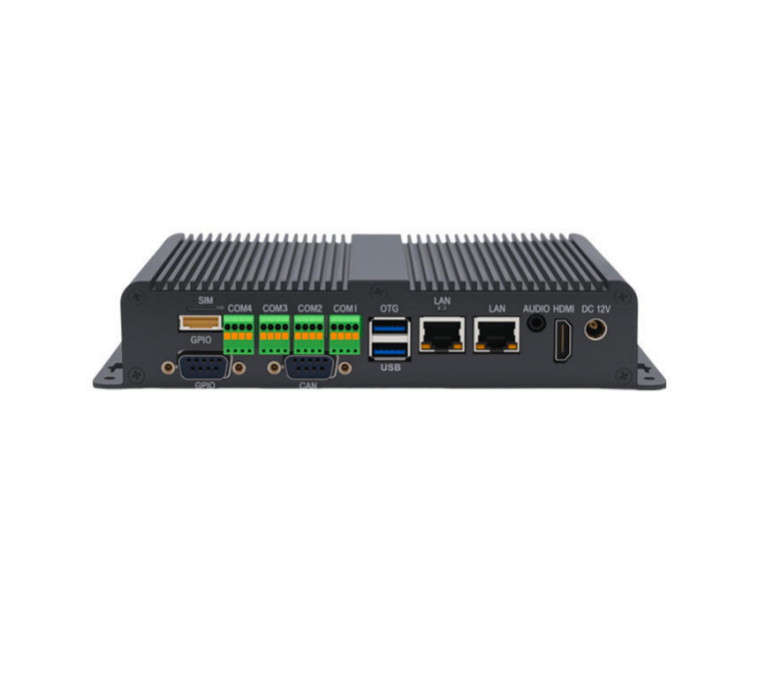

Android Industrial Fanless Mini PC | AN3588

1. High-Performance 8nm Octa-Core AI Processor Powered by the advanced Rockchip RK3588 octa-core processor built on 8nm process technology, combining four Cortex-A76 high-performance cores and four Cortex-A55 energy-efficient cores, delivering ultra-fast processing speed with low power consumption. Equipped with a triple-core NPU providing up to 6TOPS AI computing power, it supports edge artificial intelligence analysis, image recognition and intelligent data computing for industrial scenarios. The integrated ARM Mali-G610 MC4 GPU ensures smooth 2D/3D graphic rendering and multi-media processing capabilities.

2. Full Fanless Passive Cooling & Industrial Stability Adopts a fully enclosed fanless heat dissipation structure with high-efficiency aluminum heat conduction design, completely eliminating fan failure, dust accumulation, noise and vibration interference. It supports 24/7 long-term continuous operation and features a wide temperature working range from -20°C to +70°C, adapting to harsh industrial environments with temperature fluctuations, dust and humidity. The compact industrial-grade structure ensures outstanding shock and vibration resistance for on-site industrial deployment.

3. 8K Ultra-HD Video & Multi-Screen Display Support Supports 8K@60fps ultra-high-definition video decoding and output via HDMI 2.1 interface, compatible with mainstream ultra-high-resolution display devices. It enables multi-screen independent display and asynchronous output, meeting the split-screen monitoring, multi-terminal display and high-definition visualization demands of industrial control, smart signage and edge monitoring scenarios. Built-in professional image acceleration algorithms optimize display fluency and color restoration.

4. Mature Android System & Strong Software Compatibility Pre-installed stable industrial Android system, supporting customized system debugging, app secondary development and automatic startup. Compatible with massive industrial APPs, monitoring software and intelligent management programs, it simplifies equipment docking and system deployment. The system features low latency, high stability and anti-crash performance, fully adapting to long-term unattended industrial operation.

5. Rich Industrial I/O Interfaces & Expandability Comes with complete industrial dedicated interfaces, including Gigabit Ethernet, high-speed USB ports, HDMI, RS232/RS485 industrial serial ports and audio interfaces, supporting seamless connection with PLC, sensors, cameras, industrial gateways and various peripheral devices. Reserved expansion slots support WIFI, Bluetooth, 4G/5G module and storage upgrade, realizing flexible function expansion to meet diverse customized industrial needs.

6. Ultra-Compact Size & Flexible Installation Featuring a mini lightweight body with high integration, it saves installation space greatly. Supporting wall-mounted, embedded and desktop installation methods, it is suitable for narrow industrial cabinets, intelligent equipment interiors and compact on-site deployment scenarios, with simple wiring and convenient maintenance.

1. Industrial Edge Computing & AI Analysis Serves as an edge computing terminal for industrial automation workshops, undertaking real-time data collection, AI image recognition, production defect detection and equipment operation data analysis. It realizes local data processing, reduces cloud transmission pressure and improves industrial on-site intelligent decision-making efficiency.

2. Intelligent Industrial Control & HMI System Applied to automated production lines, intelligent machinery and industrial control cabinets, acting as a human-machine interaction and control core. It supports equipment parameter adjustment, real-time status monitoring, production data statistics and remote equipment management, ensuring stable and efficient operation of automated production systems.

3. Smart Digital Signage & Visual Monitoring Widely used in industrial park display terminals, factory information screens, commercial intelligent signage and workshop monitoring displays. With 8K high-definition output and multi-screen display capability, it realizes real-time information release, production data visualization and on-site safety monitoring display.

4. IoT Gateway & Intelligent Monitoring Terminal Functions as an industrial IoT gateway to connect and aggregate multiple field devices, realizing data transmission, protocol conversion and network management. Suitable for environmental monitoring, water treatment, power energy and smart building scenarios, supporting long-term stable data monitoring and remote system scheduling.

5. Smart Transportation & Vehicle Industrial Control Adaptable to vehicle-mounted industrial control terminals, logistics equipment control systems and roadside intelligent monitoring devices. With excellent vibration resistance and wide-temperature adaptability, it maintains stable operation in complex mobile and temperature-changing environments.

6. Custom Intelligent Industrial Equipment Serves as the core control host for various customized intelligent devices, including industrial detection equipment, automated sorting equipment, intelligent access control terminals and unattended monitoring equipment, providing reliable hardware and software support for diversified industrial intelligent upgrading.

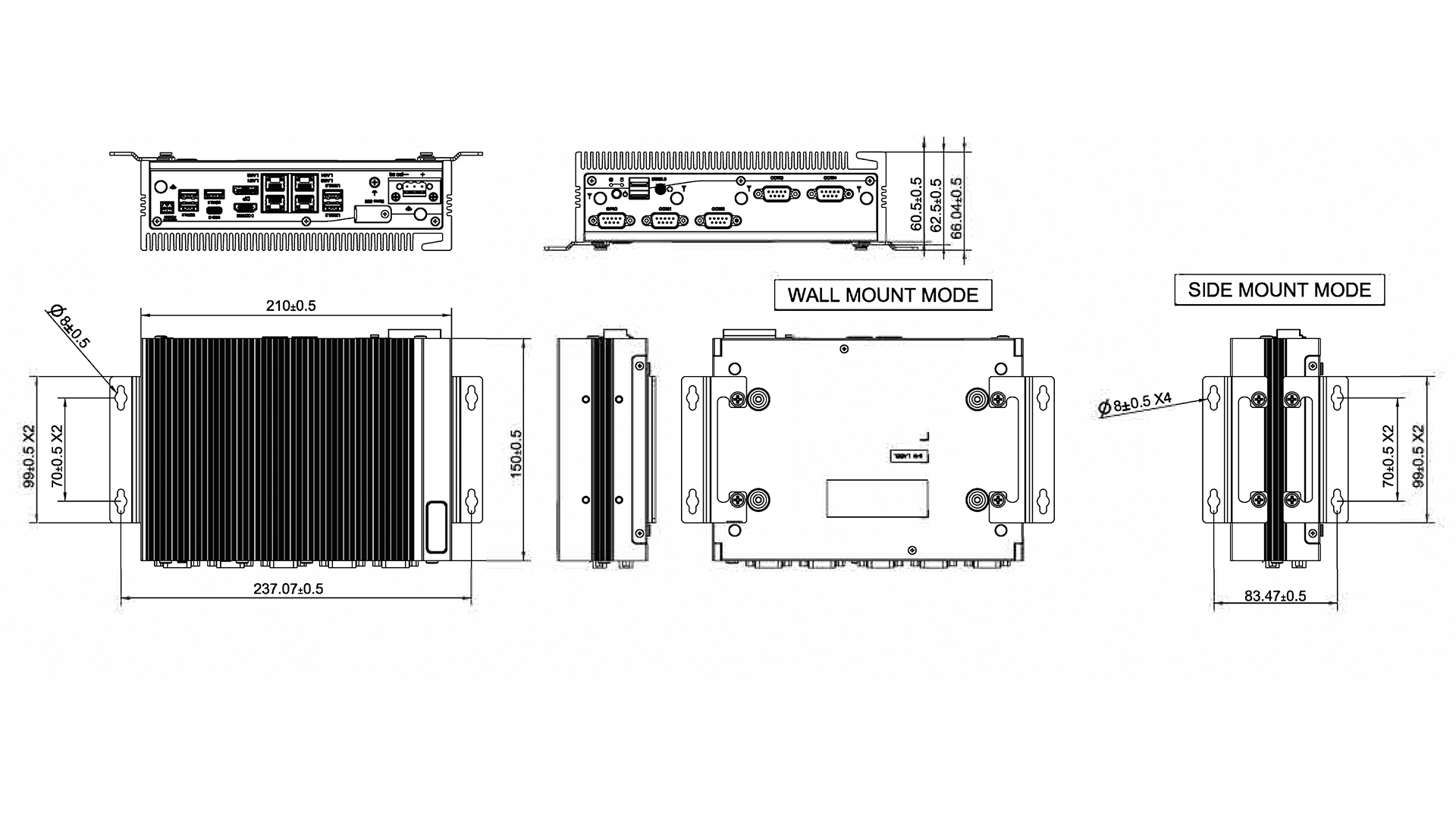

2D Drawing

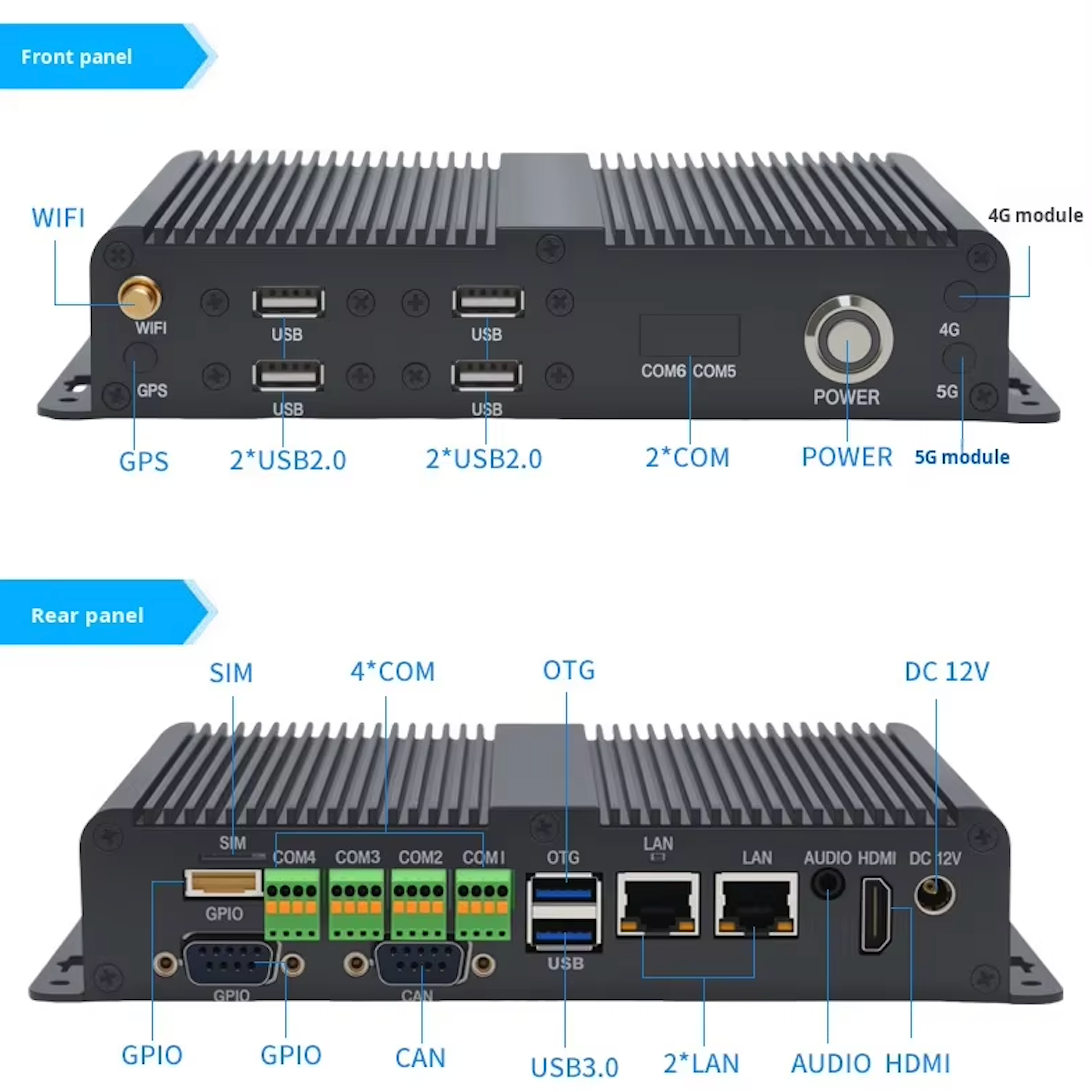

I/O
