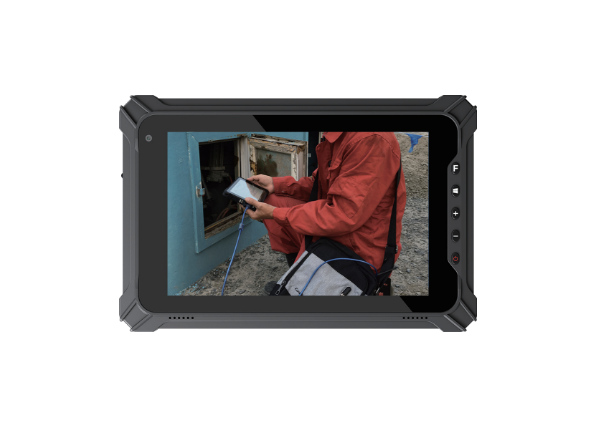

8inch Rugged Windows Tablet | I87J
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | I87J | |
Performance Parameter | Intel Celeron N5100 CPU | Windows 10 | |
8GB RAM | 128GB ROM | ||
Basic Parameter | Dimension | 236.7 x 155.7 x 20 mm |
Weight | 910 g | |
Device Color | black | |
LCD | 8'' TFT 16:10, 1200*1920 (EM-I87J Optional 800*1280), 550nits (Optional 700nits) | |
Touch Panel | 5 point capacitive touch screen | |
Camera | Front 5.0MP, Rear 8.0MP, auto focus, with flashlight function | |
I/O | Three in one card holder Micro SD Card, Nano-SIM Card USB3.0 *1，Type C 3.1 *1 USB 2.0*1，HDMI 1.4a x 1 12pin Pogo Pin x 1 Φ3.5mm standard earphone jack x 1 | |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A | |
Battery | Capacity | 7.6V/5000mAh |
Type | Removable polymer lithium battery | |
Endurance | 7ours | |
Communication | GNSS | GPS, GLONASS |
WIFI | 2.4G+5.8G, WIFI 802.11(a/b/g/n/ac) | |
Bluetooth | BT 5.0 | |
4G (Optional) | LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40, GSM: 900/1800 WCDMA: B1/B5/B8, Optional EC25-AF, 750-VA, 750-VSA | |
Reliability | Operate Temperature | -30°C ~ 70°C |
Store Temperature | -40°C ~ 80°C | |
Humidity | 95% Non-Condensing | |
IP Grade | IP65 | |
Data Acquisition | NFC | Optional, 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocols Card reading distance: 4 cm |
2D | Optional, Optical resolution: 5mil/scan speed: 50 times/s | |
| Feature | I87J Specifications |
|---|---|
| Display | 8" Sunlight-Readable (1920×1200) IPS, 1200 cd/m², Corning Gorilla Glass 6 w/ Anti-Reflective |
| Rugged Rating | IP69K (100°C/100-bar steam), MIL-STD-810H(1.8m drops), -30°C to 70°C |
| OS | Windows 11 IoT Enterprise LTSC (10-yr support) |
| Processor | Intel® Core™ i5-1245U (10C/12T, 4.4GHz) w/ vPro |
| Memory/Storage | 16GB LPDDR5X + 512GB NVMe (SED FIPS 140-2) |
| Data Capture | Zebra SE6550 1D/2D (motion-tolerant), UHF RFID (RAIN Gen2, 10m), 5MP IR Camera |
| Power | 10,000mAh Hot-Swap Dual-Bridge (2× 5000mAh), 12hrs @ max brightness |
| Wireless | Wi-Fi 6E, 5G Sub-6GHz, BT 5.3, Dual GNSS(L1/L5 w/ dead reckoning) |
Windows-Centric Ruggedization
Thermal Design: Vapor Chamber + Copper Heat Pipes sustains 28W TDP @ 55°C ambient
Shock Protection: Magnesium Alloy Framew/ TPU Overmold (6ft drop survival)
EMI Hardening: MIL-STD-461G compliant (50V/m radiated immunity)
Modular Expansion
Smart Dock Interface: 40-pin pogo (supports CAN FD, PoE+, RS-485/232, DisplayPort 1.4)
Removable Backplate: Swaps for Barcode Imager, Smart Card Reader, or Geiger Counter
Field-Ready Input
Glove/Touch: 10-point capacitive (8mm gloves) + Active Pen (4096 pressure, IP68)
Physical Keys: Backlit numeric keypad + 4x programmable buttons (P1-P4)
| Interface | Field Application |
|---|---|
| M12 Connectors | X-coded (USB 3.2), A-coded (Ethernet 2.5GbE) |
| GPIO | 4× Isolated (24V/1A) w/ Opto-22 isolation |
| Serial | RS-232/422/485 (software-selectable) |
| Expansion Slots | M.2 3052 B-key (5G), M.2 2230 E-key (Wi-Fi) |
Rail Maintenance: EN 50155 compliance for vibration/shock
Warehouse Management: SAP EWM with UHF RFID pallet scanning
Oil & Gas: ATEX Zone 2 certified for hazardous areas
Military: FIPS 140-2 encryption + vPro remote management
| Function | Implementation |
|---|---|
| Hot-Swap | Zero-interruption battery swap(dual-bridge architecture) |
| Thermal Throttling | Smart Fan Curve (IP69K-sealed blower) |
| Field Charging | 9-36V DC in (vehicle), Qi Wireless (5W) |
| Power Saving | Intel® Speed Select for core parking in field use |
| Test | I87J Performance |
|---|---|
| Steam Jet | IP69K (100-bar @ 85°C, 30s @ 10cm) |
| Vibration | 7Grms (IEC 61373 Cat 1, 5-150Hz) |
| Thermal Shock | -40°C ↔ +85°C (500 cycles) |
| Chemical Resistance | 24hr exposure to hydraulic fluid/IPA |

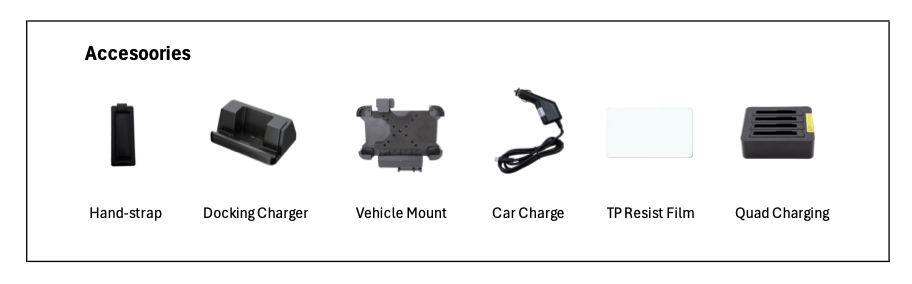

| Component | Recommendation |
|---|---|
| Vehicle Dock | Havis HD-VIS-800(vibration-damped w/ 100W PD) |
| Barcode Module | Zebra HD4000 (long-range, 15m scan) |
| GNSS/GIS | Trimble R750 (RTK via pogo dock, 1cm accuracy) |
| Thermal Imager | Teledyne FLIR T540 (USB-C, -20°C to 550°C) |
| Smart Card Reader | HID Omnikey 5027CL(PIV/FIPS 201) |
