SKU | Q865M | T86X |

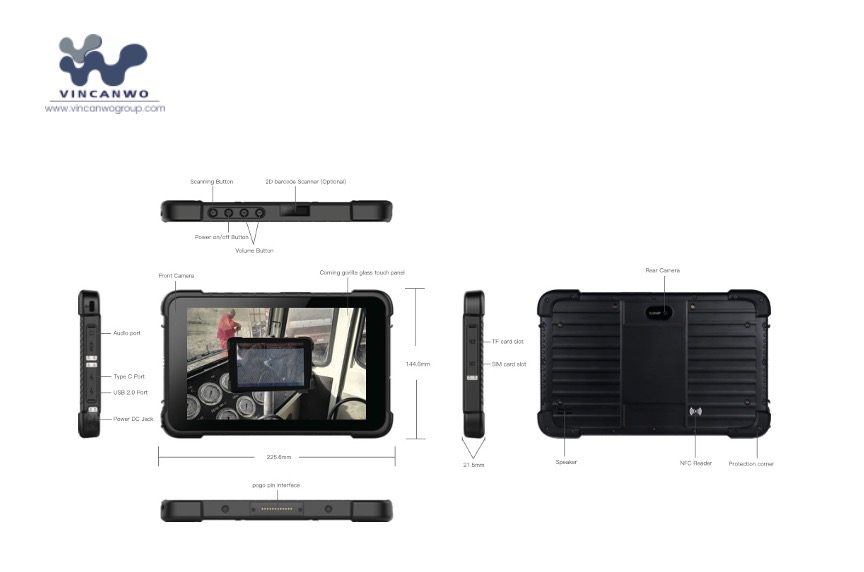

Dimension | 225.6 x 144.6 x 21.5 mm | |
Weight | 715 g | |
Device Color | black | |
LCD | 8'' IPS FHD 16:10, 800*1280, 700 nits (T86X) , 8'' IPS FHD 16:10, 1200*1920, 550 nits (Q865M) | |
Touch Panel | 5-point capacitive, Corning Gorilla glass, G+G, handwriting support (Q865M) 10-point capacitive, Corning Gorilla glass, G+G, handwriting support (T86X) | |
Camera | Front 5.0MP, Rear 13.0MP, Auto focus with flash | |
I/O | Standard USB3.0 *1 (only for Q865M), USB2.0 *1 (only forT86X), Type C *1, 3.5mm Standard Earphone Jack *1 HDMI 1.4a Type C *1 (only for Q865M), SIM card *1, TF card *1, Max: 256GB 3.5mm Power Port *1, 12PIN Pogo Pin *1 | |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 5V/3A | |
Battery Capacity | 3.7V/8500mAh | |
Battery Type | Built-in Lithium-ion polymer battery | |
Battery Endurance | 10 hours (Q865M), 9hours (T86X) | |
GNSS | GPS L1&L5/Beidou/Glonass/Galileo/NavIC/IRNSS (Q865M) GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS (T86X) | |
WiFi | 2.4G+5G, WIFI 802.11(a/b/g/n/ac) | |
Bluetooth | BT 5.0 (Q865M) BT 5.1 (T86X) | |
2G/3G/4G | 5G NR: N1/N41/N78/N79, TDD-LTE: B34/B38/B39/B40/B41, FDD-LTE: B1/B3/B5/B7/B8/B20, TD-SCDMA: B34/B39, WCDMA: B1/B5/B8, EVDO: BC0, CDMA: BC0, GSM: B5/B3/B8 (Q865M) GSM: B2+B3+B5+B8, WCDMA: B1+B2+B5+B8, TDD: B38+B39+B40+B41N FDD：B1+B2+B3+B4+B5+B7+B8+B17+B20+B28a+B28b (T86X) | |
NFC | Support, 13.56MHz Support ISO/IEC 14443A protocol , Card reading distance: 4cm | |
2D | Optional, Optical resolution: 5mil/scan speed: 50 times/s | |
Operate Temperature | -30 °C ~ 70 °C | |
Store Temperature | -40 °C ~ 80 °C | |
Humidity | 95% Non-Condensing | |
IP Grade | IP67 | |
>Advantages:
1. Durability: The tablet is designed to withstand drops, shocks, vibrations, and extreme temperatures, making it ideal for use in rugged environments such as construction sites, warehouses, and outdoor settings.
2. Water and dust resistance: With an IP67 rating, the tablet is protected against water and dust ingress, ensuring reliable performance even in wet or dusty conditions.
3. Long battery life: The tablet is equipped with a long-lasting battery that allows for extended use without the need for frequent recharging, making it suitable for all-day use in the field.
4. High-resolution display: The 8" touchscreen display offers crisp and clear visuals, making it easy to view documents, maps, and other content in various lighting conditions.
5. Connectivity options: The tablet comes with multiple connectivity options, including Wi-Fi, Bluetooth, and 4G LTE, allowing users to stay connected and access data and applications on the go.
6. Built-in GPS: The tablet features built-in GPS functionality for navigation and location tracking, making it useful for field service technicians, delivery drivers, and other mobile workers.
7. Optional barcode scanner and RFID reader: The tablet can be equipped with optional barcode scanning and RFID reading capabilities, enabling users to easily capture and process data for inventory management, asset tracking, and other applications.
Overall, the Q865M | T86X rugged tablet computer offers a reliable and versatile solution for users who require a durable, high-performance device for their demanding work environments.
>Applications:
The 8" Android Rugged Tablet Computer | Q865M | T86X has a wide range of applications across various industries and environments due to its durability, performance, and versatility.
1. Field service: Field service technicians can use the rugged tablet to access work orders, service manuals, and customer information while on the go. The durability of the tablet ensures it can withstand the rigors of fieldwork.
2. Logistics and transportation: Delivery drivers, warehouse workers, and logistics professionals can use the tablet for inventory management, route optimization, package tracking, and communication with dispatchers.
3. Construction and engineering: Construction workers, engineers, and project managers can use the tablet to access blueprints, project plans, and documentation on construction sites. The rugged design of the tablet makes it suitable for use in dusty, dirty, and potentially hazardous environments.
4. Manufacturing: Factory workers and quality control inspectors can use the tablet for monitoring production processes, tracking inventory, and accessing work instructions. The rugged construction of the tablet ensures it can withstand the demands of a manufacturing environment.
5. Retail and hospitality: Retail associates, restaurant staff, and hotel employees can use the tablet for point-of-sale transactions, inventory management, customer service, and order processing. The durability of the tablet makes it suitable for use in busy retail and hospitality settings.
6. Healthcare: Healthcare professionals can use the tablet for patient care, medical record management, medication administration, and communication with colleagues. The rugged design of the tablet ensures it can withstand frequent cleaning and disinfection.
Overall, the Q865M | T86X rugged tablet computer is a versatile device that can be used in a wide range of industries and applications where durability, performance, and reliability are essential.
