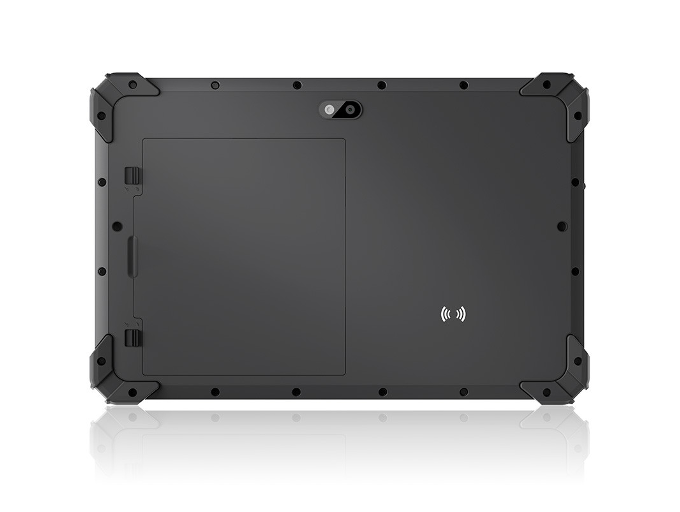

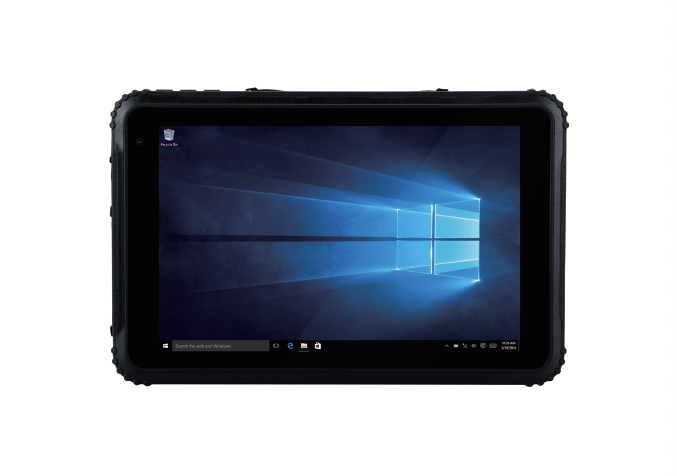

8inch Rugged Windows Mobile Computer | I88N
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
Model | I88N | |
Performance Parameter | Intel Alder LAKE N100 | Windows 10 8GB RAM | 128GB | |
Basic Parameter | Dimension | 236.7 x 155.7 x 20.8mm |
Weight | 820g | |
Device Color | Gray | |
LCD | 8'' IPS 16:10, 1200*1920, 550 nits | |
Touch Panel | 5-point capacitive, G+G, above 7H hardness | |
Camera | Front 5.0MP, Rear 8.0MP | |
I/O | USB 3.0 x1, Type C x 1 Φ3.5mm Standard earphone jack x 1 TF x 1, SIM card x 1, DC 12V 4A Power port HDMI x 1, 12PIN Pogo Pin x 1 | |
Power | AC100V to 240V, 50Hz/60Hz, Output wall-mount DC 12V/4A | |
Battery | Capacity | 7.6V/5000mAh |
Type | Removable polymer lithium battery | |
Endurance | 11 hours | |
Communication | GNSS | GPS+GLONASS |
WIFI | WIFI6 802.11 (a/b/g/n/acR2/ax 1x1), frequency 2.4G+5.8G | |
Bluetooth | BT5.2 | |
2G/3G/4G | (European Standard) LTE FDD: B1/B3/B5/B7/B8/B20/B28 , LTE-TDD B38/B40/B41 | |
Reliability | Operate Temperature | -30°C ~ 70°C |
Store Temperature | -40°C to 80°C | |
Humidity | 95% Non-Condensing | |
IP Grade | IP65 | |
Data Acquisition | NFC | Optional, 13.56MHz, Support ISO/IEC 14443A protocol Card reading distance: 4 cm |
Extreme Environment Readiness
Frost Prevention: Heated Display Layer (Activates <5°C)
Rain/Wet Touch: 400Hz Sampling Rate (Works with Gloves/Liquid)
Chemical Resistance: Corning® Gorilla® Glass DX+ & 316L Stainless Frame
Enterprise Data Capture
Barcode Scanning: 800 Scans/Hr (0.3s Decode @ 0.5-15m)
Thermal Imaging: Optional FLIR Lepton 3.5 (-20°C to +550°C, ±5°C)
Camera: 13MP w/ Hybrid Laser/RGB/IR Autofocus (0 Lux Capable)
Power Innovations
Hot-Swap Batteries: <3-Second Swap (Dual-Bridge Circuit)
65W SuperCharge: 0-80% in 40 Minutes (USB-PD 3.1)
Solar/Wind Charging: 9-36V DC Input via Dock (MPPT Controller)
| Industry | Use Case | Recommended Add-Ons |
|---|---|---|
| Utilities | Smart Meter Reading (ANSI C12.20) | IR Thermography Module, ATEX Zone 2 Kit |
| Logistics | Warehouse Picking (Voice-Directed) | Zebra RS5100Bluetooth Ring Scanner |
| Construction | BIM Model Validation (Trimble Connect) | Trimble R12iRTK GNSS via Pogo Dock |
| Public Safety | Evidence Collection (FirstNet Ready™) | FLIR ONE Pro Thermal, Cellebrite UFED |
Why Choose I88N Over Android Rugged Tablets?
graph LR A[Legacy Windows Apps] --> I88N B[PROFINET/OPC UA Integration] --> I88N C[Full Win32 Support] --> I88N D[10-Year OS Lifecycle] --> I88N
Energy & Utilities
Smart Grid Maintenance: Field validation of IEC 61850 substations, ANSI C12.20 meter certification.
Oil/Gas: ATEX Zone 2 pipeline inspections, wellhead monitoring (-40°C Arctic operations).
Renewables: Wind turbine blade inspections (100m elevation, salt fog exposure).
Transportation & Logistics
Rail: EN 50155-compliant rolling stock diagnostics, trackside asset scanning.
Warehousing: Voice-directed picking, UHF RFID pallet tracking (EPC Gen2).
Public Safety & Defense
Tactical: FirstNet™-certified incident command, evidence capture (Cellebrite integration).
Border Security: Thermal imaging for night patrols, biometric authentication.
Heavy Industry
Mining: SIL2-compliant collision avoidance, ventilation control (MIL-STD-461G EMI hardening).
Construction: BIM validation (Trimble Connect), crane load monitoring.
| Challenge | Consumer Tablet | I88N Industrial Solution |
|---|---|---|
| -30°C Cold Start | Fails below 0°C | PTC Heaters + Arctic BIOS Mode |
| Chemical Exposure | Corrodes in 48hr (IPA) | 316L Frame + Gorilla Glass DX+ (ISO 2812) |
| GNSS Denial | 15m drift in 60s | Bosch BMI270 IMU Dead Reckoning |
| Vibration Failure | PCB cracks @ 3Grms | Silicone Potting(10Grms) |
