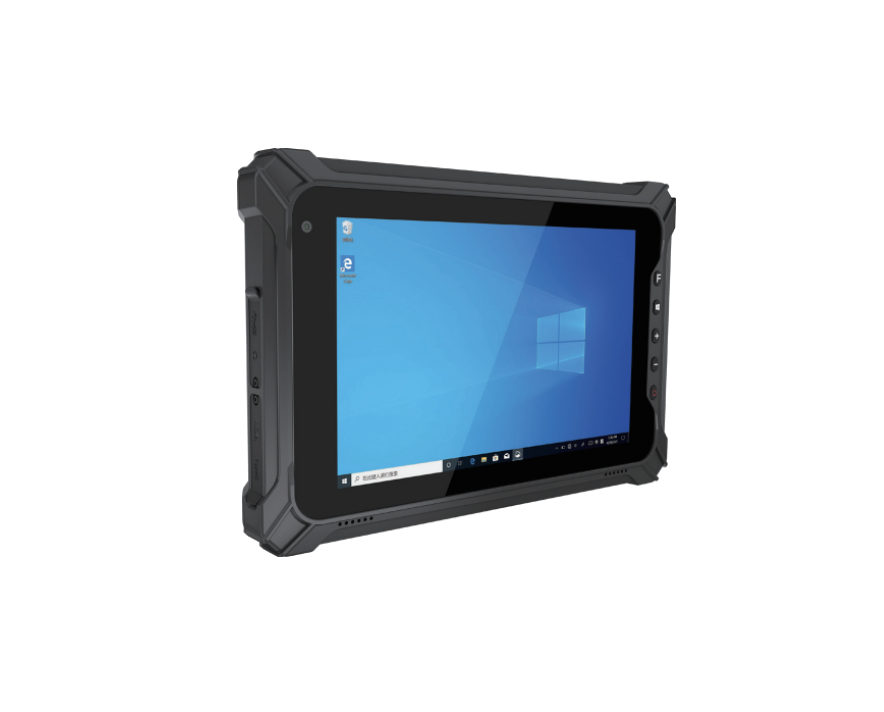

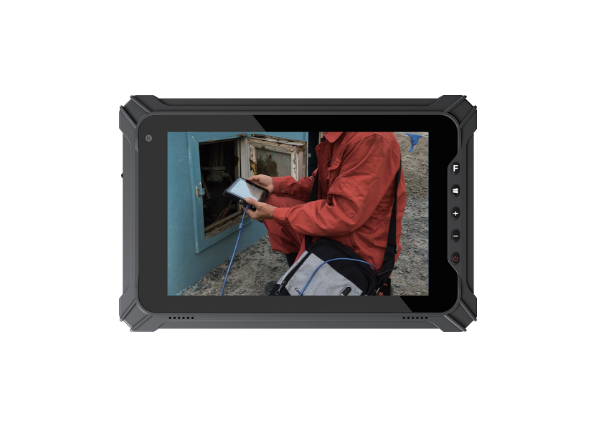

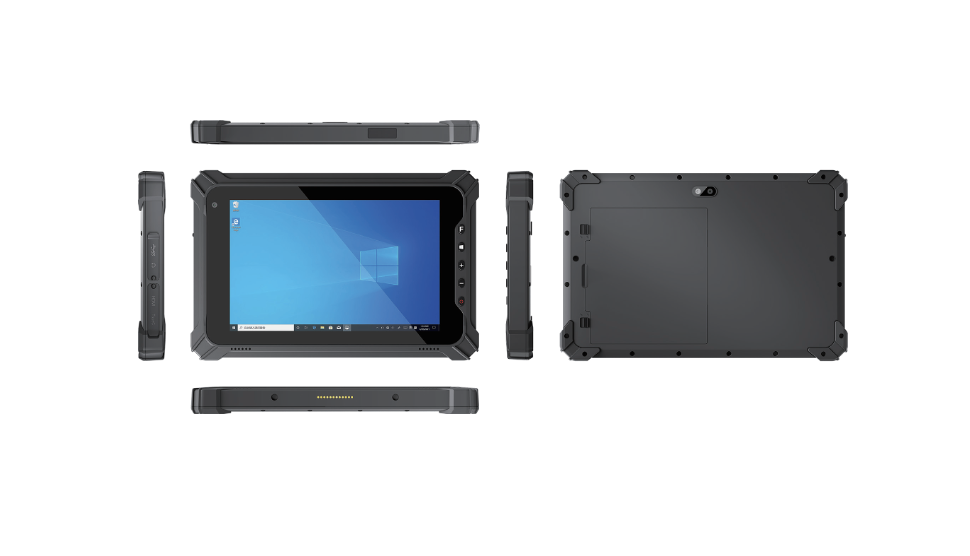

8inch IP65 Rugged Tablets | I87J(Windows,T87X(Android)

8inch IP65 Rugged Tablets | I87J (Windows) and T87X (Android), optimized for different industrial deployment scenarios. The I87J and T87X are 8-inch rugged tablets designed for industrial and field use, with the I87J model running Windows and the T87X model running Android. Both devices offer IP65 water and dust resistance and meet MIL-STD-810H or similar military standards, ensuring durability in harsh environments. The T87X features Android 12/GMS OS, while the I87J (not to be confused with the model on Emdoor's site) may use a different processor and offer features like 4G LTE, GPS, and other industrial-grade connectivity options.

Key Highlights:
• Intel Celeron N5100 CPU | Windows 10 | I87J
• ARM OCTA Core CPU | Android 12 | T87X
• 8GB RAM | 128GB ROM
• Optional 2D
• Support GPS, Glonass
• Optional NFC
• IP65 Grade
• Optional 4G

Model:
8inch IP65 Rugged Tablets | I87J(Windows,T87X(Android)
Brand:
VINCANWO GROUP

Availability:

Quantity:



Inquire Add to Basket

Product Description

Model	IP65 Grade 8inch Rugged Tablets \| I87J (Windows), T87X (Android)
Performance Parameter	Intel Celeron N5100 CPU \| Windows 10 \| I87J 8GB RAM \| 128GB ROM
Performance Parameter	ARM OCTA Cpre CPU \| Android 12 \| T87X 8GB RAM \| 128GB ROM
Basic Parameter	Dimension	236.7 x 155.7 x 20 mm
	Weight	910 g
	Device Color	black
	LCD	8'' TFT 16:10, 12001920 (EM-I87J Optional 8001280), 550nits (Optional 700nits)
	Touch Panel	5 point capacitive touch screen
	Camera	Front 5.0MP, Rear 8.0MP, auto focus, with flashlight function (I87J), Front 5.0MP, Rear 13.0MP (T87X)
	I/O	Three in one card holder Micro SD Card, Nano-SIM Card USB3.0 1，Type C 3.1 1 (I87J) USB 2.01，Type-C 1 (T87X) , HDMI 1.4a x 1 (I87J) 12pin Pogo Pin x 1 Φ3.5mm standard earphone jack x 1
	Power	AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A (I87J) DC 5V/3A (T87X)
Battery	Capacity	7.6V/5000mAh (I87J), 3.8V/5000mAh (T87X)
	Type	Removable polymer lithium battery
	Endurance	7hours (I87J), 9hours (T87X)
Communication	GNSS	GPS, GLONASS (I87J) GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS (T87X)
	WIFI	2.4G+5.8G, WIFI 802.11(a/b/g/n/ac)
	Bluetooth	BT 5.0 (I87J) BT 5.1 (T87X)
	4G (Optional)	LTE FDD: B1/B3/B5/B7/B8/B20 LTE-TDD: B40, GSM: 900/1800 WCDMA: B1/B5/B8, Optional EC25-AF, 750-VA, 750-VSA
Reliability	Operate Temperature	-30°C ~ 70°C
	Store Temperature	-40°C ~ 80°C
	Humidity	95% Non-Condensing
	IP Grade	IP65
Data Acquisition	NFC	Optional, 13.56MHz, Support ISO/IEC 14443A/14443B/15693/18092/mifare protocols Card reading distance: 4 cm
Data Acquisition	2D	Optional, Optical resolution: 5mil/scan speed: 50 times/s

Core Specifications Comparison

Feature	I87J (Windows)	T87X (Android)
OS/Software	Windows 11 IoT LTSC (10-yr support)	Android 13 GMS + Zebra MX (5-yr OS)
Processor	Intel Core i5-1245U (10C/12T, 4.4GHz) w/ vPro	Qualcomm QCS6490 (2.7GHz) w/ AI Engine
Thermal Design	Active cooling (IP69K-sealed blower)	Passive cooling w/ vapor chamber
Display	1200 cd/m², Gorilla Glass 6, 120Hz active pen	1200 cd/m², PixelEye™ dynamic refresh, heated layer
Power	Dual-bridge 10,000mAh hot-swap (12hrs)	Dual-slot 10,500mAh hot-swap (24hrs)
Data Capture	Zebra SE6550 1D/2D + UHF RFID	Zebra SE4770 w/ PRZM® tech + Impinj E710 RFID
Rugged Certification	IP69K, MIL-STD-810H/461G, ATEX Zone 2	IP69K, MIL-STD-810H, ATEX Zone 2, FirstNet
Security	TPM 2.0, FIPS 140-2, BitLocker	Knox Guard, OEMConfig, Secure Boot

Deployment Scenario Breakdown

I87J (Windows) Dominates When:

Legacy Industrial Systems

Direct COM port access for PLCs (RS-232/485)
Ignition SCADA or Siemens TIA Portalcompatibility

High-Performance Computing

CAD model viewing (SolidWorks Viewer)
Real-time Ansys CFD simulations

Regulated Environments

NERC CIP compliance for utilities
FIPS 140-2 encrypted storage

T87X (Android) Excels When:

Mobility & Field Data Capture

25% faster barcode scans w/ PRZM® motion tolerance
Voice-directed workflows (Zebra Workforce Connect)

Cloud-Native Operations

Google Cloud Vertex AI edge inference
Serverless form processing (Fulcrum, Trimble Unity)

Cost-Sensitive Deployments

40% lower TCO over 5 years
Zero-touch provisioning via SOTI/Zebra MDM

Environmental Performance

Condition	I87J	T87X
Extreme Cold (-30°C)	Active heating (28W TDP sustained)	Pulse-heated batteries + display layer
Dust/Steam (IP69K)	Sealed M12 connectors + pressure vent	HumiSeal conformal coating on PCBA
Vibration (IEC 61373)	Magnesium frame + TPU overmold	Internal silicone potting of components
Chemical Exposure	Resists hydraulic fluid/IPA (24hr)	3M Scotchgard C-1000 coated housing

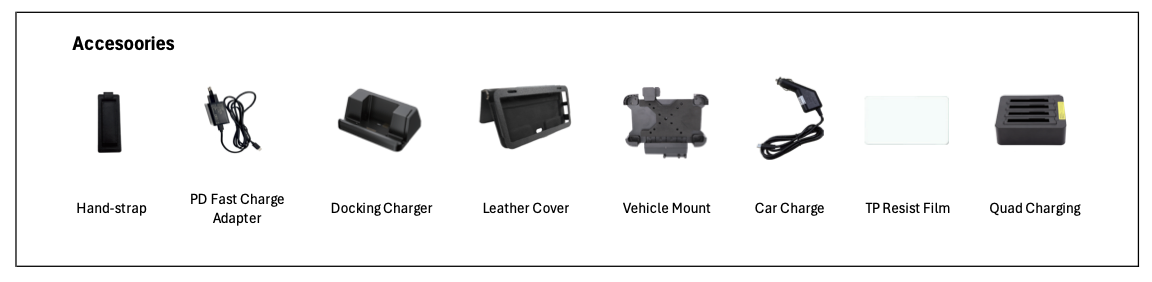

Expansion & Accessory Ecosystem

Interface	I87J (Windows)	T87X (Android)
Docking	40-pin pogo (PoE+, CAN FD, DP 1.4)	40-pin pogo (PoE+, CAN FD, DP Alt Mode)
Modularity	Removable backplate (barcode/RFID/Geiger)	Hot-swappable backplate (thermal/smart card)
Vehicle Integration	Havis HD-VIS-800 (100W PD)	Gamber Johnson 6162-3802 w/ EN 12195
Specialized Sensors	Dräger PIR 7200 gas detector (RS-485)	FLIR Lepton 3.5 thermal (-20°C to +550°
