8" LCD 16:10 (800 x 1280), 700 Nits (Will be upgraded to 1000 Nits)
Battery
Optional 1000mAh/7.4V
Optional 2000mAh/3.7V
Communication
Dual-band WIFI / BT 5.0 / Optional 4G
Dual-band WIFI / BT 5.2 /4G
GNSS
GPS，GLONASS，Optional Beidou
GPS，Beidou，GLONASS
NFC
Optional
I/O
SIM Card slot x 1(Optional) /Power interface /USB 3.0 x 1(V80J) / USB 2.0 x 1(V80T) / PORT1 (M12-12) (Optional Gigabit/100 Gigabit network interface) / PORT2 (M12-12) (Optional RS232+RS232/RS485) / PORT3 (M12-12) (USB 2.0 x 1++USB 2.0 (default) CAN x 1 + CVBS x 1 USB2.0 standard signal x 2; Optional CAN for customer debugging)
Standard Accessories
WIFI Rod Antenna/ GPS Rod Antenna/ Power Cord/ 4G RRod Antenna (V80T)
Optional Accessories
4G Rod Antenna; Cigarette Lighter Adapter; Adapter; Power Adapter Cable; Wide Voltage Module; VESA Bracket; RAM Bracket; Function Adapter Cables x5; GPS Car Mushroom Antenna
SKU
RV10J
RV10T (GMS)
Processor
Intel Celeron 2.8GHz (Quad-core)
MTK octa-core
Operating System
Windows 11
Android 12
RAM
4GB LPDDR3 (Will be upgraded to 8GB)
4GB LPDDR4X
SSD
64GB EMMC (Will be upgraded to 128GB)
64GB UFS
Reliability
IP65-grade waterproof and dustproof
Screen
10.1" LCD 16:10 (800 x 1280), 700 Nits (Will be upgraded to 1000 Nits)
Battery
Optional, 1000mAh/7.4V
Optional, 2000mAh/7.4V
Communication
Dual-band WIFI / BT 5.0 / Optional 4G
Dual-band WIFI / BT 5.2 / 4G
GNSS
GPS, GLONASS, Optional Beidou,ublox M8Q
GPS, Beidou, GLONASS
NFC
Optional
I/O
SIM Card slot x 1(Optional) /Power interface / USB 3.0 x 1(V10J) / USB 2.0 x 1(V10T) / PORT1 (M12-12) (Optional Gigabit/100 Gigabit network interface) / PORT2 (M12-12) (Optional RS232+RS232/RS485) / PORT3 (M12-12) (USB 2.0 x 1+USB 2.0 (default) /CAN x 1+CVBS x 1/ USB 2.0 x 2)
Standard Accessories
WIFI Rod Antenna/ GPS Rod Antenna/ Power Cord/ 4G Rod Antenna (V10T)
Optional Accessories
4G Rod Antenna; Cigarette Lighter Adapter; Adapter; Power Adapter Cable; Wide Voltage Module; VESA Bracket; RAM Bracket; Function Adapter Cables x4; GPS Car Mushroom Antenna

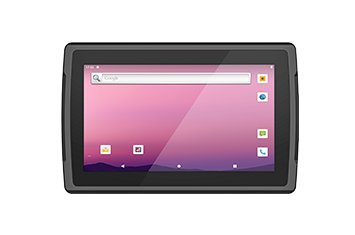

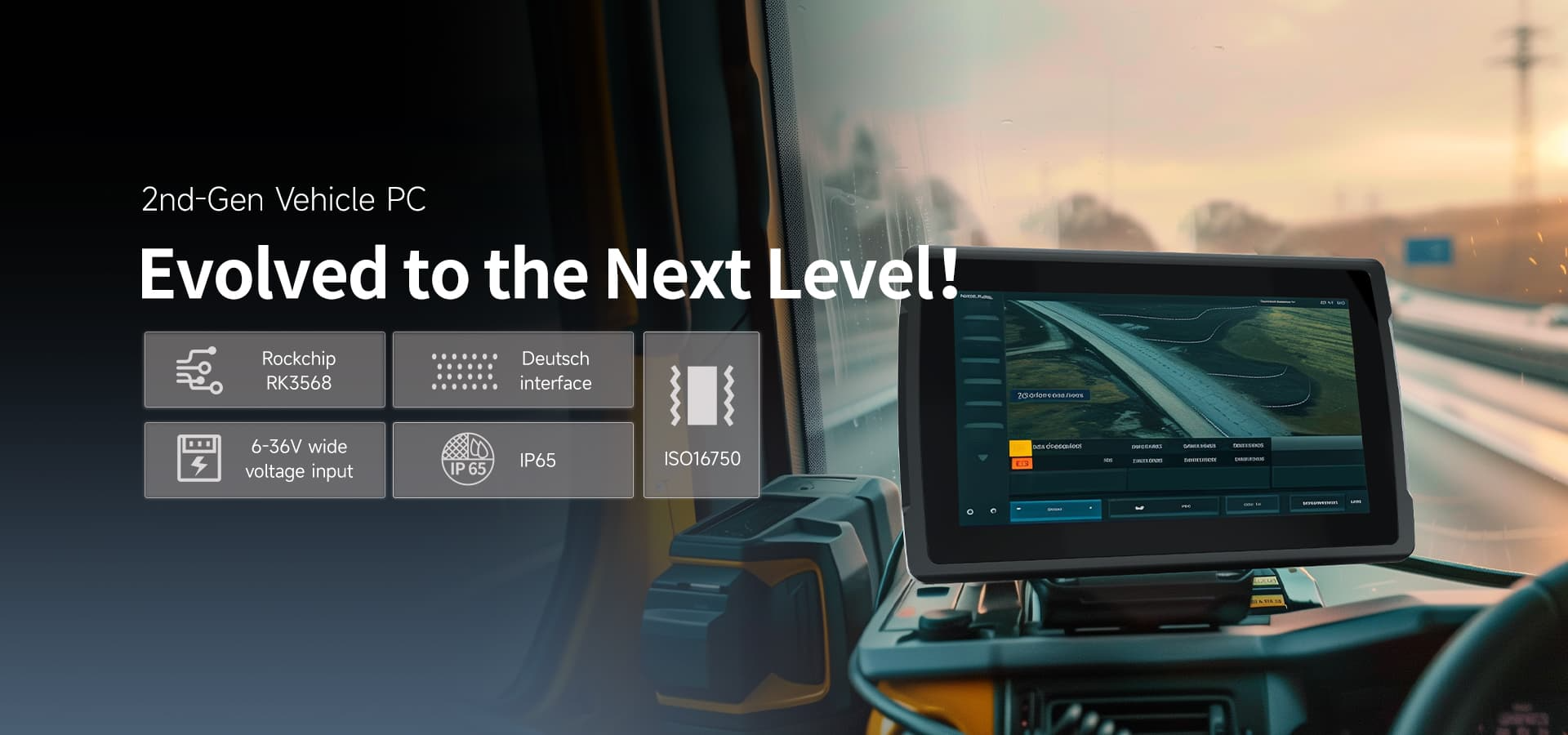

2nd-Gen Vehicle PC
Unleash fleet optimization with the V12R, a premier vehicle mounted terminal. Perfectly suited as a rugged forklift computer, it redefines what a robust Vehicle Mounted Computer should be for demanding Industrial PCs environments. Evolved to the Next Level!
Swift Enough for Hassle-Free Applications
Powered by the Rockchip RK3568, the V12R is a highly capable 10 inch industrial panel pc android solution, tailored for automotive central control systems. It balances high performance with low power consumption, effortlessly handling diverse in-vehicle applications to enhance productivity as a reliable vehicle mounted terminal.
Brilliant Enough for Detailed Display
Featuring full lamination technology and impressive 750 nits brightness, the V12R significantly reduces interference from ambient light and reflections. This 10 inch industrial panel pc android ensures clear visibility and exceptional performance from any viewing angle, making it an ideal sunlight readable android tablet solution for diverse industrial environments.
Versatile Enough for Various Scenarios
Whether deployed as a dedicated vehicle mount terminal or a robust rugged industrial pc, the V12R excels across industries. It is the ideal rugged forklift computer for demanding environments, providing reliability from deep ports to the busiest construction sites.

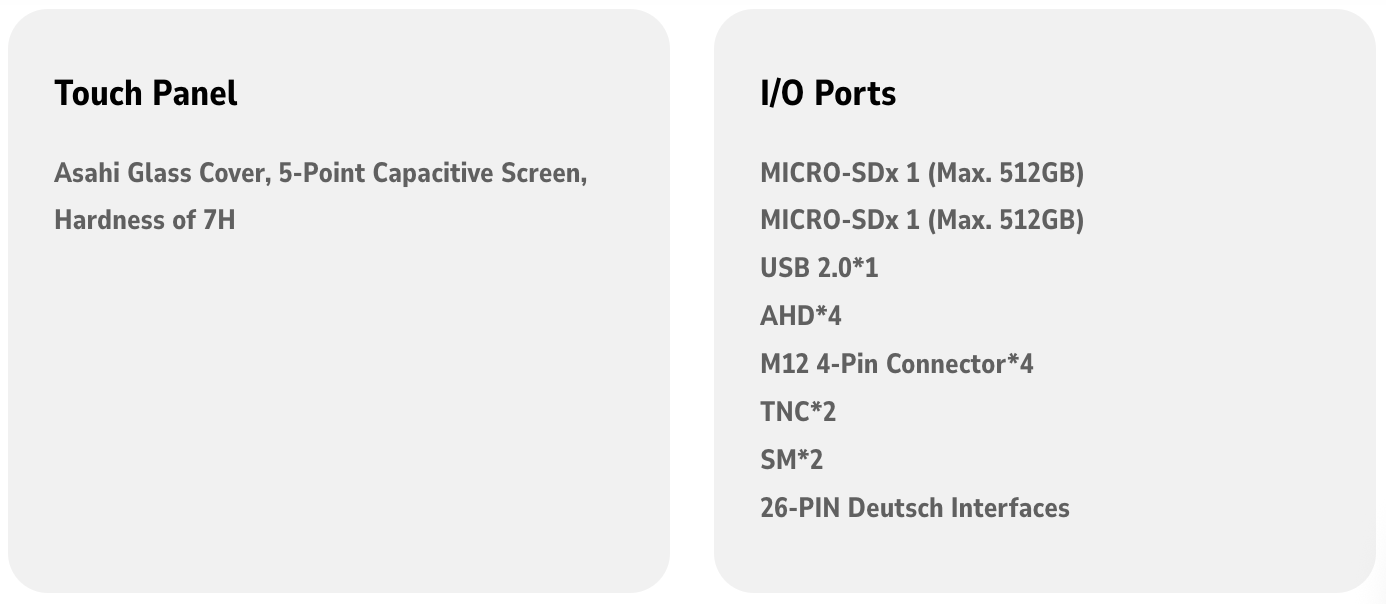

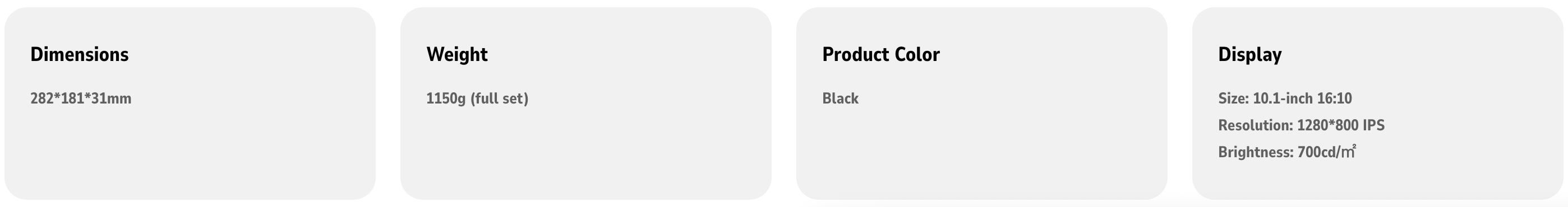

Tech Specs
(*Please be aware all technical data, specification and performance figures subject to change without notice.)
