Product Parameters
Screen parameters | size | 8" |
Resolution | 1024×768 | |
visual angle | 85/85/85/85 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300cd/m2 | |
Contrast | 800:1 | |
Response time | 6.5ms | |
Display area | 162.048×121.536 mm | |
Pixel spacing (mm) | 0.15825×0.15825 mm (H×V) | |
touch screen | Touch of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input way | Handwriting or capacitive pen | |
Surface hardness | 7H | |
Calibration | support | |
Hardware Configuration | CPU | Allwinner A64 Cortex-A53 quad core 64 bit , the main frequency is 1.5GHz |
GPU | Mali400MP2 | |
RAM | 2G(DDR3) | |
ROM | EMMC 8G(optional 16/32/64G) | |
Operating system | Android 6.0 | |
3G module | PCI-E standard interface ,supporting China Mobile, China Unicom, China Telecom (optional) | |
4G module | PCI-E standard interface ,support China Mobile, China Unicom, China Telecom (optional) | |
WiFi | 2.4G | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | support | |
Timer switch | support | |
System Upgrade | Support local SD, USB upgrade | |
interface | DC port | 1*DC 2.0 |
HDMI | Support HDMI data output,maximum up to 1080P | |
USB-OTG | 1 | |
USB-HOST | 2*USB2.0 | |
RJ45 Ethernet | 1*10M/100M/1000M adaptive Ethernet | |
SD/TF | TF data storage, maximum support 32G | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various standards (depending on 3G / 4G module) | |
RS232 | 2*RS232 | |
RS485 | Optional | |
RS422 | Optional | |
GPIO | Optional | |
Product reliability | working temperature | -30 ℃ to 70 ℃ |
Storage temperature | -40 ℃ to 80 ℃ | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 15W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 4A |

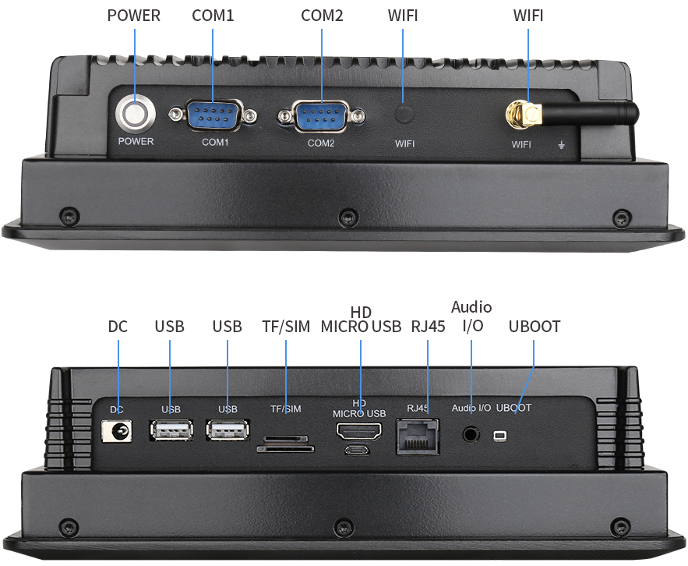

I/O Interface Panel

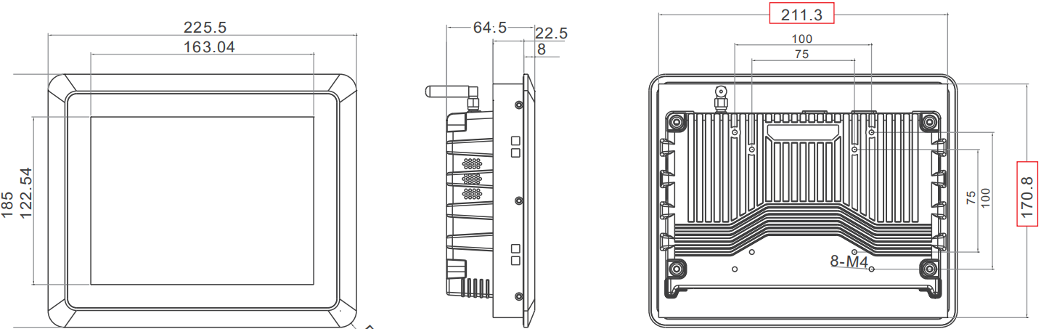

Dimensional drawing
Overall size：225.5*185*64.5mm（L*W*H）
Environmental Specifications
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃- 70℃ Storage temperature: -40℃- 80℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |

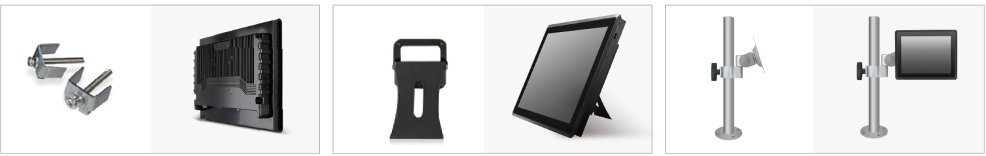

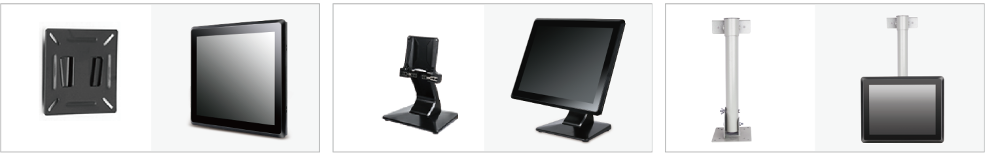

Installation method
Embedded installation | Tabletop type (louver) installation | Cantilever installation |
Wall mounted installation | Desktop type (aluminum alloy base) | Boom type installation |

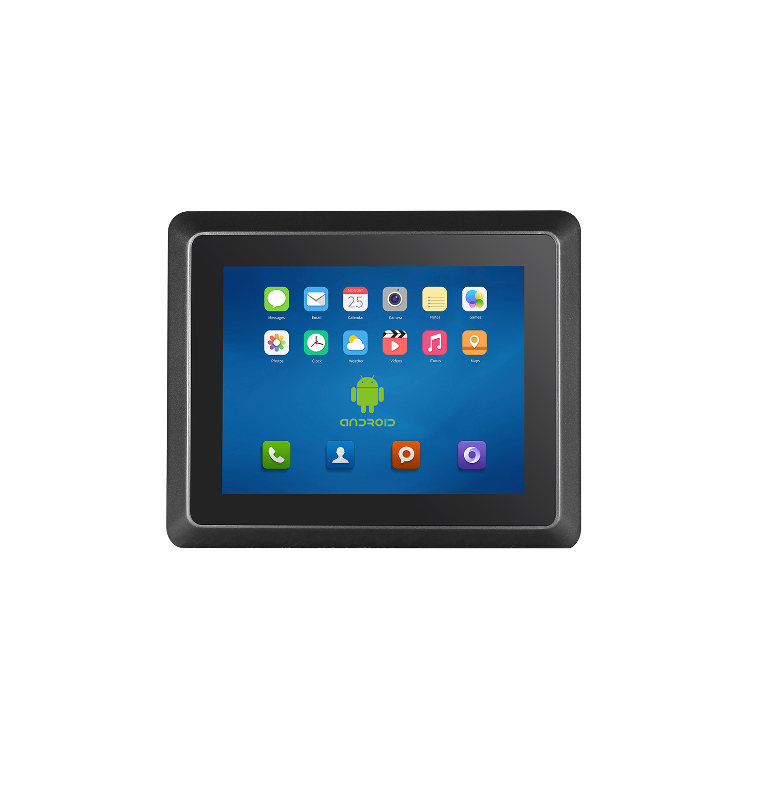

With its compact size, stable performance, and flexible adaptability, the VP-1025-ARM8 is widely used in various industrial fields, becoming the core control terminal for intelligent transformation:
Smart Logistics & Warehousing: Embedded in automated sorting lines, AGV scheduling systems, and warehouse management terminals, it realizes real-time data collection, order processing, and equipment control, helping to improve sorting efficiency and inventory management accuracy.
Industrial Automation: Used in small-scale production lines, equipment monitoring terminals, and process control systems, it can collect equipment operation data in real time, issue control instructions, and realize remote monitoring and maintenance of equipment.
Intelligent Terminal & Self-Service: Applied in industrial self-service query terminals, production line operation terminals, and on-site data entry terminals, it provides convenient human-computer interaction, reducing manual operation errors and improving work efficiency.
Outdoor Industrial Sites: Suitable for remote power monitoring, environmental monitoring, and outdoor equipment control terminals, it can adapt to harsh outdoor environments and realize wireless data transmission and remote control.
