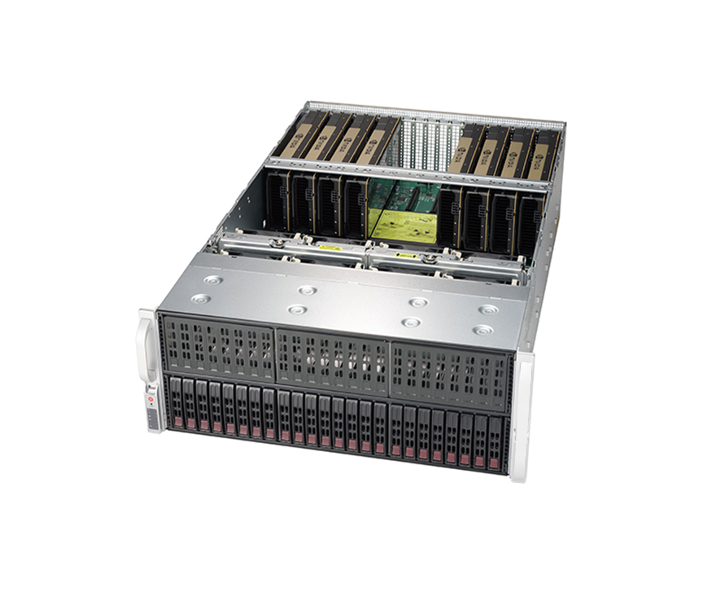

4U Dual Processor (Intel) Single-Root GPU System with Up to 8 PCI-E GPUs Server | VG4029

Processor

CPU

·       Dual Socket P (LGA 3647)

·       2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors^‡,3 UPI up to 10.4GT/s

·       Support CPU TDP 70-205W

Core

Up to 28 Cores

GPU

Supported GPUs

·       10 Double-Width/Single-Width PCI-E 3.0 x16 Card (Full Height Full Length)

·       NVIDIA V100, P40, T4, Quadro, RTX

·       Supports both active and passive cooled GPUs

CPU-GPU Interconnect

·       PCI-E Gen 3 x16 Switch Single-Root

GPU-GPU Interconnect

·       PCI-E, NVIDIA® NVLink™ Bridge (Optional)

System Memory

Memory Capacity

·       24 DIMM slots

·       Up to 6TB 3DS ECC DDR4-2933MHz^† RDIMM/LRDIMM

·       Supports Intel® Optane™ DCPMM^††

Memory Type

·       2933^†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM

On-Board Devices

Chipset

·       Intel® C622 chipset

SATA

·       SATA3 (6Gbps) with RAID 0, 1, 5, 10

Network Controller

·       Dual Port 10GbE from C622

IPMI

·       Support for Intelligent Platform Management Interface v.2.0

·       IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Graphics

ASPEED AST2500 BMC

Input/Output

SATA

8 SATA3 (6Gbps) ports

LAN

·       2 RJ45 10GBase-T LAN ports

·       1 RJ45 Dedicated IPMI LAN port

USB

4 USB 3.0 ports (rear)

Video

1 VGA Connector

COM Port

1 COM port (header)

System BIOS

BIOS Type

AMI 32Mb SPI Flash ROM

Management

Software

·       Intel® Node Manager IPMI 2.0

·       KVM with dedicated LAN

·       Watchdog

PC Health Monitoring

CPU

·       Monitors for CPU Cores, Chipset Voltages, Memory.

·       4+1 Phase-switching voltage regulator

FAN

·       Fans with tachometer monitoring

·       Status monitor for speed control

·       Pulse Width Modulated (PWM) fan connectors

Temperature

·       Monitoring for CPU and chassis environment

·       Thermal Control for fan connectors

Chassis

Form Factor

·       4U Rackmountable

·       Rackmount Kit

Dimensions

Height

178mm

Width

437mm

Depth

737mm

Weight

Net Weight: 29.7kg, Gross Weight: 45.3kg

Available Colors

Black

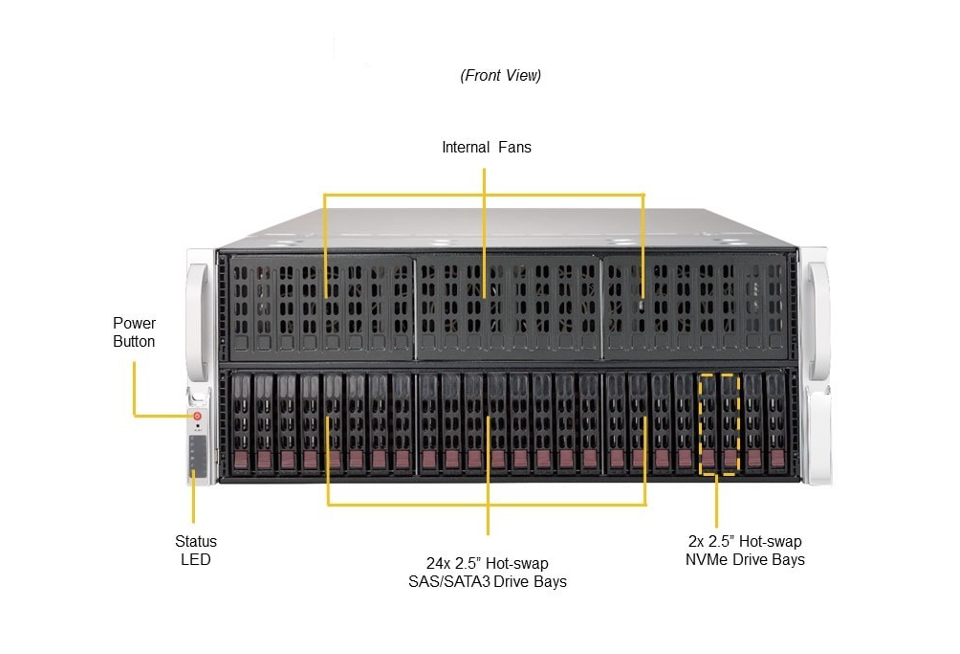

Drive Bay / Storage

Hot-swap

·       Up to 24x 2.5" SAS/SATA drive bays

·       8x 2.5" SATA supported natively

·       2x 2.5" NVMe supported natively

M.2

·       1 NVMe based M.2 SSD

·       Form Factors: 2260, 2280, 22110

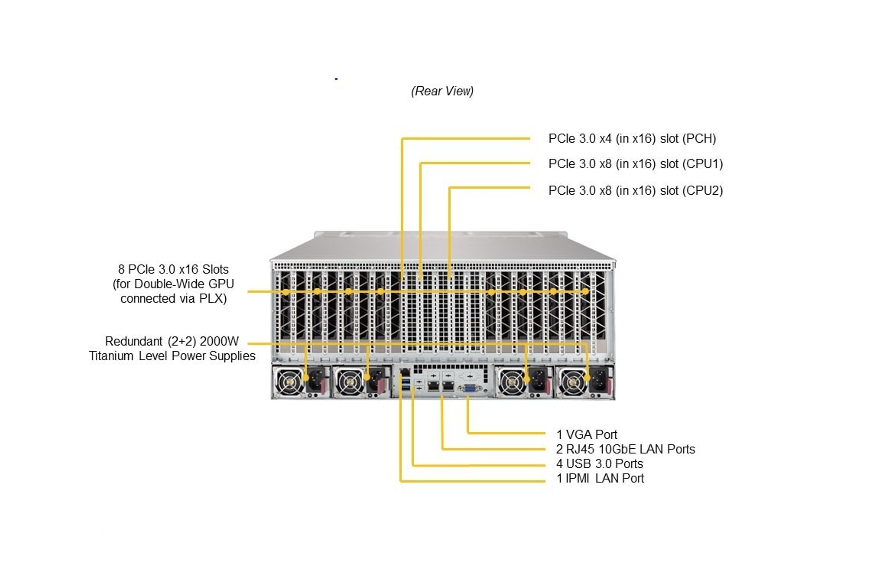

Expansion Slots

PCI-Express

·       11 PCI-E 3.0 x16 (FHFL) slots - supporting up to 10 GPUs

·       1 PCI-E 3.0 x8 (FH, FL, in x16) slot

Power Supply

2000W Redundant Power Supplies with PMBus

Total Output Power

·       1000W: 100 – 120Vac

·       1800W: 200 – 220Vac

·       1980W: 220 – 230Vac

·       2000W: 230 – 240Vac

Dimension (WxHxL)

73.5 x 40 x 265 mm

Input

·       100-120Vac / 12.5-9.5A / 50-60Hz

·       200-220Vac / 10-9.5A / 50-60Hz

·       220-230Vac / 10-9.8A / 50-60Hz

·       230-240Vac / 10-9.8A / 50-60Hz

+12V

·       Max: 83.3A / Min: 0A (100-120Vac)

·       Max: 150A / Min: 0A (200-220Vac)

·       Max: 165A / Min: 0A (220-230Vac)

·       Max: 166.7A / Min: 0A (230-240Vac)

12Vsb

Max: 2.1A / Min: 0A

Output Type

25 Pairs Gold Finger Connector

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

·       Operating Temperature: 10°C ~ 35°C

·       Non-operating Temperature: -40°C to 60°C

·       Operating Relative Humidity: 8% to 90% (non-condensing)

·       Non-operating Relative Humidity: 5% to 95% (non-condensing)
