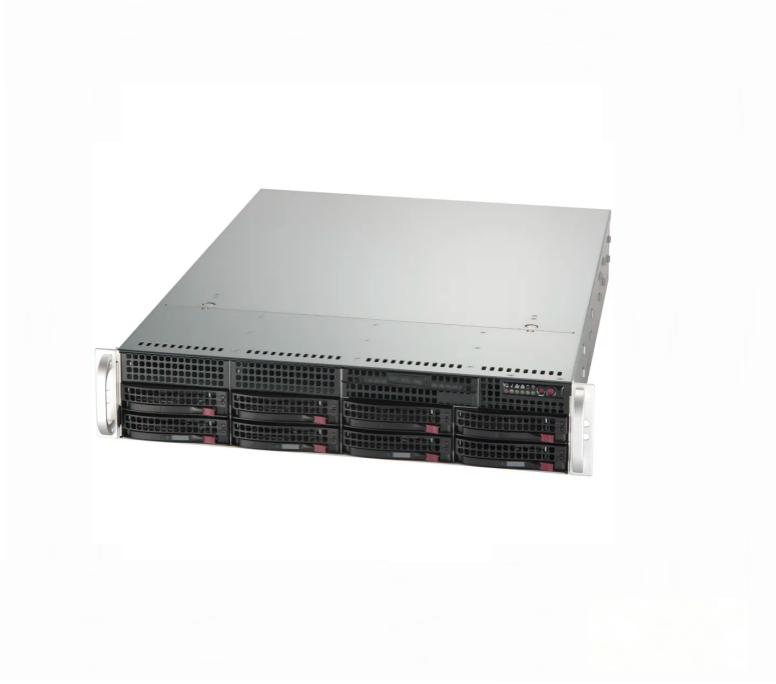

2U Rackmount Server | VG-97950X

Product Name and Model

2U Rackmount Server | VG-97950X

Form Factor

2U
Enclosure: 437 x 89 x 647mm
Package: 678 x 290 x 876mm

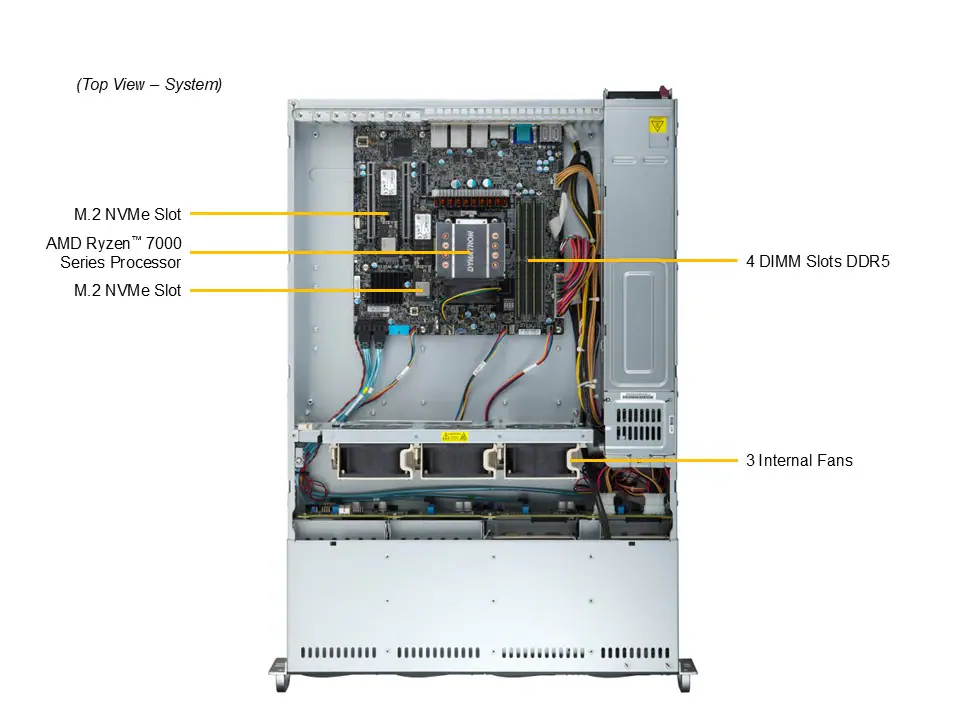

Motherboard

ASUS B650 (B650E chipset / 4× DDR5 DIMM slots / ≥2× PCIe x16 slots)

Processor

AMD Ryzen 9 7950X (AM5 socket / 16 cores, 32 threads / 4.5GHz base frequency)

GPU

Max GPU Count: Up to 1 double-width or 2 single-width GPUs
CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect

System Memory

8GB DDR5-5600 UDIMM × 2 (16GB total, dual-channel)

Storage

1TB M.2 2280 NVMe PCIe 4.0 SSD

Operating System

Windows 11 IoT Enterprise LTSC 2024 64-bit (Licensed; pre-installed, includes license media)

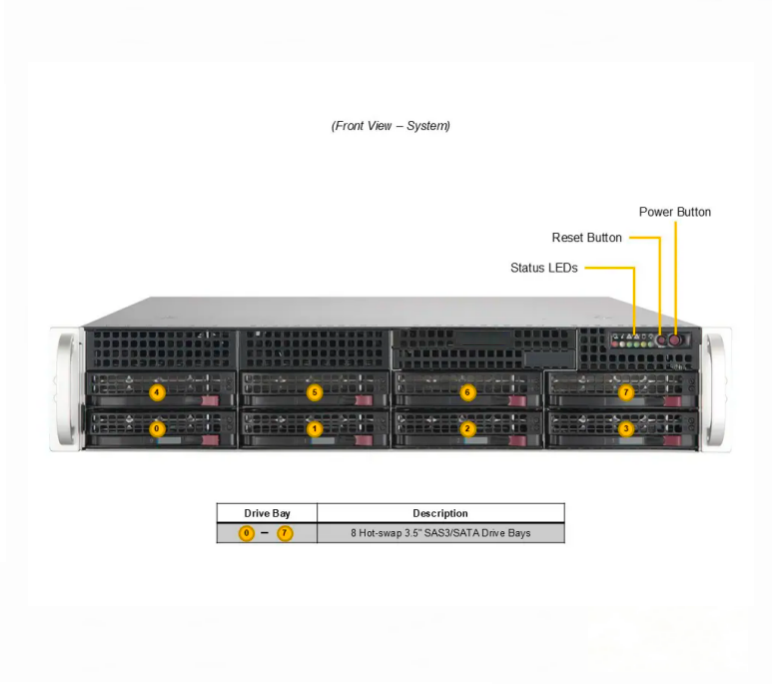

Drive Bays Configuration

Default: Total 8 bays
8 front hot-swap 3.5" SAS/SATA drive bays
M.2: 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)

On-Board Devices

SATA: SATA (6Gbps) ; RAID 0/1 support
NVMe: NVMe; RAID 0/1 support(Native)
Chipset: AMD B650
Network Connectivity:
1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
2 RJ45 1GbE with Intel® I210-AT

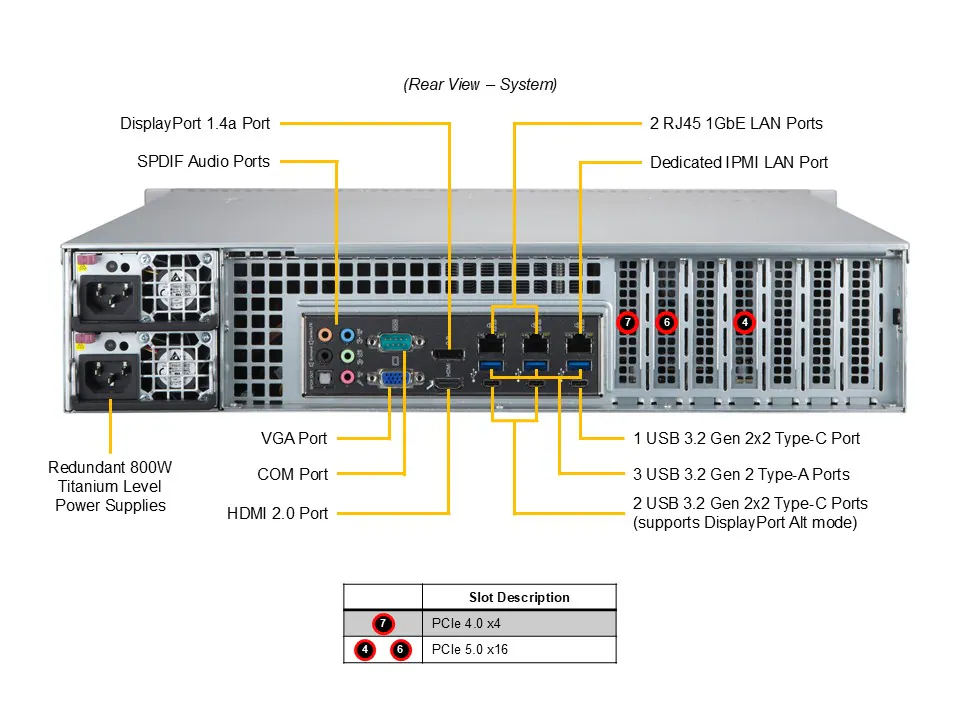

Input / Output

LAN: 1 RJ45 1 GbE Dedicated BMC LAN port
USB:
3 Type-A ports (Rear)
2 Type-C ports (Rear)
1 Type-C port (Rear)
Video:
1 VGA port 1 DisplayPort 1.4 port
1 port(s) supporting 4K@60Hz as specified in HDMI® 2 (Rear)
Audio: Rear Audio
TPM: 1 TPM header

System Cooling

2U Low-Profile (Down-draft) AM5 CPU Cooler – Thermalright AXP90-X47

Power Supply

2U 600W Rackmount Server Power Supply

System BIOS

BIOS Type: AMI 32MB SPI Flash

PC Health Monitoring

Fan: Status monitor for speed control
Other Features:
8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor
Temperature: CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
Voltage:
+1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature,
CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM

Dimensions and Weight

Weight:
Gross Weight: 23.59 kg
Net Weight: 16.78 kg
Available Color:
Black

Operating Environment

Operating Temperature: 10°C to 50°C
Non-operating Temperature: -40°C to 60°C
Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)

Chassis

Rackmount Chassis (19" standard / 650mm deep / supports EATX motherboards / supports 2U single power supply or 1+1 redundant power supply)
2U Rackmount Rails
