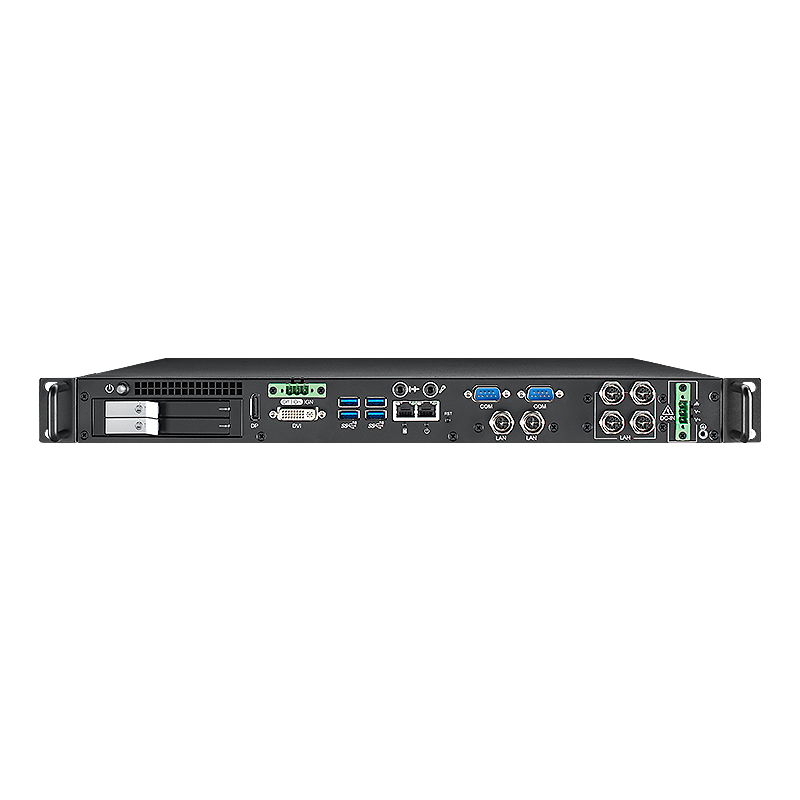

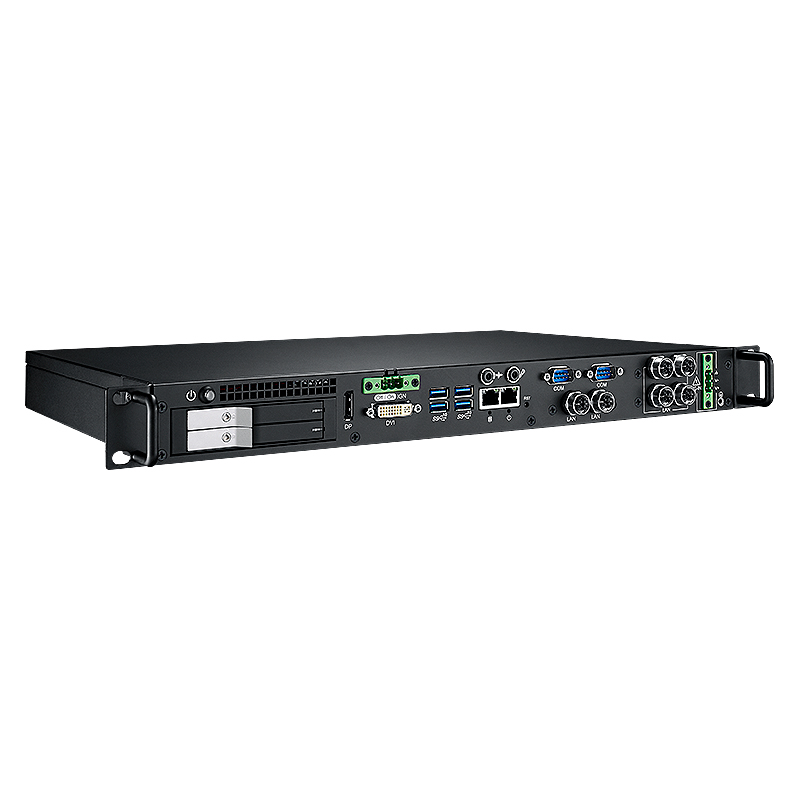

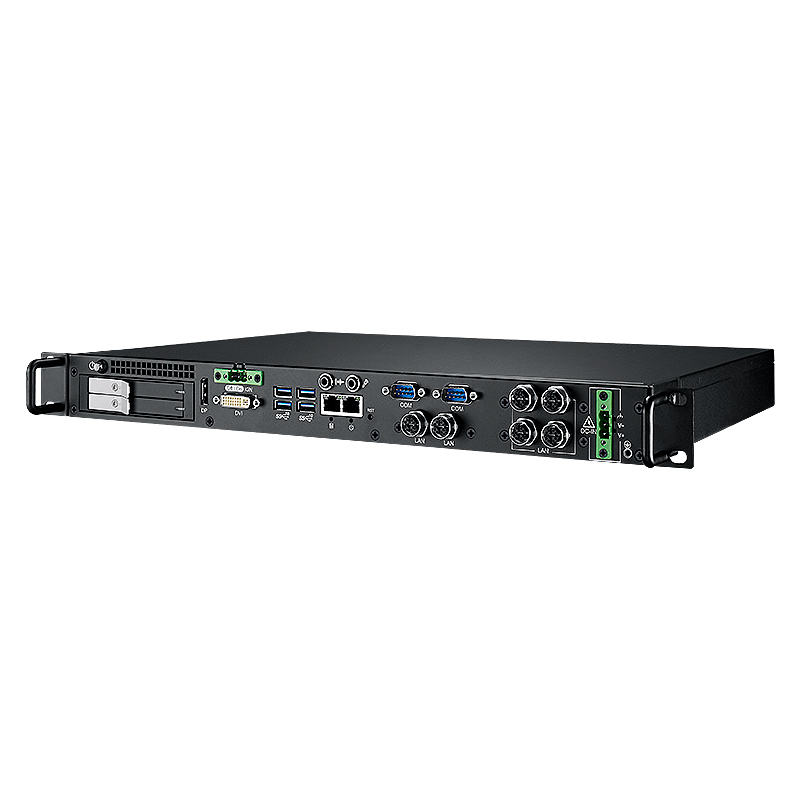

Product Name and Model | 1U Rackmount Fanless System | VG-SYS-1000 | |

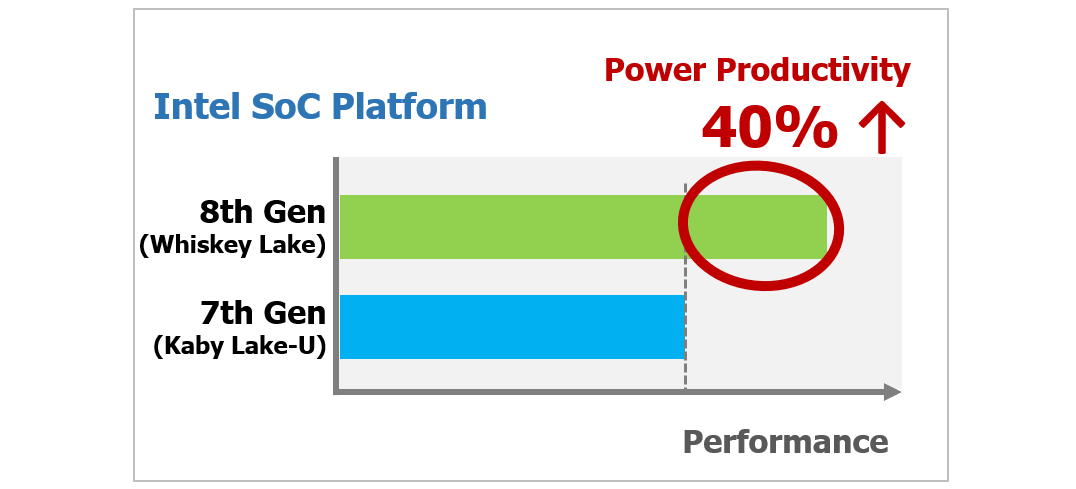

System | Processor | Quad-core Intel® Core™ i7-8665UE Processor (Whiskey Lake) |
Chipset | Intel® SoC (Cannon Lake) | |
BIOS | AMI | |
SIO | IT8786E | |
Memory | 1 DDR4 2400MHz SO-DIMM, up to 32GB | |
I/O Interface | Serial | 2 COM RS-232/422/485 (ESD 8kV) |
USB | 4 USB 3.1 Gen 2 | |

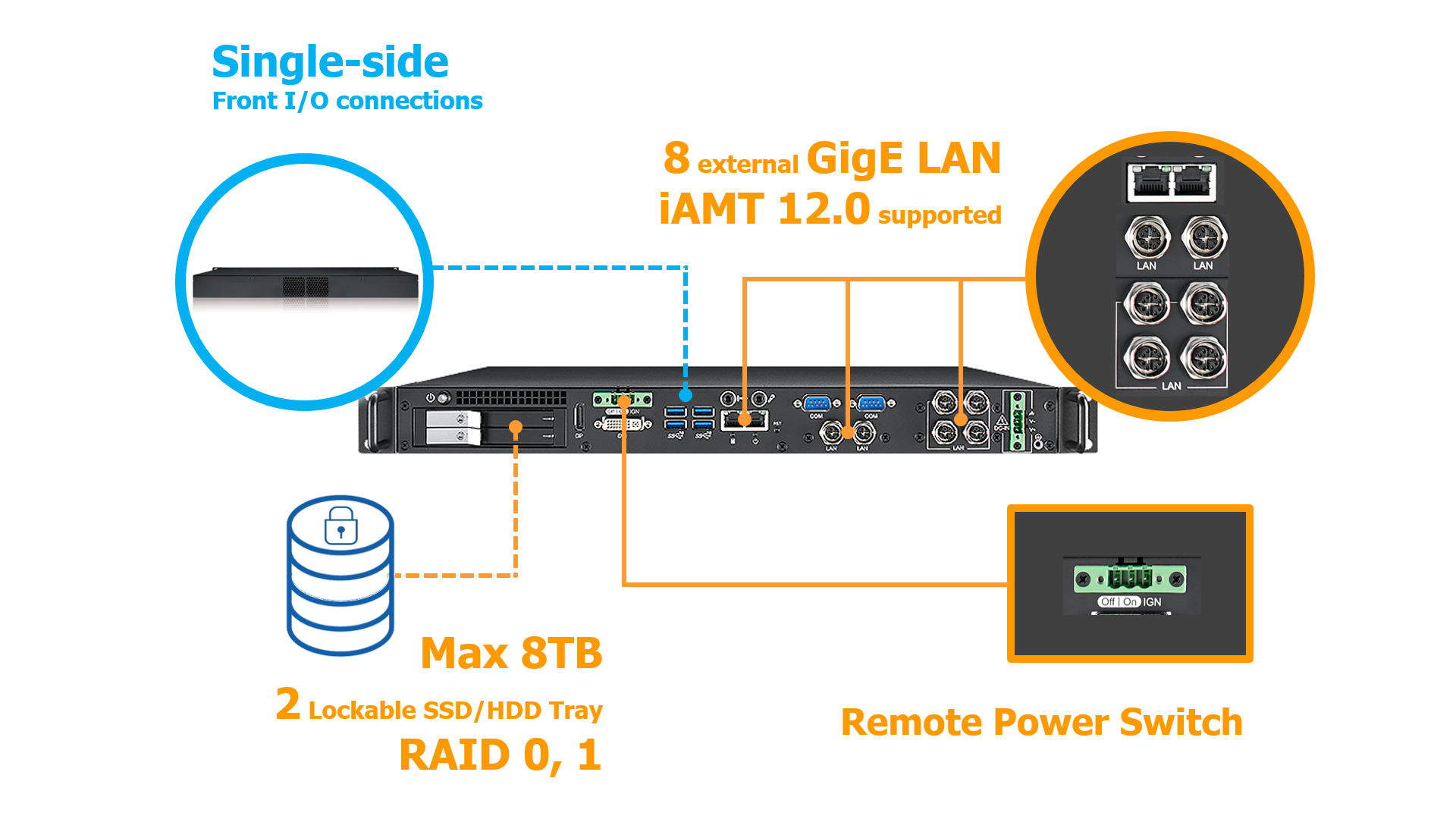

GigE LAN | 8 GigE LAN： | |
LED | Power, HDD | |
Expansion | Mini PCIe | 2 Mini PCIe Socket, by request： |
Graphics | Graphics Processor | Intel® UHD graphics 620 |
Interface | Dual display： | |
Storage | SATA | 2 Front-access SSD/HDD Tray |
mSATA | Full size Mini PCIe Type, 6Gbps | |
Audio | Audio Code | Realtek ALC888S, 7.1 Channel HD Audio |
Audio Interface | 1 Mic-in, 1 Line-out | |
Ethernet | LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0, RJ45 Type |
LAN 2 | Intel® I210 GigE LAN, RJ45 Type | |
LAN 3 | Intel® I210 GigE LAN X-coded M12 Type | |
LAN 4 | Intel® I210 GigE LAN X-coded M12 Type | |
LAN 5 | Intel® I210 GigE LAN X-coded M12 Type | |
LAN 6 | Intel® I210 GigE LAN X-coded M12 Type | |
LAN 7 | Intel® I210 GigE LAN X-coded M12 Type | |
LAN 8 | Intel® I210 GigE LAN X-coded M12 Type | |
Power | Power Input | 9V to 48V DC-in |
Power Interface | 3-pin Terminal Block：V+, V-, Frame Ground | |
Ignition Control | 16 Mode (Internal) | |
Remote Switch | 3-pin Terminal Block on, Off, IGN | |
Others | TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC interface |
Watchdog Timer | Reset : 1 to 255 sec./min. per step | |
Smart Management | Wake on LAN, PXE supported | |
HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. | |
Software Support | OS | Windows 10, Linux |

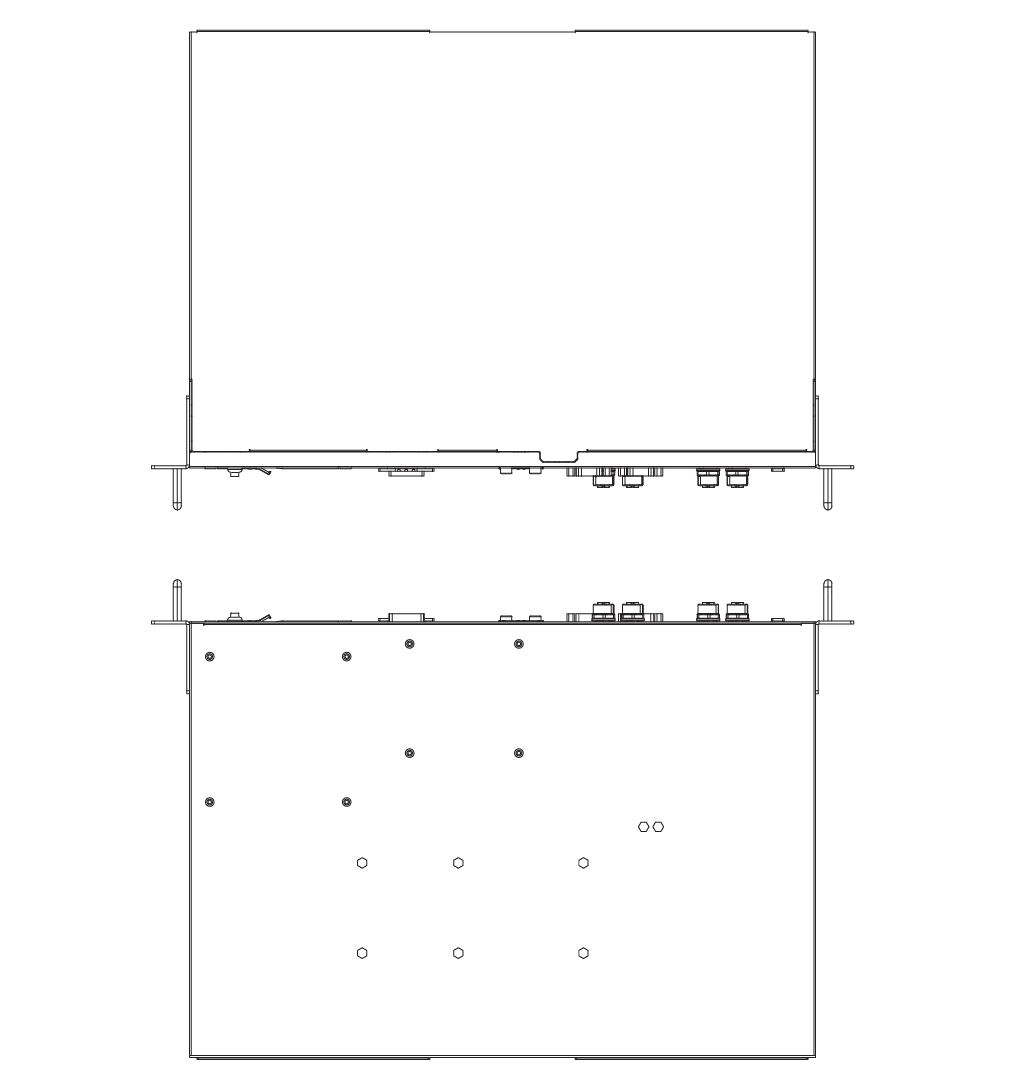

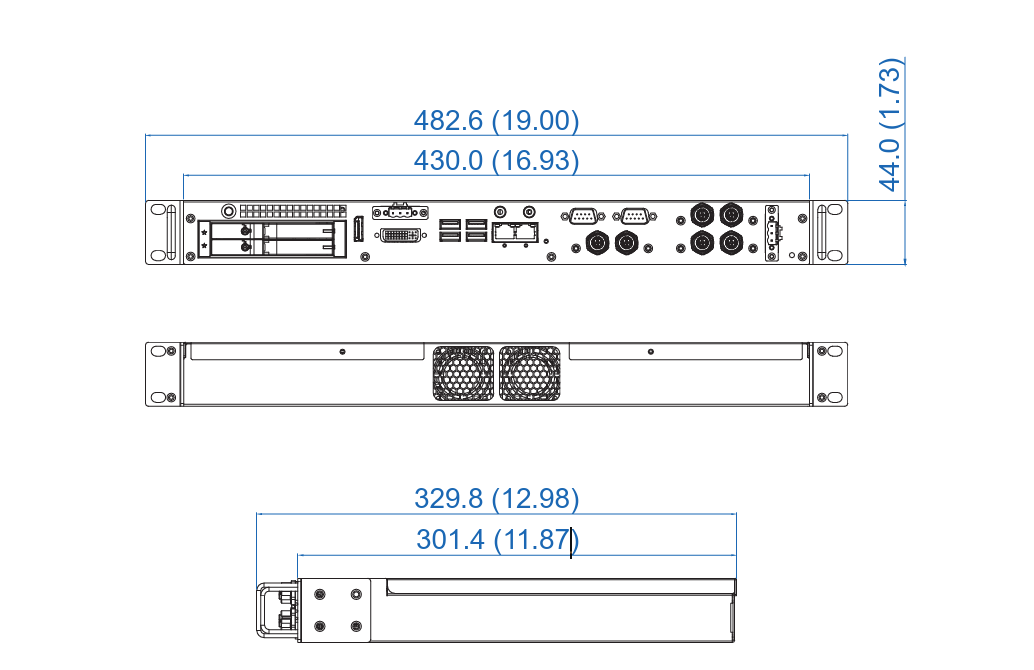

Mechanical | Dimension | 482.6mm x 301.4mm x 44.0mm |
Weight | 4.0 kg | |

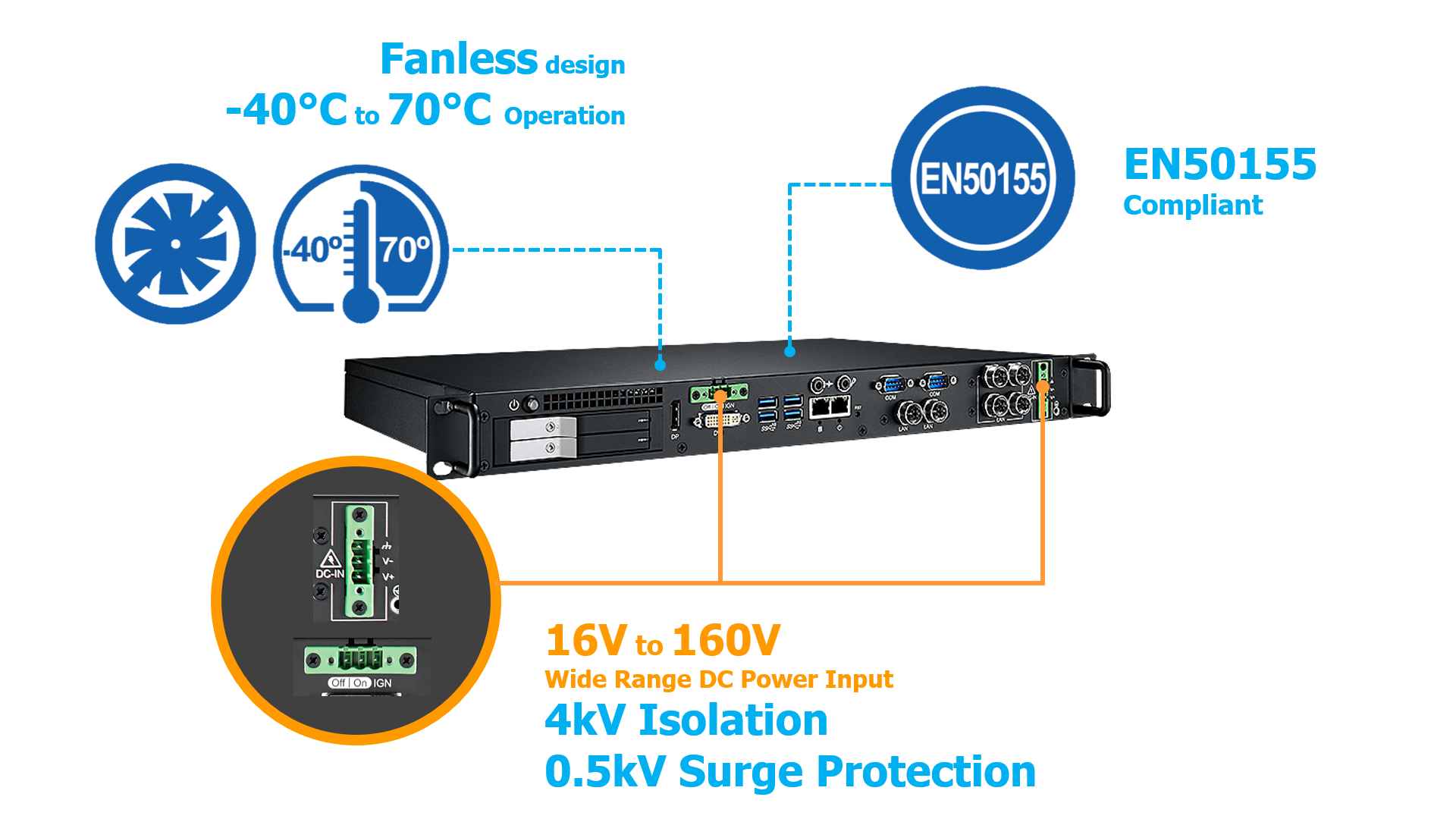

Environment | Operating Temperature | -40°C to +70°C |
Storage Temperature | -40°C to +85°C | |
Humidity | 5% to 95% Humidity, non-condensing | |
Relative Humidity | 95% at 70°C | |
