Product Name |

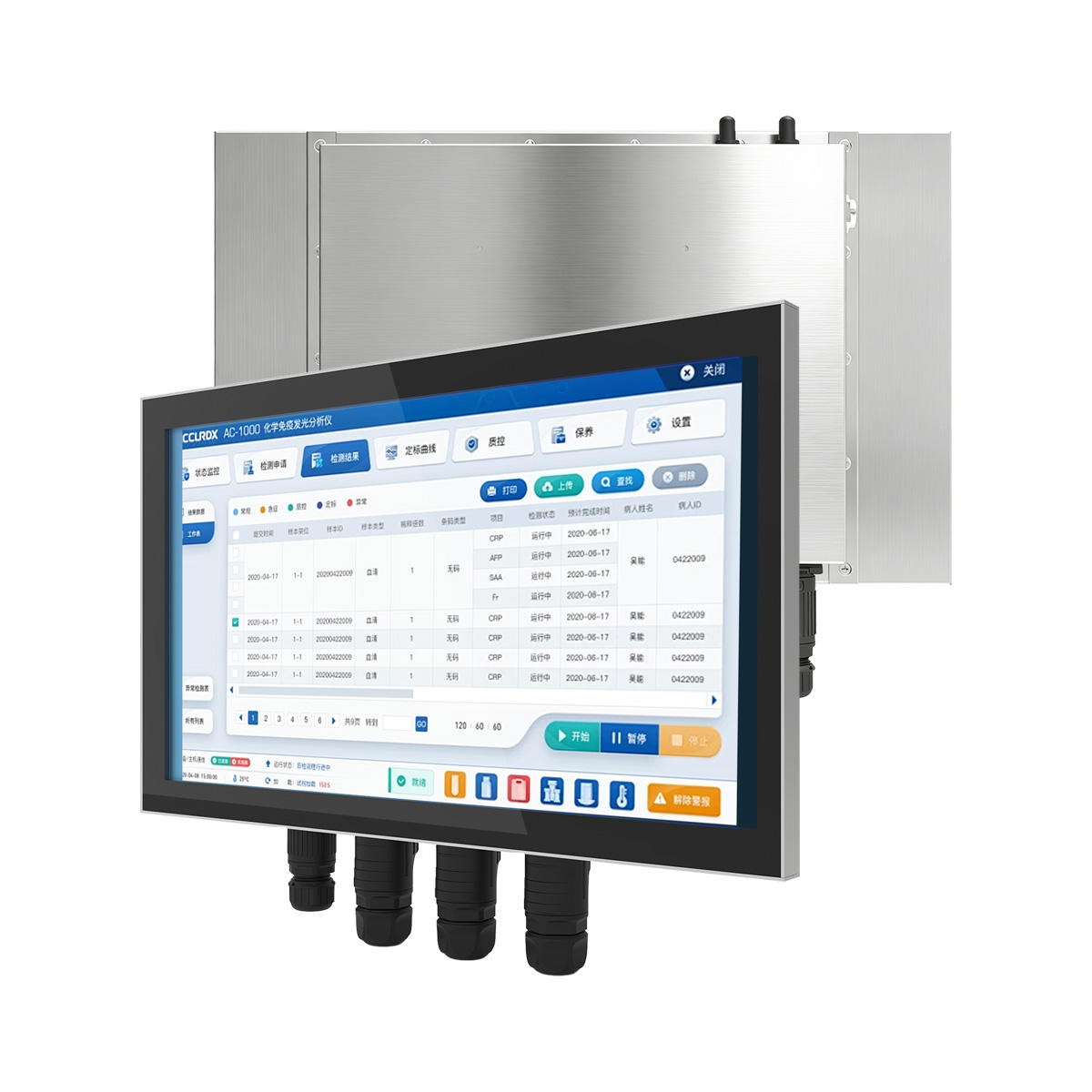

21.5" Waterproof Touchscreen Monitor | VSD-24-215 |
|
Display |
Screen Size |
21.5" |
Screen Resolution |
1920 x 1080 (Full HD) |
|
Screen Ratio |
16:9 |
|
Brightness |
250 nits, Optional 1000 nit High Brightness |
|
Touch Screen |
Touch Screen |
Projected Capacitive, Resistive |
External I/O Ports |
USB |
1x M12 USB |
Power Input Port |
M12 type 3-PIN DC-in |
|
Power |
Input Voltage Range |
9-36V DC |
Max Power Consumption |
18.9W |
|
Thermal & Environmental |
Operating Temperature |
-30°C - +70°C |
Storage Temperature |
-40°C - +80°C |
|
Cooling Solution |
Passive – Fanless |
|
Humidity Range |
10% – 90% Non-condensing |
|
Enclosure |
Material |
Optional SUS316 Stainless Steel, SUS304 Stainless Steel |

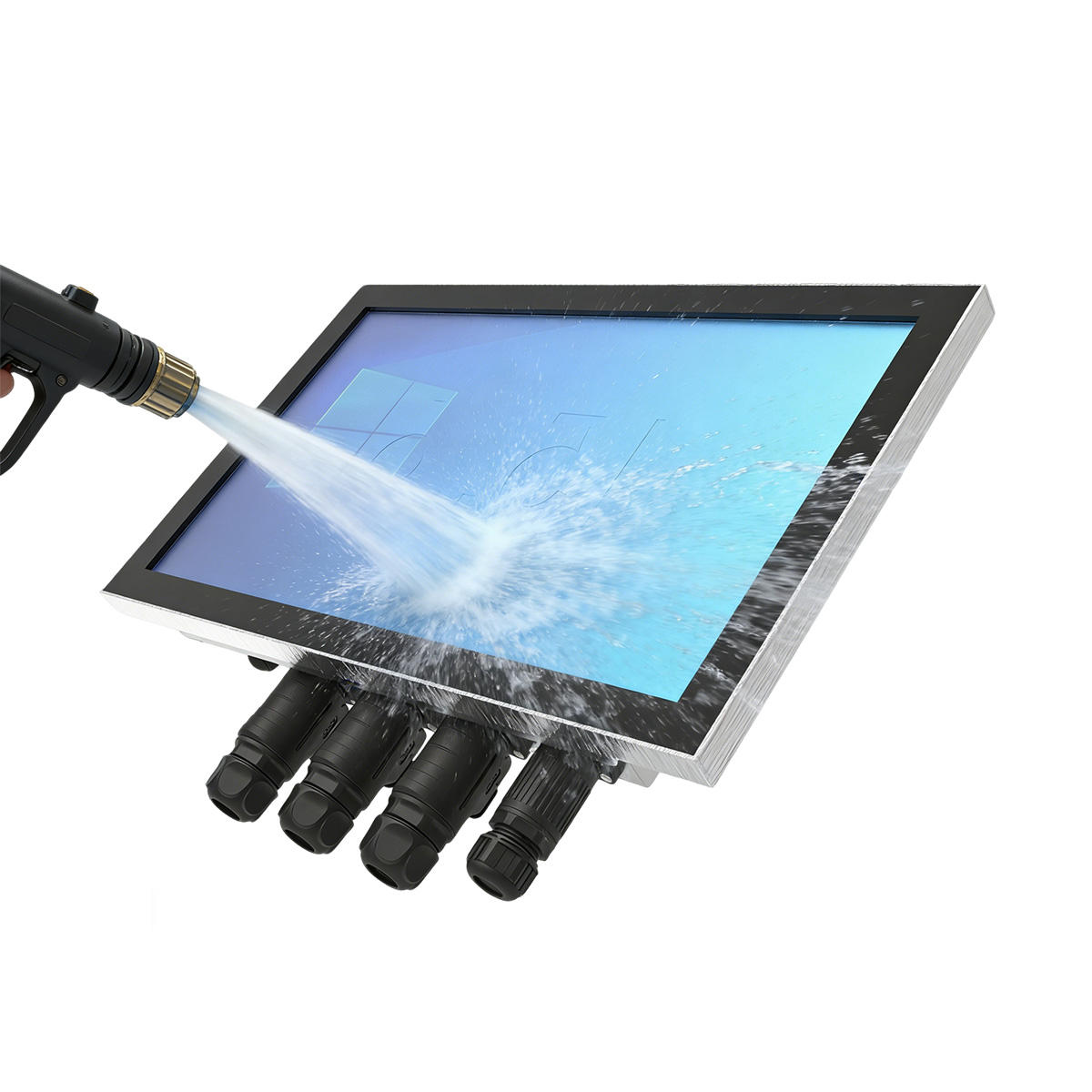

IP Rating |
IP66, IP69K, NEMA 4X |
|
Color |
Stainless Steel |
|
Control Buttons |
On-Screen Display (OSD), Touchscreen Lock for Cleaning |
|

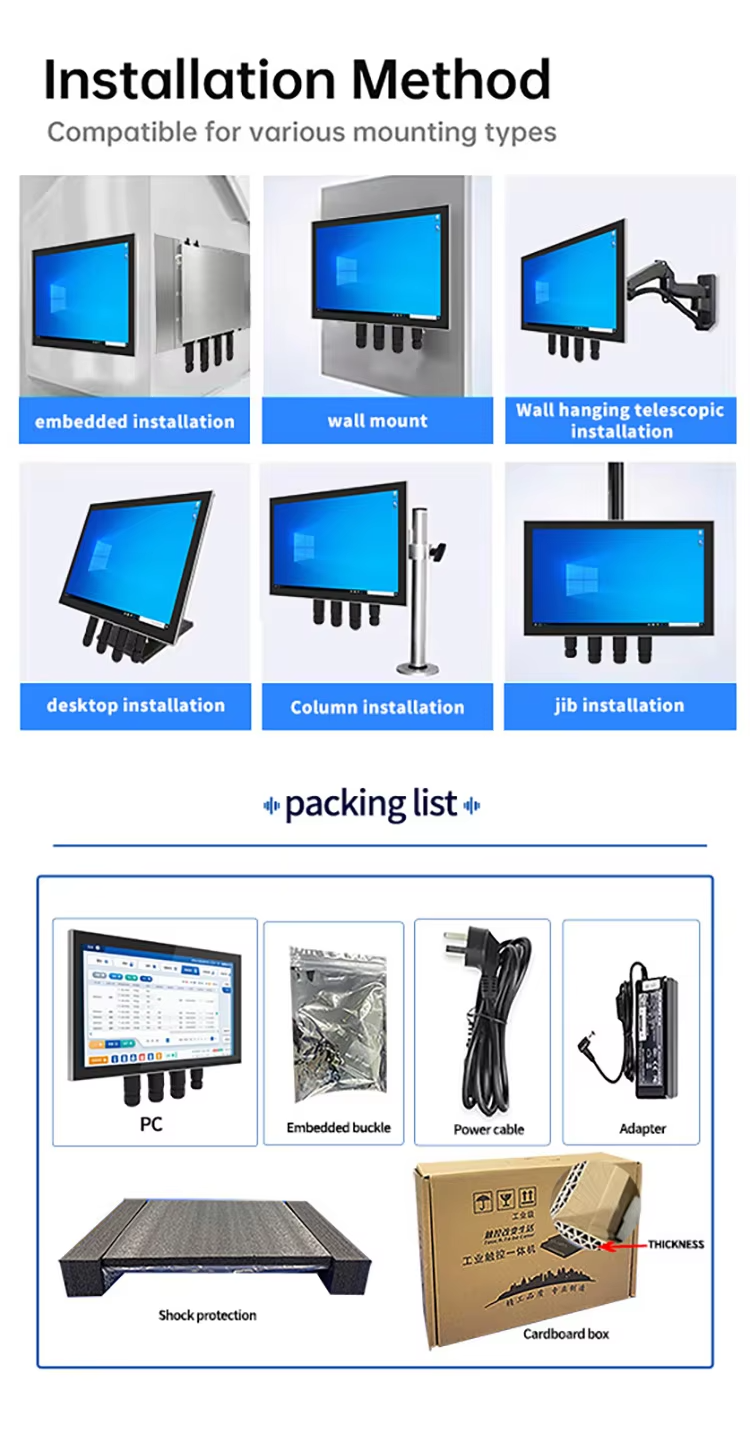

Mounting Options |
VESA 100 Mount, Yoke Mount |
|
Weight / Dimensions |
Weight |
9.00 kg |
Dimensions |
571 x 362 x 55 mm |
|
Certification |
Certifications |
CE, FCC, RoHS, CCC |
