SKU | VFACEH-215 |
Screen Size | 21.5” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |
Ethernet / LAN | 2x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |
Dimension | 550x365.7x72.4mm |
Mounting Hole Size | 533x347mm |
Gross Weight | 8.08kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |

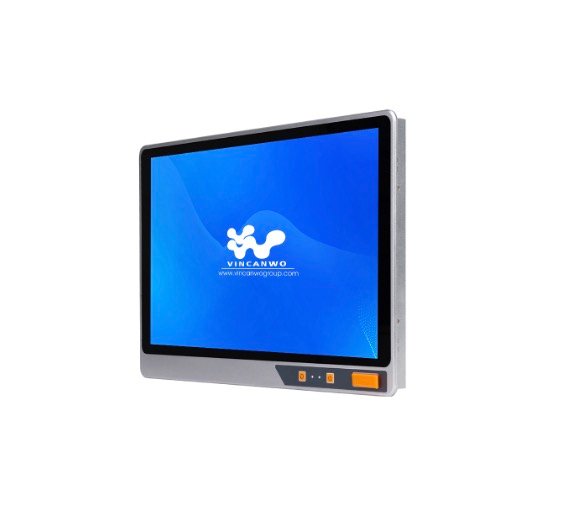

The VFACEH-215 is a 21.5-inch high-performance industrial panel PC, engineered to deliver exceptional computing power and stable operation for high-demand industrial scenarios. With its advanced hardware configuration, rugged industrial design, and user-friendly operation, it is widely applicable to precision equipment control, large-screen industrial monitoring, intelligent manufacturing, and other high-performance-required industrial fields.
Equipped with a 21.5-inch full HD (1920×1080) TFT-LCD display, the panel PC features a 16:9 widescreen ratio, 350 cd/m² high brightness, and 178° full viewing angle, ensuring clear, vivid image display even in bright industrial environments. It comes standard with 10-point capacitive touch (resistive touch optional), boasting sensitive response, high touch accuracy, and 3H surface hardness for wear resistance and long service life.
As a high-performance industrial device, it supports a full range of high-efficiency Intel Core i3/i5/i7 processors (latest generations available), matched with expandable DDR4/DDR5 memory (up to 32GB) and high-speed SSD storage (up to 1TB), enabling smooth operation of complex industrial software, multi-task processing, and high-speed data transmission. The fully enclosed fanless or high-efficiency fan cooling design (optional) ensures effective heat dissipation, dust resistance, and shock resistance, avoiding equipment failure caused by dust accumulation or overheating.
It is equipped with rich and powerful industrial interfaces to meet diverse connection needs: dual Gigabit Ethernet ports (Intel i210AT) for high-speed and stable network communication, multiple RS232/422/485 serial ports for connecting industrial sensors, controllers, and other peripheral devices, USB 3.0/2.0 ports for fast data transfer and peripheral expansion, and HDMI+VGA dual display outputs for multi-screen synchronous monitoring.
