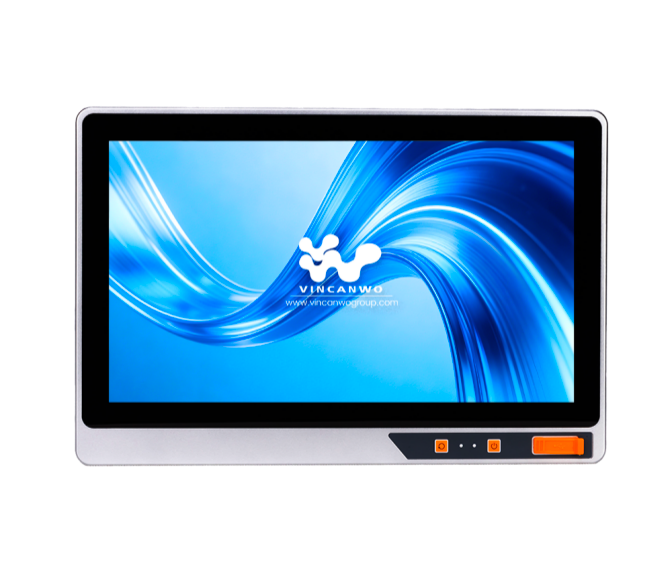

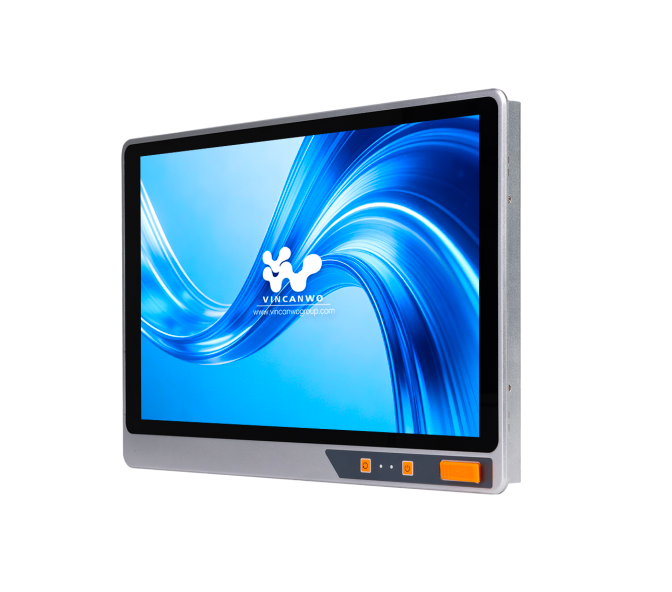

21.5” Advanced Industrial Panel PC | VFACE-215
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | VFACE-215 |
Screen Size | 21.5" |
Resolution | 1920*1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/m2 |
Contrast Ratio | 1000:1 |
Touch Screen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥5M times / Resistive: ≥100,000 times |
Processor | Intel® Processors |
RAM | 4G/8G/16G/32G |
SSD | under 5th Gen.: 1 * mSATA/1 *SATA(2 .5”Mechanical hard disk capacity ≤2TB) up to 6th Gen.: 1 * M.2/1 *SATA(2 .5” Mechanical hard disk capacity ≤2TB) |
Network | 2 *RTL8111 |
COM | 2 *RS232 (COM2 optional RS485, expansion to 6COM) |

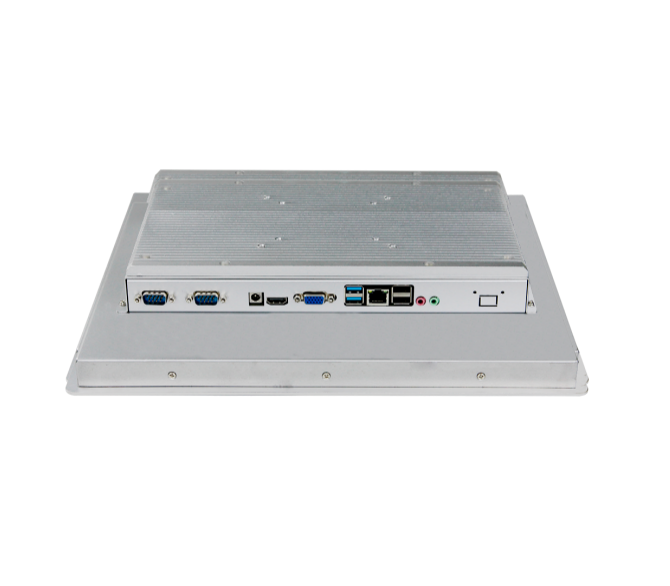

USB | 1* Front USB, 4* Rear USB |
Display | 1 *HDMI, 1 *VGA |
Expansion Slots | under 5th Gen.: 1 * Mini PCIE Wifi&BT or 4G LTE up to 6th Gen.: 1 * M.2(KEY EWifi&BT 2230)/1 * M.2(KEY B 4G/5G LTE 3052) |
Operating System | Windows / Linux |

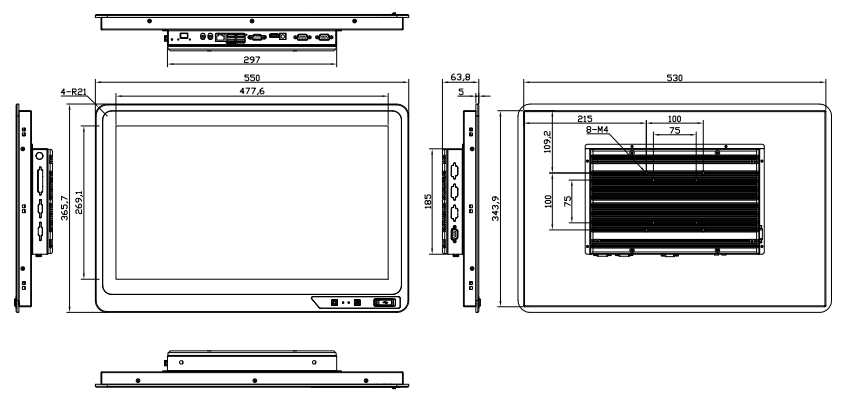

Dimensions (mm) | 550*365.7*63.8 |
Mounting Hole Size (mm) | 533*347 |
Gross weight (kg) | 8.08 |
Installation methods | Embedded / Wall mount / Desktop |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
Power Input | 1*12VDC (6A) (Option 9~36VDC Wide-range Power Input) |
Packaging Information | 1 *Master, 1 *Transformer, 1* Power Supply Cable |
>Advantages:
The most advantages of the VFACE-215 21.5” Advanced Industrial Panel PC include:
High-performance processor: The VFACE-215 is equipped with a powerful processor that can handle demanding industrial applications with ease.
Ample storage options: This panel PC offers multiple storage options, allowing users to store large amounts of data and run applications efficiently.
Durable touchscreen display: The VFACE-215 features a durable touchscreen display that is resistant to dust, water, and other environmental factors commonly found in industrial settings.
Compact design: Despite its large screen size, the VFACE-215 has a compact design that makes it easy to install in tight spaces.
Versatile mounting options: This panel PC can be mounted in various ways, including wall-mounted, panel-mounted, or VESA-mounted, providing flexibility in installation.
Rugged construction: The VFACE-215 is built to withstand harsh industrial environments, with a rugged construction that can withstand shocks, vibrations, and extreme temperatures.
Reliable performance: With its high-quality components and reliable performance, the VFACE-215 is a dependable solution for industrial applications that require continuous operation.
Overall, the VFACE-215 offers a combination of performance, durability, and versatility that makes it a suitable choice for industrial applications.
>Applications:
The VFACE-215 21.5” Advanced Industrial Panel PC is suitable for a wide range of industrial applications, including:
Manufacturing: The VFACE-215 can be used in manufacturing environments for process monitoring, machine control, and production line management.
Automation: This panel PC is ideal for automation applications, such as controlling robotic systems, monitoring sensors, and managing automated processes.
Control systems: The VFACE-215 can be integrated into control systems for managing equipment, machinery, and industrial processes.
Industrial monitoring: This panel PC can be used for monitoring and controlling various industrial parameters, such as temperature, pressure, and flow rates.
HMI (Human Machine Interface): The VFACE-215 can serve as an HMI for interacting with industrial machinery and equipment, providing operators with real-time data and control capabilities.
SCADA (Supervisory Control and Data Acquisition): The VFACE-215 can be used in SCADA systems for monitoring and controlling industrial processes across multiple locations.
Transportation: This panel PC can be installed in transportation systems, such as railway networks, airports, and seaports, for monitoring and control applications.
Energy management: The VFACE-215 can be used in energy management systems for monitoring power generation, distribution, and consumption in industrial facilities.
Overall, the VFACE-215 is a versatile and reliable industrial panel PC that can be used in various applications to improve efficiency, productivity, and control in industrial environments.
