| Quantity: | |
|---|---|
Product Name and Model |

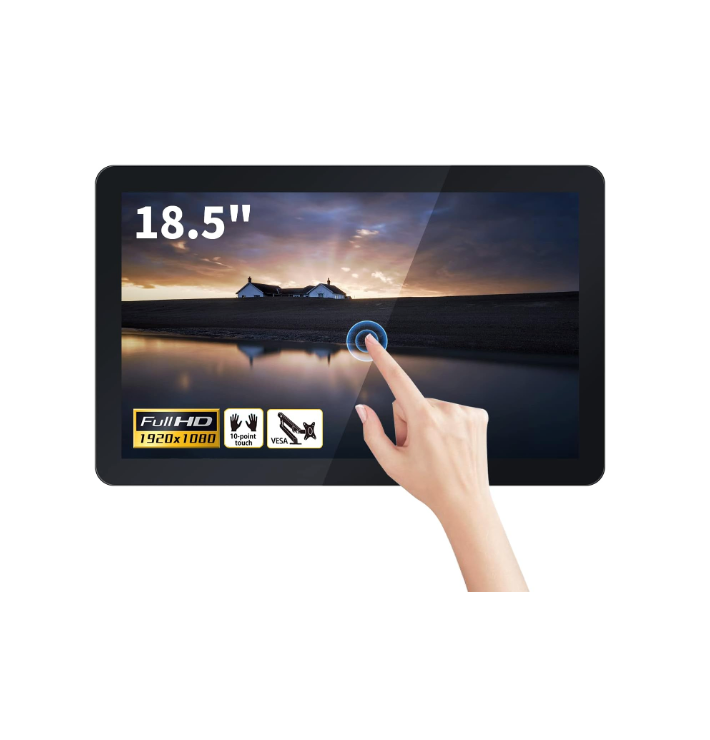

18.5“ Capacitive Multi-Touch Screen Industrial Monitor | CD-67-185 |
|
Display |
Screen Size |
18.5" |
Screen Resolution |
1366 x 768, Optional 1920 x 1080 |
|
Screen Ratio |
16:09 |
|
Brightness |
300 nits, Optional 1000 nit High Brightness |
|

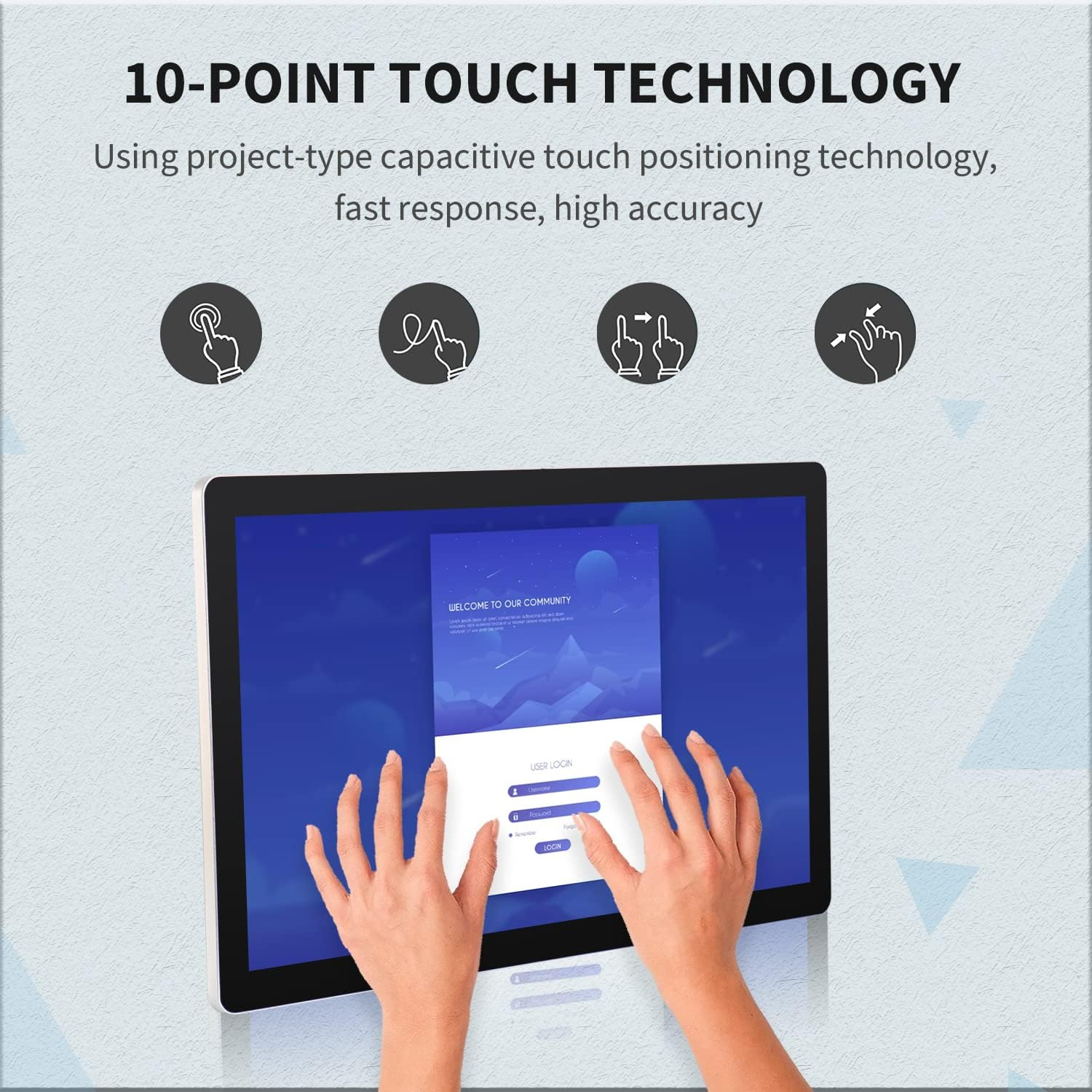

Touch Screen |
Touch Screen |
Projected Capacitive, Resistive |
External I/O Ports |
Audio Ports |
1x Optional Speaker with 1x Audio Input, HDMI, VGA |
Power Input Port |
3-Pin DC-In (Phoenix Type) |
|
USB |
USB cable for touchscreen connection |
|
Power |
Input Voltage Range |
9-36V DC |
Max Power Consumption |
19.7W (Resistive), 30.2W (P-Cap) |
|
Standard Power Adapter |
Optional 12V DC Adapter and power cable |
|
Multimedia |
Speakers |
Optional Speaker |
Thermal & Environmental |
Operating Temperature |
-30°C - +70°C |
Storage Temperature |
-40°C - +80°C |
|
Cooling Solution |
Passive – Fanless |
|
Storage Humidity |
10% – 90% Non-condensing |
|
Enclosure |
Material |
Aluminum |
IP Rating |
IP66 Front Bezel |
|
Color |
Silver |
|
Mounting Options |
Panel Mount, VESA 100 Mount |
|
Approved Cleaning Solutions |
Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water |
|
Weight / Dimensions |
Weight |
6.4 kg |
Dimensions |
499.6 x 314.6 x 59.9 mm |
|
Certification |
Certifications |
CE, FCC, CCC, RoHS, LVD |

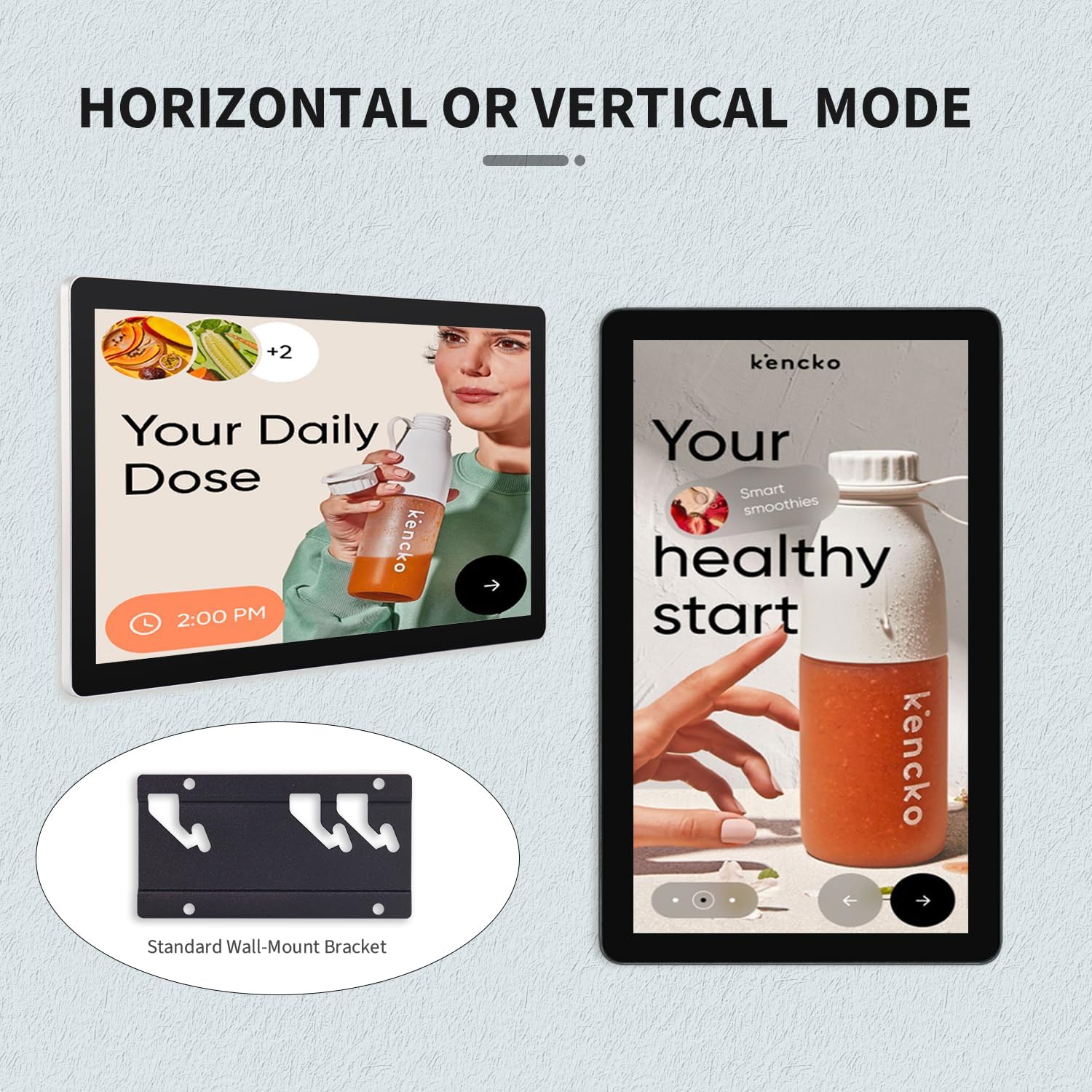

Switch freely between horizontal and vertical display modes
Match different installation layouts and cabinet sizes
Optimize viewing for wide screens, long lists and menus
Stable multi-touch performance in both orientations
Maximize the use of limited installation space

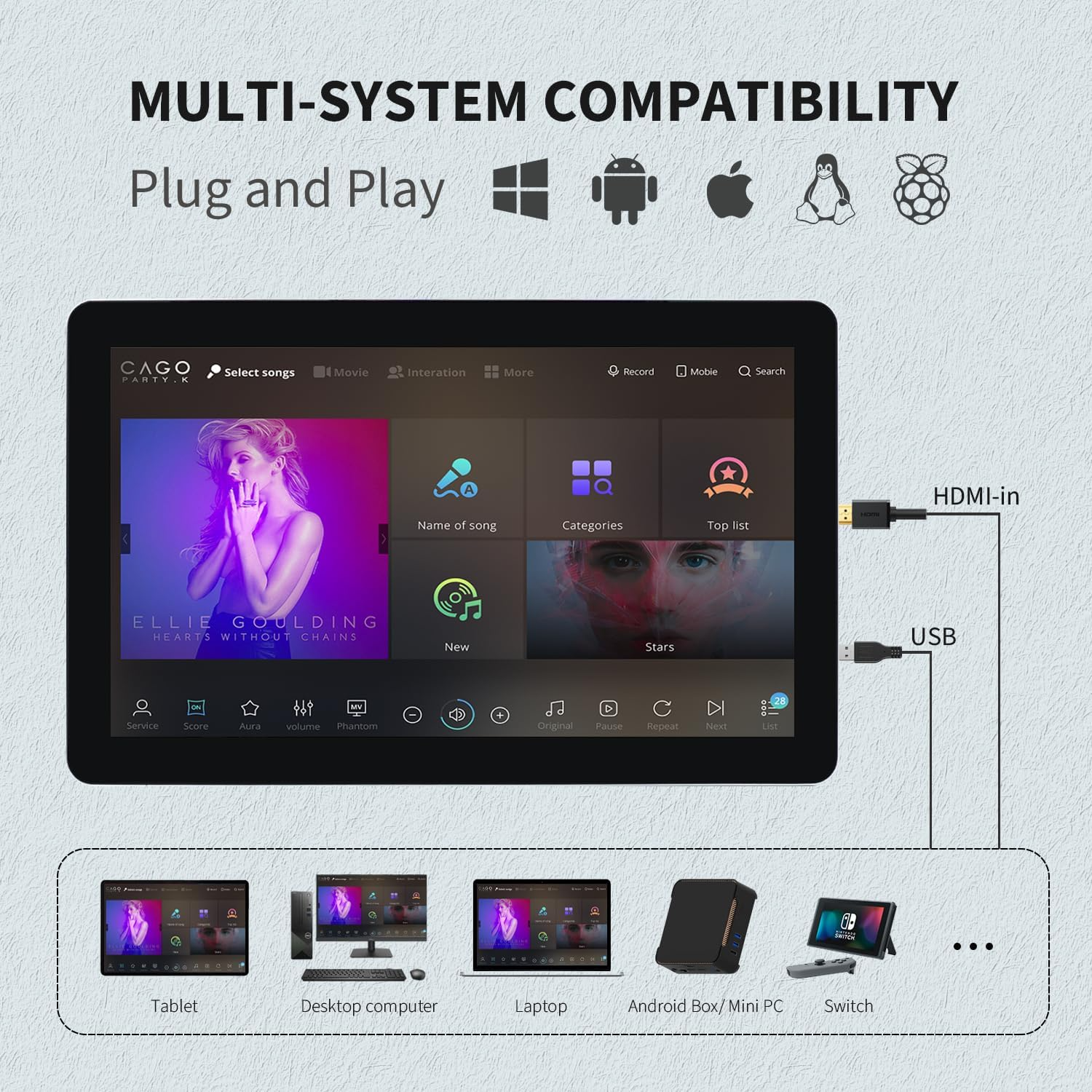

Fully compatible with common industrial software and systems
Diverse installation methods for different site layouts
Switchable horizontal/vertical display to fit various interfaces
Industrial durability for harsh workshop environments
Acts as control terminal, monitor and data display all in one
Great compatibility with mainstream industrial devices and software
Applies to manufacturing, logistics, energy, traffic and security sectors
Production line HMI and equipment control
Factory central monitoring & alarm management
Embedded display for automated industrial machinery
Smart warehouse & logistics operation terminals
Power and new energy equipment monitoring
Traffic control and roadside monitoring
Industrial park video security surveillance
Smart building and facility automation systems
