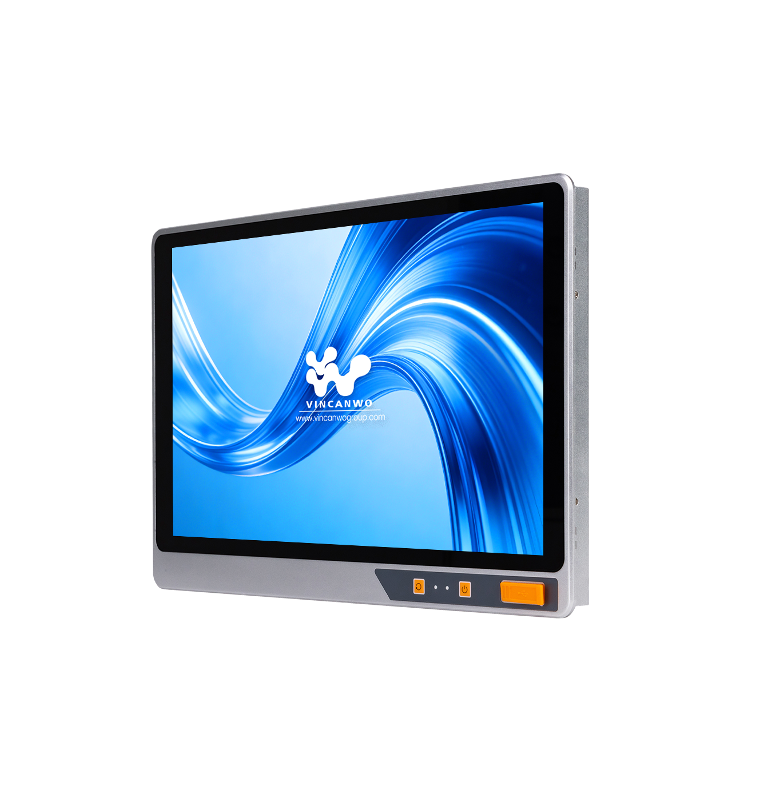

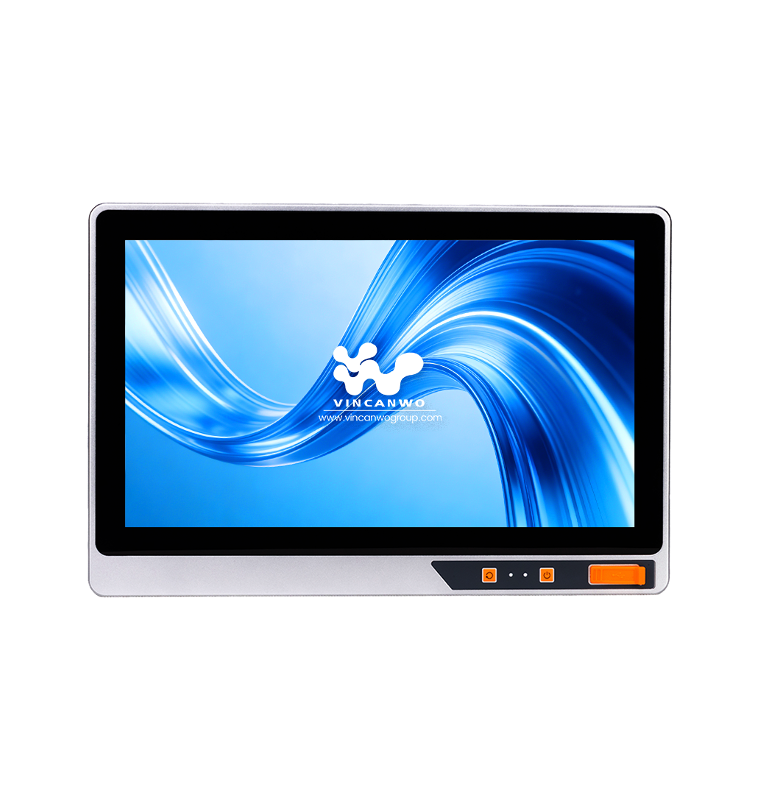

17.3" Touch Panel Industrial PC LCD Screen Windows i5 i7 | VFACEH-173

Key Highlights:
• 17.3” LCD Wide touchscreen
• H310 (LGA1151) Chipset
• Windows, Linux OS
• 2x 4G/8G/16G/32G
• 1x M.2 Slot, support M.2 2260/2280
• 1x RTL8111, 2x RTL8111 Ethernet/LAN
• 1x Front USB, 4x Rear USB
• IP66 Protective Rated Front Panel Bezel
• Die Cast Aluminum Enclosure

Model:
VFACEH-173
Brand:
VINCANWO GROUP
IP Rating:
IP66 Front Bezel
CPU:
High Performance (Core i/ultra）
MemoryType:
1x DDR4 SO-DIMM, 1x DDR5 SO-DIMM, 2x DDR4 SO-DIMM, Onboard DDR4, Onboard LPDDR5
Screen Size:
OEM

Availability:

Quantity:



Inquire Add to Basket

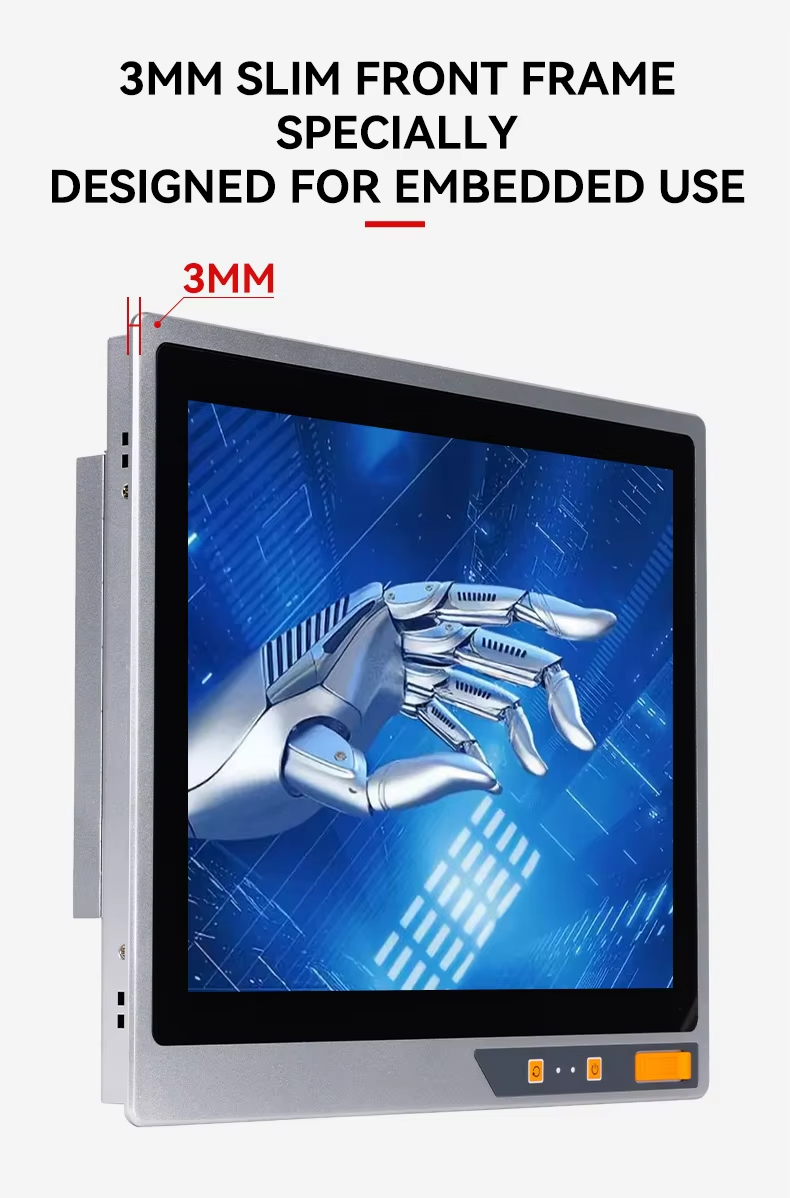

3mm Slim Front Frame Specially Designed for Embedded Use

VFACEH-173 is a 17.3-inch wall-mount industrial touch panel PC fitted with a custom 3mm ultra-slim front frame exclusively engineered for embedded integration applications.

Nine Core Competitive Advantages – VFACEH-173 Industrial Touch Panel PC

This VFACEH-173 is a 17.3-inch wall-mount industrial touch all-in-one PC equipped with an industrial LCD screen. Powered by Intel Core i5 or i7 processors and preloaded with Windows operating systems, it boasts nine standout core advantages to meet diversified industrial control and embedded monitoring demands.

Nine Core Advantages,17.3" Touch Panel Industrial PC LCD Screen Wall Mount Windows i5 i7 | VFACEH-173.png

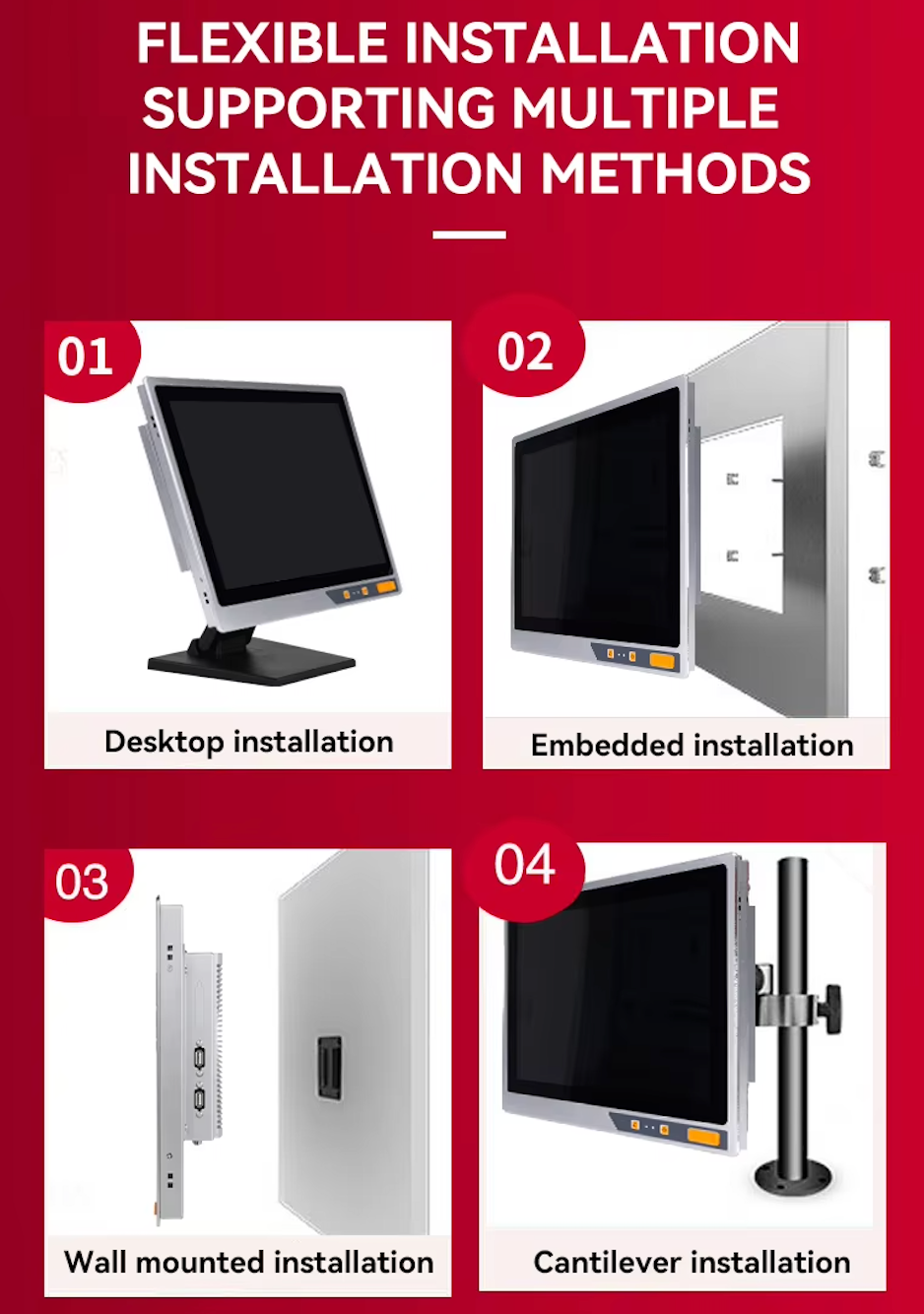

Flexible Multi-Mount Designs:

The VFACEH-173 is a 17.3-inch industrial touch panel PC featuring an LCD screen, compatible with Windows OS and powered by Intel Core i5 or i7 processors. It supports flexible multiple installation methods to fit various on-site deployment requirements.

Flexible multiple installations 17.3" Touch Panel Industrial PC LCD Screen Wall Mount Windows i5 i7 | VFACEH-173.png

X86-based Panel PCs Panel PCs touchscreen panel PCs manufacturing panel PCs x86 panel pcs Quick release panel PCs Industrial touchscreen panel PCs Fanless design panel PCs IP65 bezel panel PCs Vibration resistant panel PCs

Related Products

Panel PCs built in FRID Reader and QR Scanner | VFWS X86 Series

Built-in RFID Reader, QR Code Scan, Front Camera Industrial Panel PC X86 series | VFWS models

All In One Industrial Fanless Touchscreen Computers | TPRO X86 Series

Rackmount Industrial Computers | VOPC X86 Series

Advanced Industrial Computers | VFACE X86 Series

SKU	VFACEH-173
Screen Size	17.3”
Resolution	1920x1080
Viewing Angle	80/80/60/80
Brightness	400 cd/㎡
Contrast Ratio	600:1
Touchscreen	Capacitive, Resistive
Controller	USB interface
Durability	Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times
Chipset	H310 (LGA1151), H610 (LGA1700)
Memory Type	2x DDR4 4G, 8G, 16G, 32G
Storage Type	1x M.2 Slot, support M.2 2260/2280
Ethernet / LAN	2x RTL8111
Serial / Com	2x RS232 (COM2 option RS485)
USB	Front 1x USB, Rear 4x USB
Video Outputs	1x HDMI, 1x VGA
Expansion Slots	1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE
Operating Systems	Windows, Linux

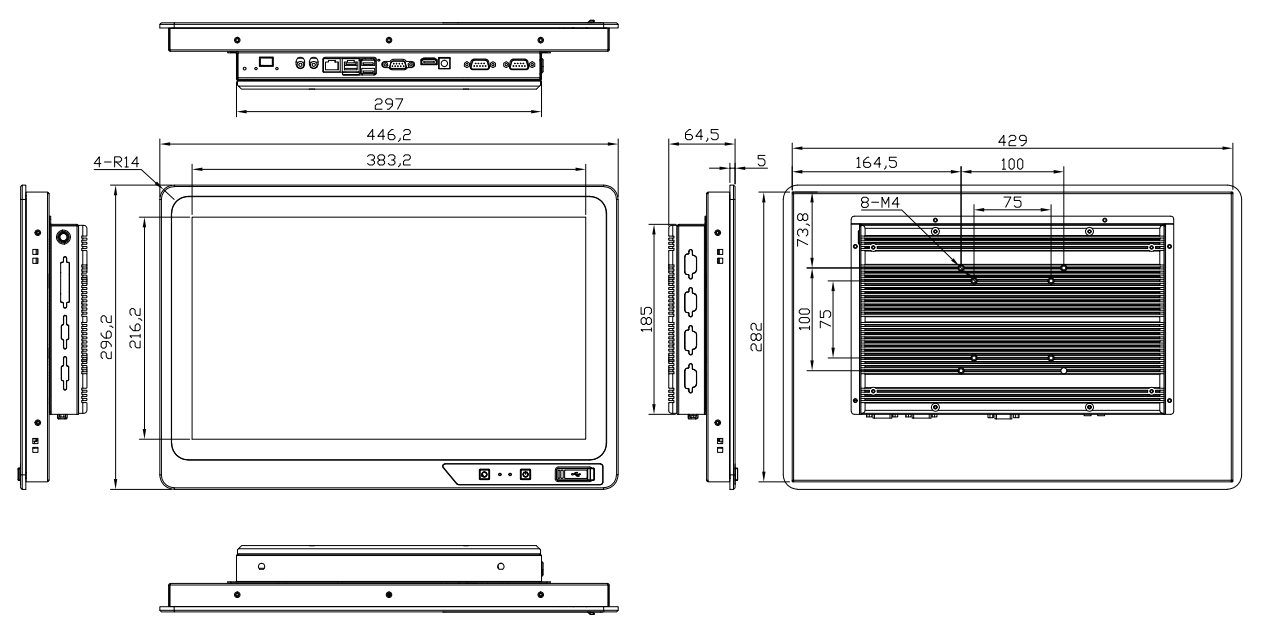

Dimension	446.2x296.2x73.1mm
Mounting Hole Size	432x285mm
Gross Weight	5.68kg
Mounting Options	Embedded, Wall Mount, Desktop Stand
Operating Temperature	-30℃ ~ +70℃
Storage Temperature	-40℃ ~ +80℃
Humidity Rage Non-condensing	5% - 95%
Power	Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W
