SKU | VFACEH-15 |
Screen Size | 15” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/㎡ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | H310 (LGA1151), H610 (LGA1700) |
Memory Type | 2x DDR4 4G, 8G, 16G, 32G |
Storage Type | 1x M.2 Slot, support M.2 2260/2280 |
Ethernet / LAN | 2x RTL8111 |

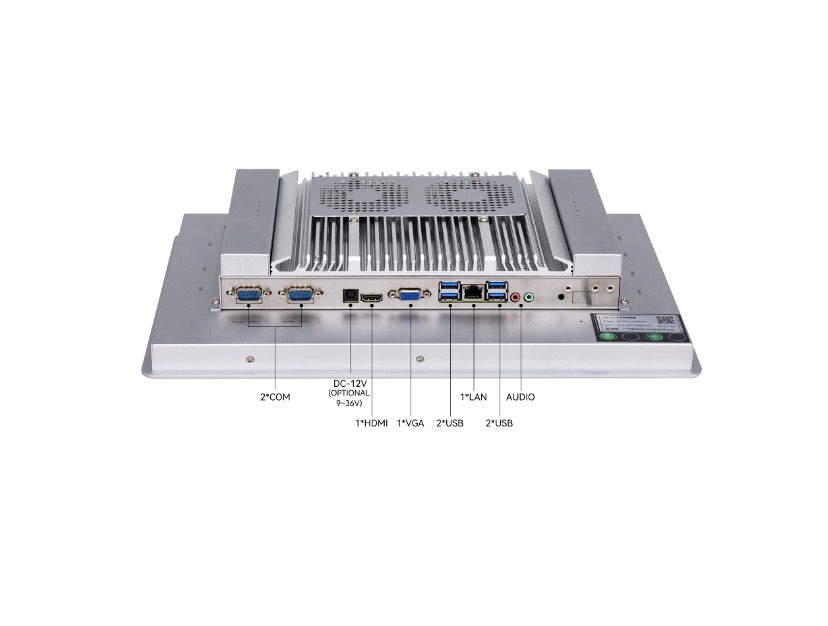

Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1xMini-PCIE WiFi, 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

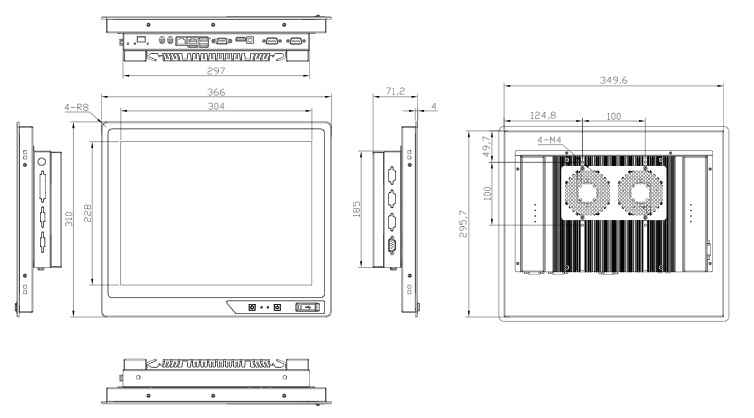

Dimension | 366x310x71.2mm |
Mounting Hole Size | 352x298mm |
Gross Weight | 4.68kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
Our Vincanwo brand 15” High-performance Industrial Panel PC | VFACEH-15 is designed to withstand demanding environments, and built with ruggedized enclosures that protect against dust, moisture, vibrations, and extreme temperatures. This rugged construction ensures reliable performance in industrial, outdoor, and harsh operating conditions.
1. Rugged and Durable Construction:
Built to withstand harsh conditions:
Designed to endure dust, moisture, vibrations, and extreme temperatures, unlike standard office PCs.
Robust enclosures:
Feature ruggedized enclosures that protect internal components, ensuring reliable operation in demanding environments.
2. Long-Term Reliability and Longevity:
Higher quality components:
Utilize higher-quality components, leading to a longer lifespan and reduced downtime.
Designed for continuous operation:
Engineered for continuous operation in industrial settings, ensuring uninterrupted performance.
Reduced maintenance:
Robust design and long lifespan translate to lower maintenance costs and less downtime.
3. Enhanced Performance and Efficiency:
High-performance processors:
Feature powerful processors and ample memory to handle demanding industrial applications, such as data acquisition, control, and visualization.
Touchscreen capabilities:
Come with touchscreen displays, allowing for intuitive and direct interaction with the system.
Space efficiency and reduced wiring:
Integrate multiple functions, reducing the need for separate devices and simplifying wiring in industrial environments.
4. Versatile Applications:
Industrial automation:
Used in various industrial automation applications, including machine control, process monitoring, and HMI (Human Machine Interface) systems.
Transportation and logistics:
Used in transportation systems, passenger information systems, and vehicle monitoring applications.
Security and surveillance:
In security control and surveillance systems.
Building automation:
In building automation systems for tasks like HVAC control and lighting management.
>Product Applications
Our Vincanwo brand 15” High-performance Industrial Panel PC | VFACEH-15 finds application in various industries, serving as robust HMI (Human-Machine Interface) systems for real-time control, monitoring, and data visualization, particularly in manufacturing automation, process control, and SCADA systems.
Manufacturing Automation:
· Machine Control: Act as the interface for operators to control and monitor machines on the factory floor.
· Production Monitoring: Facilitate real-time tracking of production processes, efficiency, and data analysis.
· Factory Floor Automation: Managing production lines and controlling robots are common applications.
· Logistics and Inventory Management: Help track inventory and manage logistics within warehouses.
· Human-Machine Interface (HMI): Provide a user-friendly interface for operators to manage complex manufacturing processes.
Process Control:
SCADA Systems:
In SCADA (Supervisory Control and Data Acquisition) systems to control equipment and monitor processes remotely.
Process Monitoring:
Help monitor and control various parameters like temperature, pressure, and chemical mixing in industrial processes.
Energy Management:
To monitor and manage energy consumption in factories and buildings.
