15” ARM-based Industrial Computer | TPRO-15 ARM
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | TPRO-15 ARM |
Screen Size | 15” |
Resolution | 1024x768 |
Viewing Angle | 89/89/89/89 |
Brightness | 350 cd/ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 32G, 64G, 128G |
Ethernet / LAN | 1x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini-PCIE |
Operating Systems | Android, LInux |

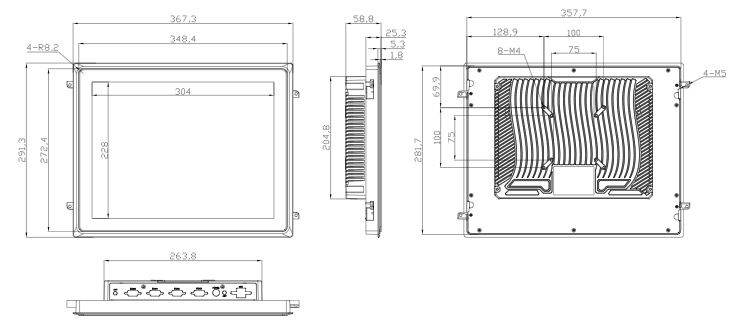

Dimension | 367.3 *291.3 *58. 8mm |
Mounting Hole Size | External embedded size:359 x283mm Internal embedded size: 350 x274mm |
Gross Weight | 3 . 75kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
The TPRO-15 ARM offers the most advantages as an industrial computer for demanding applications:
Low Power Consumption: The ARM processor used in the TPRO-15 ARM is known for its energy efficiency, resulting in lower power consumption compared to traditional x86 processors. This can lead to cost savings on energy bills and reduced environmental impact.
High Performance: Despite its low power consumption, the ARM processor in the TPRO-15 ARM offers high performance suitable for industrial applications. It can handle complex tasks and multitasking efficiently, ensuring smooth operation in demanding environments.
Rugged Design: The TPRO-15 ARM is built with a rugged design to withstand harsh industrial conditions. It is resistant to dust, debris, vibration, and temperature fluctuations, making it suitable for use in challenging environments where reliability is crucial.
Fanless Operation: The fanless design of the TPRO-15 ARM eliminates the risk of fan failure and reduces maintenance requirements. It also ensures silent operation, making it suitable for noise-sensitive environments.
Touchscreen Display: The 15” touchscreen display of the TPRO-15 ARM provides a user-friendly interface for easy interaction with the industrial computer. The high-resolution display offers clear visibility of data and graphics, enhancing productivity and efficiency.
Connectivity Options: The TPRO-15 ARM is equipped with multiple I/O ports for connectivity to various devices and peripherals, allowing for seamless integration into industrial systems. This flexibility enables the industrial computer to meet the specific requirements of different applications.
Overall, the TPRO-15 ARM offers a combination of energy efficiency, high performance, rugged design, and user-friendly features that make it an ideal choice for industrial applications where reliability and durability are paramount.
>Applications:
The TPRO-15 ARM industrial computer can be used in a wide range of industrial applications where reliable and efficient computing solutions are required. Some common applications of the TPRO-15 ARM include:
Manufacturing: The TPRO-15 ARM can be used in manufacturing environments for process control, monitoring production lines, data collection, and quality control. Its rugged design and high performance make it suitable for handling the demands of modern manufacturing processes.
Automation: In automation systems, the TPRO-15 ARM can serve as a control panel for managing and monitoring automated processes. Its touchscreen display and connectivity options make it easy to integrate into automation systems for improved efficiency and productivity.
Transportation: The TPRO-15 ARM can be used in transportation applications such as fleet management, vehicle monitoring, and logistics. Its rugged design and reliable performance make it suitable for use in vehicles or transportation hubs where durability is essential.
Energy Management: The TPRO-15 ARM can be used in energy management systems for monitoring and controlling energy consumption, renewable energy sources, and power distribution. Its low power consumption and high performance make it an ideal choice for energy-efficient applications.
Industrial IoT (Internet of Things): The TPRO-15 ARM can be used in industrial IoT applications for collecting and analyzing data from sensors, machines, and other devices. Its connectivity options and processing power make it suitable for handling IoT applications in industrial settings.
Environmental Monitoring: The TPRO-15 ARM can be used in environmental monitoring systems for tracking air quality, water quality, and other environmental parameters. Its rugged design and reliable performance make it suitable for use in outdoor or harsh environments.
Overall, the TPRO-15 ARM industrial computer is versatile and well-suited for a variety of industrial applications where reliable performance, energy efficiency, and rugged design are essential. Its high performance ARM processor and user-friendly features make it a valuable asset in industrial settings that require efficient and durable computing solutions.
