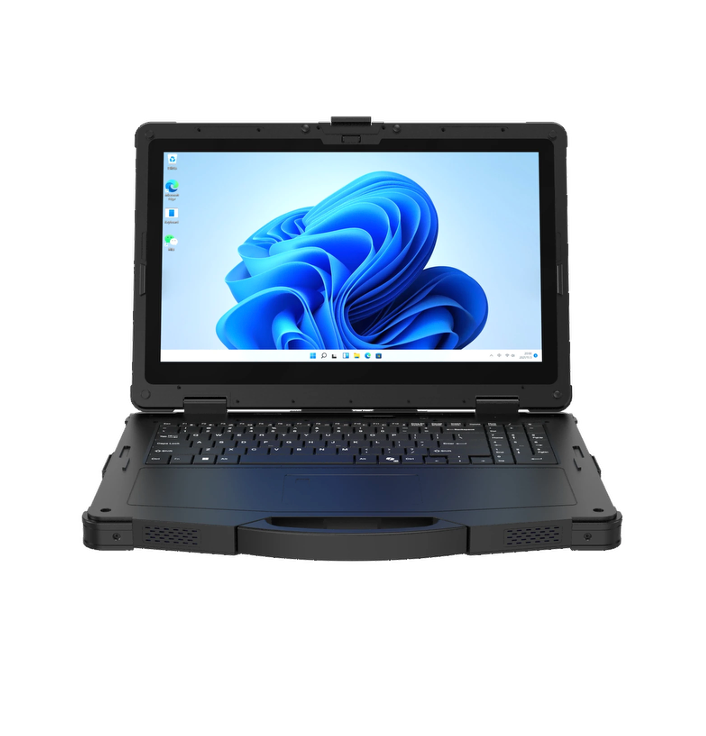

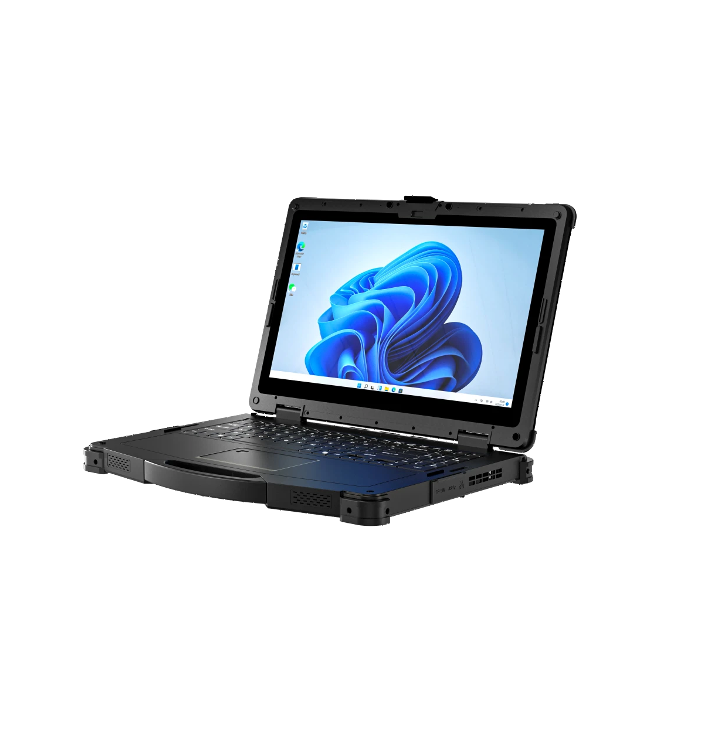

15.6" Rugged Laptop AI PC | AMD Ryzen AI Max+ | 126 TOPS | A156

Product Form

15.6" Rugged Laptop AI PC | AMD Ryzen AI Max+ | 126 TOPS | A156

Durability

· MIL-STD-810H certified
· 4ft, 26 drops (each side, edge, and corner)
· IP65 compliant
· ±8kV contact discharge, ±15kV air discharge

Operating System

· Windows 11 Pro/Home/IoT

Processor

· AMD Ryzen AI Max+ 395 (64MB cache, up to 5.1 GHz, 16 cores, 32 threads)

Graphics

· Radeon 8060S Graphics

Memory

· 64GB LPDDR5
· Optional 128GB LPDDR5

Storage

· 512GB NVMe PCIe SSD
· Optional 1TB PCIe SSD

Display

· 15.6", FHD (1920x1080), 1000 nits

Audio

· Integrated 3W speaker x2
· Integrated microphone

Camera

· FF 5.0 MP front camera

Keyboard & Input

· KB (US) x1, optional KB (DE)/KB (FR)/KB (EU)
· Touchpad x1
· Power key x1

Network & Connectivity

· Wi-Fi 7 802.11a/b/g/n/ac/ax/be
· Bluetooth® 5.4
· Optional 4G LTE
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
GSM: /
· Optional 4G
LTE-FDD: B2/4/5/12/13/17/25/26
LTE-TDD: B41
WCDMA: B2/4/5
GSM: 850/1900
· Optional 4G
LTE-FDD: B2/4/5/7/8/28
LTE-TDD: B40
WCSMA: B2/5/8
GSM: 850/900/1900
· Optional GPS/GLONASS

Security

· Integrated fTPM2.0
· Kensington lock

Data Capture

· Fingerprint scanner

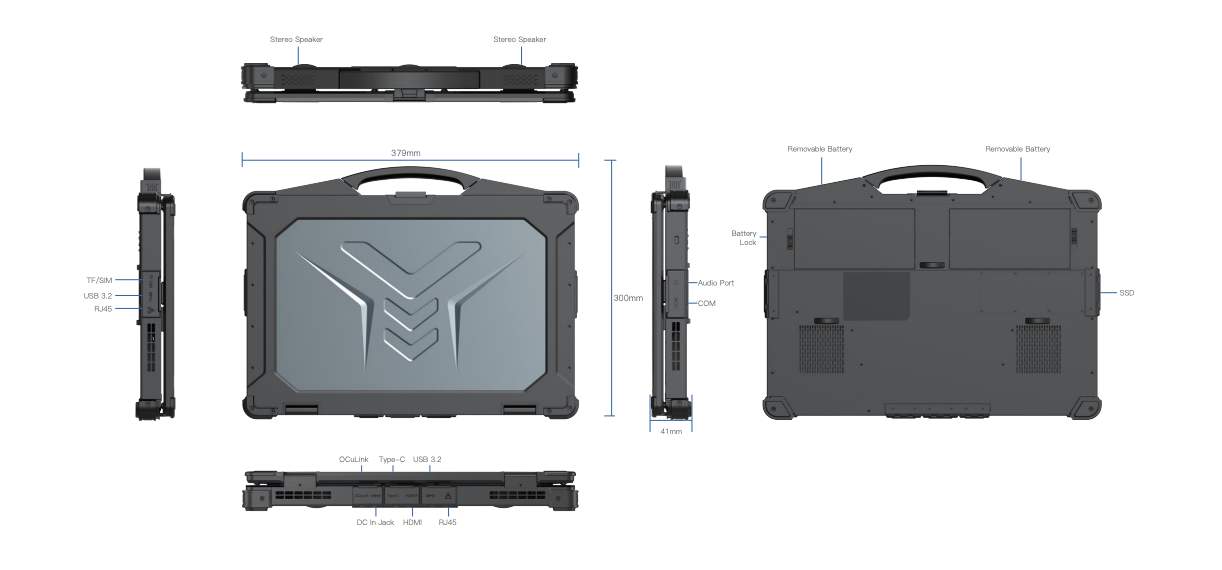

I/O Interface

· USB 3.2 Gen 1 (Type-A) x2
· USB 4.0 (Type-C) x1
· OCULink x1
· HDMI 2.1 Type-A x1
· Fan x2
· 5.5 mm DC in jack x1
· 10/100/1000M Ethernet (RJ45) x2
· Serial port (RS232: D-sub, 9-pin) x1
· SIM card x1
· 3.5 mm audio jack x1
· TF card x1

Expansion Module

· Optional 2nd NVME PCIe SSD

Battery & Charging

· Battery Li-Ion, 11.61V, 6355mAh x2，17.1h
· Separate RTC 3V/210mAh
· PD adapter: 100-240V, 50Hz-60Hz, 230W (19.5V/11.8A)

Environment

· Operating temperature: -20°C to 60°C (-4°F to 140°F)
· Storage temperature: -30°C to 70°C (-22°F to 158°F)
· Humidity: 95% (non-condensing)

Dimension

· 397mm (L) × 300mm (W) × 41mm (H)

Weight

· 3.56kg

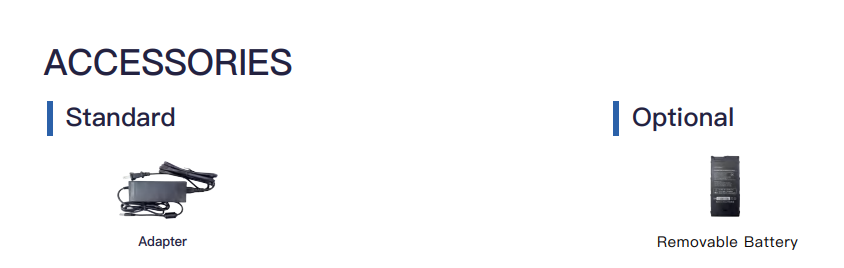

Accessories

· Standard: Adapter
· Optional: Removable battery
