14" Windows 11 Rugged PC | AMD Ryzen AI (66 TOPS) | 1000 nits FHD | MIL-STD-810H | A14

Product Name

14" Windows 11 Rugged PC | AMD Ryzen AI (66 TOPS) | 1000 nits FHD | MIL-STD-810H

Product Model

A14

Durability

· MIL-STD-810H certified
· 4ft, 26 drops (each side, edge, and corner)
· IP65 compliant
· ±8kV contact discharge, ±15kV air discharge

Operating System

· Windows 11 Pro/Home/IoT

Processor

· AMD Ryzen AI 7 350 (16MB cache, up to 5GHz,
8 cores, 1

Graphics

· Radeon 860M

Memory

· 16GB DDR5 (4800MHz)
· Dual slots, supports up to 64GB (32GB/32GB)

Storage

· 256GB NVMe PCIe SSD
· Optional 512GB/1TB PCIe SSD

Display

· 14.0", FHD (1920x1080), 1000 nits

Audio

· Integrated 2W speaker x2
· Integrated microphone

Camera

· FF 5.0 MP front camera

Keyboard & Input

· KB (US) x1, optional KB (DE)/KB (FR)/KB (EU)
· Touchpad x1
· Power key x1

Network & Connectivity

· Wi-Fi 6 802.11a/b/g/n/ac/ax (M.2)
· Bluetooth® 5.2
· Optional 4G LTE
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
GSM: /
· Optional 4G
LTE-FDD: B2/4/5/12/13/17/25/26
LTE-TDD: B41
WCDMA: B2/4/5
GSM: 850/1900
· Optional 4G
LTE-FDD: B2/4/5/7/8/28
LTE-TDD: B40
WCSMA: B2/5/8
GSM: 850/900/1900
· Optional GPS/GLONASS

Security

· Integrated fTPM2.0
· Kensington lock

Data Capture

· Fingerprint scanner

I/O Interface

· USB 3.2 Gen 1 (Type-A) x2
· USB 3.2 Gen 2 (Type-C) x1
· USB 4.0 (Type-C) x1
· OCULink x1
· HDMI 2.1 Type-A x1
· Fan x2
· 3.5mm audio jack x 1
· 10/100/1000M Ethernet (RJ45) x2
· Serial port (RS232: D-sub, 9-pin) x1
· SIM card x1
· SD card x1

Expansion Module

· Optional 2nd NVME PCIe SSD

Battery & Charging

· Li-ion battery, 11.61V, 6355mAh x2, 17h
· Separate RTC 3V/210mAh
· PD adapter: 100-240V, 50Hz-60Hz, 100W (20V/5A)

Environment

· Operating temperature: -20°C to 60°C (-4°F to 140°F)
· Storage temperature: -30°C to 70°C (-22°F to 158°F)
· Humidity: 95% (non-condensing)

Dimension

· 356mm (L)×269mm (W)×41mm (H)

Weight

· 2.85kg

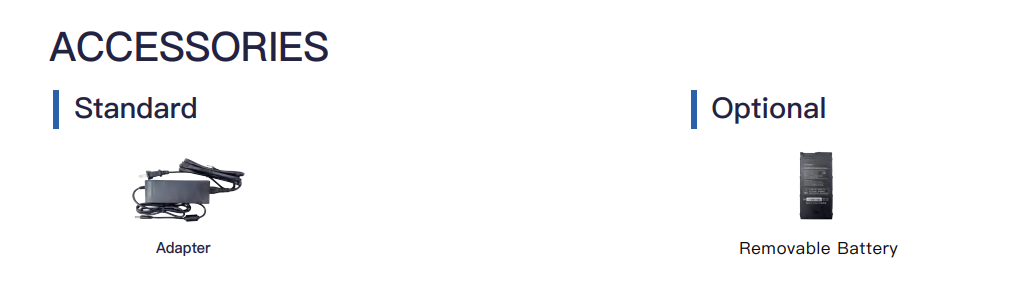

Accessories

· Standard: Adapter
· Optional: Removable battery
