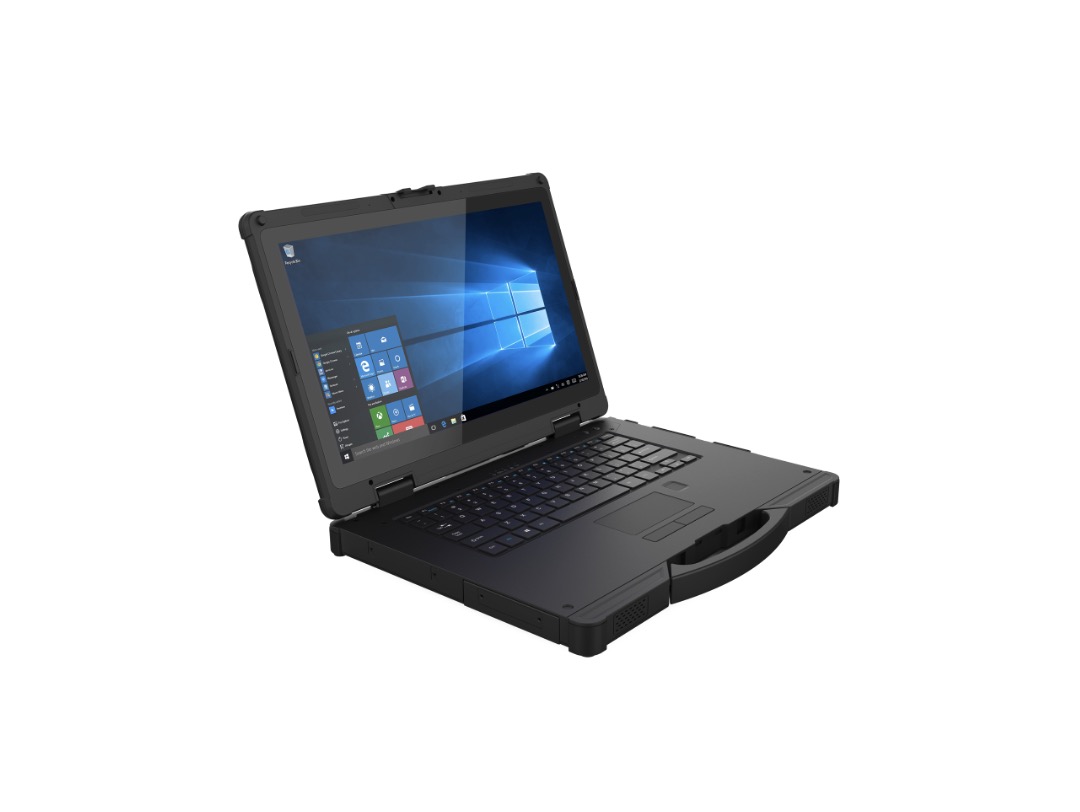

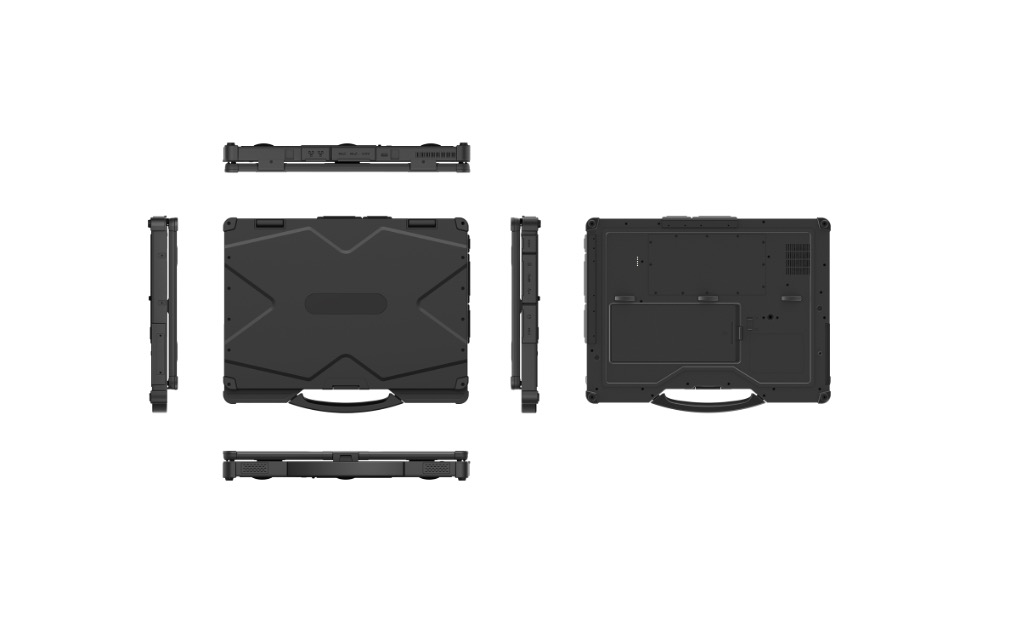

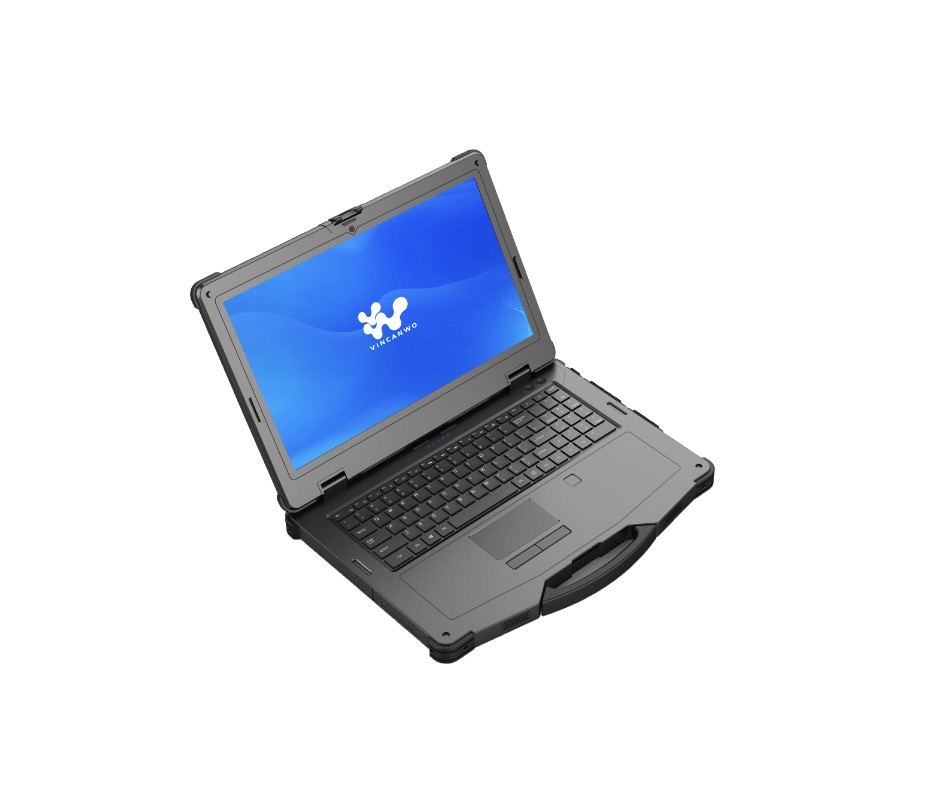

14” Rugged Notebook | X14T
VINCANWO
Availability: | |
---|---|
Quantity: | |
SKU | 14” Rugged Notebook | X14T |
Dimension (mm) | 363.2x287.4x42.1 |
Weight (g) | 2850 |
Device Color | Black |
LCD | 14” FHD 16:9, 1920*1080, 1000nits |
Touch Panel | Optional 10 points capacitive, G+G, Corning Gorilla Glass |
Camera | Front 2.0MP |
Performance Parameter | Intel Core™ i5-1135G7/I7-1165G7 CPU OS: Windows 11/10 RAM: 16GB ROM: 256GB/512GB/1TB |
I/O | SD Card x 1, SIM Card x 1 USB2.0 x 1, USB3.0 x 3, HDMI x 1 DB9 (RS232) x 1, RJ45 x 2 Φ3.5mm standard earphone jack x 1 POGO 5pin x 1, DC 19V 3.42A Power connector x 1 Passenger transfer card PCIE X4 solt or HDD x 1 (Optional) Anti theft lock hole x 1, Heat dissipation air outlet (right) x 1 |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A/65W |
Capacity | 7.4V/1750mAh+7.4V/6300mAh |
Type | Double Lithium-ion polymer battery |
Endurance | 8.5hrs+30min |
GNSS | Support GPS, Optional GPS+Beidou |
WiFi | WiFi 6, 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
Bluetooth | BT 5.1 Transmission distance: 10m |
2G/3G/4G/5G (Optional) | LTE-FDD B1/3/5/7/8/20,LTE-TDD B40, WCDMA B1/5/8,GSM 900/1800 5G NR n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/ n38/n40/n41/n48*/ n66/n71/n77/n78/n79 LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD B34/B38/B39/B40/B41/B42/B43/B48 LAA B46,WCDMA B1/B2/B3/B4/B5/B6/B8/B19 |
NFC | Optional, 13.56MHz, Support ISO/IEC 14443A/B/15693/18092/mifare protocols Card reading distance: 4cm |
Fingerprint | SPI fingerprint (Power on login) |
IP Grade | IP65 |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
>Product Advantage
· Durability:
Built with reinforced chassis, sealed ports, and shock-resistant materials to withstand heavy impacts, vibrations, and rough handling.
· Weatherproof:
IP65 rating protection against dust and water ingress, allowing operation in wet or dusty environments.
· Extreme Temperature Tolerance:
Designed to function in extreme hot and cold temperatures.
· Long Battery Life:
Often features dual hot-swappable batteries for continuous operation without downtime.
· Sunlight Readable Display:
High-brightness screen with anti-glare coating for clear visibility in bright sunlight.
· Portability:
Our Vincanwo Group brand 14” Rugged Notebook | X14T, a 14-inch screen size provides a good balance between screen real estate and compact size for easy carrying.
· Specialized Features:
GPS, barcode scanners, dedicated ports for specialized equipment depending on the application.
>Product Applications
· Manufacturing:
For interactive factory floor planning and real-time analytics
· Public safety:
For defense applications and field service
· Construction:
For intensive AI applications
· Energy:
For surveying and mapping
· Healthcare:
For rugged laptops in healthcare settings
· Transportation:
For rugged laptops in transportation and distribution
· Agriculture:
For rugged laptops in agricultural industries
· Outdoor recreation:
For rugged laptops used by individuals for outdoor recreation activities
· Remote locations:
For connecting workers in remote locations and allowing real-time reporting and data collection
