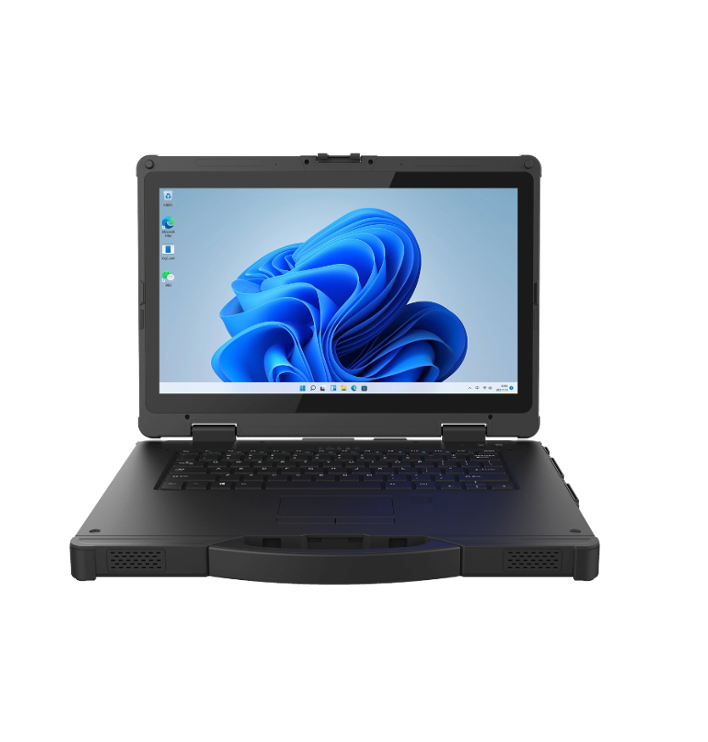

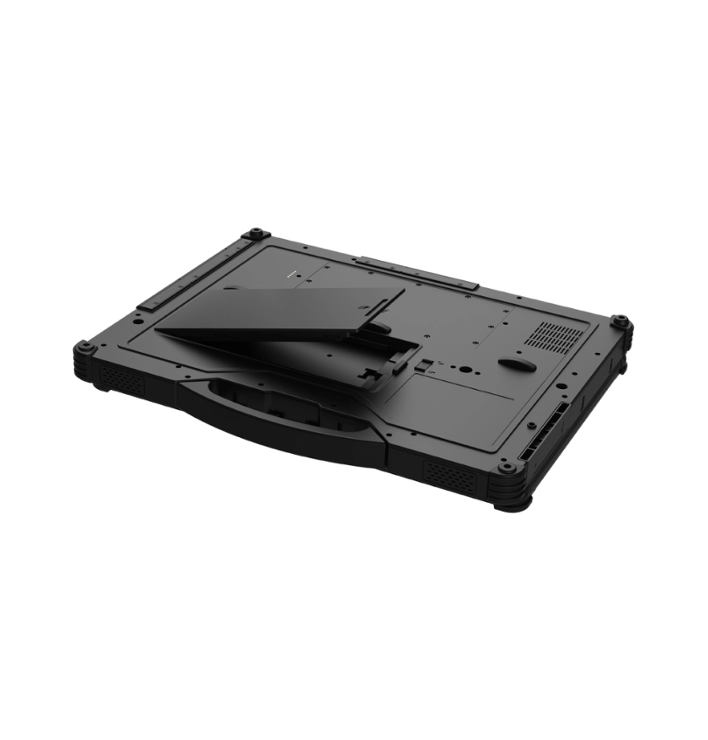

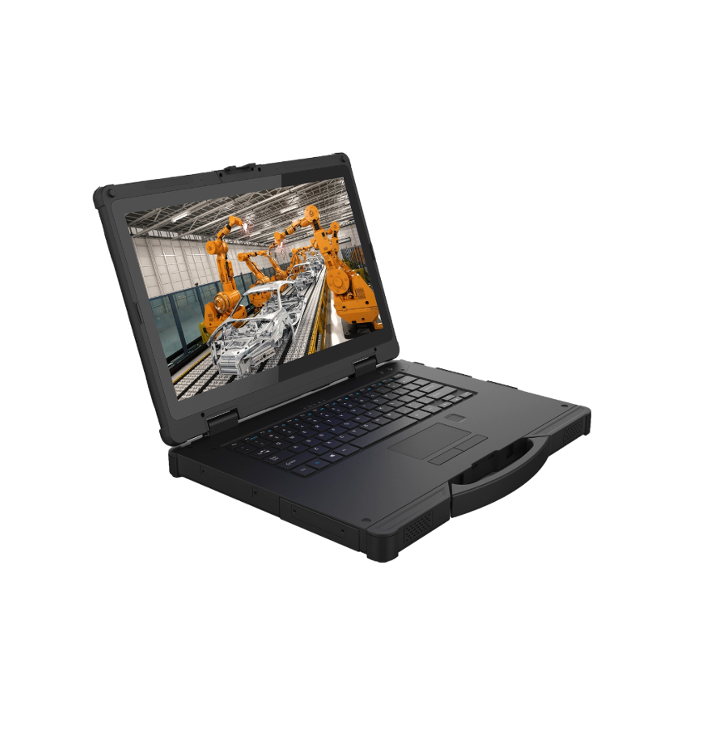

| Product Form | 14' Windows Laptop 12th Gen i5 |
| Materia | PC+10%GF |
| Dimensiones | 366.2mmx246.9mmx24.8mm |
| Pondus | TBD |
| Product Color | Niger |
| CPU | Intel i5-1235U, TDP15W,2P-Cores,8E-Cores, 12threads; Celeritas: 0.9GHz~4.4GHz Optional：i7-1255U, TDP15W,2P-Cores,8E-Cores,12threads: Celeritas: 1.2GHz~4.7GHz |
| GPU | Intel® Iris® Xe Graphics ingrediuntur |
| Memoria | RAM 16GB DDR5 (4800MHz) Libitum: 32GB DDR5 (4800MHz) ROM 256GB SSD ROM 256GB SSD Libitum: 512G 1TB |
| Ratio operating | Windows 11 PRO（HOME, IOT） 64bit Default Language: English Optional: Windows 10 IOT 64bit Windows 10 Pro 64bit Windows 10 Domus 64bit |
| Ostendere | Type: LCD Size: 14-inch 16:9 Resolutio: 1920* 1080 Splendor: 1000cd/㎡ |
| Tactus Pannel | 10-Point Capacitivorum Screen, G+G; duritia supra 7H; Repugnans Scalpe; Subsidiis caestu tactus |
| Camera | Ante 5.0MP (USB) Tergo 8.0MP (USB) |
| Bullae | Potentia Button *1 Volumn + clavis *1 Volumn - clavis *1 Customised key *2（Default: P1 ad aperiendum Imperium Centrum, P2 ad aperiendum cameram F clavis *1 (Barcode intuens) |
| Orator | Built in 4Ω/3W IMPERVIUS speaker *2 |
| Microphone | Sensibilitas: -38dB±3db |
| Sensor | G-Sensor |
| Fan | IPX5 fan *1 |
| RTC Pugna | 3.0V/220MAH |
| Parvus Pugna | Pugna in Polymer Lithium-ion constructa, 1300mah/11.1V non-amovibilis (14.4WH) 1.5H (Default L% volumen, 200 lumens claritas, ludens 1080P HD video) |
| Magna Pugna | Pugna Polymerus Lithium-ion amovibilis, Hot-swappable 4850mah/11.55V（56WH） 8hrs (1080P video ludentem cum systemate in modo aequabili, 320nits splendoris velamentum, 70db volumen ad 10cm, et WiFi/BT avertit) |
| WIFI | Wi-Fi 6 802.11a, b, d, e, g, h, i, k, n, r, u, v, w, ac, ax |
| Bluetooth | BT5.1 (BLE) Class1 Data transmissionis spatium: 10m |
| 4G | 4G (M.2 interfaciei, versio Europaea) LTE-FDD: B1/3/5/7/8/20/28 LTE-TDD: B38/40/41 |
| 5G | 5G ( ad libitum ) NSA n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79 SA n1/2/3/5/7/8/12/13/14/18/20/25/26/78/29/30/38/ 40/71/48/48/77/38/40/71/48/8/12/13/14/ LTE -FDD B1/2/3/4/5/7/8/ 12/13/14/17/18/19/20/ 25/26/28/29/30/32/66/71 LTE-TDD B34/38/39/40/ 41/42/43/48 |
| GPS | Unius GPS vel una Glonass sustinet, defaltam GPS |
| EGO / O Interfaces | USB3.2 *1，USB2.0 *2 |
| TYPE-C, fulmen fulmen 4 | |
| ∮3.5mm Standard Earphone Jack *1 | |
| HDMI 2.0a mini x1 | |
| Sim card * 1 | |
| TF card *1 | |
| RJ45*1 10M/100M/1000M propriae adaptivae RJ45*1 10M/100M/1000M sui adaptivae (USB2.0), subsidia Gigabit Ethernet protocollum |
|
| RS232 *1, 9 | |
| DC19V/3.78A ∮5.5mm interface *1 . potentia | |
| 12PIN Pogo Pin (USB & dato) * 1 | |
| Virtus Adapter | AC100~ 240V, 19V/3.78A 71.82W output EU Standard Libitum: US Standard |
| Virtus Testimonium lux | 1. Virtutis Die: Virtutis indicator solida manet. 2. Power Off: Power indicator off volvitur. 3. Somnus Modus: Power indicator blinks. |
| Testimonium altilium lux | 1. dato: dato signo solidum (rubrum). 2. Plene munus: dato signo solidum (viridi). 3. Large Battery Not Connected: dato signo cito fulgurat (red). 4. Maximum altilium (X%) nibh Sine Connected: dato signo cito fulgura (rubrum) |
| Praerupta Features | MIL-STD-810H: 1.22m stilla resistentia |
| Temperatus operandi: -20 °C ad 60°C | |
| Repono temperatus: -30 °C ad 70°C | |
| Electrostatica missio: ±4kV emissio contactus, ±8kV aeris missio | |
| Uvor: XCV% Non Condensing | |
| Testimonia | IP65 |
| CE ad libitum FCC, CCC | |
| MIL-STD-810H | |
| Pugna: UN3803, MSDS, IEC62133, Aviation, Shipping Report | |
| Data Collection | Fingerprint aedificata, pro potestate in login. |
| NFC USB interfacies, subsidia ISO14443A, ISO14443B, IOS15693, ISO18092, Felica. |
|
| 2D Barcode Scanner libitum, USB interfaciei, resolutio optica (scausatio accurata): ≥3mil Codices fulciuntur: 1D: Code128, EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 de 5, Code39, Code93, Code32, Codabar, Matrix 2 de 5, MSI PATABAR, Matrix 2 de 5, MSI PAT. Plessey, Febraban, composita 2D: QR Codex, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztece, Maxicode, Han Xin Code, Dotcode |
|
| Internum Expansion justo | M.2 2280 PCIE interface *1, ad libitum SSD |
| M.2 E-KEY PCIE interface *1, ad libitum Custom moduli |

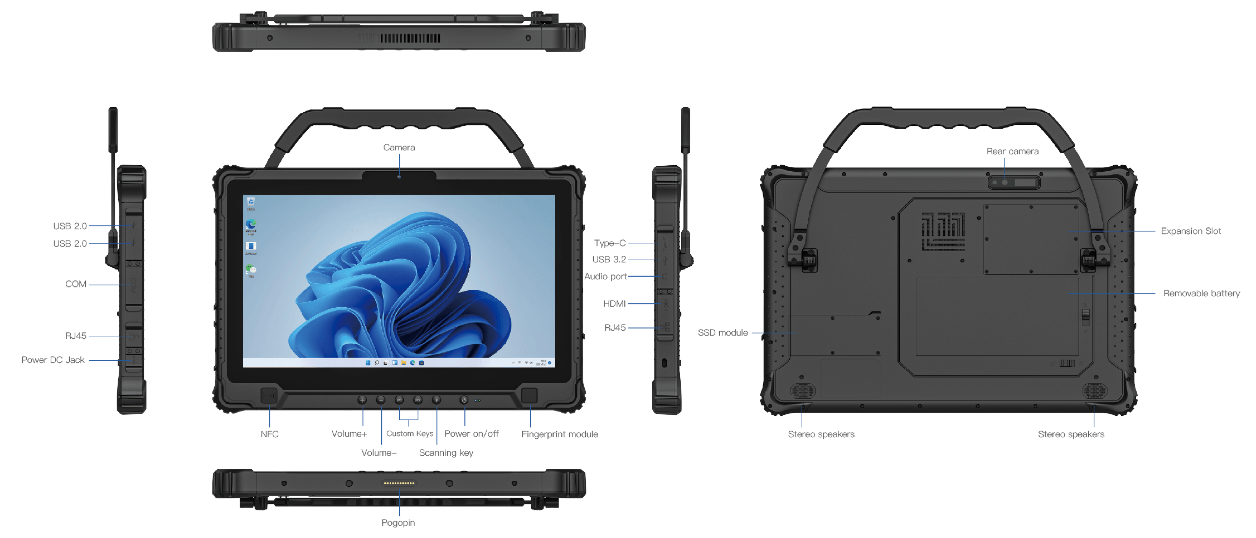

Product Sex Views
11th Generatio Intel® Core Processor
Quad-core 11th Generatio Intel Core i5/i7 Processores extraordinariam velocitatem refrigerii-currentis liberant et effectus et multitasing sine labore, dum integrata Intel Iris X° Graphica vim visualem experientiam in applicationibus video et novaculae reproductiones tabularum, chartarum et schismaticorum efficiunt. Vexillum 8GB+256GB memoria sustentat quod plures apps simul currit.

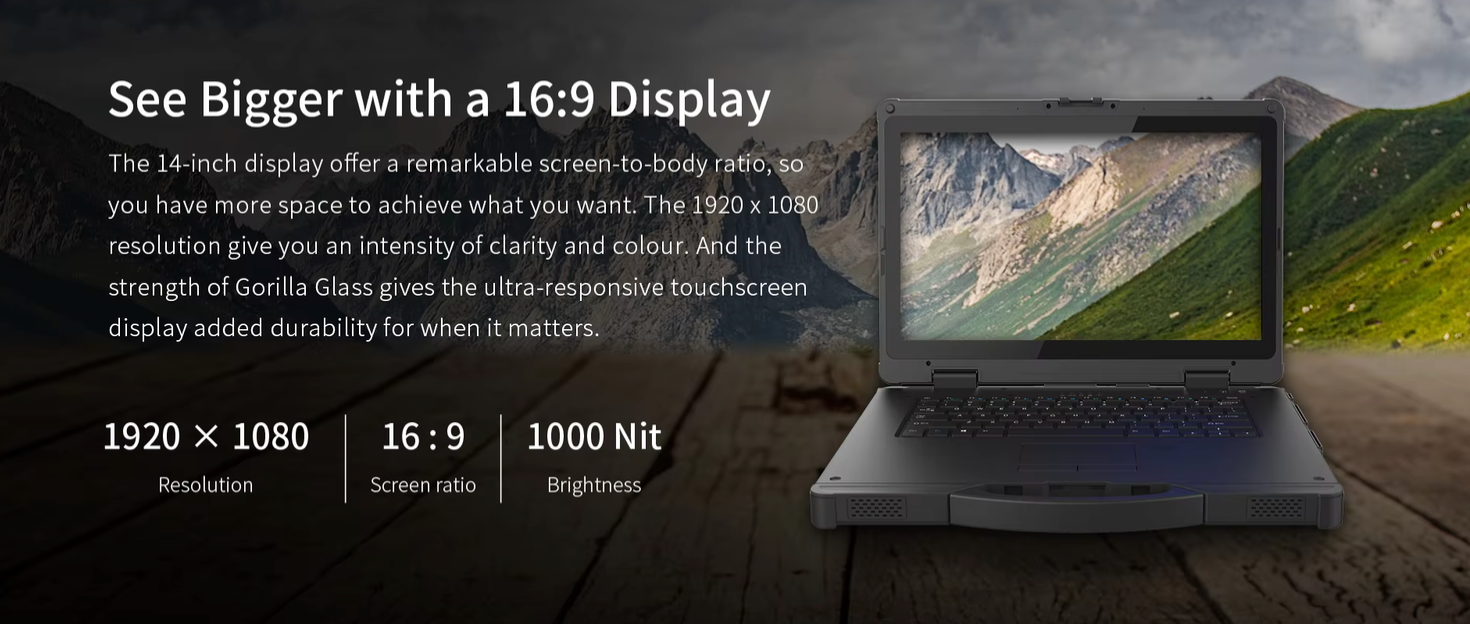

Vide Proin scelerisque cum 16:9 Display
Inch ostensio 14 pollicis proportio praeclarum velamentum ad corporis rationem praebes, ergo spatium plus habes ad id quod vis consequi. 1920 x 1080 Resolutio tibi claritatem et colorem feruorem dat. Et robur Vitri Gorillae dat ultra-responsivum touchscreen ostentationem ad vetustatem additam cum rebus.

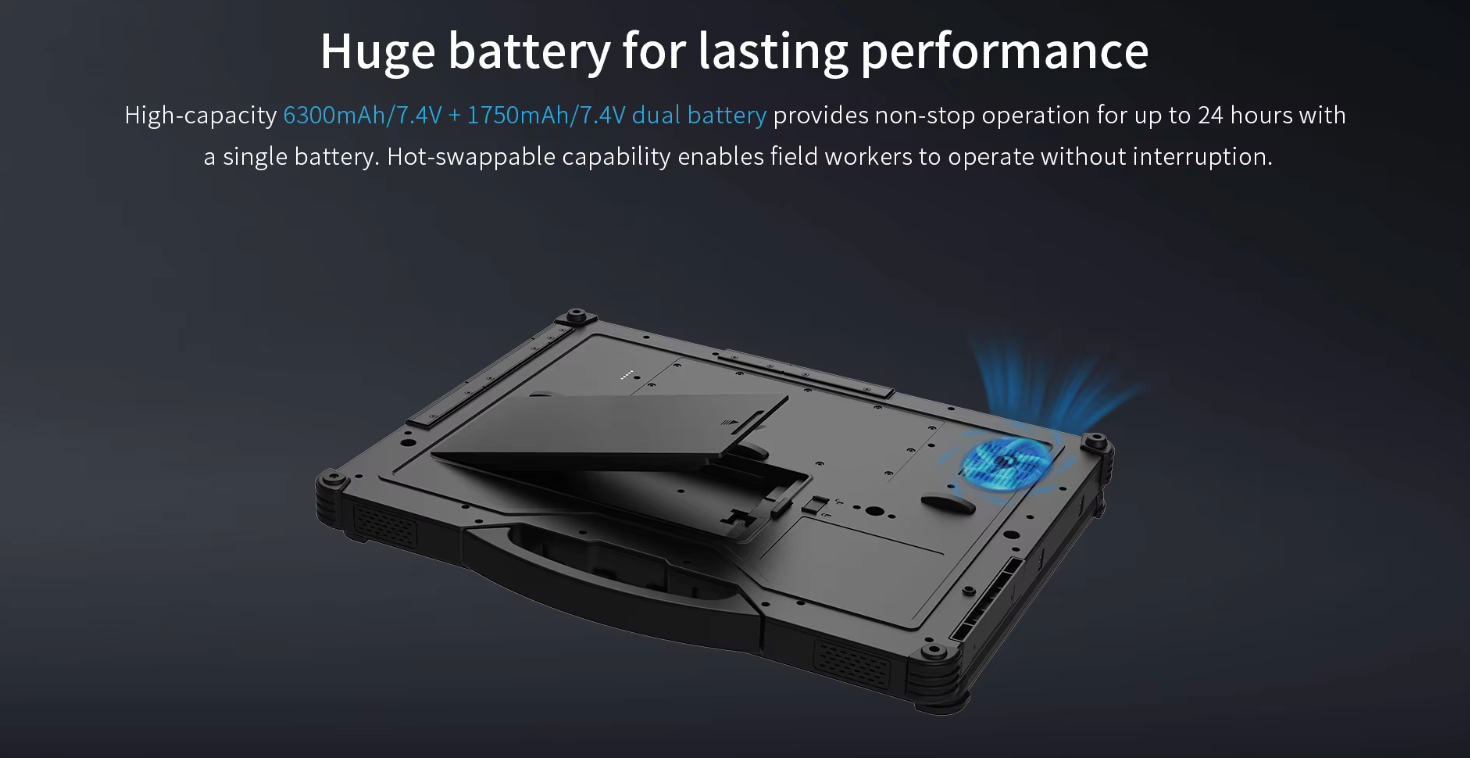

Ingens altilium in perpetuum perficiendi
Summus capacitas 6300mAh/7.4V + 1750mAh/7.4V pugna dualis praebet operationem non-cessam usque ad 24 horas cum una pugna. Hot-swappable facultatem dat operarios ad operandum sine intermissione.

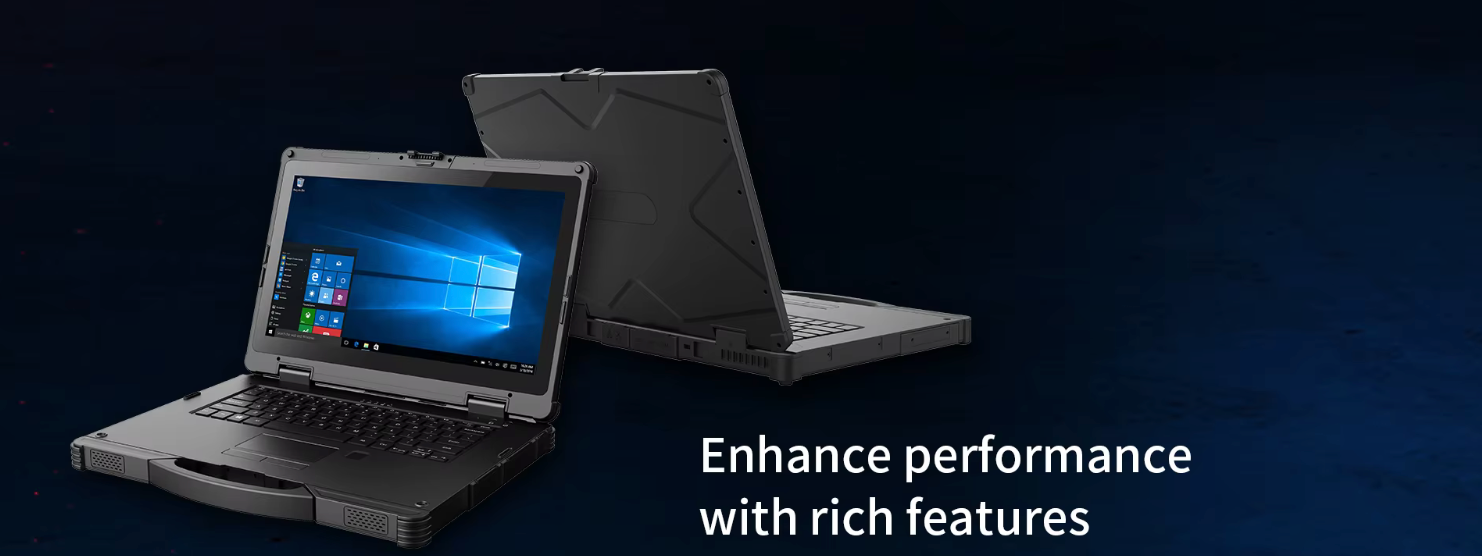

Ad augendae perficientur dives features
X14A in recognitione moduli fingeris constructi habet, qui cito reserationem cognoscere et perficere potest, altiori gradu securitatis tibi tutelam computatri tui lenitatem procurans dans. Etiam dilatabiles et configurabiles I/O optiones sustinet, quae pluribus machinis accommodari possunt.
In Fenestra 14' Rugged Laptop (12 Gen i5, X14A) aedificatur propter asperos ambitus et missionem criticam, laborem industriae, asperitatem, observantiam et connectivity librans.
Tabularium tabernarium imperium: SCADA, MES, et PLC programmandi programmata; connectunt sensoriis/PLCs per RS232/DB9, RJ45, et USB.
Qualitas certitudinis: In-site data logging, real-time analytica, et producta probatio in locis pulvis/vibrationis-pronis.
Apparatus sustentationem: Machinatio Diagnose, accessus manualis digitalis, et stipes reparationes in linea productionis.
Energy sector: Solaris / venti inspectiones fundus, potentia eget sustentationem, et oleum / gasi vigiliae pipelines (-30°C ad 70°C temp operantem).
Agri reparatione: HVAC, telecomes et technici plumbi eo utuntur ad schismaticos, ordines laboris, et subscriptiones clientium (IP65 dust/imperationes).
Publica utilitas: aqua curatio magna planta, vastitas analysis, et inspectiones electricae substationum.
Procuratio classis: Track vehicula, itinera optimize et monitor mercium per GPS/Beidou et 4G/5G.
CELLA operationes: administratione inventarii, barcode/RFID intuens, et naviculas/receptas in crypta frigida vel pulverulenta navalia.
Rail/portus: Inspectio, continens semita, et logistics coordinatio in antennis vel maritimis portubus asperis railes.
Constructiones sites: Proiectio procuratio, blueprints (M-nit velum sol-readabile), et vestigia pluviae/pulvis progrediuntur.
Mining: Geologicae notitiae collectio, armorum vigilantia, et salus obsequens in cuniculis subterraneis/aperto fovea.
Machinaria gravis: instrumenta diagnostica, monitor machinamenta perficiendi, et stipes notitiarum excavatorum, gruum, ac bulldozerorum.
Subitis responsio: Firefighters, magistratus, et paramedici ea utuntur ad relationes incidentes, destinata et communicationis realis-tempus.
Militare/defensionis: missiones campi, annotata analysi, et computatio imperatoria (MIL-STD-810Hcertified).
Calamitas subsidio: Coordinare conatus liberare, damnum aestimare, et opes administrare in zonis post terrae motus/diluvii.
Environmental vigilantia: investigatio climatis, investigatio truculentiae, et pollutio probatio in locis remotis/foris.
Geologica percontatio: exploratio mineralis, solum sampling, et notitia seismica in locis asperis.
Agriculture: Subtilitas agriculturae, seges analysis salutis, et fucus notitia processus in praediis.
