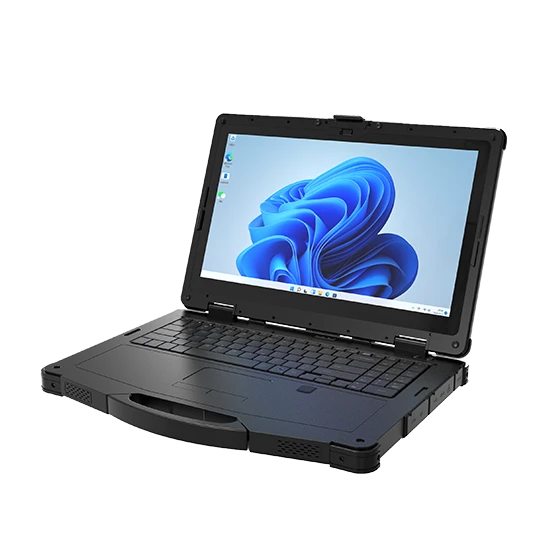

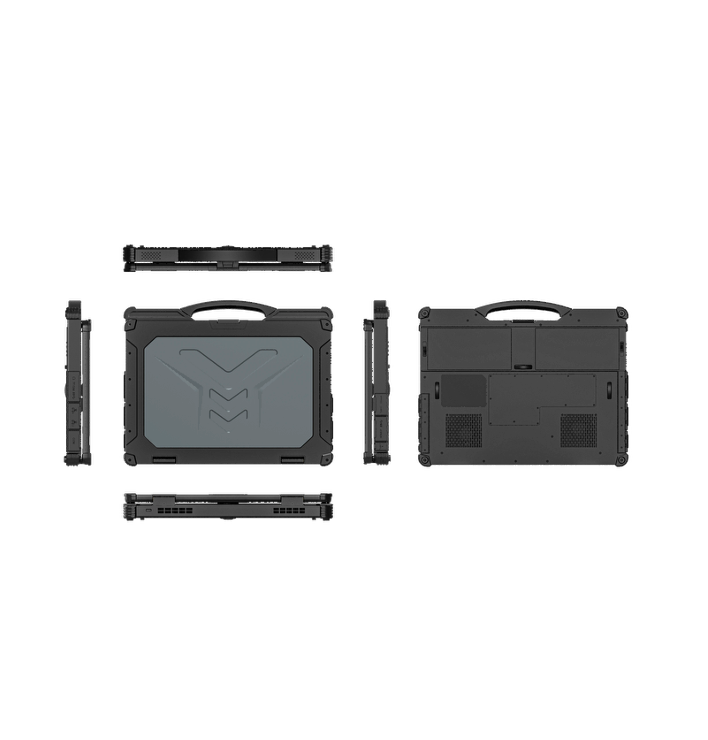

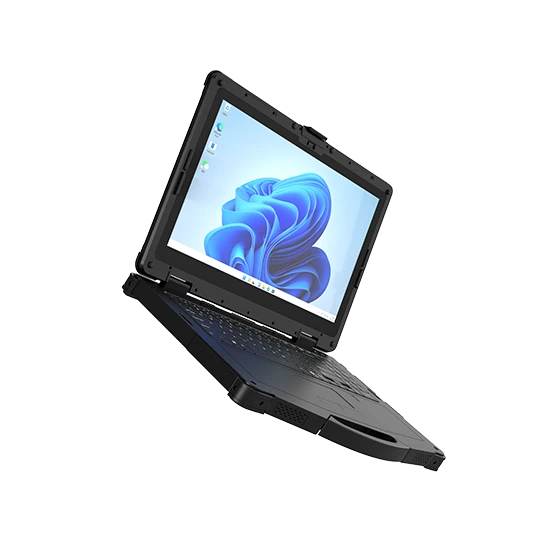

Product Form | 14" Rugged AI PC Intel Windows 11 | i7-155H | 14M |
Durability | · MIL-STD-810H certified
· 4ft, 26 drops (each side, edge, and corner)
· IP65 certified
· ±4kV contact discharge, ±8kV air discharge |
Operating System | · Windows 11 Pro
· Optional Windows 11 Home/IOT |
Processor | · Intel Ultra 7 155H
（24MB cache, up to 4.8 GHz, 16 cores, 22 threads, TDP 28W）
· Optional Intel Ultra 5 125H
· Windows 11 Pro
· Optional Windows 11 Home/IOT
（18MB cache, up to 4.5 GHz, 14 cores, 18 threads, TDP 28W） |
Graphics | · Intel Xe LPG Graphics |
Memory | · 32GB DDR5 SO-DIMM
· Optional 16GB DDR5 |
Storage | · 256GB PCIe SSD
· Optional 512GB/1TB SSD |
Display | · 14.0" FHD (1920x1080), 1000 nits
· Optional 10-point capacitive touch screen,
supports glove touch mode |
Audio | · Integrated microphone
· Integrated 3W speaker
· Class K |
Camera | · MF 5.0 MP front camera |
Keyboard & Input | · Touchpad x1
· KB (US) x1
Optional KB (DE)/KB (FR)/KB (EU)
· 4 buttons |
Network & Connectivity | · Intel® Wi-Fi 6 /Wi-Fi 6E (802.11 ax)
· Bluetooth® 5.1
· Optional 4G LTE
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41
WCDMA: B1/5/8
GSM: /
· Optional 5G
· GPS module |
Security | · Integrated TPM2.0
· Optional HF-RFID (NFC) reader
· Fingerprint scanner
· Kensington lock |
I/O Interface | · Micro SD card x1
· SIM card x1
· USB 3.2 Gen 2 (Type-A) x1
· Thunderbolt 4 (Type-C) x1
· 3.5mm audio jack x1
· HDMI 2.0a mini x1
· 10/100/1000 Ethernet (RJ45) x2
· Optional 12-pin Pogo pin x1 (charge & USB)
· USB 3.2 Gen 1 (Type-A) x1
· USB 2.0 (Type-A) x1
· Serial port (RS232: D-sub, 9-pin) x1
· 5.5 mm DC in jack x1 |
Expansion Module | · Optional 2nd NVME PCIe SSD
· Optional user-definable PCIe module |
Battery & Charging | · AC adapter: 100-240V, 50Hz-60Hz, 71.82W (19V/3.78A)
· Li-ion battery, 11.4V, 4700mAh, 7h10min
· Li-ion battery, 11.1V, 1300mAh
· Separate RTC 3V/210mAh |
Environment | · Operating temperature: -20°C to 60°C（-4°F to 140°F）
· Storage temperature: -30°C to 70°C（-22°F to 158°F）
· Humidity: 95%（non-condensing） |
Dimension | · 363.2 mm(L) × 287.4 mm(W) × 42.1 mm(H) |
Weight | · 2.97kg |

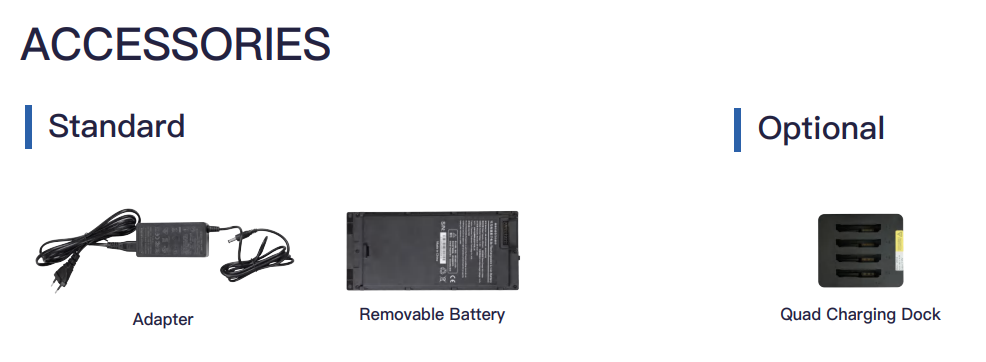

Accessories | · Standard: Adapter, Removable battery
· Optional: Quad charging dock |
