Product Parameters
Screen parameters | size | 10.1 " |
Resolution | 1280×800 | |
visual angle | 85/85/85/85 (L/R/U/D) | |
colour | Chroma: 16.7M | |
Brightness (standard value) | Brightness: 300 cd/m2 | |
Contrast | 600 :1 | |
Response time | 6.5 ms | |
Display area | 135.36(H) X216.576(V) mm | |
Pixel spacing (mm) | 0.1692(H) X 0.1692(V) | |
touch screen | Type of touch screen | Capacitive touch screen |
Resolution | 500DPI | |
Input way | Handwriting or capacitive pen | |
Surface hardness | 7H | |
calibration | support | |
Hardware Configuration | CPU | Intel celeron J1900 quad core 1.99G (Maximum frequency 2.4G ) |
RAM | DDR3 1333/1600M,default 2G(2G/4G optional) | |
ROM | SSD default 32G (64/128/256/512G (optional) | |
chipset | Intel Bay trail SOC | |
operating system | windows7/8/10,linux | |
Graphics card | Integrated HD graphic display core, support dynamic memory allocation (DVMT),Support VGA, HDMI, LVDS. Built in dual channel 24bit LVDS pin,Support double screen display. | |
3G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
4G module | PCI-E Standard interface, supporting China Mobile, China Unicom and China Telecom (optional) | |
WiFi | Dual frequency | |
Bluetooth | BT4.0 | |
GPS | Optional | |
MIC | Optional | |
RTC real time clock | support | |
Timer switch | support | |
interface | DC port | 1*DC 2.5 |
HDMI | Support HDMI data output, maximum up to 1080P | |
USB2.0 | 2 | |
USB3.0 | 2 | |
RJ45 Ethernet | 1 *Realtec8111F 1000M default single network dual network optional | |
SD/TF | Optional | |
Headphone holder | 3.5mm standard interface | |
SMI card | SIM card interface standard interface supports various standards (depending on 3G module) | |
RS232 | 2 *RS232 | |
RS485 | 1 (or 422) | |
RS422 | 1 (or 485) | |
GPIO | / | |
Product reliability | working temperature | -30°C to 70°C |
Storage temperature | - 40°C to 80°C | |
humidity | Humidity: 95% Non-Condensing | |
Mean time between failures (MTBF) | 7*24H | |
power supply | Power consumption (maximum) | 35W |
Power consumption (standby) | ||
power input | AC 100-240V 50/60Hz passed CCC certification, CE certification | |
Power Output | DC12V / 5A |

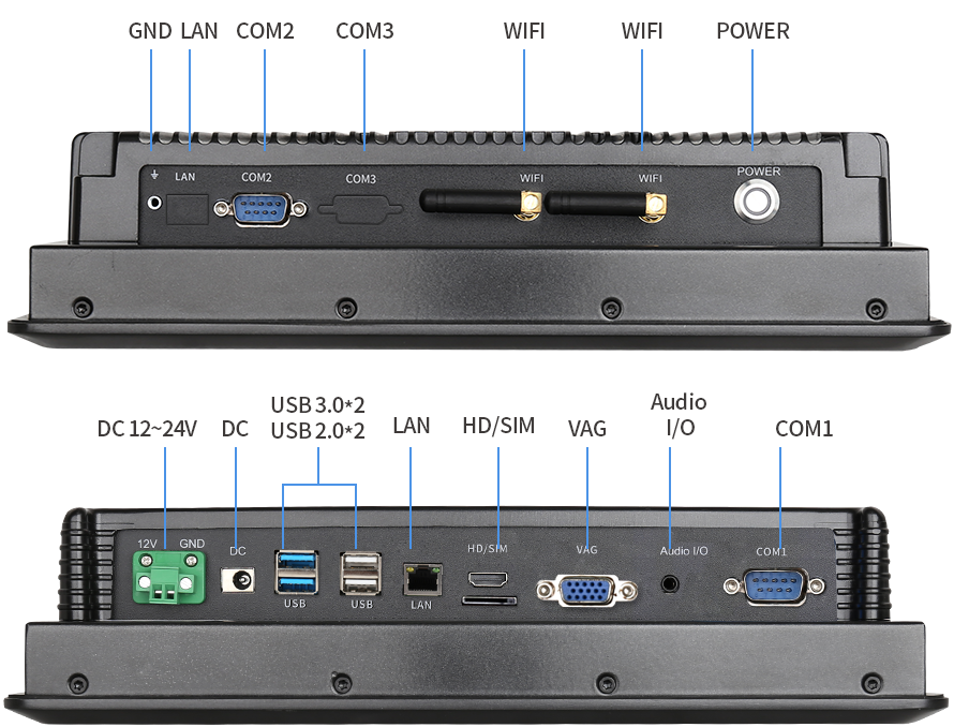

I/O Interface Panel

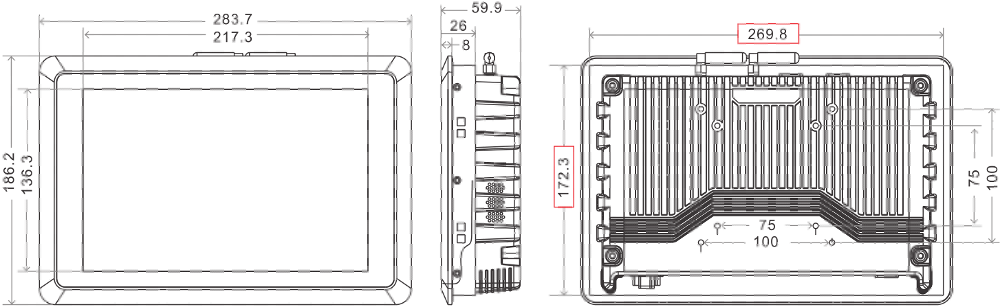

Dimensional drawing
Overall size：283.7*186.2*59.9mm（L*W*H）
Anti-vibration | 5-19HZ/1.0mm amplitude; 19-200HZ/1.0g acceleration |
Impact resistance | 10g acceleration, 11ms cycle |
working temperature | working temperature:-30℃ - +70℃ Storage temperature: -40℃ - +80℃ |
Working humidity | 20%-95% (relative humidity without condensation) |
Anti-interference | EMI/EMC interference detection standards |

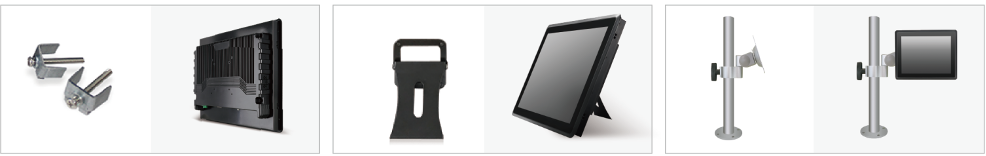

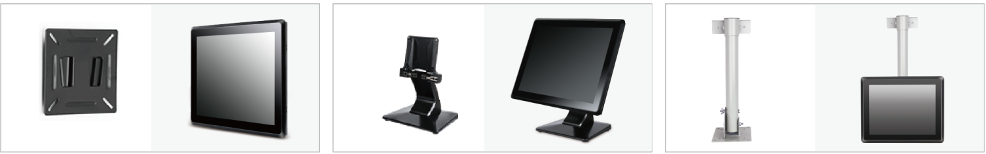

Installation method
| ||
Embedded installation | Tabletop type (louver) | Cantilever installation |
 | ||
Wall mounted installation | Desktop type (aluminum alloy) | Boom type installation |
Industrial automation and workshop on-site monitoring
Factory production line control and data terminal
Self-service inquiry kiosks and public service terminals
Retail POS, supermarket and convenience store checkout systems
Catering self-ordering, restaurant and bakery ordering terminals
Smart building, elevator control and lobby information display
Hotel intelligent room control and front desk management display
Medical equipment control, ward bedside interactive terminals
Logistics warehouse inventory management and distribution terminals
Commercial advertising display, smart community and campus information release
