Product Name

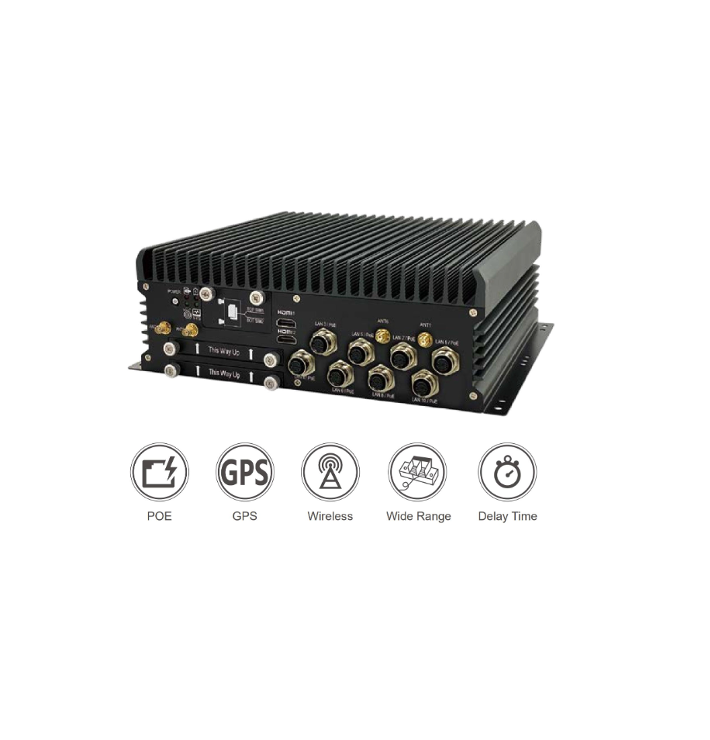

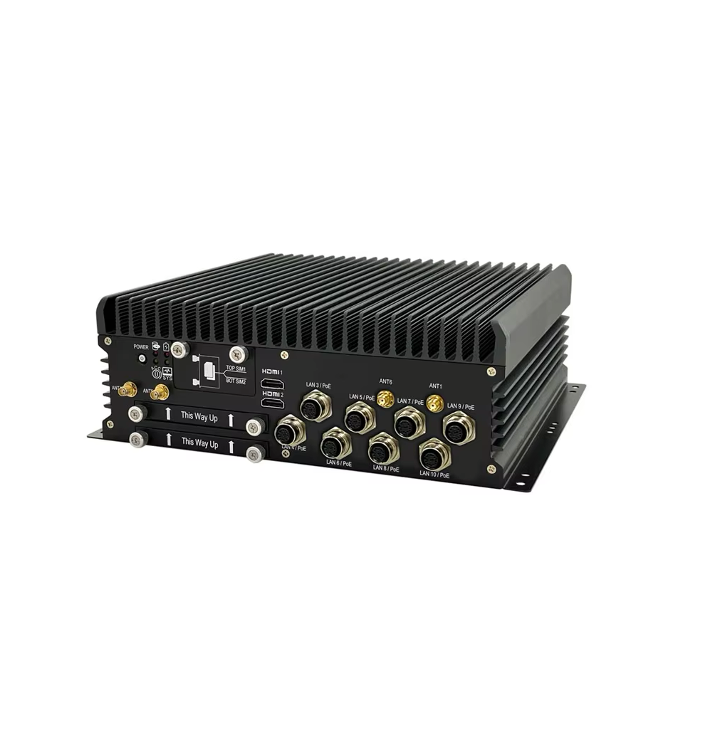

i9-10900TE AI GPU Computing Car Computer | VG-9109

SYSTEM

CPU

Intel Gen10 Xeon W-1290TE (20M Cache 2.0GHz up to 4.6GHz)*
Intel Gen10 Core i9-10900TE (20M Cache 2.0GHz up to 4.5GHz)
Intel Gen10 Core i7-10700TE (16M Cache 2.0GHz up to 4.4GHz)
Intel Gen10 Core i5-10500TE (12M Cache 2.3GHz up to 3.7GHz)
Intel Gen 10 Core i3-10100TE (6M Cache 2.3GHz up to 3.6GHz)
Intel Gen10 Core G5900TE (4M Cache 3.0GHz)

Chipset

Q470E / W480E

Memory

2 x DDR4 2666/2933 MHz SO-DIMM up to 64GB

LAN Chipset

9 x Intel i210-AT and 1 x i219LM (support iAMT) Gb/s Ethernet Controllers Onboard Support PXE and WOL

Watchdog

1 ~ 255 Level Reset

TPM

2.0

I/O Interfaces

Serial Port

3 x RS 232/422/485 (option additional 1 x RS 232/422/485)

USB Port

4 x USB 3.2 Gen 1 Ports

LAN

2 x RJ45 Ports and 8 x M12 X coded connectors for GbE (Optional with 8 x POE total M

Video Port

3 x DP, 2 x HDMI Ports from NVIDIA® GeForce GTX GPU

DIO Port

8 xDI (5~48VDC) and 4 x DO (5VDC, 100mA)

Audio

1 x Line-out, 1 x Line-in and 1 x Mic-in

Expansion Bus

2 x Full Mini-PCle Slots
1 x Mini-PCIe w/ USB interface only for LTE sharing 2 x SIM Card Sockets with M.2 B Key 3042 slot
1 x M.2 A-E Key 2230 slot, 1 x M.2 B Key 3042 slot w/ 2 x SIM Card Sockets for LTE

GRAPHICS

CPU Built-in Graphics

Intel® UHD Graphics 630
Max Resolution (DP): 4096x2304@60Hz

MXM Graphics

NVIDIA® GeForce GTX 1650 GPU (896 CUDA Cores) w/4GB GDDR5
Max Resolution (HDMI) : 3840x2160@60Hz

STORAGE

Type

2 x 2.5" Drive Bay for SATA Type HDD/SSD RAID 0, 1, 5
1 x M.2 M key 2280 slot supports NVMe and SATA SSD
* Thermal heatsink is required for M.2 storage. Please contact sales window for more

POWER REQUIREMENT

Power Input

9V -48V DC Power Input

Power Protection

Automatics Recovery Short Circuit Protection

Power Management

Vehicle Power Ignition for Variety Vehicle

Power Off Control

Power off Delay Time Setting by Software and BIOS

Battery Backup (Option)

Internal Battery Kit for 10 Mins Operating (P/N: BAT-5200 kit

MECHANICAL & ENVIRONMENTAL

Operating Temperature

-40°C ~ 70°C w/0.6 m/S airflow

Storage Temperature

-40°C - 85°C

Storage Humidity

10%~95%, non-condensing

Material

Aluminum

Color

Black

Mounting Options

wall/desk mounting (optional)

Weight

5.30 kg

Dimensions

260 x 250 x 95 mm

CERTIFCATION

Certifications

CE, FCC Class A, E13, EN50155
