What Makes Up a Rugged Industrial PC? (Behind the Design)

At a Glance

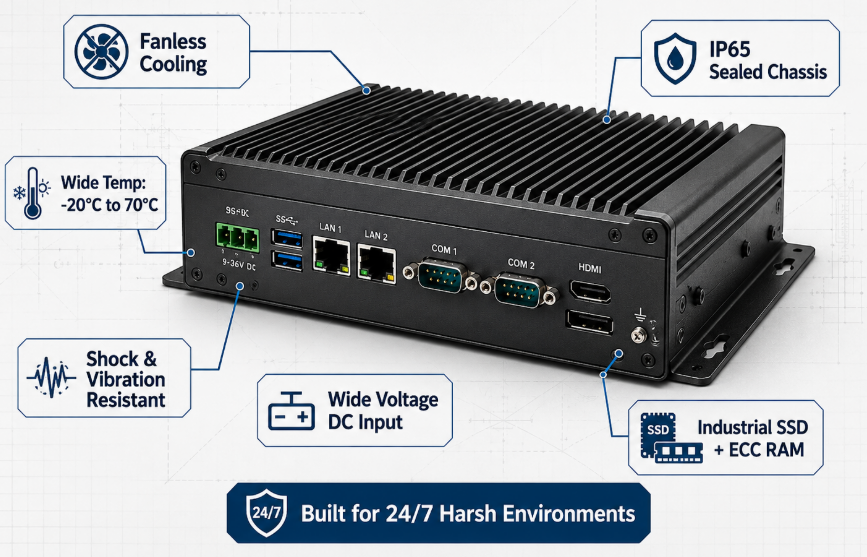

What is a Rugged Industrial PC?

A rugged industrial PC is a specialized computer built from the ground up with high-strength structural enclosures, fanless thermal architecture, and wide-temperature components to operate reliably under continuous exposure to shock, dust, vibration, and extreme temperature variations.

Standard commercial computers are designed for controlled indoor offices, featuring active cooling fans and light enclosures. In contrast, rugged industrial computers are engineered for harsh environments where standard electronics fail. Industrial manufacturing lines, outdoor transport networks, marine decks, and chemical processing facilities expose hardware to ambient dust, high moisture, continuous kinetic vibration, and power fluctuations. Rugged systems address these hazards by replacing physical vents with sealed, fanless aluminum or stainless-steel chassis that act as heat sinks.

Internally, these systems incorporate high-density printed circuit boards (PCBs) built with wide-temperature silicon, heavy-duty capacitors, and solder-reinforced mounting points. This mechanical and thermal insulation ensures high Mean Time Between Failures (MTBF), allowing industrial processing nodes to deliver continuous 24/7/365 operational availability.

Technical Classification Matrix

Operational Physics Note: The elimination of internal moving parts in industrial compute nodes reduces overall mechanical failure modes by over 60 percent compared to standard actively cooled desktop systems.

Rugged Industrial PC & Desktop PC | Similarity

Despite drastic differences in structural protection and thermal dissipation, rugged industrial PCs and commercial desktop PCs share identical underlying x86 or ARM compute architectures, execution logic, and fundamental hardware building blocks.

Both computing paradigms rely on the same fundamental hardware hierarchy: an integrated circuit CPU for primary execution, a GPU for graphics processing, dynamic RAM for volatile data caching, solid-state or magnetic media for long-term storage, and an operating system to manage system resources. Software written for x86 architecture runs identically on an enterprise server, a desktop workstation, or an embedded industrial compute node.

However, while the baseline computing principles remain identical, the component selection, mounting hardware, and trace routing on industrial motherboards are optimized for continuous processing stability under severe electrical noise and mechanical stress.

1. CPU – Processor

The Central Processing Unit (CPU) executes instruction threads, handles arithmetic logic, and routes hardware interrupts across both system types. Commercial desktop computers prioritize peak burst clock speeds and high core counts for multi-threaded tasks, often generating significant thermal output (TDP ratings from 65W to 250W). Rugged PCs utilize specialized embedded CPU processors engineered for thermal efficiency, low thermal design power (TDP typically ranging from 12W to 35W), and extended extended product lifespans.

Industrial processors retain compatibility with standard x86 and ARM instruction sets, ensuring seamless software operation across corporate networks and edge computing deployments. Industrial CPU architectures emphasize sustained operational efficiency over extreme short-term performance spikes. Systems like the full IP65 wall mount i7 industrial embedded computer box PC deploy high-efficiency multi-core x86 processors designed to maintain structural performance inside fully sealed, fanless aluminum enclosures.

2. Graphics Processing Unit (GPU)

Graphics Processing Units render visual interfaces and manage parallel processing execution across both commercial and industrial systems. Commercial GPUs prioritize high-frame-rate rendering for dynamic graphics display, utilizing large active cooling fans and high-wattage power delivery networks. Industrial GPUs focus on real-time computer vision, edge AI inference, and multi-display outputs across industrial machine control environments.

Integrated GPUs are commonly embedded directly within the processor die in industrial installations, reducing physical footprint, heat generation, and mechanical failure risks associated with modular expansion cards. For complex edge AI image inspection, dedicated industrial discrete GPUs are soldered directly onto the motherboard PCB to withstand high-vibration conditions.

3. Primary Storage – RAM

Random Access Memory (RAM) provides high-speed volatile storage for temporary runtime instructions, active application cache, and operational data execution. Standard commercial desktops utilize Unbuffered Dual Inline Memory Modules (UDIMMs) secured via standard retention clips on non-reinforced motherboard sockets.

Industrial compute platforms employ specialized memory configurations to maintain signal integrity during continuous vibration and wide temperature swings.

• SO-DIMM Form Factors: Compact form factor memory chips reduce physical mass, decreasing leverage forces exerted on motherboard sockets during mechanical shock events.

• Soldered RAM (Onboard): Memory ICs are soldered directly to the system motherboard, completely eliminating edge connectors, socket degradation, and intermittent connection risks in high-vibration applications.

• Error-Correcting Code (ECC): Industrial systems frequently integrate ECC memory to automatically detect and correct single-bit memory corruptions caused by high ambient electrical noise, electromagnetic interference (EMI), or cosmic particle interference.

4. Secondary Storage – HDD vs SSD

Secondary storage holds persistent system files, configuration settings, user logs, and application data. While legacy commercial systems previously relied on spinning hard disk drives (HDDs) featuring magnetic platters and moving read/write heads, modern industrial applications rely almost exclusively on solid-state technology.

NAND flash memory contains zero moving mechanical parts, providing high immunity to structural shock and kinetic impacts. Industrial Solid State Drives (SSDs) utilize specialized SLC (Single-Level Cell) or pSLC (Pseudo-Single Level Cell) flash architectures that deliver up to 10 to 30 times higher write endurance and operational lifespans compared to standard consumer TLC (Triple-Level Cell) drive configurations.

5. Operating System – OS

Operating systems serve as the software translation layer managing hardware abstractions, system execution, user applications, and network routing logic. Commercial desktops run mainstream operating systems configured for consumer media, frequent interactive feature updates, and rich graphical user interfaces.

Industrial applications require deterministic operating environments that prioritize long-term software stability, fixed system configurations, and low resource overhead. Common industrial OS platforms include:

1. Windows 10/11 IoT Enterprise: Offers long-term servicing channels (LTSC) with a fixed feature set and 10-year support cycles, eliminating unexpected OS updates that could disrupt manufacturing line operations.

2. Industrial Linux Distributions: Optimized, lightweight OS installations running real-time kernel patches (such as PREEMPT_RT) to guarantee deterministic system execution for time-critical automation controls.

3. Real-Time Operating Systems (RTOS): Specialized microkernel operating platforms designed for mission-critical machinery control requiring microsecond-level process responsiveness.

Rugged Industrial PC vs Desktop PC | Less, But More!

While rugged industrial computers eliminate fragile mechanical fans, thin plastic chassis parts, and exposed cable harnesses, they offer superior structural durability, wide-temperature operational range, flexible industrial I/O connectivity, and extended service lifecycles.

The design philosophy of a rugged industrial PC focuses on functional reliability through simplicity and protection. Standard commercial desktop computers prioritize low production costs and peak computing performance, relying on large active cooling fans, open chassis ventilation grilles, and thin modular internal components. While effective in climate-controlled offices, these design choices create single points of failure in harsh industrial settings.

Rugged engineering eliminates these failure vectors by moving from active cooling systems to passive solid-state thermal management. By using heavy-duty sealed metal chassis materials, wide-temperature components, and protected wide-voltage power supplies, rugged industrial computers provide long-term continuous operation in demanding applications.

1. Storage Device – Solid State Drives

Industrial storage platforms use specialized NAND flash configurations, wide-temperature controller silicon, and reinforced physical enclosures to deliver steady data access under harsh operational conditions.

Consumer-grade SSDs rely on multi-level cell structures like TLC or QLC, which reduce cost per gigabyte but suffer from degraded write endurance and performance drops when operating outside narrow thermal bounds (0°C to 60°C). Industrial solid-state drives utilize wide-temperature SLC or pSLC memory technology capable of reliable data retention from -40°C to 85°C.

Industrial vs Commercial Storage Performance

Industrial storage drives also feature integrated hardware Power Loss Protection (PLP). In the event of a sudden power outage on an industrial plant floor, onboard tantalum capacitors provide temporary power to flush volatile cached data directly to non-volatile flash memory, preventing file corruption and system failure.

For installations subject to fine particulate dust, high humidity, or chemical vapors, deploying a dustproof wall mount embedded box PC for factory automation ensures that flash storage devices, memory modules, and internal bus lines remain isolated from surrounding airborne contaminants.

2. Cooling System – Passive Cooling

Passive thermal management eliminates internal moving fans, which are the leading cause of hardware failure in standard computing platforms. Active cooling fans collect fine dust, airborne oil mist, moisture, and debris into the internal electronics. Over time, dust accumulation degrades fan bearings, blocks heatsinks, causes thermal throttling, and ultimately leads to processor failure.

Rugged industrial PCs replace active fans with passive cooling systems based on thermal conduction and natural convection. The system CPU and high-power components make direct contact with thick copper or aluminum heat spreaders through high-efficiency thermal interface materials (TIM).

Thermal energy moves away from internal silicon chips, through copper heat pipes, and dissipates across the thick fins of the heavy-duty aluminum external chassis. This design seals internal electronics from external environmental contaminants while maintaining continuous operational temperatures.

3. Case – Extra Sturdy

The structural chassis of a rugged industrial PC serves two critical functions: protecting internal electronics from severe impact loads and acting as an external heat sink for passive thermal dissipation. Commercial PC enclosures use light, stamped sheet metal or thin plastic panels with open ventilation grilles, offering minimal resistance to mechanical impact or chemical exposure.

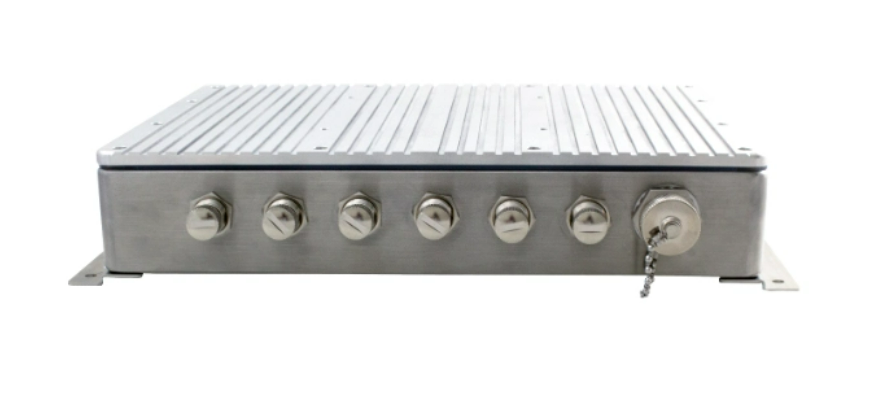

Rugged industrial enclosures are constructed from extruded aluminum alloys or heavy-duty stainless steel (such as SUS304 or SUS316 grade alloys). These high-strength metals provide strong structural resistance against kinetic impacts and external compression forces.

• Sealed IP Protection: Structural chassis designs utilize continuous M12 or IP65/IP67 rated silicone gasket seals along join seams and I/O interface blocks, preventing high-pressure liquid ingress and particulate dust contamination.

• Vibration Isolation Mounting: Internal component assemblies are mounted with rubber dampeners, isolation grommets, and reinforced trace routing to absorb continuous kinetic energy in mobile automation or rail transit applications.

• Corrosion Resistance: Specialized anodization coatings, powder-coated surface treatments, and stainless-steel construction protect the enclosure against chemical washdowns, salt fog, and corrosive industrial environments.

For specialized industrial deployments, choosing a corrosion resistant IP65 fanless industrial PC chassis provides essential structural durability against corrosive cleaning agents, chemical spray, and heavy salt exposure.

4. Power Supply Unit

Industrial power systems are designed to deliver stable internal operating voltages despite severe power line noise, transient voltage spikes, brownouts, and ground loop interferences common in factory environments. Commercial power supply units operate within narrow AC input bands (typically 100V to 240V AC) and offer minimal protection against heavy electrical transients caused by large industrial motors or arc welders on the same grid.

Industrial power supplies utilize wide-range DC power regulation, typically accepting DC input voltages from 9V to 36V or up to 48V DC. This accommodates diverse power infrastructure, including vehicle electrical grids, battery banks, and industrial DC buses.

Power Protection Systems Include:

1. Over-Voltage & Over-Current Surge Isolation: Integrated TVS (Transient Voltage Suppressor) diodes and hardware isolation circuits absorb high-voltage energy surges up to several kilovolts without damaging core system components.

2. Reverse Polarity Protection: Hardware diode networks prevent motherboard component damage if input power leads are wired incorrectly during field installations.

3. Ignition Power Control: Integrated software-configurable delay timers manage system startup and shutdown sequences in mobile machinery, preventing power loss during engine cranking cycles.

Maintenance Guidelines and Best Practices: During routine operational inspections of passive-cooled industrial computing installations, confirm that at least 50 millimeters of clearance is maintained around the exterior chassis heatsink fins. Unobstructed ambient air circulation maximizes convective heat transfer away from the sealed enclosure, maintaining optimal thermal headroom during high ambient temperature cycles.

Conclusion

Understanding what makes up a rugged industrial PC requires looking beyond surface-level hardware specs to evaluate the underlying thermal, structural, and electrical engineering principles. While commercial desktop computers prioritize low upfront cost and high short-term performance, rugged industrial computing hardware is engineered to deliver high stability, low operational failure rates, and long-term extended product availability.

By replacing active cooling fans with passive conduction heatsinks, standard plastic frames with high-strength sealed aluminum alloy chassis, and consumer-grade components with wide-temperature solid-state silicon, rugged systems thrive in extreme operating environments. Selecting purpose-built rugged industrial computing platforms ensures low long-term total cost of ownership (TCO) and protects critical automation infrastructure against unexpected downtime.
