CB-6149
VINCANWO GROUP
High Performance (Core i/ultra）
1x DDR5 SO-DIMM, Onboard LPDDR5
| Availability: | |
|---|---|
| Quantity: | |

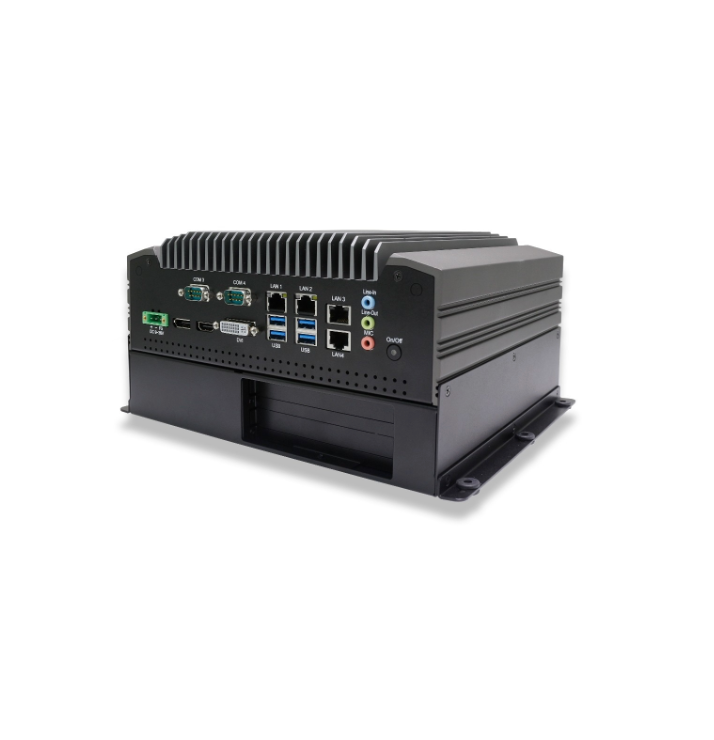

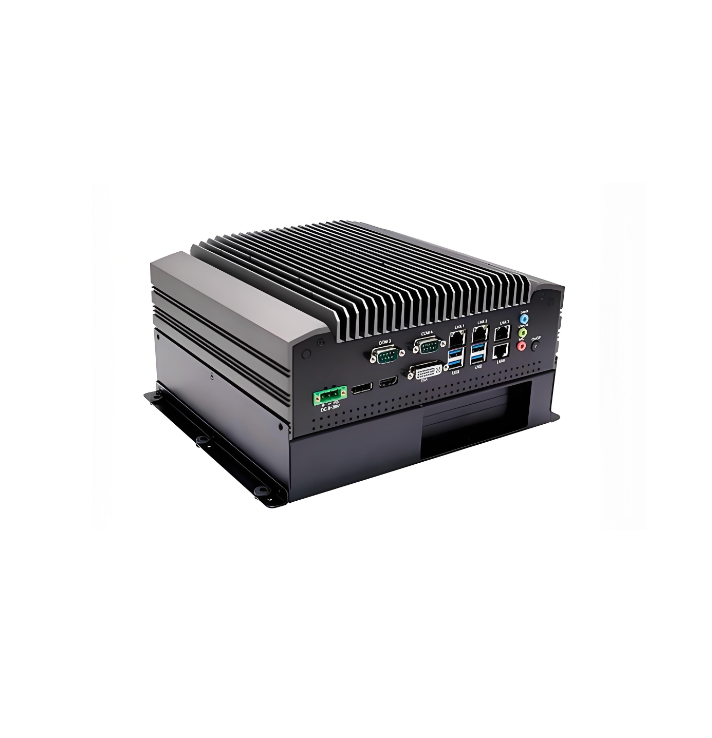

Product Name and Model | Rugged AI Box PC | CB-6149 | |
Primary Components | Processor Family | Intel Core I series 14th Generation Raptor Lake |
Processor Model | Core i3-14100, Core i5-14400, Core i7-14700, Core i9-14900 | |
Memory Type | 2x DDR5 SO-DIMM | |
Memory Support | Up to 96GB | |
Storage Type | 1x M.2 SSD Slot (2260/2242) for SATA, 1x M.2 SSD Slot (2280/2260/2242) for NVMe or SATA, 1x mSATA SSD Slot, 2x 2.5" SATA Drive Bay for SSD/HDD | |
Operating Systems | Windows | Windows 10 IoT, Windows 11 IoT, Windows 11 Pro |
Linux | Linux Ubuntu 22.04 or above (Contact your sales rep for more information) | |
Peripherals & Wireless Connectivity | WiFi | Optional WiFi 6E |
Bluetooth | Optional Bluetooth 5.2 | |
Sim Card | 2x SIM Card Slot | |
External I/O Ports | USB | 8x USB 3.2 Gen 2 |
Serial / Com | 3x COM | |
Serial Protocol Detail | 3x RS232/RS422/RS485 | |
Ethernet / LAN | 4x RJ45 2.5Gbe LAN (Optional PoE Module Available) | |
Video Outputs | 1x DisplayPort 1.4, 1x HDMI 1.4, 1x VGA | |
Other Ports | 1x 2-Pin DC Power Switch Connector, 1x 2-PIN Power Reset Connector, 1x 8-bit GPIO (in DB9 Connector) | |
Audio Ports | 1x Audio Line-Out, 1x Mic-In | |
Power Input Port | 3-Pin DC-In (Phoenix Type) | |
Power | Input Voltage Range | 9-48V DC |
Standard Power Adapter | 180W (12V/15A) GPU Power Supply (Only Required for GPUs needing more than 75W of Power), 300W (24V/12..5A) External Power Supply | |
Compatibility | Security Hardware | TPM 2.0 |
Expansion Slots | Internal M.2 | 1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 2260/2242 B-Key (USB2.0 / PCIeX1 / SATAIII), 1x M.2 2280/2260/2242 M-Key (PCIe x4 NVMe, SATAIII) |
Expansion Module support | 2x Isolated CANBus + 1x Isolated GPIO (DB9) Expansion, 4x DB9 COM (RS232/422/485) + 1x Isolated GPIO (DB9) Expansion, 4x M12 LAN Expansion, 4x M12 LAN Expansion w/ PoE+, 4x RJ45 LAN Expansion, 4x RJ45 LAN Expansion w/ PoE+, Internal PoE+ Expansion (For RJ45 Ports Already Included, Does not take up Expansion Bay Slot) | |
Video Card Support | Supports Cards up to 75W or 180W with External PSU (Max Dimensions - 221 x 145 x 43 mm) | |
Thermal & Environmental | Operating Temperature | -30℃ to +70℃ |
Storage Temperature | -40℃ to +80℃ | |
Cooling Solution | CPU - Passively Cooled with Heatsink, PCIe Expansion Area - Actively Cooled with 2x 40x40x20mm Fans | |
Storage Humidity | 10%~95%, non-condensing | |
Enclosure | Material | Aluminum |
Color | Black & Blue | |
Led Indicator Light | 1x DIO, 1x Power, 1x Storage, 4x LAN | |
Control Buttons | Power Button | |
Mounting Options | Wall Mount | |
Weight / Dimensions | Weight | 7.70kg |
Dimensions | 268 x 246 x 128 mm | |
Certification | Certifications | CE, FCC, CCC, RoHS, LVD |
The CB‑6149 Rugged AI Box PC targets edge AI + harsh industrial environments, with these specific, high‑impact applications:
AI quality inspection: Real‑time defect detection (surface scratches, assembly errors, missing parts) on production lines, using connected industrial cameras and GPU/AI acceleration.
Robotic control & automation: Controlling robotic arms, AGVs/AMRs, and CNC machinery; enabling 24/7 unmanned production with vibration resistance and wide‑temp operation.
Predictive maintenance (PdM): Analyzing sensor data (vibration, temperature, current) to forecast equipment failures and reduce unplanned downtime.
Process monitoring & optimization: Closed‑loop control for chemical, food & beverage, or electronics assembly; local AI cuts cloud latency.
Onboard AI for fleets: Public transit, logistics trucks, and mining vehicles—supporting ADAS, driver monitoring, and route optimization over 9–36V DC vehicle power.
Traffic & road surveillance: Edge processing for license plate recognition, traffic flow analysis, and accident detection in harsh outdoor conditions.
Railway & metro: Wayside monitoring, signal control, and passenger analytics; resistant to shock, dust, and EMI.
Power grid & substation monitoring: Real‑time AI for fault detection, load balancing, and equipment health in high‑EMI, wide‑temperature environments.
Renewable energy (wind/solar): Turbine blade inspection, solar panel defect detection, and remote site control in extreme cold/heat.
Oil, gas & mining: Drilling rig monitoring, pipeline leak detection, and underground/remote site automation; IP65-rated for dust/water and vibration.
Automated warehouse control: Managing conveyor systems, sorting robots, and inventory AI; compact size for cabinet/DIN‑rail mounting.
Package & cargo inspection: High‑speed barcode scanning, dimensioning, and damage detection with multi‑camera inputs.
Smart city & perimeter security: AI video analytics for public safety, crowd monitoring, and intrusion detection in rain, dust, and extreme temperatures.
Marine & port automation: Vessel traffic monitoring, container tracking, and dock equipment control; salt‑fog resistant and wide‑voltage tolerant.
Protocol conversion & data acquisition: Connecting legacy PLCs, sensors, and meters via RS‑232/422/485, GPIO, and Ethernet; preprocessing data before cloud upload.
Edge AI analytics: Local inferencing for real‑time decisions, reducing bandwidth costs and latency in low‑connectivity areas.
Rugged: Fanless, IP30/IP65, −30°C to +70°C, vibration/shock resistant.
AI performance: Supports NVIDIA RTX or AI accelerators for 100+ TOPS inference.
I/O richness: Dual 2.5G Ethernet, multiple COM/USB, HDMI/DP, PCIe/M.2 expansion.
Deployment flexibility: Compact, DIN‑rail/wall/rack mount, 9–48V DC input.
