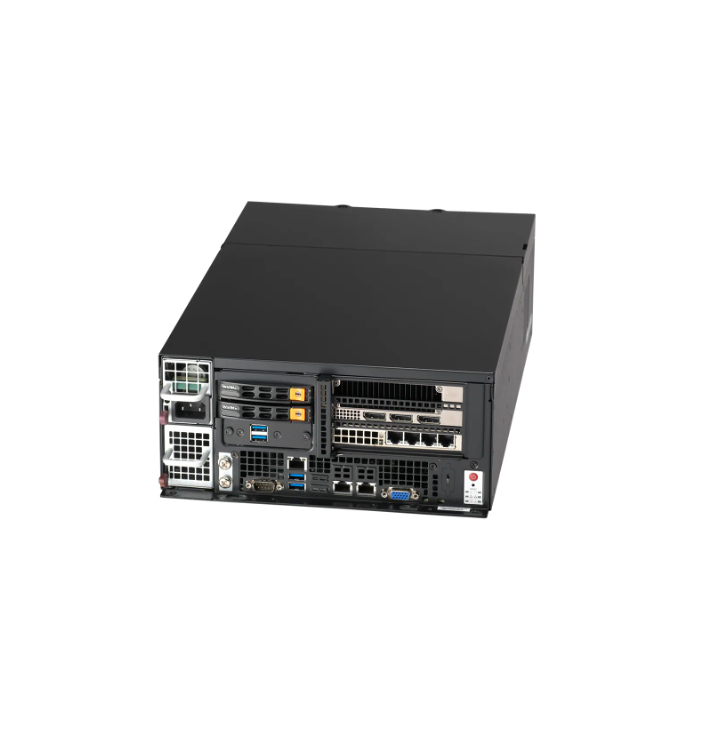

2.5U Box PC with Intel Xeon 6 CPU Fan-based Embedded IoT Server | CT-SYS-E403-14B

Key Highlights

Single Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series
processors with E-cores up to 300W with air cooling;
Up to 8 DIMMs supporting up to 2TB DDR5-6400MT/s RDIMM;
2 RJ45 10GBASE-T;
Up to 3 PCIe 5.0 x16 FHFL slots;
Up to 2 front hot-swap 2.5" NVMe + 2 internal fixed 2.5" SATA drive bays;
1 Redundant 800W Platinum Level power supply;
Fan-based Embedded chassis with 16" (406.4mm) depth.

Model:
CT-SYS-E403-14B
Brand:
VINCANWO GROUP
CPU:
High Performance (Core i/ultra）, High Efficiency (N150/Celeron/Atom)
MemoryType:
1x DDR5 SO-DIMM, Onboard LPDDR5

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Name and Model	Fan-based Embedded IoT Server \| CT-SYS-E403-14B
Form Factor	Fan-based Embedded Enclosure: 266.7 x 117.348 x 406.4mm (10.5" x 4.62" x 16") Package: 416 x 264 x 660mm (16.4" x 10.4" x 26")
Processor	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores P-cores: 48C/96T; 288MB Cache E-cores: 144C/144T; 108MB Cache
GPU	Max GPU Count: Up to 1 double-width or 2 single-width GPUs Supported GPU: NVIDIA PCIe: L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition Intel: Arc™ Pro B50 Graphics, Arc™ Pro B60 Graphics (DW), Arc™ Pro B60 Graphics (SW), Arc™ Pro B70 Graphics
System Memory	Slot Count: 8 DIMM slots Max Memory (1DPC): 2TB 6400MT/s ECC DDR5 RDIMM
Drive Bays Configuration	Default: Total 4 bays 2 front hot-swap 2.5" NVMe drive bays 2 internal fixed 2.5" SATA* drive bays (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Expansion Slots	Default 3 PCIe 5.0 x16 FHFL slots
On-Board Devices	2 RJ45 10GBASE-T with Intel® X550 1 RJ45 1GbE with ASPEED AST2600
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port 2 RJ45 10 GbE LAN ports (Intel® X550) USB: 4 USB 3.2 Gen1 Type-A ports(Front) Video: 1 VGA port(Front) Serial: 1 COM port(Front) TPM: 1 TPM Onboard TPM & TPM Header
System Cooling	Fans: Up to 3x 8cm heavy duty fans with optimal fan speed control 80x80x38mm Fan(s) Air Shroud: 1 Air Shroud
Power Supply	1x 800W Redundant Platinum Level (94%) power supply
System BIOS	BIOS Type: AMI 32MB SPI Flash EEPROM
Dimensions and Weight	Weight: Gross Weight: 24.5 lbs (10.95 kg) Net Weight: 18.5 lbs (8.16 kg) Available Color: Black
Operating Environment	Operating Temperature: 0°C to 45°C (32°F to 113°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Certifications	CE, FCC, CCC, LVD, RoHS

Top View | 2.5U Box PC, Intel Xeon 6 Fan-cooled Embedded IoT Server | CT-SYS-E403-14B

2.5U compact + Xeon 6 performance + fan-cooled reliability
Industrial IoT / edge AI server with enterprise expandability
Space-saving, 24/7 operation, ideal for smart manufacturing & edge analytics
