How Do Waterproof Touchscreen Monitors Work?

Waterproof touchscreen monitors work by combining advanced capacitive or resistive touch sensors with optical bonding, specialized firmware algorithms to ignore water droplets, and ruggedized, sealed enclosures rated up to IP69K to prevent moisture ingress.

Deploying the right display hardware ensures operational continuity and reduces maintenance overhead in demanding industrial sectors. This comprehensive guide will explore the engineering principles, sealing standards, and touch technologies that allow these specialized displays to operate flawlessly under wet conditions.

Document Outline and Summary

Core Technologies Behind Waterproof Touchscreens

How do touch sensors function when exposed to water?

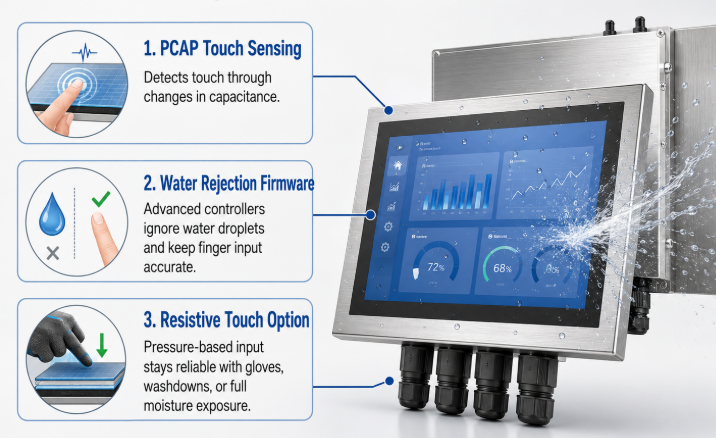

Waterproof touchscreen monitors primarily utilize modified Projected Capacitive (PCAP) or Analog Resistive touch technologies combined with specialized controller firmware to differentiate between a user's finger and water droplets.

Standard projected capacitive touchscreens detect changes in electrical capacitance when a conductive object, such as a human finger, touches the screen surface. However, because water is also conductive, moisture accumulation or rain can mimic a touch input, causing false triggers or rendering the screen completely unresponsive. To overcome this limitation, industrial-grade Waterproof Monitors implement advanced mutual-capacitance and self-capacitance scanning methods managed by high-performance controller ICs.

These advanced controllers use sophisticated algorithms to analyze the shape, signal strength, and behavior of the conductive entity. When water sheets or droplets land on the glass surface, the controller recognizes the uniform, low-amplitude capacitive signature of the liquid and filters it out. When a user presses the screen, the localized, high-amplitude signature of the finger overrides the water baseline, allowing for accurate tracking. For extreme environments where users wear thick gloves or where the screen is completely submerged, resistive touch technology is often used. Resistive screens rely on physical pressure rather than electrical capacitance to register inputs, making them completely immune to water interference.

The Role of Sealing and IP Ratings

What prevents water from damaging the internal electronics?

Internal components are protected from liquid ingress through precision-engineered enclosures sealed with specialized gaskets and rated according to Ingress Protection (IP) standards.

The outer housing of a waterproof display is constructed using high-grade, corrosion-resistant materials such as 304 or 316L stainless steel, or aluminum alloy. Standard computer monitors feature ventilation slots to dissipate heat, but waterproof displays must be completely sealed against the environment. Thermal management is achieved through passive fanless cooling systems, where the metal chassis itself acts as a massive heat sink to dissipate warmth generated by the internal processors and backlight components.

To guarantee protection, these monitors undergo rigorous testing to achieve specific IP ratings. The most common standards for demanding environments are IP65, IP66, IP67, and IP69K. The first digit represents protection against solid particles like dust, while the second digit defines the level of liquid protection. An IP65 rating means the front bezel can withstand low-pressure water jets, whereas an IP66 rating ensures defense against high-pressure streams.

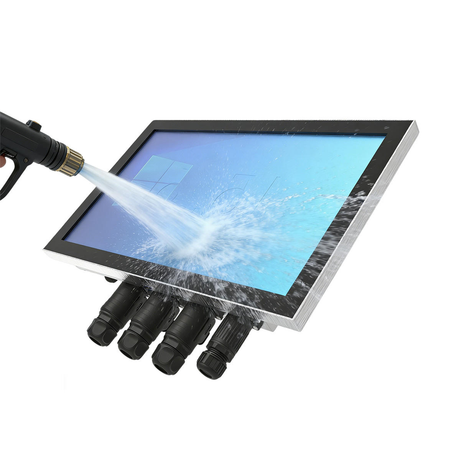

For maximum protection, a full IP69K-rated enclosure allows the entire unit to be blasted with high-temperature, high-pressure water during sanitary washdown procedures. Achieving this requires specialized silicone or neoprene O-ring gaskets embedded within CNC-machined grooves at every joint, alongside sealed M12 aviation-style connectors for power, video, and data inputs. For harsh industrial settings, businesses frequently implement the high-performance IP65 stainless steel waterproof monitors to maintain continuous operations during intense daily equipment cleaning.

Optical Bonding and Display Enhancement

Why is optical bonding critical for waterproof displays?

Optical bonding eliminates the internal air gap between the LCD panel and the touch glass, preventing condensation, reducing reflections, and enhancing structural durability.

In traditional display manufacturing, the touch sensor layer is secured to the outer edge of the LCD panel, leaving a microscopic gap of trapped air between them. When a monitor is deployed in environments with fluctuating temperatures or high humidity, such as outdoor marine decks or cold storage facilities, moisture can permeate the outer seals over time. This leads to condensation forming inside the air gap, which fogs the display and compromises visibility.

Optical bonding solves this issue by filling the air gap entirely with an optically clear resin, such as liquid polyurethane, silicone, or optical gel. This resin is cured using UV light or thermal processes, bonding the layers into a single, solid-state component. By removing the air layer, light rays pass directly through the screen layers without refracting at internal boundary edges.

1. Prevention of Internal Fogging: Eliminating the internal air volume ensures that moisture cannot condense inside the display assembly, regardless of rapid temperature drops.

2. Enhanced Contrast and Sunlight Readability: Internal reflections are reduced by up to ninety percent, allowing the backlight to shine through clearly, which is often paired with high-brightness LEDs reaching over one thousand nits.

3. Increased Mechanical Strength: The cured resin layer acts as a shock absorber, distributing the impact energy across the entire display structure and making the front glass highly resistant to accidental impacts.

Industrial Applications and Use Cases

Where are waterproof touchscreen monitors deployed?

These rugged displays are utilized across heavy industries, marine environments, food processing facilities, and outdoor kiosks where standard hardware cannot survive.

The application of waterproof hardware extends far beyond simple rain protection. In the food, beverage, and pharmaceutical industries, production equipment must undergo strict sanitation protocols. This involves spraying machinery with chemical sanitizers and high-pressure hot water to prevent bacterial growth. Standard monitors would short-circuit immediately under these conditions, but fully sealed displays allow operators to control automated processing lines directly from the washdown zone without removing or covering the hardware.

In marine environments, onboard electronics face constant exposure to salt spray, ambient moisture, and intense sunlight. Commercial fishing vessels, cargo ships, and naval craft deploy ruggedized touchscreens on open bridges and engine rooms to manage navigation, radar, and propulsion systems. The combination of anti-corrosive stainless steel housing and specialized touch tuning prevents sea spray from triggering accidental commands, ensuring safety at sea.

Outdoor commercial operations also rely heavily on this technology. Automated car washes, interactive outdoor parking payment stations, public transit ticketing kiosks, and smart agriculture machinery all operate in unpredictable weather. By incorporating weather-resistant outdoor high-brightness waterproof monitors, infrastructure operators can guarantee twenty-four-seven system availability, minimizing downtime and avoiding costly field service calls.

Key Considerations for B2B Procurement

What factors should buyers evaluate when purchasing waterproof displays?

Procurement managers must evaluate specific environmental demands, I/O connectivity options, mounting configurations, and input requirements before selecting a monitor.

When sourcing industrial displays, choosing hardware solely based on a waterproof label is insufficient. Enterprises must analyze the exact nature of the liquids the screen will encounter. For instance, a display exposed to corrosive salt water requires a marine-grade aluminum or 316-grade stainless steel chassis, whereas a display used in chemical manufacturing might require specialized chemically-strengthened glass coatings to prevent etching from harsh acids or alkaline cleaners.

Another critical factor is the Input/Output (I/O) interface design. Standard USB, HDMI, and VGA ports are open entry points for moisture and dust. Waterproof displays solve this by utilizing threaded M12 metal connectors that screw securely into place, creating a hermetic seal over the electrical contacts. The choice of touch sensitivity settings within the display firmware must also match operational workflows, allowing users to toggle between bare-hand mode, thin gloved mode, or heavy industrial glove tracking profiles.

[Server/PC Source] ---> (Standard Cables) ---> [M12 Sealed Breakout] ---> (Waterproof Cables) ---> [IP66/IP69K Monitor]

Technical Comparison Matrix for Procurement

• Enclosure Material: Determine if the application requires lightweight aluminum for mobile arms or heavy-duty stainless steel for food-grade sanitation zones.

• Mounting Architecture: Verify compliance with VESA mounting standards, yoke mounts, or panel-mount clips to ensure seamless integration into existing control consoles or equipment racks.

• Input Interface Integration: Select optimized industrial-grade M12 waterproof monitors with custom I/O options to match legacy computing hardware while maintaining full liquid isolation.

Summary

Waterproof touchscreen monitors represent a critical intersection of material science, mechanical engineering, and digital signal processing. By replacing standard ventilated housings with completely sealed, IP-rated metal enclosures and utilizing advanced firmware to filter out the electrical interference caused by moisture, these devices provide reliable operation under the harshest environmental pressures.

For enterprises operating in the marine, food processing, industrial automation, and outdoor infrastructure sectors, investing in purpose-built waterproof displays is a strategic necessity. Eliminating internal air gaps through optical bonding prevents internal fogging while drastically improving display readability under direct sunlight. When evaluating hardware for B2B deployments, analyzing the specific IP ratings, connectivity mechanisms, and touch controller capabilities ensures that your selected human-machine interface will remain operational for years to come, maximizing your return on investment and protecting your core operational workflows.
