| Product Form | 8" Rugged Android Tablet |
| Material | ABS+PC |
| Dimension | 236.7*155.7*20mm |
| Weight | 910g |
| Product Color | Black |
| CPU | MT6789 octa-core, 2*A76 2.2GHz |
| GPU | ARM G57 MC2 |
| Memory | RAM 8GB LPDDR4 ROM 128GB Emmc |
| Operating System | Android 14 / GMS， Optional Android 12 / GMS |
| Display | Type: TFT Size: 8 inch 16:10 Resolution: 1200*1920 Brightness: 550cd/㎡ |
| Touch Pannel | 5 points capacitive screen, G+G, hardness 7H |
| Camera | Front 5.0MP Rear 13.0MP |
| Buttons | Power *1 Volume Adjustment Key (+) *1 Volume Adjustment Key (-) *1 F Customizable *1 (Barcode Scanning) Home Key*1 |
| Indicator | Indicator lights * 2, R/G dual-color lights. 1. During charging, they will be constantly red. 2. When fully charged, they will display a constant green light. 3. When the battery is low, the red light will flash. |
| Speaker | Built-in 8Ω/1W *2 dual speakers |
| Microphone | Single MIC |
| Sensors | G_sensor, Geomagnetic sensor (compass), Gyro Sensor, light sensor |
| Battery (Tablet) | Removable Lithium-ion polymer battery 10000mAh/3.8V 9 hours ( 50% volume sounds, connect to WiFi, 200 lumens brightness, 1080P HD video display by default ) |
| RTC battery | Built-in rechargeable 3V/1mAh lithium-ion battery. |
| WIFI | WIFI 802.11(a/b/g/n/ac) frequency 2.4G+5.8G dual-band WIFI |
| Bluetooth | Bluetooth BT5.1 (BLE) class1 Transmission distance: 10m |
| 4G | GSM: B2/3/5/8 WCDMA:B1/2/5/8 FDD:B1/2/3/4/5/7/8/17/20/28A/28B TDD:B38/39/40/41 |
| GPS | Support: GPS/GLONASS/BEIDOU/Galileo/QZSS/SBAS Cold start time:<60 seconds |
| I/O Interface | Standard USB 2.0 *1, Type C *1 (Data & Charing) |
| ∮3.5mm Standard earjack *1 | |
| SIM card *2 | |
| TF card *1，Max: 512GB | |
| 12PIN Pogo Pin *1 | |
| Adapter | USB Type-C interface, supports fast charging PE+2.0, maximum power of 18W, maximum 9V/2A, European standard, CE approval |
| Type-C cable | Type-C cable |
| Rugged Features | MIL-STD-810H: 1.22m drop |
| Working temperature: -30 °C to 70 °C | |
| Storage temperature: -40 °C to 80 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE | |
| CCC | |
| MIL-STD-810H | |
| FCC | |
| Data Acquisition | Two-dimensional code Optional: Zebra SE4710 Optical resolution:5mil Scanning speed:50 times/sec Support code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, reading distance: 0-4cm |

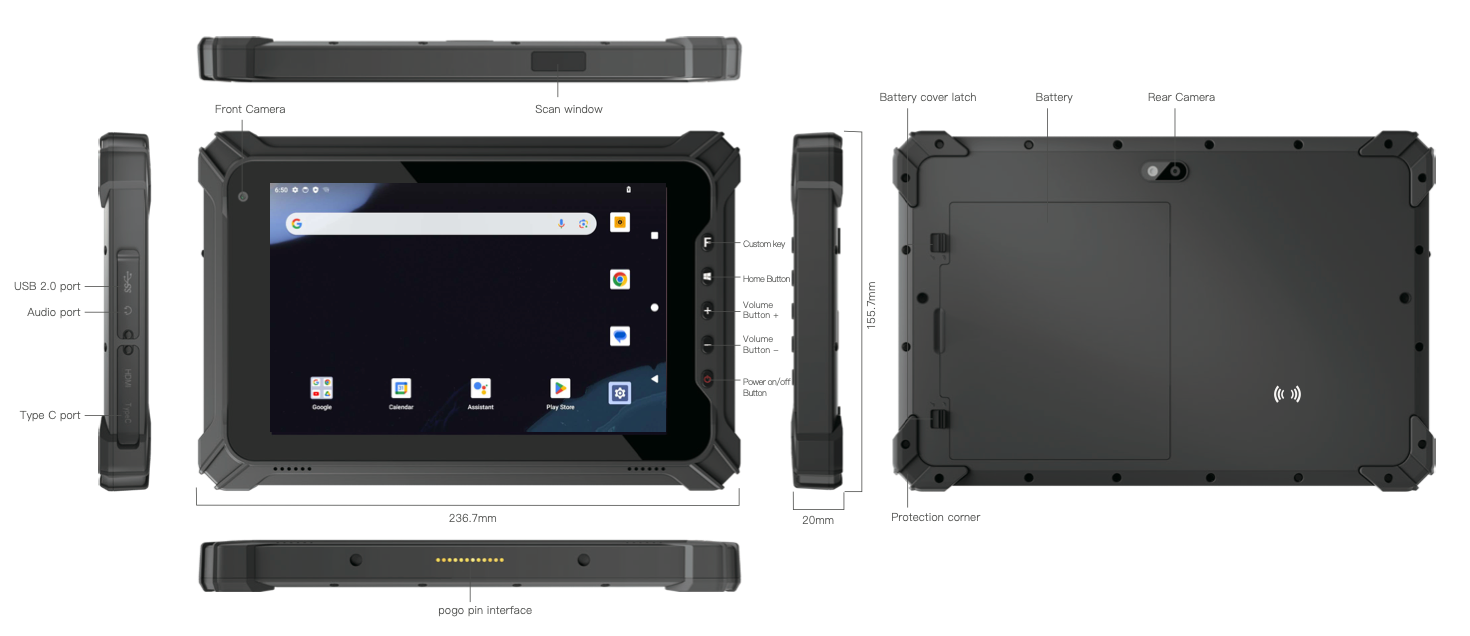

Product Six View

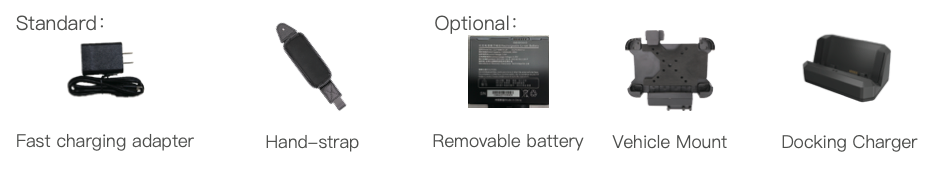

Accessories
Flagship Octa-core powerful processor
TheT87X rugged tablet bulit on a Flagship 6nm process Octa-core powerful processor, features an industry-leading CPU architecture and the powerful Mali-G57 MC2 GPU, delivering outstanding user experience with powerful performance. Running on the newer Android 12 OS, it delivers even more safe and effortless experiences on your daily use.
Industrial Versatility & Data Collection
Engineered for high-efficiency field work, the M80R features plenty of I/O portsincluding Micro USB 3.0, Type-C, and HDMI. This versatile industrial field PCsupports optional 2D barcode scanning for contact-free data management and professional recording.
Typical Application Scenarios of 8" Rugged Android Tablet | T87X
Industrial on-site inspection and equipment maintenance.
Logistics warehousing inventory & barcode scanning Outdoor patrol (power, water conservancy, municipal engineering).
Construction site management & on-site data collection.
Vehicle-mounted scheduling and fleet management.
Public security law enforcement & emergency field work.
Smart retail inventory & mobile business services.
Field survey, environmental monitoring & community grid management
