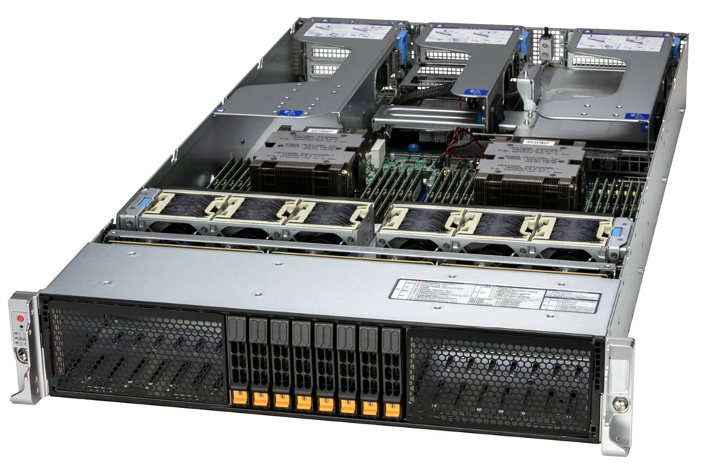

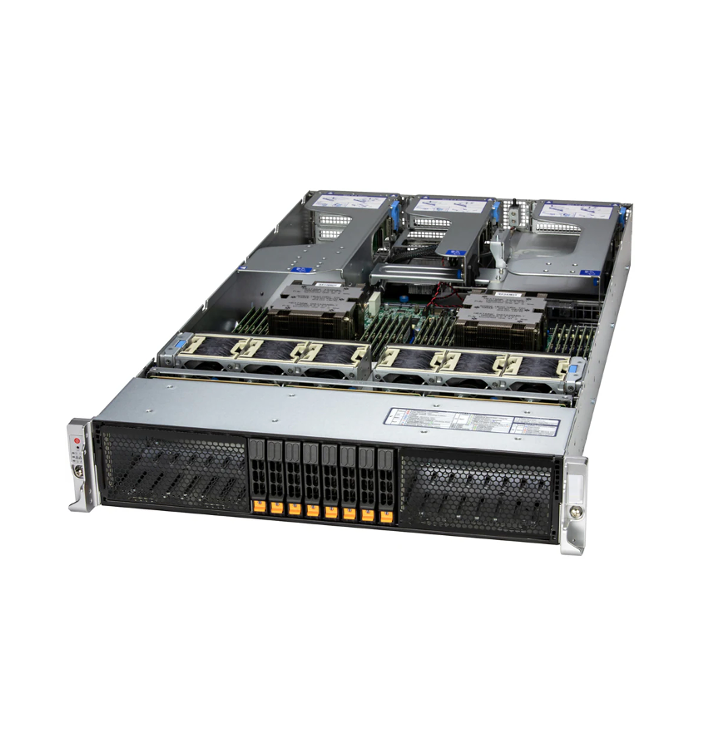

2U Hyper Server with up to 24 hot-swap 2.5" NVMe/SAS/SATA bays | CS-2U2126HS

Name: 2U Hyper Server with up to 24 hot-swap 2.5" NVMe/SAS/SATA bays | CS-2U2126HS
Brand: VINCANWO GROUP
Rating: 5.0 (30 reviews)

Key Highlights

Dual AMD EPYC™ 9005/9004 Series Processors
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
Up to 24 front hot-swap 2.5" NVMe/SATA drive bays
2 M.2 PCIe 3.0 NVMe slots
Capabilities for GPU and CXL 2.0 support
Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

Model:
CS-2U2126HS
Brand:
VINCANWO GROUP
CPU:
High Performance (Core i/ultra）, High Efficiency (N150/Celeron/Atom)
MemoryType:
1x DDR5 SO-DIMM, Onboard LPDDR5

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Name and Model	2U Hyper Server with up to 24 hot-swap 2.5" NVMe/SAS/SATA bays \| CS-2U2126HS
Form Factor	2U Rackmount Enclosure: 437 x 88.9 x 806.2mm Package: 672 x 253 x 1100mm
Processor	Dual processor(s) AMD EPYC™ 9005/9004 Series Processors Up to 384C/768T
GPU	Max GPU Count: Up to 3 double-width GPUs Supported GPU: NVIDIA PCIe: H100 NVL, A16, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation AMD PCIe: Instinct™ MI210 GPU-GPU Interconnect: PCIe
System Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)

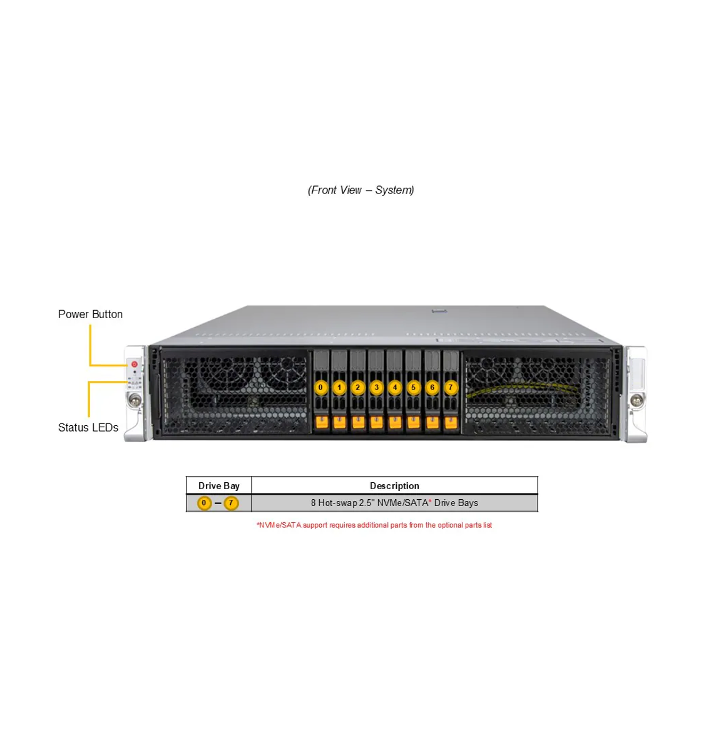

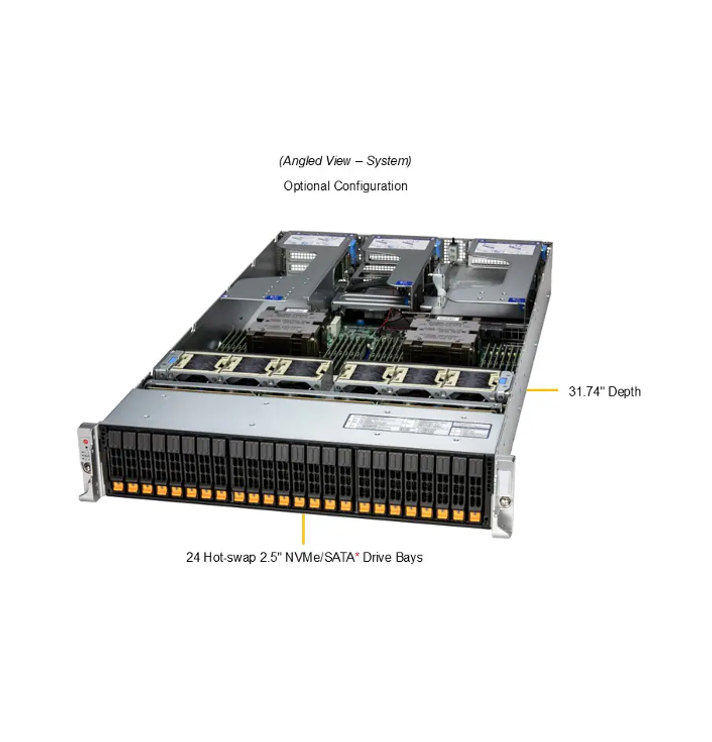

Drive Bays Configuration	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SATA drive bays Option A: Total 24 bays 24 front hot-swap 2.5" NVMe/SATA drive bays (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
Expansion Slots	PCI-Express (PCIe) Configuration: Option A* 4 PCIe 5.0 x16 FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B* 8 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) CXL Support: Up to 4 CXL 2.0 x16 devices
On-Board Devices	Network Connectivity: Via AIOM IPMI: Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output	LAN: 1 RJ45 1 GbE Dedicated BMC LAN port USB: 2 USB 3.0 ports(rear)
Video	1 VGA port TPM: 1 TPM Onboard/port 80
TPM	1 TPM Onboard/port 80
System Cooling	Fans: Up to 6 counter-rotating 60x60x56mm Fan(s) Air Shroud: 2 Air Shrouds
Power Supply	2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
System BIOS	BIOS Type: AMI 64MB SPI Flash EEPROM BIOS Features: Plug and Play (PnP) UEFI 2.8 USB Keyboard support ACPI 6.5 SMBIOS 3.7 or later
PC Health Monitoring	FAN: Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors Voltage: System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
Dimensions and Weight	Weight: Gross Weight: 34 kg Net Weight: 20.5 kg Available Color: Silver
Operating Environment	Operating Temperature: 10°C to 35°C Non-operating Temperature: -40°C to 70°C Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
Certification	CE, FCC, CCC, LVD, RoHS

CS-2U2126HS (2U Hyper Server) – Key Advantages

The CS-2U2126HS is a high-density, high-performance 2U rackmount server from Vincanwo Group, built on the Supermicro AS-2126HS-TN platform. It excels in storage-intensive, AI, HPC, and virtualization workloads.

1. Unmatched Storage Density & Flexibility

Up to 24× 2.5” hot-swap bays: Supports NVMe, SAS, SATA SSDs/HDDs in the same chassis.
Front-access hot-swap: No downtime for drive replacement; ideal for 24/7 data centers.
Dual M.2 PCIe 3.0 slots: For boot drives or cache, freeing up front bays.
Ultra-fast NVMe: Direct PCIe 5.0 connection for low-latency, high-throughput storage.

2. Top-Tier Compute Performance

Dual AMD EPYC 9005/9004 series: Up to 384 cores / 768 threads, 500W TDP support.
24× DDR5 DIMM slots: Max 6TB ECC DDR5, up to 6400 MT/s (9005 series).
PCIe 5.0 expansion: 4× PCIe 5.0 x16 slots + 1× PCIe 5.0 x16 AIOM slot (OCP 3.0).
GPU-ready: Supports up to 3 double-width GPUs for AI training/inference.

3. Optimized for AI, HPC & Virtualization

AI acceleration: PCIe 5.0 + GPU support delivers 1000+ TOPS for ML/DL.
Virtualization power: 384 cores + 6TB RAM handle hundreds of VMs.
HPC workloads: Ideal for big data, rendering, scientific computing.
Software-defined storage (SDS): 24 bays + NVMe perfect for Ceph, VMware vSAN.

4. Enterprise-Grade Reliability & Efficiency

Redundant Titanium PSUs: 1200W–2600W, 96% efficiency, 1+1 redundancySupermicro.
Hot-swap fans: 6× heavy-duty 60mm fans with smart speed controlSupermicro.
Robust security: TPM 2.0, Silicon Root of Trust, Secure Boot.
24/7 durability: MTBF > 50,000 hours; 3-year warranty.

5. Flexible Deployment & Management

2U rackmount: 17.2” × 3.5” × 31.74” (W×H×D), standard data center sizeSupermicro.
AIOM networking: OCP 3.0 slot adds 10G/25G/100G NICs without PCIe slot loss.
Remote management: Dedicated BMC LAN, VGA, USB 3.0 portsSupermicro.
Vincanwo support: 7×24 engineering support, OEM/ODM customization.

6. Key Industrial Applications

Cloud & data centers: Virtualization, SDS, object storage.
AI/ML: Inference servers, GPU clusters, deep learning.
Big data & analytics: Hadoop, Spark, data warehousing.
Media & entertainment: 4K/8K video editing, rendering farms.
Enterprise databases: SQL, NoSQL, in-memory databases.

Summary

The CS-2U2126HS combines industry-leading storage density (24 bays), AMD EPYC power, PCIe 5.0/GPU scalability, and enterprise reliability in a compact 2U form factor. It’s the ideal server for modern data centers running AI, virtualization, or storage-heavy workloads.
