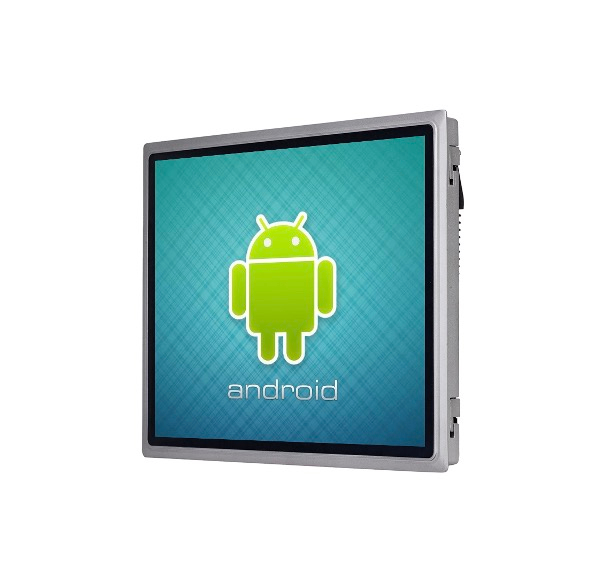

17” Android Panel PC | TPRO-17 ARM
VINCANWO GROUP
Availability: | |
---|---|
Quantity: | |
SKU | TPRO-17 ARM |
Screen Size | 17” |
Resolution | 1280x1024 |
Viewing Angle | 85/85/80/80 |
Brightness | 250 cd/ |
Contrast Ratio | 1000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Processor Family | ARM, Rockchip |
Memory Type | 2G, 4G, 8G |
Storage Type | 3588: 64G, 128G, 256G |
Ethernet / LAN | 2x LAN |
Serial / Com | 2x RS232 (1x COM option RS485) |
USB | 2x USB |
Video Outputs | 1x HDMI |
Expansion Slots | 1x Mini-PCIE |
Operating Systems | Android, LInux |

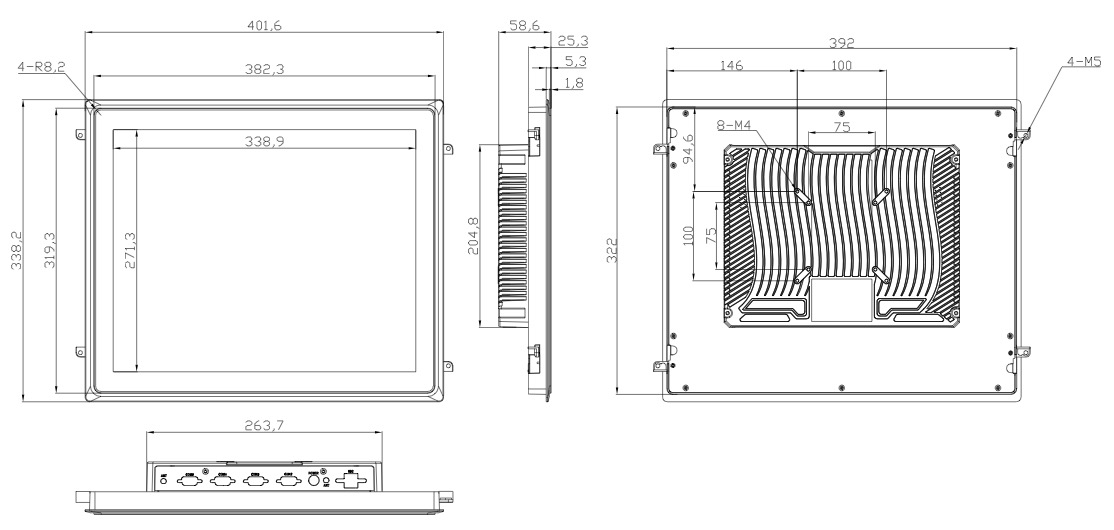

Dimension | 401.6 *338.2 *58. 6mm |
Mounting Hole Size | External embedded size:394 x324mm Internal embedded size: 383.8 x320.8mm |
Gross Weight | 5 . 65kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Advantages:
Versatility: The TPRO-17 ARM offers a wide range of applications across industries, including retail, hospitality, industrial automation, education, healthcare, and home automation, making it a versatile solution for various settings.
User-friendly interface: The 17" touchscreen display provides a user-friendly interface for interacting with applications and content, making it easy for users to navigate and access information.
Android operating system: The Android operating system offers access to a vast array of apps and services from the Google Play Store, allowing users to customize the device to suit their specific needs and preferences.
Compact design: The compact design of the TPRO-17 ARM makes it easy to install in various settings, saving space and providing a sleek and modern look.
Connectivity options: The device offers multiple connectivity options, including USB ports, Ethernet, Wi-Fi, and Bluetooth, enabling seamless integration with other devices and networks.
ARM processor: The ARM processor provides efficient performance and power management, ensuring smooth operation and reliable performance for a variety of applications.
Cost-effective solution: The TPRO-17 ARM offers a cost-effective solution for businesses and organizations looking to implement digital signage, interactive kiosks, point-of-sale systems, and other applications without breaking the bank.
Overall, the 17" Android Panel PC TPRO-17 ARM offers a range of advantages, including versatility, user-friendly interface, Android operating system, compact design, connectivity options, efficient performance, and cost-effectiveness, making it a valuable and practical solution for a variety of industries and applications.
>Applications:
Retail: The TPRO-17 ARM can be used in retail settings as a point-of-sale system, digital signage display, interactive kiosk, or self-service terminal. It can display product information, promotions, and advertisements, as well as process transactions and manage inventory.
Hospitality: In the hospitality industry, the TPRO-17 ARM can be used for self-check-in kiosks, digital menus, room service ordering systems, and guest information displays. It can enhance the guest experience and streamline operations in hotels, restaurants, and cafes.
Industrial automation: The TPRO-17 ARM is suitable for industrial automation applications, such as monitoring and controlling equipment, displaying production data, and accessing work instructions. It can improve efficiency and productivity in manufacturing plants, warehouses, and other industrial settings.
Education: In educational settings, the TPRO-17 ARM can be used as an interactive whiteboard, digital learning resource, or teaching tool. It can engage students, facilitate collaboration, and enhance the learning experience in classrooms, training centers, and educational institutions.
Healthcare: The TPRO-17 ARM can be used in healthcare facilities for patient check-in, medical record access, telemedicine applications, and patient education. It can streamline administrative processes, improve communication between patients and healthcare providers, and enhance the quality of care.
Home automation: The TPRO-17 ARM can serve as a central control hub for smart home devices, allowing users to manage and monitor their connected devices from a single interface. It can control lighting, thermostats, security systems, and other smart home devices, providing convenience and efficiency for homeowners.
Overall, the TPRO-17 ARM has a wide range of applications across industries, including retail, hospitality, industrial automation, education, healthcare, and home automation. Its versatility, user-friendly interface, Android operating system, compact design, connectivity options, efficient performance, and cost-effectiveness make it a valuable solution for various settings and use cases.
