SKU | VFACEH-156 |
Screen Size | 15.6” |
Resolution | 1920x1080 |
Viewing Angle | 89/89/89/89 |
Brightness | 250 cd/㎡ |
Contrast Ratio | 3000:1 |
Touchscreen | Capacitive, Resistive |
Controller | USB interface |
Durability | Capacitive: ≥ 5M times, Resistive: : ≥ 100,000 times |
Chipset | D81 (LGA1150) |
Memory Type | 2x DDR3 4G, 8G, 16G |
Storage Type | 1x mSATA 1x SATA |
Ethernet / LAN | 1x RTL8111 |
Serial / Com | 2x RS232 (COM2 option RS485) |
USB | Front 1x USB, Rear 4x USB |
Video Outputs | 1x HDMI, 1x VGA |
Expansion Slots | 1x Mini PCIE WiFi & Bluetooth or 4G LTE |
Operating Systems | Windows, Linux |

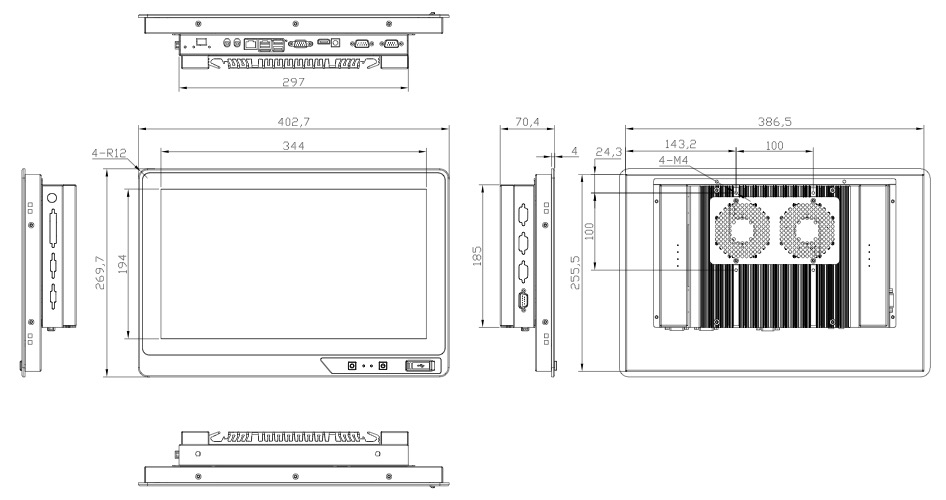

Dimension | 402.7x269.7x70.4mm |
Mounting Hole Size | 389x258mm |
Gross Weight | 4.84kg |
Mounting Options | Embedded, Wall Mount, Desktop Stand |
Operating Temperature | -30℃ ~ +70℃ |
Storage Temperature | -40℃ ~ +80℃ |
Humidity Rage Non-condensing | 5% - 95% |
Power | Input Voltage Range 9 – 36V DC Standard Power: Optional 12V AC/DC Adapter: 5A, 60W |
>Product Advantages
Our Vincanwo Group brand 15.6” High-performance Panel Computer | VFACEH-156 is ideal for environments where space is limited, and durability is crucial. They excel in harsh industrial conditions, providing an all-in-one solution with touchscreens that can be easily integrated into machines or control panels.
1. Compact and Space-Saving Design:
· Designed to be all-in-one, integrating the computer components and display into a single unit.
· This compact design minimizes space requirements, making them suitable for environments where space is limited, such as factories, warehouses, and remote monitoring stations.
2. Ruggedness and Durability:
· Built to withstand harsh industrial conditions, including dust, moisture, temperature fluctuations, and vibration.
· Feature ruggedized materials and IP (Ingress Protection) ratings to ensure reliability in demanding environments.
3. Versatility and Customization:
· Customized with different screen sizes, processors, and connectivity options to suit various industrial applications.
· Easily integrated into machines or control panels, providing a convenient and user-friendly interface.
· Integrated camera, microphone, and proximity sensor options.
4. Ease of Installation and Maintenance:
· Designed for easy installation and maintenance, reducing downtime and simplifying operations.
· Integrated design eliminates the need for separate components and cables, simplifying wiring and reducing clutter.
5. Enhanced Performance and Reliability:
· Handle demanding tasks, such as real-time data processing, visualization, and control.
· Utilize fanless heatsink technology for reliable cooling in harsh environments.
6. Connectivity and Integration:
· Integrated with IoT platforms, enabling data collection, analysis, and remote monitoring.
· Integrate with cloud services for data storage, remote access, and cloud-based applications.
>Product Applications
Our Vincanwo Group brand 15.6” High-performance Panel Computer | VFACEH-156, designed for demanding industrial environments, find applications in areas like industrial automation, control systems, HMI (Human-Machine Interface) in manufacturing, digital signage, public information kiosks, transportation, and logistics, offering real-time feedback, control, and monitoring.
· Industrial Automation and Control Systems. Our Vincanwo Group brand 15.6” High-performance Panel Computer | VFACEH-156 plays a crucial role in industrial automation and control systems.
· Human-Machine Interface (HMI) in Manufacturing.
· Digital Signage and Interactive Displays.
· Public Information Kiosks.
· Transportation and Fleet Management.
