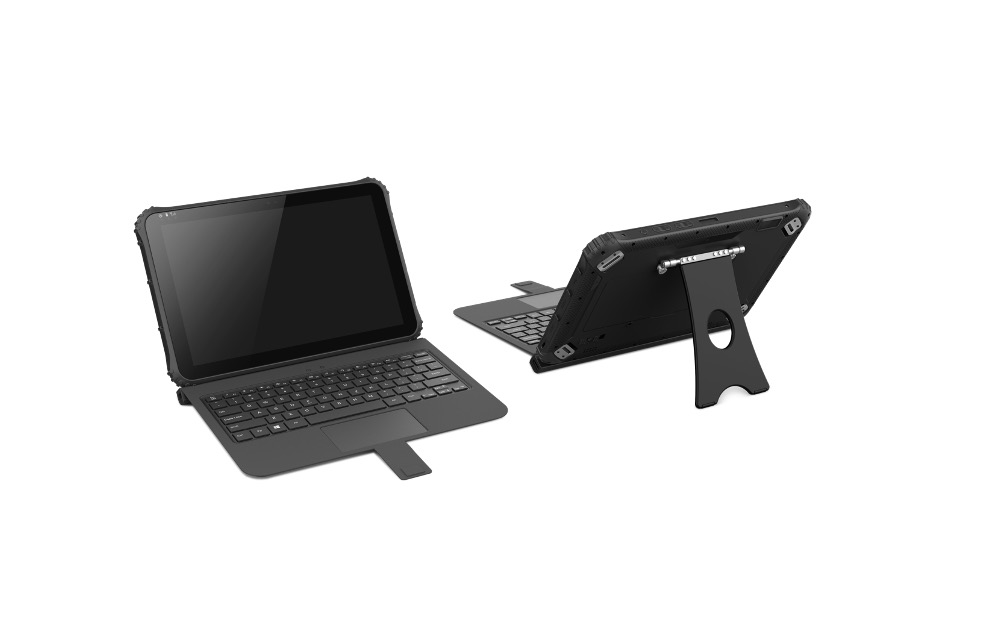

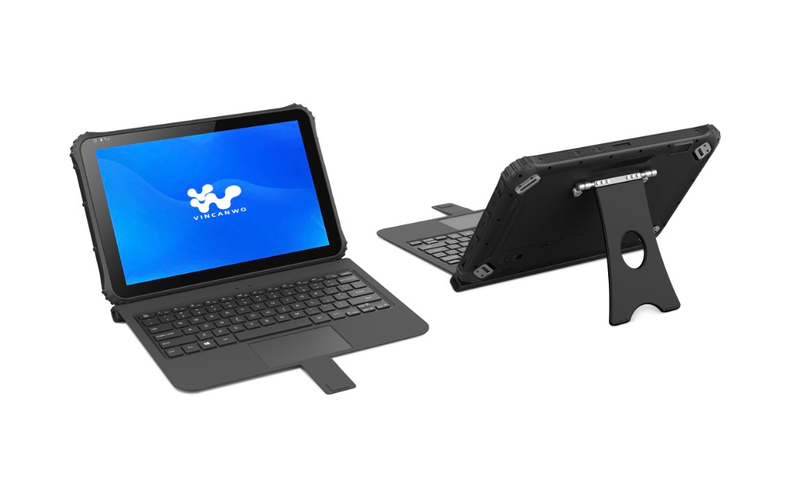

SKU | 12.2” Rugged Notebook | I22J/Q225M |
Dimension (mm) | 319.6x216x24.3 |
Weight (g) | 1500g |
Device Color | Black |
LCD | 12.2'' IPS 16:10, 1920*1200 280 nits (Q225M) 650 nits/280 nits (I22J) |
Touch Panel | Optional 10 points capacitive, G+G, Corning Gorilla Glass |
Camera | Front 5.0MP, Rear 8.0MP (I22J) Front 5.0MP, Rear 13.0MP(Q225M) |
Performance Parameter | I22J: Intel Celeron N5100 CPU OS: Windows 11 RAM: 8GB/4GB/16GB ROM: 128GB/64GB/256GB/512GB Q225M: ARM OCTA Core CPU OS: Android 11 RAM: 8GB ROM: 128GB |
I/O | TF Card x 1, SIM Card x 1 USB2.0 x 1, USB3.0 x 2 (I22J) USB2.0 x 2, USB3.0 x 1 (Q225M) Type-C x 1, HDMI x 1 DB9 x 2, RJ45 x 1, 12pin Pogo Pin x 1 Φ3.5mm standard earphone jack x 1 Φ3.5mm Power connector x1 (Q225M) Φ4mm Power connector x 1 (I22J) |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 19V/3.42A (I22J) DC 5V/4A (Q22M)(Q225M) |
Capacity | 7.4V/6300mAh+1000mAh (I22J) 3.7V/12600mAh (Q225M) |
Type | Removable polymer lithium battery |
Endurance | 8.5hrs+1hrs (I22J) 7hrs (Q225M) |
GNSS | GPS+Glonass (I22J/Q225M) GPS+Glonass+Beidou |
WiFi | 2.4G+5.8G, WIFI 802.11(a/b/g/n/ac) (I22J) 2.4G+5G, WIFI 802.11(a/b/g/n/ac) (Q225M) |
Bluetooth | BT 5.0 (I22J) BT 4.2 (Q22M) BT 5.1(Q225M), Transmission distance: 10m |
2G/3G/4G/5G (Optional) | I22J: LTE-FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B40, WCDMA: B1/B5/B8, GSM: 900/1800, (5G optional) SA&NSA:N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N71/N77/N78/N79 5G SA&NSA: LTE-FDD:B1/B3/B5/B7/B8/B18/B19/B20/B28/B32 LTE-TDD:B34/B38/B39/B40/B41/B42, WCDMA:B1/B5/B8 5G SA&NSA: LTE-FDD:B1/B3/B5/B8/B28, LTE-TDD:B34/B38/B39/B40/B41, WCDMA:B1/B8, N1/N28/N41/N78/N79 Q22M: WCDMA B1/B5/B8，GMS B3/B5/B8，TDD-LTE B38/B40/B41 FDD-LTE B1/B3/B5/B7/B8/B20 Q225M: 3G WCDMA B1/B5/B8 4G TDD-LTE B34/B38/B39/B40/B41，FDD-LTE: B1/B3/B5/B8 5G NR N1/B28/B41/B78/B79 |
NFC | Optional, 13.56MHz, Card reading distance: 4cm Support ISO/IEC 14443A/B/15693/18092/mifare (I22J) Built-in, 13.56MHz, Card reading distance: 4cm |
1D | Optional, Optical resolution: 5mil/scan speed: 50 times/s |
2D | Optional, Optical resolution: 5mil/scan speed: 50 times/s |
IP Grade | IP65 |
Operating Temperature | -30 ~ +70°C |
Storage Temperature | -40 ~ +80°C |
Storage Humidity *Non-condensing | 5 ~ 95% |
>Product Advantage
· Durability: Built to withstand dust, water, and other harsh conditions. They are often drop-tested.
· High performance: Have high-performance processors, large amounts of memory, and fast storage.
· Connectivity: Have Wi-Fi, Bluetooth, and other connectivity options.
· Battery life: Have hot-swappable batteries that provide long hours of use.
· High-brightness displays: Have high-brightness displays that can be used outdoors.
· Barcode scanning: Support 1D and 2D barcode scanners.
· GPS navigation: Have GPS navigation for precise navigation.
· Rugged protection: Have IP65 protection level.
>Product Applications
· Manufacturing: Using in manufacturing facilities to withstand harsh production conditions.
· Construction: Using in construction sites to withstand extreme temperatures, dust, and water.
· Energy: Using in the energy industry.
· Logistics: Using in warehouse logistics.
· Food processing: Using in food processing plants.
· Robotics: Using in robotics.
· Packaging: Using in packaging plants.
· Surveying and mapping: Using in surveying and mapping.
· Field service: Using in field service.
Features of our Vincanwo Group brand Rugged Notebook 12.2” | I22J/Q225M
· Built with thicker and stronger housing than regular laptops.
· Designed to resist dust, water, and extreme temperatures.
· Equipped with multi-communication features such as Wi-Fi, Bluetooth, and NFC.
· Have hot-swappable batteries for uninterrupted working time.
>Warranty
All our products come standard with 3 years warranty.
We also offer up to 5 years extension of our product warranty at the time of sale.
Warranty starts from the time the product is shipped to you from Vincanwo Group. You do not need to register or save the receipt as long as the unit still has the serial number we can look up the warranty term and start date.
Vincanwo Group wants to be your preferred business partner. We will gladly work to help you with all sorts of computer related issues you encounter via our free technical support. If an RMA is needed, we understand the importance of getting you an accurate and long-lasting fix, and getting back up and running quickly.
We keep a wide array of parts on hand for repairs, but sometimes parts will need to be ordered and this can cause delay in repairs.
Vincanwo Group Warranty Includes:
· Repair of the system, Including labor
· Components needing replacement
· If necessary, re-installation of original OS
· Return shipment to customer
Events NOT Covered by Standard Warranty Include:
· Physical damage
· Damage caused by unauthorized repairs
· Use of product outside of its approved environment
· Exposure to direct sunlight, unless explicitly approved
· Inbound Shipping
· Software
>FAQ
How to require a quotation ?
Please send details of your requirement to us by E-mail, we will send quotation to you within 1 working day.
How to require a free sample?
Please send your sample requirement to us, and we will check and confirmed to you within 2 days. Normally we refund sample once the order quantities are in 100pcs.
What is your MOQ ?
NO MOQ request, even with your own specifications.
What is your order Lead-time?
Order Quantity less than 100pcs, and the production lead-time is 3days, surely we have great capacity to handle the large order quantities. For example: 1x40H container loads 8,000 - 10,000pcs and our production lead time normally is 15days after order deposit.
What is your export product package ? How to transport ?
Our product export is single pack. For oversea customers, we will shipping with the durable packages or pallets, or transport by train, by sea or by air, as well by DHL, UPS, etc.
What is your payment term ?
With different price & quantity of contract, We accept different payment term as below:
1, TT for samples (Quantity less than 100units).
2, 30% T/T in advance, balance T/T before shipment (Quantity less than 1000units).
3, 20% T/T in advance, balance O/A 30-60days (Quantity 1000-8000units).
What is your price term ? How to loading cargoes?
We can do price term as below:
1, EXW factory, including VAT tax, Loading cargoes in our factory
2, FOB Shenzhen or Guangzhou Port, and container loading cargoes in our factory.
3, CIF Port of delivery.
4, Door-to-door shipment.
