Model | 10” HD 700 nits IP67 Vehicle PC | V12R V12R | |
Performance Parameter | ARM OCTA Core CPU | Android 12 GMS 4GB RAM | 64GB UFS ROM | |
Basic Parameter | Dimension | 282 x 181 x 31mm |
Weight | 1150g | |
Device Color | Black | |

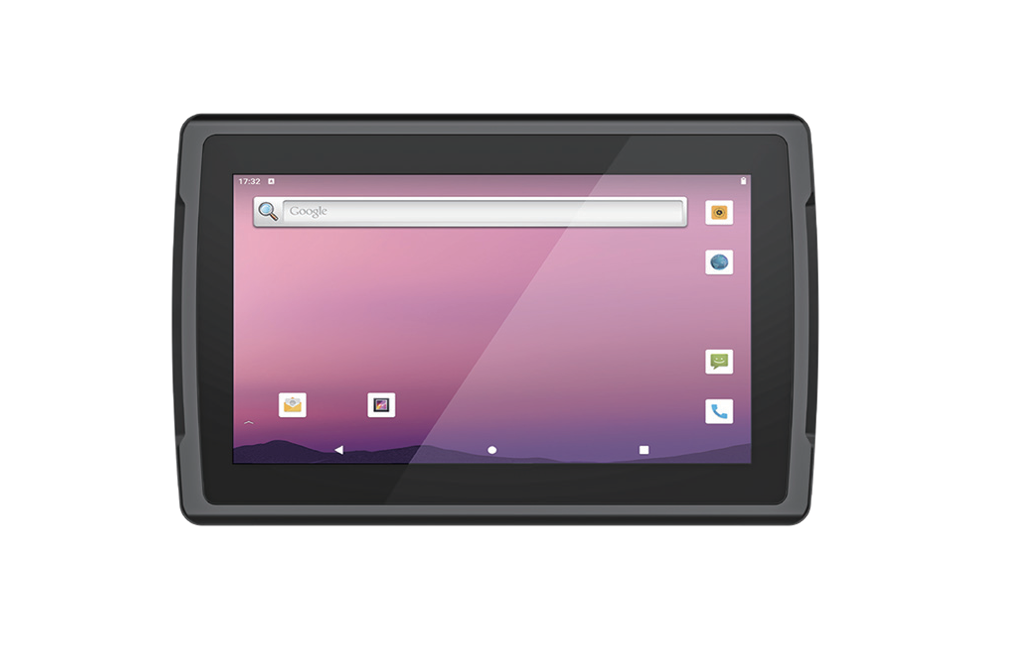

LCD | 10'' HD, 800*1280, 700 nits | |
Touch Panel | 5-point tempered glass capacitive screen G+G | |

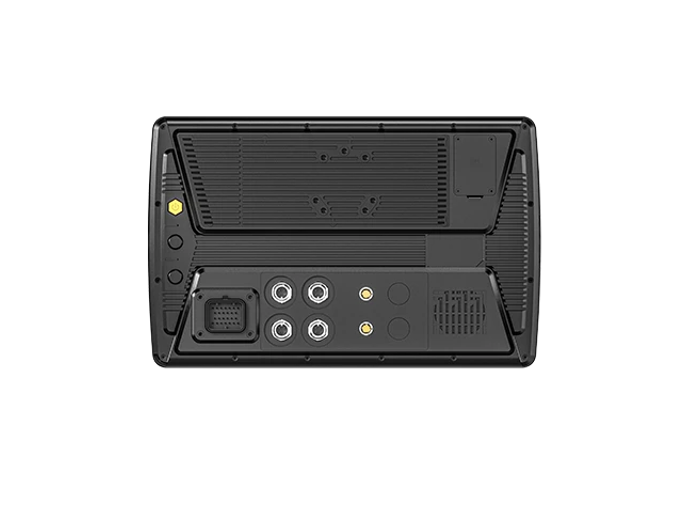

I/O | Standard: MICRO-SIM x 1, MICRO-SDx 1, USB 2.0*1AHD*4 Optional: TNC*2/SMA*2, 26PIN Deutsch interface | |
Communication | GNSS | GPS，Beidou，GLONASS |
WIFI | 2.4G+5.0G(5.1G+5.8G) Dual-band WIFI 802.11(a/b/g/n/ac) | |
Bluetooth | BT5.0 | |
4G (Optional) | LTE Cat 4 WCDMA：B1+5+8 TDD：B38+40+41 FDD：B1+3+5+7+8+20+28 | |
CAN | Supports up to 4 CAN Channels, with 250K/500K CAN Compatibility, and Common Agricultural and Construction Vehicle Protocols such as J1939 | |
Data Radio (Optional) | Frequency Range：410-470MHz | |
RTK High- Precision Positioning (Optional) | Dual Antenna Localization Dual Antenna Mode supports BDS B1I/B2I/B3I, GPS L1/L2/L5, SBAS,GLONASS G1/G2, Galileo E1/E5a/E5b, QZSS L1/L2/L5 | |
AHD Multi- channel camera (Optional) | Supports up to 8 channels of AHD camera | |
Reliability | Operate Temperature | -20 °C ~ 60 °C |
Store Temperature | -30 °C ~ 85 °C | |
Humidity | 95% Non-Condensing | |
IP Grade | IP67 | |
Electrostatic Discharge | ±6kV Contact Discharge, ±10kV Air Discharge | |
