What is a Rugged Computer?

A rugged computer is a specialized personal computer or server engineered to operate reliably in harsh environments characterized by extreme temperatures, heavy vibrations, high humidity, shock, dust, and water exposure. Unlike commercial off-the-shelf PCs, rugged computers utilize industrial-grade components, fanless chassis, chassis-level thermal dissipation, and sealed enclosures (IP-rated and MIL-STD certified) to ensure continuous operation, high reliability, and long lifecycle support.

Table of Contents

1. What is a Rugged Computer?

2. Where would you use Ruggedised Computer?

3. Transport and SMART City

4. Industrial Automation and Control

5. Harsh Environments

6. What are the different Rugged Standards?

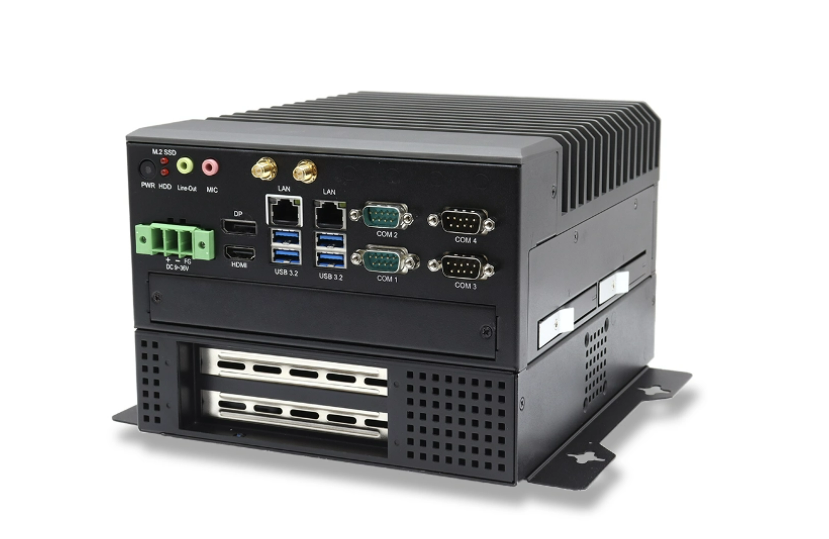

What is a Rugged Computer?

A rugged computer is an industrial computing platform specifically engineered with reinforced chassis structures, passive cooling mechanisms, and high-tolerance internal components to sustain continuous operation under operational environments that would rapidly degrade commercial computing hardware.

Commercial computers are designed for controlled indoor offices where temperature ranges stay between 15°C and 25°C, humidity levels remain stable, and physical shock is non-existent. In contrast, Rugged PCs are built around structural rigidity and operational resilience. The structural foundation relies on heavy-duty aluminum alloys, cold-rolled steel, or specialized magnesium housings. Instead of active cooling fans that draw in particulate matter and moisture, a Rugged PC typically employs a fanless design. The entire chassis serves as a massive heat sink, transferring thermal energy away from the CPU and core system ICs using copper heat pipes and aluminum cooling fins. This eliminates the primary point of physical failure in embedded computing systems—the mechanical fan.

Beyond physical housing, internal printed circuit board (PCB) layouts in Rugged PCs differ fundamentally from commercial motherboards. High-density multi-layer PCBs are reinforced to withstand mechanical flex. Memory chips and storage media are frequently soldered directly onto the PCB (onboard memory) or secured via mechanical retention clips and industrial-grade cable ties to prevent micro-disconnections caused by high-frequency vibration. Electrical power delivery circuits integrate wide-range DC input modules (such as 9V to 36V DC) along with surge protection, over-voltage protection (OVP), over-current protection (OCP), and reverse-polarity protection. This power architecture insulates the internal processing units from voltage spikes and power drops common in vehicular or factory power grids.

From a component selection perspective, every capacitor, resistor, drive controller, and silicon core embedded inside a Rugged PC is rated for extended operational temperature ranges, usually spanning from -20°C to 70°C or even -40°C to 85°C. Industrial solid-state drives (SSDs) utilize Single-Level Cell (SLC) or pseudo-SLC (pSLC) NAND flash architecture with higher write endurance (TBW) and wider temperature stability than consumer Multi-Level Cell (MLC) storage. System processors are selected from long-lifecycle embedded roadmaps provided by chip manufacturers, ensuring continuous availability for 5 to 10 years without requiring architectural redesigns for deployed field hardware.

Key Hardware Component Specifications

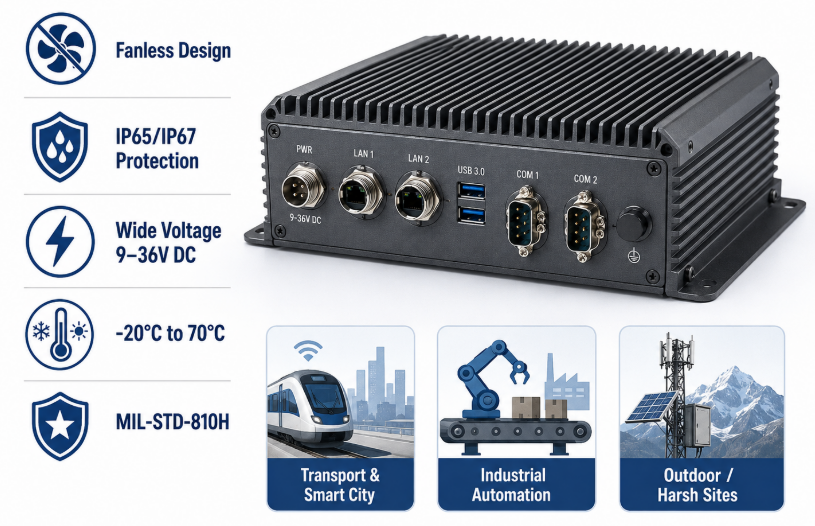

Where would you use Ruggedised Computer?

Ruggedized computers are deployed in mission-critical applications where equipment downtime results in financial loss, safety hazards, or system failure, including industrial automation, outdoor surveillance, mobile transit platforms, military systems, and renewable energy sites.

Industrial facilities rely heavily on continuous automation loops. Standard desktop systems fail rapidly in such settings due to dust ingress, airborne chemical particulates, and thermal saturation. A Rugged PC operates continuously on the factory floor, handling real-time data collection, computer vision inspection, machine motion control, and SCADA monitoring without maintenance interventions. These computing platforms act as central edge nodes, connecting legacy serial devices (RS-232/422/485) and modern industrial Ethernet networks (PROFINET, EtherCAT, Modbus TCP) directly to cloud analytics networks.

Outdoor infrastructure and environmental monitoring sites represent another essential deployment sector. Remote weather stations, border control security arrays, pipeline telemetry installations, and smart grid sub-stations require computing hardware capable of autonomous operations without human intervention. These systems must cold-boot reliably under sub-zero conditions and execute high-performance analytics under extreme ambient solar heat. The incorporation of wide-voltage power supplies allows these platforms to run directly off solar arrays, battery banks, or unregulated industrial power grids without requiring secondary power conditioning units.

Mobile deployment inside vehicles, maritime vessels, and rail transport requires hardware capable of enduring complex shock patterns and fluctuating power inputs. Fleet tracking systems, onboard passenger information units, autonomous agricultural machinery, and emergency service command units mandate compact form factors equipped with specialized wireless interfaces (LTE/5G, Wi-Fi 6, GPS/GNSS) and ignition power management functionality. Deploying high-performance processing equipment, such as an industrial fanless edge AI system, empowers mobile operations with real-time video analytics, object detection, and autonomous navigation without exposing sensitive compute modules to external environmental hazards.

Primary Deployment Sectors for Rugged PCs

1. Manufacturing and Factory Floor Automation

   Used for automated optical inspection (AOI), robotic cell management, programmable logic controller (PLC) interfacing, and real-time process monitoring.

2. Transportation and Mobile Fleet Management

   Deployed in commercial trucking, rail locomotives, public transit buses, and maritime vessels for route optimization, telemetry recording, and video monitoring.

3. Energy, Utilities, and Oil & Gas Sector

   Stationed at offshore platforms, pipeline monitoring stations, solar power plants, and electrical substations for SCADA management and preventative diagnostics.

4. Defense, Aerospace, and First Responder Infrastructure

   Integrated into mobile command vehicles, tactical communications systems, unmanned ground vehicles (UGVs), and flight control ground stations.

5. Smart Cities and Traffic Management Systems

   Positioned inside roadside cabinets for adaptive traffic signal control, license plate recognition (ANPR), and environmental sensor aggregation.

Transport and SMART City

In transport and smart city infrastructures, rugged computers function as reliable edge processing platforms engineered to sustain exposure to erratic vehicular power, broad daily temperature swings, and severe physical vibration.

Modern transportation ecosystems demand real-time computing at the network edge. Municipal transit networks, autonomous delivery vehicles, and highway monitoring grids generate massive volumes of sensor data that cannot rely exclusively on cloud computing due to bandwidth costs and latency constraints. A Rugged PC deployed inside a public transit vehicle processes multi-channel high-definition IP camera feeds, manages passenger Wi-Fi gateways, tracks real-time GPS locations, and monitors vehicle diagnostic telemetry concurrently. These operations must remain fully functional despite continuous engine vibrations, chassis movement, and frequent road impacts.

Vehicular power networks present a harsh electrical environment characterized by voltage dips during engine ignition, load dump surges, and high-frequency noise caused by power alternators. Rugged computers designed for transportation incorporate specialized vehicle ignition sensing power management modules. These modules monitor ignition states to execute clean system boot-ups and delayed soft shut-downs, preventing file corruption and hardware damage during battery voltage drops. Compliance with international vehicular standards such as ISO 7637-2 (road vehicles) and EN 50155 (railway applications) ensures that every Rugged PC installed on transit platforms operates without electromagnetic interference or power isolation failures.

In smart city traffic management installations, compute hardware is installed inside unconditioned outdoor roadside cabinets exposed to extreme heat during peak daylight hours and sub-zero temperatures overnight. Traditional desktop computers suffer thermal throttling, fan failure, and electrical shorts caused by condensation under these conditions. Passive cooling structures combined with extended operational temperature ratings enable Rugged PCs to execute edge AI algorithms—such as vehicle counting, speed enforcement, pedestrian collision avoidance, and adaptive signal control—365 days a year without hardware breakdown or maintenance downtime.

Urban Infrastructure & Mobility Hardware Metrics

Industrial Automation and Control

Industrial automation and control architectures rely on rugged computers to bridge high-speed fieldbus sensor communications with enterprise-level real-time analytics while operating reliably in environments containing electromagnetic noise, dust, and continuous mechanical motion.

Factory floors present an demanding environment for electronic systems. High-voltage industrial machinery, arc welding processes, variable frequency drives (VFDs), and large induction motors emit substantial electromagnetic interference (EMI) and radio frequency interference (RFI). Standard computers exposed to severe EMI suffer data corruption, processing errors, or permanent system lockups. Industrial Rugged PCs incorporate heavy electromagnetic shielding, isolated I/O ports (isolating RS-232/422/485 serial communication and GPIO interfaces up to 2.5kV), and robust ground design to guarantee continuous signal integrity across factory communications loops.

Real-time precision is critical in motion control and automated manufacturing lines. Rugged embedded computers are built with low-latency hardware architectures supporting industrial real-time operating systems (RTOS) and real-time Ethernet protocols such as EtherCAT, PROFINET, and Ethernet/IP. By integrating rich expansion slots—such as PCIe, Mini PCIe, and M.2 interfaces—operators can install dedicated fieldbus communication cards, high-speed image acquisition boards, or specialized digital I/O expansion modules. Utilizing a dedicated compact industrial edge PC platform allows factory engineers to run sophisticated deep-learning quality control software directly alongside low-level PLC automation processes without requiring large cabinet footprints.

Space constraints within industrial control cabinets (DIN-rail or wall-mount configurations) require highly compact, thermal-efficient designs. Because space inside NEMA enclosures is limited, heat accumulation is high. Fanless Rugged PCs act as conductive heat dissipators, routing operational thermal loads through heavy aluminum fins into the surrounding enclosure air. This design prevents thermal throttling during high-CPU usage cycles, ensuring that machine vision operations, barcode scanning, zero-defect optical sorting, and predictive maintenance algorithms execute continuously at maximum processing speed.

Real-Time Industrial Protocol Compatibility

1. EtherCAT (Ethernet for Control Automation Technology)

   Requires low-jitter hardware interfaces for sub-millisecond synchronization of multi-axis servo drives and high-speed motion controllers.

2. PROFINET & EtherNet/IP

   Demands dual or quad independent Gigabit Ethernet MAC controllers to isolate control-layer traffic from enterprise IT data flows.

3. Modbus RTU / RS-485 Serial Loops

   Requires isolated COM ports with automatic flow control (Auto Flow Control) to prevent ground loop currents from damaging system motherboards.

4. Time-Sensitive Networking (TSN)

   Demands modern industrial network interface cards (NICs) capable of IEEE 802.1Qbv time-aware shaping for unified deterministic automation networks.

Operational Maintenance Insight: When installing a Rugged PC within an unventilated NEMA industrial enclosure, technicians must verify thermal clearance guidelines. Always maintain a minimum of 50mm (2 inches) of open air space around the top and side cooling fins of the fanless chassis. Never block the thermal convection path, as restricted airflow degrades passive heat dissipation efficiency, forcing the CPU into thermal throttling modes and shortening the operational life of power distribution capacitors.

Harsh Environments

Deployment in harsh environments requires rugged computers equipped with high IP-rated sealed enclosures, corrosion-resistant chassis materials, and vibration-proof internal designs to prevent hardware breakdown from liquids, dust, extreme temperatures, and chemical exposure.

Mining operations, chemical processing facilities, marine vessels, and offshore oil platforms represent physical environments that destroy standard electronic equipment. Dust ingress is a major factor in hardware failure; microscopic conductive particles settle on exposed circuit traces, causing electrical short circuits and localized component burnouts. A properly engineered Rugged PC addresses this by using fully sealed fanless designs rated to IP65, IP66, or IP67 standards. Silicon seals, O-rings, and precision-machined mating surfaces completely isolate internal components from ambient airborne particles, fine silica dust, and moisture vapor.

Vibration and mechanical shock present another persistent challenge in heavy industrial settings. Mining dump trucks, rock crushing equipment, and marine propulsion spaces subject electronic chassis to continuous multi-axis vibration. Standard socketed components—such as CPU sockets, RAM DIMMs, and SATA data cables—gradually loosen under continuous vibration, resulting in intermittent system crashes or complete boot failures. Rugged PCs eliminate these physical vulnerabilities by soldering core components (including CPU, memory chips, and system storage) directly onto the PCB, and utilizing lockable industrial connectors like M12 screw-type connectors for power, Ethernet, and serial I/O.

In marine and chemical manufacturing plants, atmospheric exposure includes salt spray, high humidity, and corrosive chemical fumes. Standard steel or cheap alloy computer cases oxidize rapidly, leading to structural degradation and internal contamination. High-grade Rugged PCs utilize anodized aluminum housings, stainless steel hardware, and specialized anti-corrosion surface treatments. Furthermore, internal electronic board assemblies receive conformal coating—a micro-thin protective chemical layer applied over PCB surfaces—that insulates sensitive electronic traces against moisture condensation, chemical vapor ingress, and fungal growth.

Environmental Stressors vs. Technical Mitigations

What are the different Rugged Standards?

Rugged standards are standardized, objective testing methodologies established by military and international engineering bodies—including MIL-STD-810, Ingress Protection (IP) ratings, and European Norm (EN) certifications—to quantify a computer's physical and environmental durability.

To ensure reliable performance in demanding environments, engineers rely on standardized testing benchmarks rather than vague marketing claims. The most universally recognized standard is MIL-STD-810 (currently in revision H), established by the United States Department of Defense. This standard defines precise laboratory test procedures designed to simulate field environment stresses throughout a system's lifecycle. Testing includes Method 514.8 for multi-axis random vibration, Method 516.8 for operational shock (including drop tests from specified heights onto hard surfaces), Method 501.7 for extreme high-temperature operation, and Method 502.7 for low-temperature operational cold-starts. Evaluating a Rugged PC against these criteria guarantees that the hardware can withstand physical impacts, drop hazards, and transit shock during field use.

Another critical benchmark metric is the Ingress Protection (IP) rating system, defined under international standard IEC 60529. The IP code consists of two digits: the first digit (ranging from 0 to 6) indicates protection against solid objects and dust particles, while the second digit (ranging from 0 to 9K) measures resistance against liquid ingress. A Rugged PC rated IP65 is fully dust-tight (6) and protected against low-pressure water jets from any direction (5). A rating of IP67 signifies total dust protection and the ability to withstand complete temporary immersion in water up to 1 meter depth for 30 minutes. Higher ratings, such as IP69K, signify resistance against high-pressure, high-temperature washdown procedures common in food processing and pharmaceutical facilities.

Beyond general environmental ratings, industry-specific standards govern specialized compute installations. In railway transit applications, compliance with EN 50155 is mandatory; this standard covers electronic equipment used on rolling stock, testing for input voltage fluctuations, electrical isolation, shock, vibration, and operating temperature extremes. In hazardous explosive atmospheres—such as chemical plants or flour mills—certifications such as ATEX (in Europe) or IECEx (internationally) certify that a Rugged PC is spark-proof and cannot ignite airborne gases or combustible dust. Selecting the correct system requires matching the specific environmental conditions of the target installation with these standardized testing protocols.

Summary of Essential Industrial Durability Standards

1. MIL-STD-810H (Environmental Engineering Considerations & Laboratory Tests)

   Defines standardized testing protocols for shock, drop, vibration, explosive atmosphere, solar radiation, thermal shock, and altitude performance.

2. IEC 60529 Ingress Protection (IP Ratings)

   Classifies mechanical protection offered by electrical enclosures against dust penetration and liquid ingress (e.g., IP65, IP67, IP68).

3. EN 50155 / EN 50121-3-2 (Railway Applications)

   Specifies rigorous operational requirements for electronic equipment installed on rail vehicles, focusing on wide DC input tolerances, surge protection, and severe EMC compliance.

4. ISO 7637-2 (Road Vehicles Electrical Disturbances)

   Tests electrical immunity against fast transient bursts, power surges, and load dumps occurring along 12V and 24V vehicular power buses.

5. ATEX Directive / IECEx Certification

   Mandatory compliance standard for electronic compute hardware deployed in potentially explosive gas, vapor, mist, or dust atmospheres.

Hardware Selection Tip: When selecting a high-performance industrial automation unit, carefully distinguish between "design to meet" claims and verified, lab-certified compliance reports. Always request independent third-party test reports for MIL-STD-810H vibration/shock compliance and IP ratings to ensure the hardware will maintain operational integrity in mission-critical deployments.

Summary

Rugged computers represent an essential category of specialized industrial computing hardware designed specifically to overcome the physical and operational limitations of standard desktop PCs. Through advanced structural engineering—including fanless passive cooling chassis designs, soldered board-level components, wide-range DC power inputs, extended-temperature components, and sealed IP-rated enclosures—these computing platforms ensure reliable 24/7/365 operation under extreme conditions.

Whether processing complex edge AI workloads in smart transit systems, controlling high-speed automation loops on factory floors, or delivering mission-critical data processing in hazardous outdoor environments, the selection of a properly certified Rugged PC mitigates system failure risks, lowers overall total cost of ownership (TCO), and ensures uninterrupted long-term system stability. Standardized testing benchmarks such as MIL-STD-810H, IP ratings, and EN 50155 provide the objective technical validation required by system integrators and engineers when deploying compute nodes into severe operational environments worldwide.
