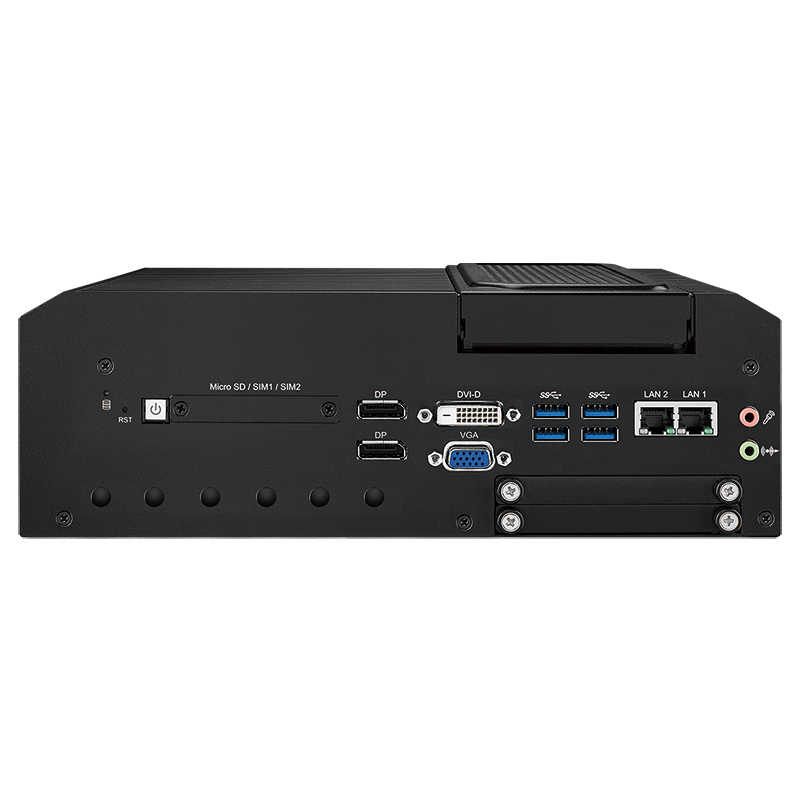

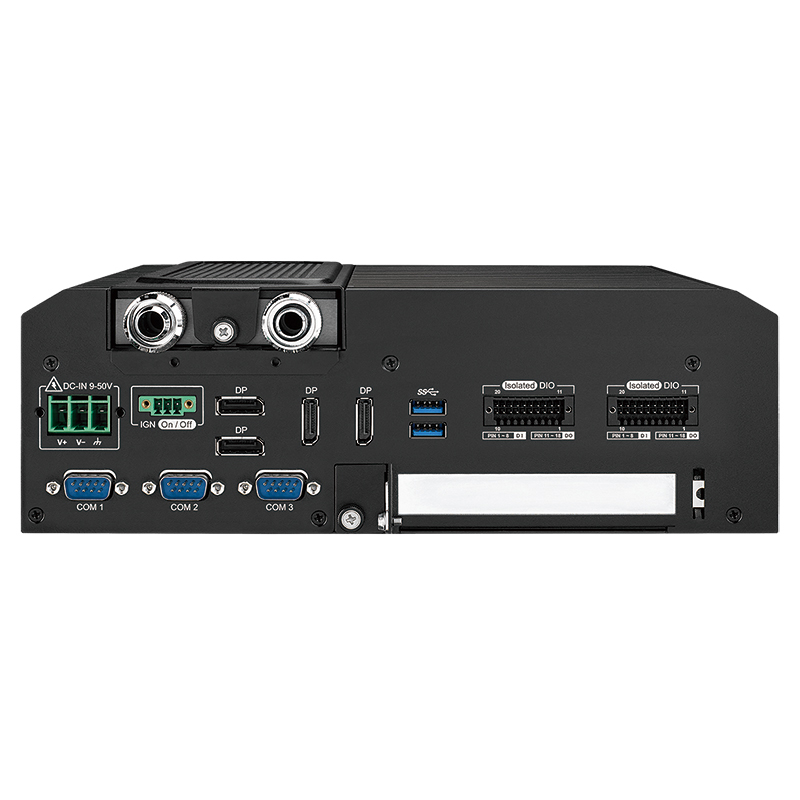

High-performance AI Computing Workstation | VG-IPC8000

Name: High-performance AI Computing Workstation | VG-IPC8000
Brand: VINCANWO GROUP
Rating: 5.0 (65 reviews)

Key Highlights

Workstation-grade Platform : 10-Core 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S) running with Intel® W480E Chipset
Compact NVIDIA® Quadro®/GeForce® MXM graphics card delivers leading AI computing productivity by advanced NVIDIA® CUDA® cores
Innovative Liquid Cooling Solution serves 5°C to 55°C fanless operating temperature supporting up to 110W TDP MXM Graphics
Multiple 5G/WiFi 6/4G/3G/LTE/GPRS/UMTS, 1 PCI/PCIe, optional SUMIT A, B
DC 9V to 50V Power Input, 80V Surge Protection, Software Ignition Control, TPM 2.0
Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications

Model:
VG-IPC8000
Brand:
VINCANWO GROUP
CPU:
High Performance (Core i/ultra）
MemoryType:
1x DDR5 SO-DIMM, Onboard LPDDR5

Availability:

Quantity:



Inquire Add to Basket

Product Name and Model		High-performance AI Computing Workstation \| VG-IPC8000
System	Processor	LGA 1200 Socket supports 10th Gen Intel® Xeon®/Core™ i9/i7/i5/i3 Processor (Comet Lake-S)
	Chipset	Intel® W480E
	BIOS	AMI
	SIO	IT8786E
	Memory	2 DDR4 2933MHz Memory, up to 64GB (ECC/Non-ECC)
	OS	Windows 10, Linux
I/O Interface	Serial	3 COM RS-232/422/485 (ESD 8kV)
	USB	6 USB 3.2 (External)
	Isolated DIO	32 Isolated DIO : 16 DI, 16 DO
	LED	Power, HDD
	SIM Card	2 External Nano SIM Card Socket
	SD Card	1 External Micro SD Card Socket
Expansion	Mini PCIe	1 Mini PCIe Socket for PCIe/USB/SIM Card/mSATA
	PCI/PICe	1 PCI/PCIe x4 Slot
	M.2	- 1 M.2 Key B Socket (3042/3052) - 1 M.2 Key E Socket (2230)
	SUMIT A, B	2 SUMIT Slot (Optional)
	Ethernet / LAN	1x Intel® I219LM GigE LAN supports iAMT 14.0 1x Intel® I210 GigE LAN
Graphics	Graphics Processor	Intel® UHD Graphics 630 Independent MXM Graphics：By request
Graphics	Interface	Up to 7 Display Interfaces： - 1 VGA : Up to 1920 x 1200 @60Hz - 1 DVI-D : Up to 1920 x 1200 @60Hz - 2 DisplayPort : Up to 4096 x 2304 @60Hz - 4 DisplayPort : Up to 7680 x 4320 @60Hz (By requested MXM)
Storage	SATA	2 SATA III (6Gbps) support S/W RAID 0, 1
	mSATA	1 SATA III (Mini PCIe Type, 6Gbps)
	M.2	- 1 M.2 Key B Socket (2280) - 1 M.2 Key M Socket (2280)
	Storage Device	- 1 Micro SD Card, Push-in/Push-out Ejector - 2 Front-access 2.5" SSD/HDD Tray
Audio	Audio Codec	Realtek ALC888S, 7.1 Channel HD Audio
Audio	Audio Interface	1 Mic-in, 1 Line-out
Power	Power Input	9V to 50V, DC-in
	Power Interface	3-pin Terminal Block : V+, V-, Frame Ground
	Ignition Control	16-mode Software Ignition Control
	Remote Switch	3-pin Terminal Block
	Surge Protection	Up to 80V/1ms Transient Power
Others	TPM	Infineon SLB9665 supports TPM 2.0, LPC Interface
	Watchdog Timer	Reset : 1 to 255 sec./min. per step
	Smart Management	Wake on LAN, PXE supported
	HW Monitor	Monitoring temperature, voltages. Auto throttling control when CPU overheats

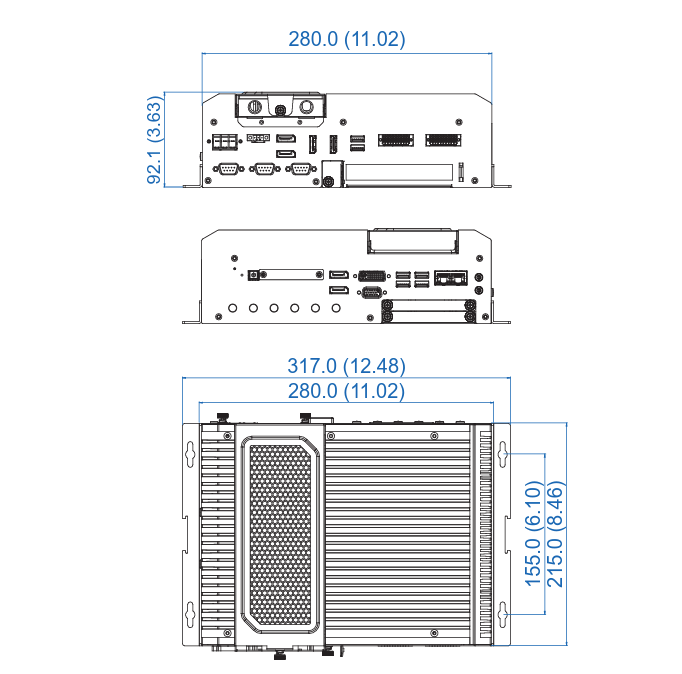

Mechanical	Dimension (W x L x H)	280.0mm x 215.0mm x 92.1mm
	Weight	5 kg
	Mounting	- Wallmount by mounting bracket - DIN Rail Mount (Optional) - 2U Rackmount (Optional)
Environment	Operating Temperature	-30 ~ +70 °C
	Storage Temperature	-40 ~ +80 °C
	Humidity	5% to 95% Humidity, non-condensing
	Shock	Operating 10 G peak acceleration (11 ms duration)
	Vibration	Operating Random Vibration Test 5~500Hz, 0.5Grms

Vincanwo Group High-performance AI Computing Workstation | VG-IPC8000 is performance-driven computing engines for mission critical real time AI inspection at the Edge. Featuring multiple super speed 10G USB 3.2 Gen 2 connections for video capture, multiple 10G/1G GigE LAN ports support IP cameras, IEEE 802.3at PoE+ (25.5W/48V) for simpler infrastructure requirements in limited operation space, OpenVINO/CUDA Core supported for AI computing, optional Optical Character Recognition (OCR), Optical Character Verification (OCV) and Automated Optical Inspection (AOI) AI inspection training models embedded, High-performance AI Computing Workstation | VG-IPC8000 is your proficient solution for any computer vision applications for machine learning, deep learning and any edge AI computing for inspection.

High-performance AI Computing Workstation.jpg

High-Performance Workstation Fits Machine-Vision Applications
in Semiconductor Manufacturing

Semiconductor manufacturing is an extremely complex process. It’s been that way since the first wafers rolled off the line but is getting far more complex with every generation of devices. Factors that contribute to that complexity include: ・Increasing levels of miniaturization and precision, now measured in nanometers.

An Intelligent Automation solution integrates varieties of smart techonologies and services to carry out various manufacturing tasks and higher productivitiy even in harsh environments. There are always crucial factors when organizing connections between machine to machine (M2M) or human to machine, for example, HMI, fault finding, automation monitoring, environment inspection & surveillance, production plan integration, inventory management, database management, and data applications. PCIe/PCI expansion available, multiple COM RS-232/422/485 connections, isolated DIO, multiple GigE LAN ports, EtherCAT supported, high scalability, user-friendly interface, and rugged reliability, Vincanwo Group's fanless robust computing systems are your practical all-in-one partner for seamless integrated smart manufacturing solutions.

Vincanwo Group's AI Computers Series, Edge Computers Series, Servers & Storage Series, Panel PCs series, fanless embedded systems and GPU computing system are your practical all-in-one partner for seamless integrated Intelligent Automation solutions.
