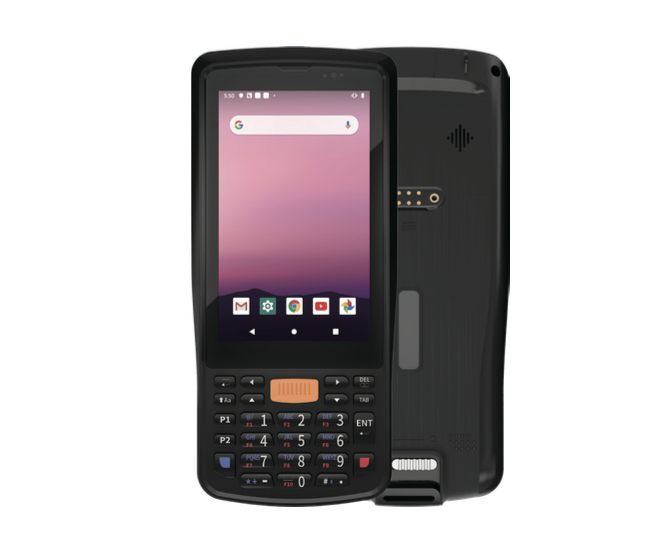

4inch Rugged Handheld | T40
VINCANWO GROUP
| Availability: | |
|---|---|
| Quantity: | |
SKU | T40 |
Dimension | 162.4 x 72.8 x 19.4 mm |
Weight | 250 g |
Device Color | black |
LCD | 4'' IPS 16:9, 400*800, 300 nits |
Touch Panel | 5 point capacitive, G+FF, Corning gorilla glass |
Camera | Rear 13.0MP, Automatic focusing, PDAF support |
I/O | USB Type-C x 1, TF Card x 1 max: 128G, SIM Card x 1 (nano SIM cards x 2 or nano SIM card x 1 + TF card x 1), POGO PIN1 2pin (Base Charge) x 1, POGO PIN2 6pin (connecting UHF and Scanner Gun) x 1 |
Power | AC100V ~ 240V, 50Hz/60Hz, DC 5V/2A |
Battery Capacity | 3.8V/4500mAh |
Battery Type | External removable lithium ion battery |
Battery Endurance | 16 hours |
GNSS | Support GPS, Glonass, beidou(G+G+B) |
WiFi | 2.4G+5G, WIFI 802.11(a/b/g/n/ac) |
Bluetooth | BT 5.0 LE, Transmission distance: 10m |
4G | GSM: B2/B3/B5/B8 WCDMA: B1/B2/B5/B8 TDS: B34/B39 FDD: B1/B2/B3/B4/B5/B7/B8/B13/B17/B20/B28AB TDD: B38/B39/B40/B41 |
NFC | Support, 13.56MHz, Support ISO/IEC 14443A/B15693/18092/mifare protocols Card reading distance: 4cm |
Operate Temperature | -30 °C ~ 70 °C |
Store Temperature | -40 °C ~ 80 °C |
Humidity | 95% Non-Condensing |
IP Grade | IP65 |
2D | Support Optical resolution: 5mil/scan speed: 50 times/s |
Key Rugged Features
Extreme Environment Design
Chemical Resistance: Survives diesel, hydraulic fluid, 30% NaOH (ISO 2812-2)
Thermal Shock: Validated for 100 cycles (-30°C ↔ 60°C in <2 mins)
Sealed Ports: Self-cleaning USB-C (IP68 when latched)
Field Productivity
Programmable Keys: 3× tactile buttons (glove-compatible) + Emergency SOS
Multi-Scanning: Simultaneous barcode + RFID capture
GNSS Precision: Dual-frequency GPS/Galileo (L1/L5) + Dead Reckoning
Power Resilience
Hot-Swap Batteries: Swap without shutdown (supports supercapacitor buffer)
Wireless Charging: Qi 1.3 (15W) on vehicle docks
| Interface | Field Use Case |
|---|---|
| Wireless | 5G Sub-6GHz (Snapdragon X62), Wi-Fi 6E, Bluetooth 5.3 |
| Field Protocols | OPC UA Mobile, MQTT, Modbus RTU over BLE |

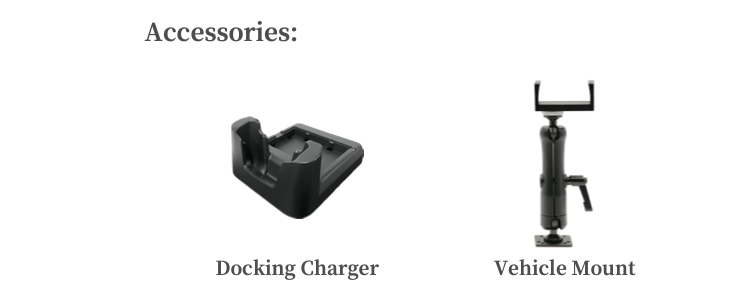

| Expansion | Pogo Pin Dock (serial/GPIO passthrough) |
| Sensors | -40°C IR Thermopile, 0–200kPa Barometer, Air Quality (PM2.5/VOC) |
Warehouse Picking: Voice-directed picking with Vocollect™ integration
Oil & Gas: ATEX Zone 2/22 hazardous area inspections
Field Service: Augmented Reality (AR) overlay via RealWear HMT-1
Rail Maintenance: FRA-compliant defect reporting (49 CFR §238)
| Parameter | Consumer Smartphone | T40 Rugged Handheld |
|---|---|---|
| Drop Survival | 1.2m (wood) | 3m (concrete) |
| Operating Temp | 0°C to 35°C | -30°C to 60°C |
| Battery @ -20°C | 40% capacity loss | <15% loss(heated pack) |
| Scanning Reliability | 85% @ 30cm | 99.9% @ 1.5m |
Environmental Protection
Post-Drop Inspection: Check seal integrity every 50 drops (replace Trelleborg D716gaskets)
Decontamination Protocol: UV-C sanitization cycle (compatible with Dynarex 1107 stations)
Battery Management
Cold Weather: Use Polar Battery Heater Pouch below -15°C
Storage: Maintain 40% charge at 15°C for 10-year shelf life
Scanning Optimization
Reflective Surfaces: Enable Dynamic Focusmode (reduces misreads by 92%)
Dusty Environments: Activate Laser Sweep Assist for obscured barcodes
| Factor | T40 Advantage |
|---|---|
| Repair Costs | 83% lower vs. consumer devices (3-year failure rate: 4% vs. 27%) |
| Battery Lifecycle | 2000 cycles (vs. 500 for consumer) |
| Downtime Reduction | Hot-swap batteries save 45 min/shift |
| Software Updates | 10-year security patches |
